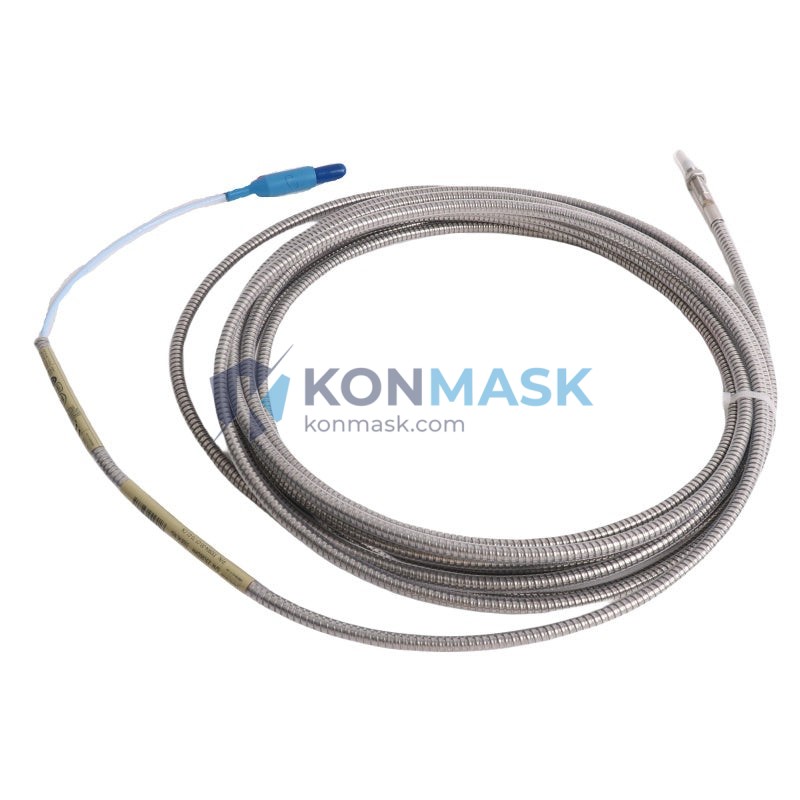

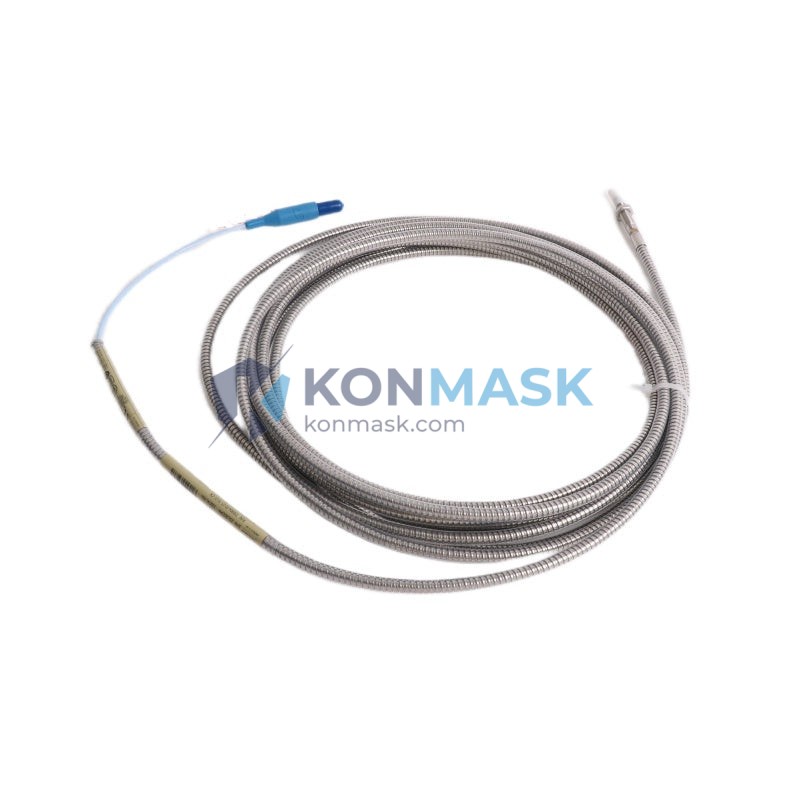

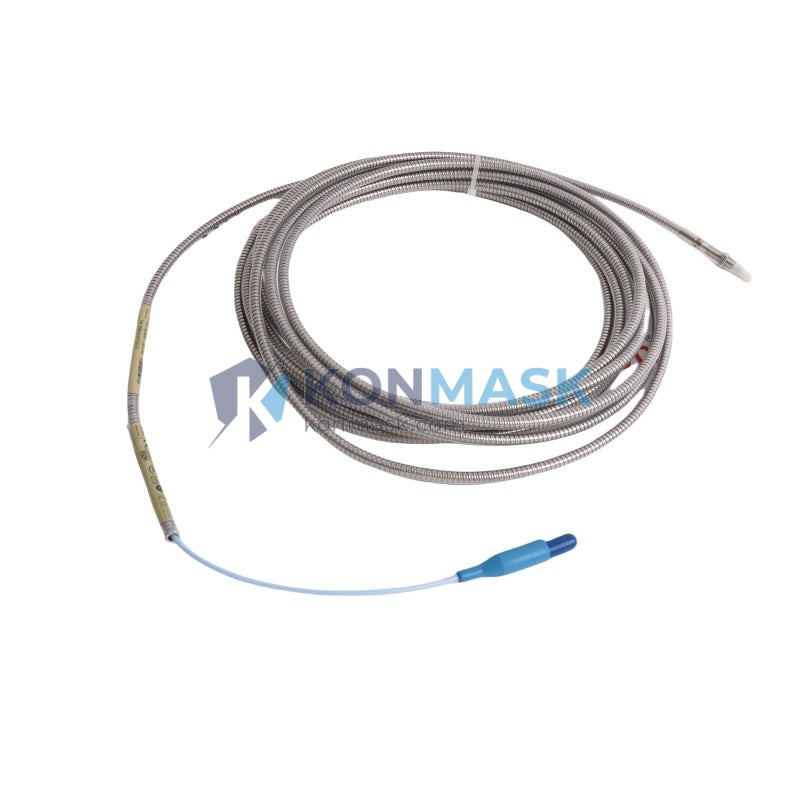

Bently Nevada 330904-00-13-10-02-05/CN 3300 NSv Proximity Probe | Replacement, Equivalent & Selection Guide
The Bently Nevada 330904-00-13-10-02-05/CN is a high-performance eddy-current proximity probe from the industry-standard 3300 NSv Series, engineered for continuous, non-contact vibration and position measurement on rotating machinery. This page provides full technical specifications, verified compatible replacements, a structured selection guide, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (MPN) | 330904-00-13-10-02-05/CN |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3300 NSv Proximity Transducer System |
| Probe Type | Eddy-Current (Non-Contact) Proximity Probe |
| Cable Length | 5 m (standard) |
| Tip Diameter | 8 mm |
| Thread Size | M10 × 1 |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 – 2.25 mm (10 – 90 mil) |
| Operating Temperature | −35 °C to +177 °C |
| Target Material | AISI 4140 Steel (standard) |
| Connector | Integral armored cable with BNC/TNC |
| Approvals | CE, ATEX (refer to datasheet) |
| Weight | ~620 g (probe + cable assembly) |
Compatible Replacement & Equivalent Models
The following models are verified functional equivalents or drop-in replacements for the 330904-00-13-10-02-05/CN. Always confirm cable length, tip diameter, and system driver compatibility before substitution.
| Model | Brand | Notes |
|---|---|---|
| 330903-00-13-10-02-05 | Bently Nevada | Standard (non-CN) variant; same electrical specs |
| 330905-02-12-10-02-00 | Bently Nevada | 3300 XL 8mm probe; compatible with 3300 drivers |
| 330780-50-00 | Bently Nevada | 3300 5m extension cable; use with 330900 series probes |
| PR6423/010-100 | Epro (Baker Hughes) | 8mm eddy-current probe; compatible with CON021 driver |
| PR6424/010-100 | Epro (Baker Hughes) | Alternative 8mm probe for Epro/Bently mixed systems |
| CWY-DO-810-05-00-N | Zhonghang Electronics | Chinese-market equivalent; verify driver compatibility |
⚠ Disclaimer: Replacement suitability depends on your specific system configuration. Contact our engineers for a compatibility review before ordering.
Why Choose the Original Model
- Factory-calibrated to ±1% linearity — no field recalibration required.
- System-matched to Bently Nevada 3300 drivers and monitors for guaranteed signal integrity.
- Proven reliability in turbines, compressors, pumps, and gearboxes across oil & gas, power generation, and petrochemical industries.
- Full traceability — each unit ships with a certificate of conformance and factory test report.
- Long-term availability — Konmask maintains stock of current and legacy Bently Nevada parts.
Typical Applications
- Shaft radial vibration monitoring on steam and gas turbines
- Axial position (thrust) measurement on centrifugal compressors
- Differential expansion monitoring on large rotating machinery
- Speed and phase reference measurement (Keyphasor® compatible)
- Eccentricity monitoring during slow-roll and startup sequences
System Compatibility
The 330904-00-13-10-02-05/CN is designed to operate within the Bently Nevada 3300 NSv Proximity Transducer System. Confirm compatibility with the following components:
- Drivers / Oscillator-Demodulators: 330180, 330185, 330130 series
- Monitors: 3300/16, 3300/20, 3500/42M, 3500/45
- Extension Cables: 330780 series (match cable length to total system length)
- Target Material: AISI 4140 or equivalent low-alloy steel (non-magnetic)
Selection Guide
Use the table below to select the correct 330904 variant for your application:
| Parameter | Options / Codes |
|---|---|
| Probe Body Length | 00 = Standard |
| Cable Length | 13 = 5 m | 25 = 9 m | 50 = 18 m |
| Connector Type | 10 = Integral armored cable |
| Tip Configuration | 02 = Standard 8 mm tip |
| Thread | 05 = M10 × 1 |
| Suffix /CN | China-market version (CE/CCC compliant) |
Not sure which variant fits your system? Send us your system drawing or monitor model and our engineers will confirm the correct part number.
Quality Assurance & Sourcing
- ✅ Genuine OEM parts sourced from authorized Bently Nevada / Baker Hughes distribution channels.
- ✅ Anti-counterfeit verification — all units inspected against OEM packaging, labels, and serial number databases.
- ✅ ISO 9001-aligned incoming inspection process.
- ✅ Warranty: 12 months from date of shipment.
- ✅ Export compliance: EAR/ECCN classification confirmed; CN-suffix units cleared for domestic China use.
How to Order
- Click Add to Cart or Request a Quote above.
- Provide your PO number, delivery address, and required delivery date.
- Our team will confirm stock availability and lead time within 1 business day.
- Payment: T/T (wire transfer), PayPal, or credit terms for approved accounts.
- Shipping: DHL / FedEx Express worldwide; sea freight available for bulk orders.
Replacement & Compatibility FAQ
Q: Can I use a 330903 probe instead of the 330904?
A: Yes — the 330903 and 330904 share the same electrical specifications. The primary difference is the cable jacket material. Confirm your environmental requirements before substituting.
Q: Is the /CN suffix version electrically identical to the standard version?
A: Yes. The /CN suffix denotes China-market regulatory compliance (CCC/CE labeling). Electrical and mechanical specifications are identical.
Q: What driver do I need for this probe?
A: The 330904 probe requires a Bently Nevada 3300 series driver/oscillator-demodulator (e.g., 330180 or 330185). It is not compatible with 3500 series proximitor drivers without an adapter.
Q: Can I extend the cable length?
A: Yes, using Bently Nevada 330780 series extension cables. Total system cable length (probe + extension) must not exceed the driver’s specified maximum.
Q: Do you provide a certificate of conformance?
A: Yes. A CoC and factory test report are included with every shipment upon request.
