Vibration Monitoring Solution – Bently Nevada 330910-00-10-05-02-00 | 3300 XL Series
Where This Product Is Used

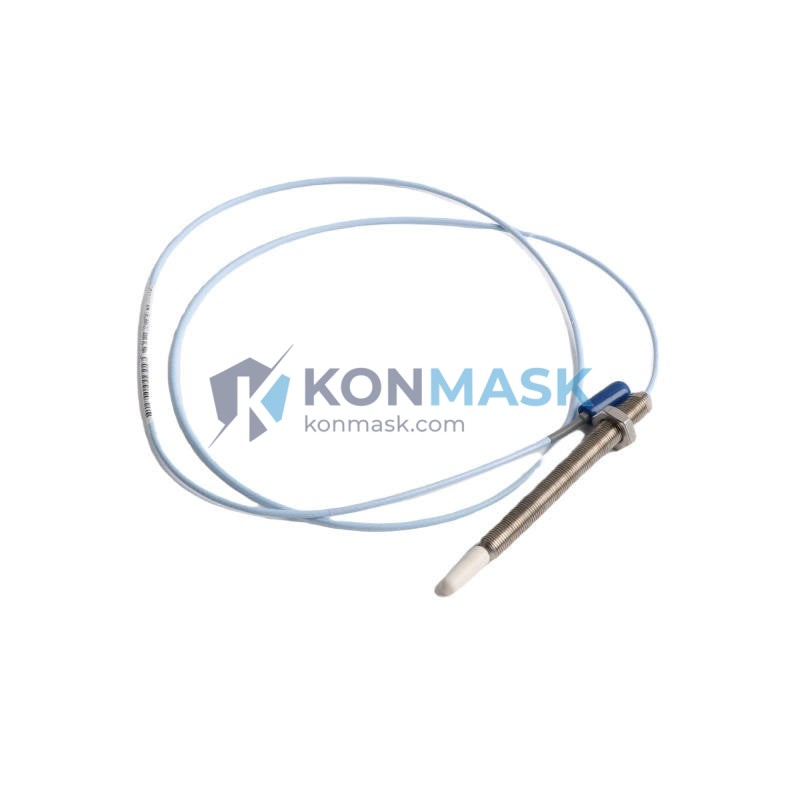

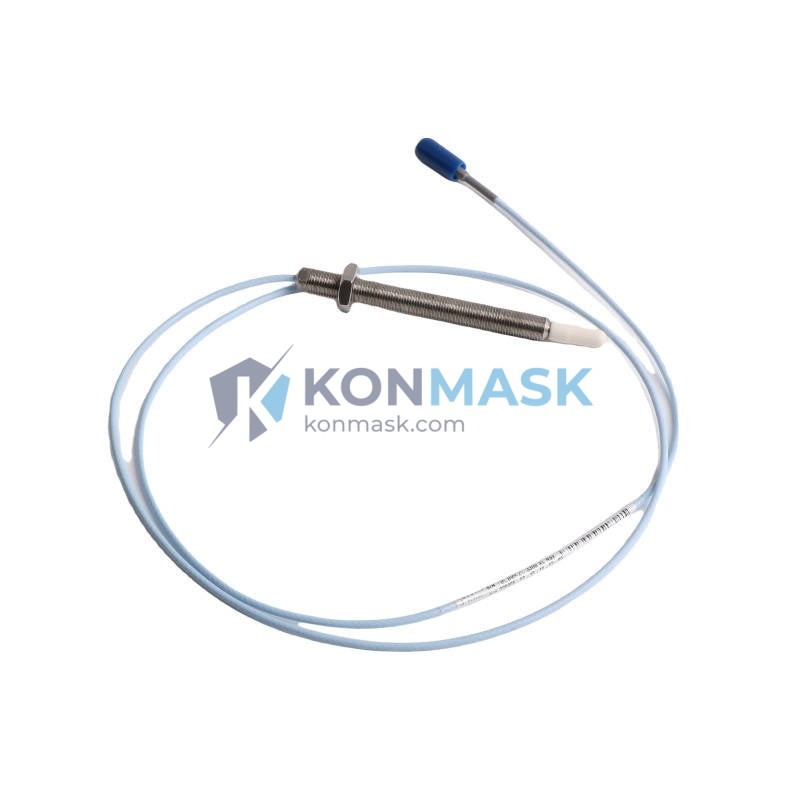

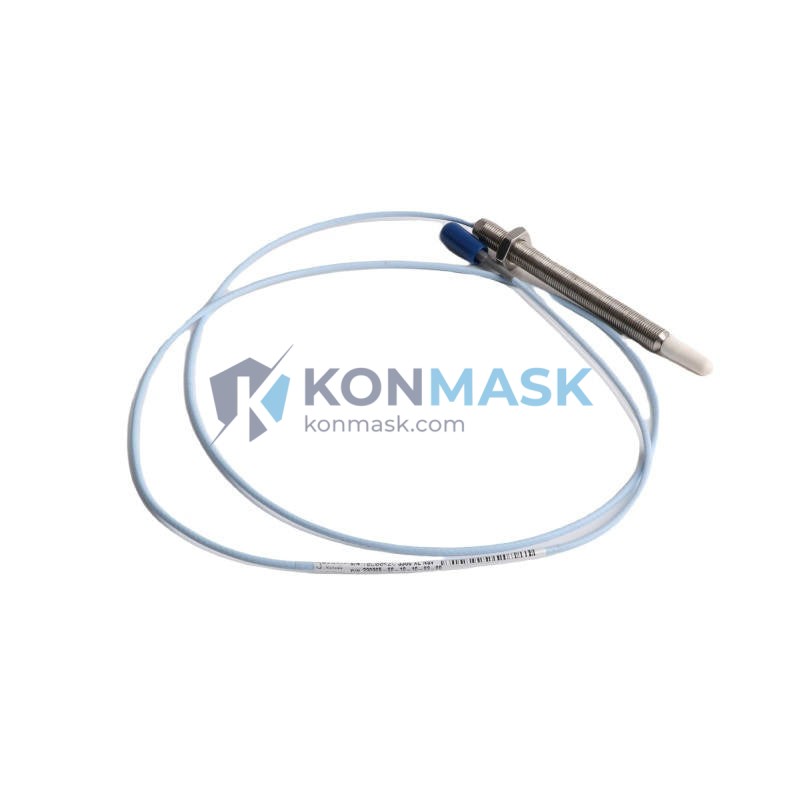

The Bently Nevada 330910-00-10-05-02-00 Proximity Transducer System is engineered for continuous, non-contact vibration and position measurement in rotating machinery. Typical deployment environments include:
- Steam and gas turbines in power generation plants
- Centrifugal and axial compressors in oil & gas facilities
- Pumps, fans, and gearboxes in petrochemical processing
- Marine propulsion shafting systems
- Pulp & paper mill drive trains
- Critical rotating equipment requiring API 670-compliant monitoring
Technical Specifications
- Part Number: 330910-00-10-05-02-00
- Series: Bently Nevada 3300 XL Proximity Transducer System
- Transducer Type: Eddy-current (non-contact) proximity probe
- Probe Cable Length: 5 m (standard)
- Extension Cable Length: 2 m
- Driver/Oscillator: 3300 XL 8mm driver
- Measurement Range: 0.25 mm – 2.25 mm (linear range)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Frequency Response: DC – 10,000 Hz
- Operating Temperature: -35 °C to +121 °C (probe); -40 °C to +85 °C (driver)
- Supply Voltage: -24 VDC (nominal)
- Output: -1 VDC to -19 VDC (proportional to gap)
- Connector: 5-pin DIN (driver output)
- Approvals: CE, FM, CSA, ATEX (Zone 1/2)
- Weight: ~80 g
Why Engineers Specify This Model
- API 670 Compliance: Meets the industry standard for machinery protection systems, ensuring acceptance by EPC contractors and end-user inspection teams.
- Proven 3300 XL Platform: Backward-compatible with existing Bently Nevada monitoring racks, minimizing retrofit engineering effort.
- High Signal Integrity: Matched probe-cable-driver system eliminates calibration drift caused by mixing unmatched components.
- Wide Temperature Range: Suitable for both ambient-temperature gearboxes and high-temperature steam turbine bearing housings.
- Hazardous Area Rated: ATEX/FM intrinsically safe certification supports installation in Zone 1 classified areas without additional barriers in many configurations.
- Direct Rack Integration: Plug-and-play with Bently Nevada 3500 and 3300 series monitoring racks.
Complete System Bill of Materials
A complete proximity transducer system typically includes the following matched components:
- Proximity Probe – 330910-00-10-05-02-00 (this item)
- Extension Cable – 330130-080-00-00 (8 m, if longer run required)
- Oscillator/Driver – 330180-X1-05 (3300 XL 8mm driver)
- Monitoring Rack – Bently Nevada 3500/40M or 3500/42M
- Mounting Hardware – Probe holder, lock nut, and armored conduit fittings
Contact Konmask.com to source the complete matched system or individual replacement components.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems
- IEC 60079 – Explosive Atmospheres (ATEX)
- FM 3610 – Intrinsically Safe Apparatus
- CE Marking – EU Machinery Directive
- ISO 10816 / ISO 20816 – Mechanical Vibration Evaluation
Quality Assurance & Sourcing
All Bently Nevada components supplied by Konmask.com are sourced through verified industrial distribution channels. Each unit undergoes incoming inspection including:
- Visual and dimensional verification against OEM datasheet
- Label and serial number authenticity check
- Functional continuity test prior to dispatch
- Anti-static packaging with humidity indicator card
Traceability documentation available upon request for regulated industries.
How to Source This Part
- In Stock: Ready to ship from our warehouse — typical lead time 1–3 business days.
- Request a Quote: Email support@konmask.com for volume pricing or matched-system quotes.
- Urgent Requirement: Call or WhatsApp +0086 19859288691 for same-day response.
- OEM Cross-Reference: Replaces legacy Bently Nevada 330900 series probes in most installations.
Application-Specific FAQ
Q: Can this probe be used with a Bently Nevada 3500 rack?
A: Yes. The 330910-00-10-05-02-00 is fully compatible with the 3500/40M and 3500/42M radial vibration monitor cards when paired with the correct 3300 XL driver.
Q: What is the maximum shaft speed this system can monitor?
A: The 3300 XL system supports frequency response up to 10,000 Hz, making it suitable for machinery operating up to approximately 600,000 RPM in displacement measurement mode.
Q: Is this system suitable for axial position (thrust) measurement?
A: Yes, with appropriate mounting orientation and a compatible thrust monitor card (e.g., 3500/60). Confirm target material and gap range with your application engineer.
Q: Do you supply calibration certificates?
A: Factory calibration data is embedded in the matched system. Third-party calibration certificates can be arranged upon request for an additional fee.
Q: Can I mix probe and driver from different part numbers?
A: Not recommended. Bently Nevada proximity systems are calibrated as matched sets. Mixing components from different part numbers will introduce measurement error and may void compliance.
