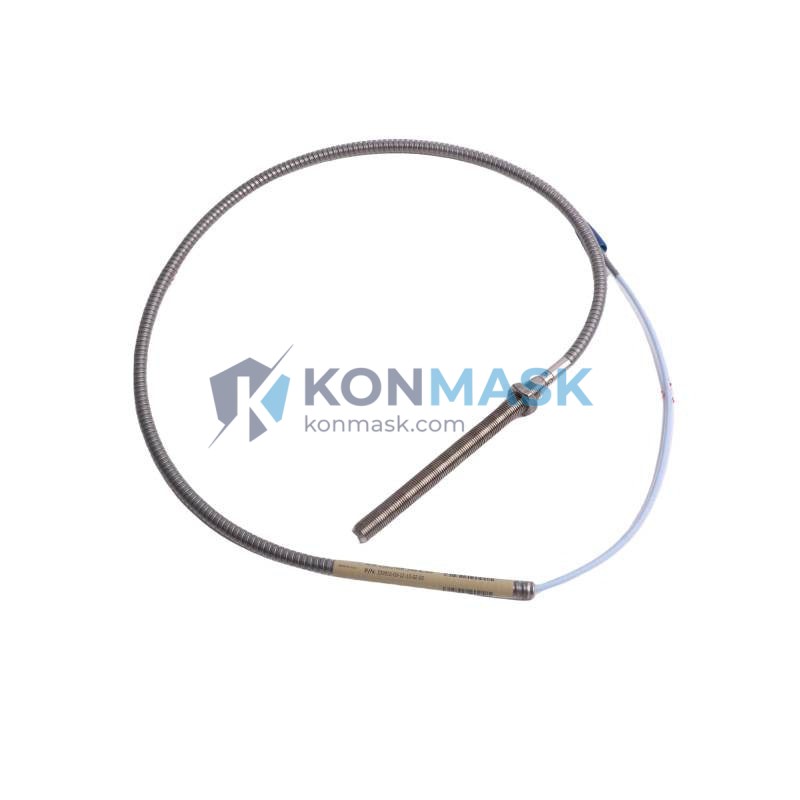

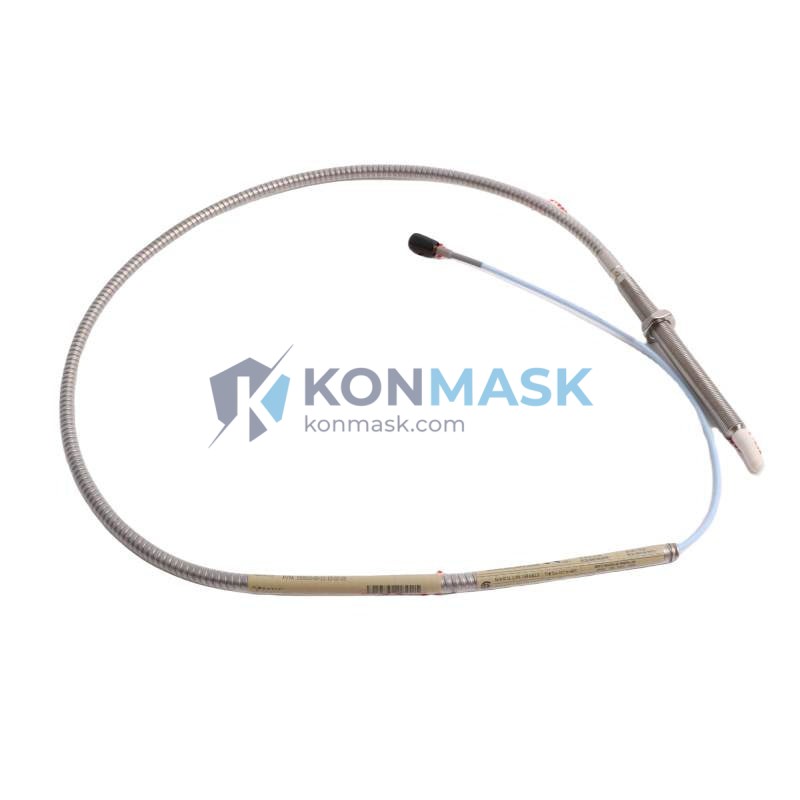

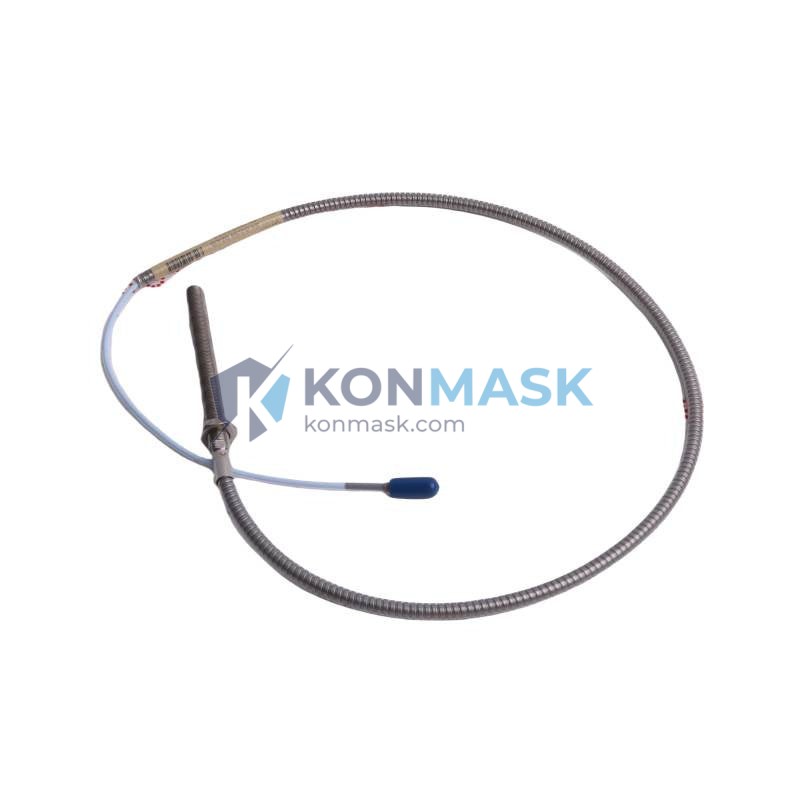

Bently Nevada 330910-16-23-10-02-00 NSv Proximity Probe – 3300 NSv Proximity Transducer System
Imagine a large rotating machine – a steam turbine, a centrifugal compressor, or a critical pump – running without any shaft vibration feedback. Without a reliable proximity probe in place, the first sign of a bearing failure or rotor instability could be a catastrophic, unplanned shutdown: shattered bearings, bent shafts, and weeks of costly downtime. The Bently Nevada 330910-16-23-10-02-00 NSv Proximity Probe is the front-line sensor that prevents exactly this scenario, delivering continuous, real-time shaft displacement data to your condition monitoring system before damage occurs.
The 330910-16-23-10-02-00 is a specific configuration within Bently Nevada’s industry-leading 3300 NSv Proximity Transducer System – a platform trusted in refineries, power generation plants, and petrochemical facilities worldwide. The NSv (Non-Standard voltage) series is engineered for applications where standard -24 VDC driver supply is unavailable, making this probe an essential solution for legacy DCS integrations and specialized OEM machinery. As part of the broader 3300 product family, it maintains full compatibility with Bently Nevada’s 3500 Series machinery protection systems and System 1 software ecosystem.
Technical Specifications
- Part Number / SKU: 330910-16-23-10-02-00
- Series: 3300 NSv Proximity Transducer System
- Probe Type: Eddy-Current Proximity Probe
- Probe Active Element Length: 16 mm
- Cable Length: 23 ft (extension cable configuration)
- Thread Size: 10-32 UNF
- Connector Type: 02-pin configuration
- Target Material Compatibility: Steel, stainless steel, and other ferromagnetic / non-ferromagnetic metals (per calibration)
- Operating Temperature: Refer to Bently Nevada official datasheet for rated range
- Approvals: Designed for hazardous area installations (consult certification documentation)
- Weight: Approx. 140 g
Note: All specifications are based on Bently Nevada published data. Always consult the official Bently Nevada product datasheet for safety-critical installations.
Key Features & Benefits
- Non-Contact Measurement: Eddy-current technology provides wear-free, continuous shaft position and vibration measurement without physical contact.
- NSv Compatibility: Designed for non-standard voltage driver systems, expanding deployment options in legacy and OEM environments.
- High Sensitivity & Linearity: Delivers precise gap voltage output for accurate radial vibration, axial position, and differential expansion monitoring.
- Robust Industrial Construction: Stainless steel housing and armored cable withstand harsh plant environments including high temperatures, vibration, and chemical exposure.
- Drop-in Replacement: Maintains dimensional and electrical compatibility with existing 3300 NSv installations, minimizing retrofit engineering effort.
- Long Service Life: Solid-state design with no moving parts ensures extended MTBF in continuous 24/7 operation.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbines, pipeline pumps
- Power Generation: Steam turbines, hydro generators, gas turbine generators
- Petrochemical & Refining: Reactor agitators, boiler feed pumps, expanders
- Pulp & Paper: High-speed rolls, refiners, and dryer section drives
- Marine & Offshore: Propulsion shafting, auxiliary machinery monitoring
- General Heavy Industry: Any rotating machinery requiring API 670-compliant vibration monitoring
System Integration & Compatible Parts
The 330910-16-23-10-02-00 probe is designed to operate as part of a complete Bently Nevada 3300 NSv transducer system. Typical system components include:
- Extension Cables: 3300 XL Series extension cables (e.g., 330130-xxx-xx-xx) for signal transmission from probe tip to driver
- Drivers / Proximitors: 3300 NSv Proximitor® sensors for signal conditioning
- Monitoring Modules: Bently Nevada 3500 Series rack-based monitoring system (e.g., 3500/40M, 3500/42M)
- Software: System 1 Condition Monitoring & Diagnostics Software
- Mounting Hardware: Compatible probe holders and armored conduit fittings
Contact Konmask.com for assistance selecting the correct extension cable and driver to complete your transducer system.
Our Quality Assurance Process
At Konmask.com, every Bently Nevada component we supply undergoes a rigorous multi-step verification process:
- Source Verification: Parts are sourced from authorized distributors, certified surplus channels, or directly from OEM-approved supply chains.
- Visual & Physical Inspection: Each unit is inspected for physical damage, correct labeling, and part number accuracy before dispatch.
- Functional Testing: Where applicable, proximity probes are bench-tested for output voltage linearity and sensitivity conformance.
- Traceability Documentation: We provide available traceability records including lot numbers and certificates of conformance upon request.
- Secure Packaging: Anti-static, shock-resistant packaging ensures safe transit to your facility anywhere in the world.
How to Order
- Click the “Request a Quote” button or contact us directly via email or phone.
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will confirm availability, lead time, and prepare a formal quotation within 24 hours.
- Upon order confirmation, we arrange secure export packaging and international shipping with full documentation (commercial invoice, packing list, COO).
We support EXW, FOB, CIF, and DDP Incoterms. Payment via T/T, L/C, and major trade finance instruments accepted.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation & Condition Monitoring Parts – Deep expertise in Bently Nevada, GE, Emerson, and other leading brands.
- ✅ Global Export Experience – Serving clients in 50+ countries with compliant export documentation.
- ✅ Fast Response – Dedicated B2B inquiry team responds within 24 hours.
- ✅ Competitive Pricing – Direct sourcing relationships enable cost-effective pricing for MRO and project procurement.
- ✅ Technical Support – Our engineers can assist with system compatibility, installation guidance, and cross-reference verification.
Frequently Asked Questions
- Q: What is the difference between the 3300 NSv and standard 3300 XL proximity probe systems?
- A: The 3300 NSv (Non-Standard voltage) system is designed for applications where the standard -24 VDC Proximitor supply is not available. It uses a different driver voltage range, making it suitable for specific OEM and legacy system integrations that cannot accommodate the standard XL driver.
- Q: Is the 330910-16-23-10-02-00 compatible with the Bently Nevada 3500 monitoring rack?
- A: Yes, when paired with the correct 3300 NSv Proximitor driver, the output signal is compatible with 3500 Series monitoring modules. Always verify the complete transducer system configuration with Bently Nevada documentation or contact our technical team for confirmation.
- Q: Can Konmask.com supply the complete 3300 NSv transducer system (probe + extension cable + driver)?
- A: Yes. We can source and supply complete transducer system sets. Please provide your system configuration requirements when submitting your inquiry.
- Q: What is the lead time for the 330910-16-23-10-02-00?
- A: Lead time depends on current stock availability. In-stock items typically ship within 3–5 business days. For out-of-stock items, standard lead time is 2–6 weeks. Contact us for real-time availability.
- Q: Do you provide a warranty for this proximity probe?
- A: Yes. We offer a standard 12-month warranty against manufacturing defects for all parts supplied. Terms and conditions apply – please request our warranty policy document with your quotation.
