Bently Nevada 3500/05-01-02-01-00-01 – Modular System Chassis Rack | 3500 Machinery Protection Platform
Engineering Background
The Bently Nevada 3500 Series is the industry-standard platform for continuous online machinery protection and condition monitoring in rotating equipment applications. Deployed globally across power generation, oil & gas, petrochemical, and heavy industrial facilities, the 3500 system provides real-time vibration, position, and dynamic measurement data that safeguards critical turbomachinery assets.
Product Positioning

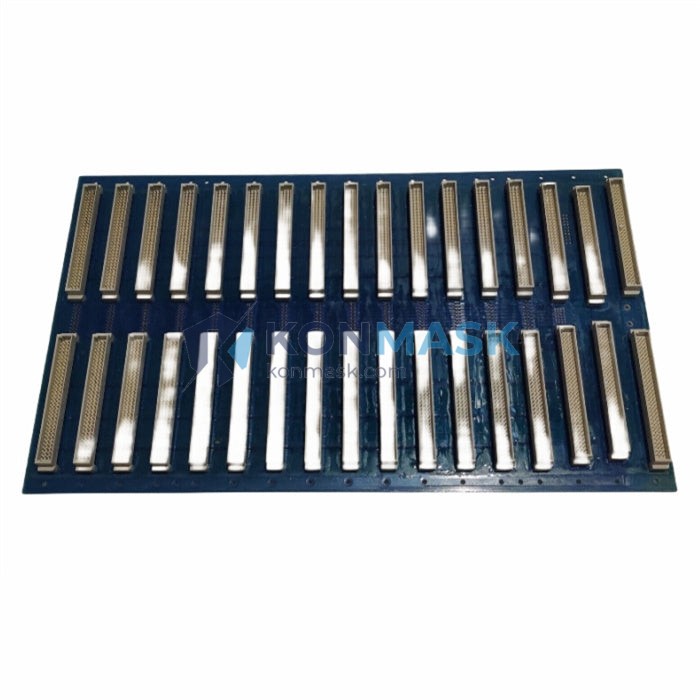

The 3500/05-01-02-01-00-01 is the primary chassis rack backbone of the 3500 platform. It provides the structural housing, backplane communication bus, and power distribution infrastructure that integrates all functional I/O, monitor, and communication modules into a unified, rack-mounted protection system. This chassis is the mandatory foundation for any 3500 system build or expansion.
Complete Technical Specifications
- Part Number: 3500/05-01-02-01-00-01
- Manufacturer: Bently Nevada (Baker Hughes)
- Platform: 3500 Machinery Protection System
- Module Type: System Chassis Rack
- Form Factor: 19-inch rack-mount, modular card cage
- Slot Capacity: Supports up to 14 module slots (monitor, I/O, power, communication)
- Backplane Bus: Integrated high-speed serial communication backplane
- Power Input: Accepts 3500/15 or 3500/15E power supply modules (redundant capable)
- Grounding: Chassis ground stud for EMI/RFI shielding compliance
- Weight: Approx. 1,200 g (bare chassis)
- Operating Temperature: 0 °C to +65 °C
- Storage Temperature: −40 °C to +85 °C
- Humidity: 5% to 95% RH, non-condensing
- Certifications: CE, CSA, FM (per system-level approvals)
- SKU / Order Code: 3500/05-01-02-01-00-01
Proven Application Environments
- Gas turbine and steam turbine protection systems
- Centrifugal and reciprocating compressor monitoring
- Pump and motor vibration surveillance
- Offshore platform and FPSO machinery protection
- Refinery and petrochemical critical rotating equipment
- Power plant generator and gearbox monitoring
- System replacement, upgrade, and spare-parts inventory programs
Engineering Advantages
- Universal Module Compatibility: Accepts the full range of 3500 Series monitor, I/O, and communication modules without hardware modification.
- Redundant Power Architecture: Dual power supply slots enable N+1 redundancy for uninterrupted protection in SIL-rated applications.
- Integrated Backplane: High-speed serial bus eliminates inter-module wiring, reducing installation time and failure points.
- EMI/RFI Shielded Enclosure: Robust steel chassis with grounding provisions meets industrial electromagnetic compatibility requirements.
- Hot-Swap Module Support: Enables online module replacement without system shutdown when paired with appropriate 3500 modules.
- Scalable Configuration: Single chassis supports simple 2-channel systems through full 14-slot multi-parameter protection arrays.
System Architecture & Signal Flow
The 3500/05 chassis rack serves as the central integration point of the 3500 system architecture:
- Slot 1–2: Reserved for 3500/15 Power Supply module(s) — primary and optional redundant
- Slot 3: 3500/22 Transient Data Interface or 3500/92 Communication Gateway (system controller)
- Slots 4–14: Monitor modules (3500/40M, 3500/42M, 3500/44M, 3500/45, 3500/50, 3500/60, 3500/61, 3500/72M, etc.)
- Backplane Bus: Carries power rails (+5 V, ±15 V, +24 V), serial data, and relay voting logic across all installed modules
- Rear I/O: Each slot exposes rear-panel terminal blocks or I/O module connectors for field wiring
Sourcing & Quality Verification
- Units sourced from decommissioned plant upgrades, certified OEM distributors, and controlled surplus channels
- Each chassis inspected for backplane connector integrity, slot guide rail condition, and chassis ground continuity
- Functional verification performed where test infrastructure is available
- Original Bently Nevada part number label and revision markings confirmed prior to listing
- Packaging: anti-static bag + foam-lined carton; export carton available on request
Procurement Process
- Step 1: Confirm part number 3500/05-01-02-01-00-01 matches your system revision requirements
- Step 2: Contact support@konmask.com or call +0086 19859288691 for stock confirmation and lead time
- Step 3: Request datasheet, inspection photos, or functional test report if required
- Step 4: Place order — payment via T/T, PayPal, or trade terms for qualified accounts
- Step 5: Shipping via DHL / FedEx / sea freight; export documentation (CO, packing list, commercial invoice) provided
Technical FAQ
Q: Is this chassis compatible with all 3500 Series monitor modules?
A: Yes. The 3500/05 backplane is universal across the 3500 module family. Verify firmware revision compatibility for newer modules (e.g., 3500/40M Rev. D+).
Q: Can I use this chassis as a direct replacement for an existing 3500/05 in the field?
A: Yes, provided the slot count and power supply configuration match. All field wiring connects to rear I/O modules, not the chassis itself, simplifying swap-out.
Q: Does the chassis include power supplies or monitor modules?
A: No. The 3500/05-01-02-01-00-01 is the bare chassis rack only. Power supplies (3500/15) and monitor modules are ordered separately.
Q: What is the difference between the -01-02-01-00-01 suffix variants?
A: The suffix encodes configuration options including rack size, power input type, and approval markings. Contact us with your existing chassis label for exact cross-reference.
Q: Do you provide a warranty?
A: We offer a 90-day functional warranty on all verified units. Extended warranty and exchange programs available — contact our technical team.
