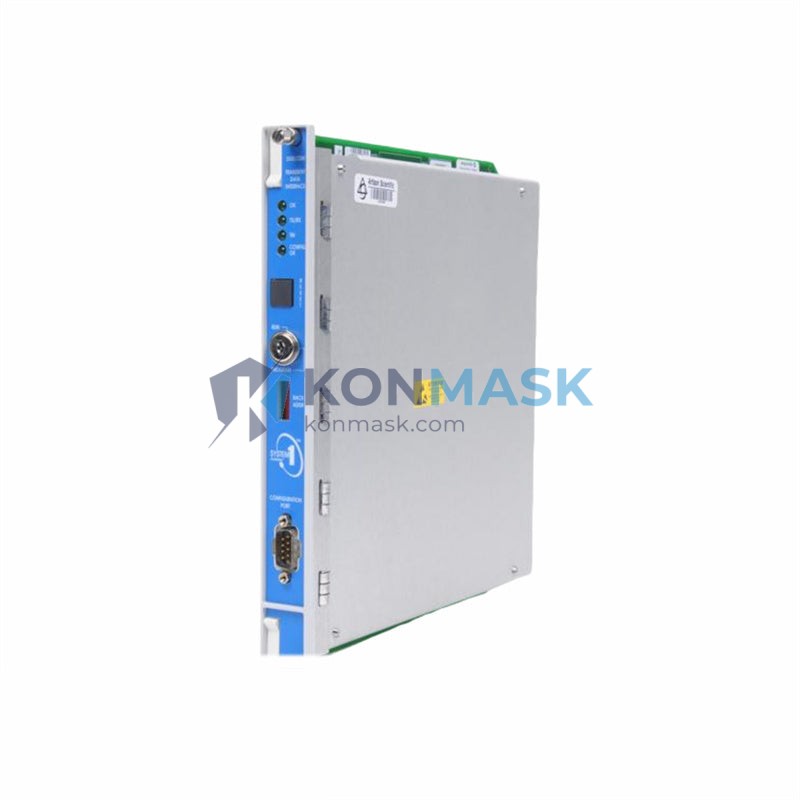

Turbomachinery Vibration Monitoring Solution – Bently Nevada 3500/22M | 3500 Series
Where This Product Is Used
The Bently Nevada 3500/22M Proximitor Interface Module is purpose-built for continuous vibration and position monitoring in rotating machinery environments. Typical deployment sites include:
- Gas & Steam Turbines – Shaft radial vibration and axial position monitoring in power generation plants
- Centrifugal Compressors – Real-time proximity probe signal conditioning in petrochemical and LNG facilities
- Pumps & Fans – Bearing health monitoring in water treatment and HVAC critical infrastructure
- Marine Propulsion Systems – Shaft displacement tracking in offshore and naval applications
- Refineries & Upstream Oil & Gas – API 670-compliant machinery protection in hazardous-area installations
Technical Specifications
- Part Number: 3500/22M
- Configuration: 288055-01 (Module) + 146031-01 (I/O Module)
- Series: Bently Nevada 3500 Machinery Protection System
- Function: Proximitor / Seismic Interface Module
- Input Channels: 2-channel proximity probe interface
- Signal Type: Eddy-current proximity probe (Bently Nevada 3300 / 7200 series probes compatible)
- Output: 4–20 mA analog, relay, and digital communication
- Power Supply: Supplied via 3500 rack backplane
- Operating Temperature: 0°C to +60°C
- Compliance: API 670, IEC 61508 SIL 2 capable
- Weight: 1,230 g
- Form Factor: Single-slot 3500 rack module
Why Engineers Specify This Model
- Dual-configuration part number (288055-01 + 146031-01) provides a complete, pre-matched module and I/O assembly — eliminating compatibility guesswork during maintenance windows
- Drop-in replacement for existing 3500/22 installations without rack reconfiguration
- API 670 compliance satisfies machinery protection requirements mandated by EPC contractors and plant operators
- Bently Nevada signal chain integrity — designed to work natively with 3300 XL and 7200 series proximity probes for calibrated, drift-free readings
- Proven field reliability in continuous-duty, high-vibration environments across upstream, midstream, and power generation sectors
Complete System Bill of Materials
For a fully operational 3500 Series monitoring channel, engineers typically specify:
- 3500/22M 288055-01+146031-01 — Proximitor Interface Module (this item)
- 3500/05 — Power Supply Module
- 3500/15 — Rack Interface Module (RIM)
- 3300 XL or 7200 Series Proximity Probe + Extension Cable + Proximitor Sensor
- 3500/92 — Communication Gateway Module (optional, for Modbus/TCP or OPC-UA integration)
- 3500 Rack (3-slot to 14-slot, depending on channel count)
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition)
- IEC 61508 – Functional Safety, SIL 2 capable architecture
- ISO 10816 / ISO 20816 – Mechanical vibration evaluation of machines
- CE Marking – EU electromagnetic compatibility and safety directives
- RoHS Compliant – Restriction of Hazardous Substances
Quality Assurance & Sourcing
Every unit offered through Konmask.com undergoes a structured pre-shipment process:
- Visual and mechanical inspection against OEM cosmetic standards
- Firmware version verification and documentation
- Functional bench test where applicable
- Anti-static packaging with humidity indicator card
- Traceable documentation provided upon request (test reports, certificates of conformance)
We source from decommissioned plant inventories, authorized distributors, and certified surplus channels — never from unverified grey-market brokers.
How to Source This Part
- In-stock orders: Add to cart and complete checkout — most orders ship within 1–3 business days
- Urgent / emergency shutdown (ESD) requirements: Contact us directly for expedited processing and same-day quotation
- Volume / project procurement: Request a formal quotation with lead time and warranty terms via email
- Export & international shipping: We ship globally with full commercial invoice and packing list documentation for customs clearance
📧 support@konmask.com | 📞 +0086 19859288691
Application-Specific FAQ
Q: Is the 3500/22M compatible with older 3500/22 racks?
A: Yes. The 3500/22M is backward-compatible with existing 3500 rack infrastructure. No rack modification is required for direct replacement.
Q: Which proximity probes are supported?
A: The module is designed for Bently Nevada 3300 XL 8mm and 5mm probes, as well as 7200 series probes. Third-party probes may require calibration verification.
Q: Can this module be used in SIL 2 safety instrumented systems?
A: The 3500/22M supports SIL 2 capable architectures per IEC 61508 when installed and validated according to Bently Nevada’s functional safety manual.
Q: What is the warranty on this unit?
A: Konmask.com provides a standard 90-day functional warranty. Extended warranty and exchange programs are available — contact us for details.
Q: Do you provide export documentation for international orders?
A: Yes. We provide commercial invoices, packing lists, and certificates of origin. HS Code 9031.80 applies to this product class for most jurisdictions.
