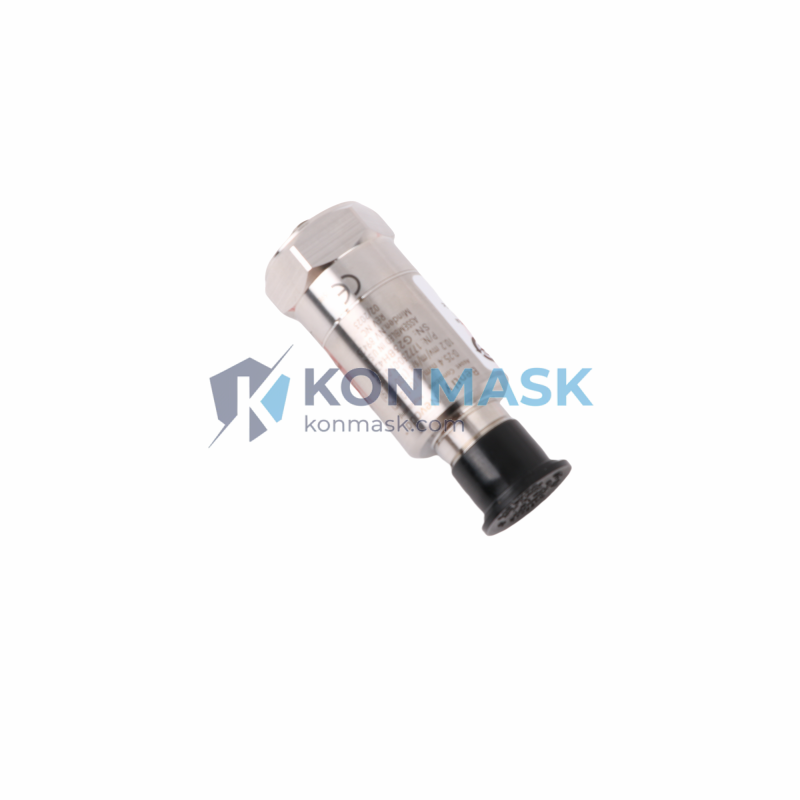

Bently Nevada 177230-01-01-05 – Seismic Vibration Transmitter Module | 3500 Series Machinery Protection Platform
Engineering Background: The Bently Nevada 3500 Series is the industry benchmark for continuous online machinery protection in rotating equipment applications. Deployed across power generation, oil & gas, petrochemical, and heavy industrial facilities worldwide, the 3500 platform provides real-time vibration, position, and process monitoring with relay-based trip logic. The 177230-01-01-05 is a dedicated seismic (velocity) transmitter module within this ecosystem, converting raw seismic sensor signals into standardized 4–20 mA outputs for integration with DCS, SCADA, and safety instrumented systems.
Product Positioning: Designed for procurement engineers and reliability teams requiring a certified, drop-in replacement or expansion module for existing 3500 Series racks. The 177230-01-01-05 maintains full backward compatibility with Bently Nevada rack infrastructure, eliminating re-engineering costs and minimizing downtime during maintenance windows.
Complete Technical Specifications
- Part Number: 177230-01-01-05
- Manufacturer: Bently Nevada (Baker Hughes)
- Series / Platform: 3500 Machinery Protection System
- Module Type: Seismic (Velocity) Transmitter Module
- Output Signal: 4–20 mA analog (industry standard)
- Input Compatibility: Velocity seismic sensors (geophone / velocity transducer)
- Rack Compatibility: Bently Nevada 3500 Series rack (standard 19″ frame)
- Communication: Compatible with 3500 System 1 software via rack backplane
- Power Supply: Supplied via 3500 rack backplane (no external PSU required)
- Operating Temperature: 0°C to +60°C (standard industrial range)
- Weight: 120 g (module only, excluding rack)
- Approvals / Certifications: CE, cULus (refer to OEM documentation for full certification matrix)
- Country of Origin: USA
- Condition Available: New / Surplus New / Refurbished (specify at inquiry)
Proven Application Environments
- Gas turbine and steam turbine bearing vibration monitoring
- Centrifugal compressor and pump seismic protection
- Power plant rotating machinery condition monitoring
- Offshore platform and FPSO machinery protection systems
- Petrochemical plant critical equipment surveillance
- Pipeline compressor stations with SIS integration requirements
Engineering Advantages
- Drop-in Compatibility: Direct replacement for existing 3500 Series racks — no firmware reconfiguration required in most deployments.
- Standardized 4–20 mA Output: Seamless integration with any DCS (Honeywell, Emerson, ABB, Siemens) or SCADA platform.
- High Signal Fidelity: Precision analog conditioning minimizes noise and ensures accurate velocity measurement for trip/alarm logic.
- Proven Field Reliability: 3500 Series modules are documented in API 670 compliant installations globally.
- Reduced Commissioning Time: Plug-and-play rack architecture reduces installation engineering hours.
System Architecture & Signal Flow
The 177230-01-01-05 receives raw velocity signals from field-mounted seismic sensors (geophones or velocity transducers) via the 3500 rack I/O terminal block. The module conditions, filters, and converts these signals to a calibrated 4–20 mA loop output. The conditioned signal is simultaneously available to the 3500 rack’s internal relay logic (for direct trip/alarm actuation) and to the backplane data bus for System 1 software monitoring. This dual-path architecture ensures both hardware-based protection and software-based condition monitoring operate in parallel without signal contention.
Sourcing & Quality Verification
- All units sourced through verified industrial surplus and authorized distribution channels.
- Each module undergoes visual inspection, label verification (part number, revision, serial number), and functional bench testing prior to shipment.
- Certificates of conformance and test reports available upon request for critical applications.
- Packaging: ESD-safe anti-static bag + foam-lined carton for international freight.
- Lead time: In-stock units ship within 2–5 business days; sourced units 7–21 business days.
Procurement Process
- Submit your RFQ via support@konmask.com or WhatsApp +0086 19859288691 with quantity and required condition.
- Receive quotation with availability confirmation, unit condition report, and lead time within 24 hours.
- Review and approve proforma invoice; select preferred freight method (DHL / FedEx / sea freight).
- Payment via T/T bank transfer or other agreed terms.
- Shipment with tracking number, packing list, and commercial invoice provided.
Technical FAQ
Q: Is the 177230-01-01-05 compatible with all 3500 Series rack configurations?
A: Yes, it is designed for the standard 3500 rack backplane. Confirm your rack revision with our technical team if you have a legacy installation pre-dating 2005.
Q: Can this module interface directly with a Honeywell DCS or Emerson DeltaV?
A: Yes. The 4–20 mA output is universally compatible with any DCS AI card accepting standard current loop inputs.
Q: What is the difference between the -01-05 and other suffix variants?
A: Suffix digits denote configuration options (input range, output scaling, approval markings). Contact us with your existing module suffix for a direct cross-reference.
Q: Do you provide a warranty?
A: Yes. All units carry a 12-month warranty against manufacturing defects. Refurbished units carry a 6-month warranty.
