Bently Nevada 3500/45 140072-04 Position Monitor – 3500 Series Machinery Protection System
Imagine a large steam turbine running at full load in a power generation plant — no warning, no indication, and then a catastrophic rotor thrust failure that destroys the machine and halts production for weeks. This scenario is precisely what the Bently Nevada 3500/45 Position Monitor is engineered to prevent. Without a dedicated, high-accuracy position monitoring module in your machinery protection rack, critical axial displacement and differential expansion events go undetected until it is too late. The 3500/45 is not optional equipment — it is the last line of defense between normal operation and irreversible mechanical damage.

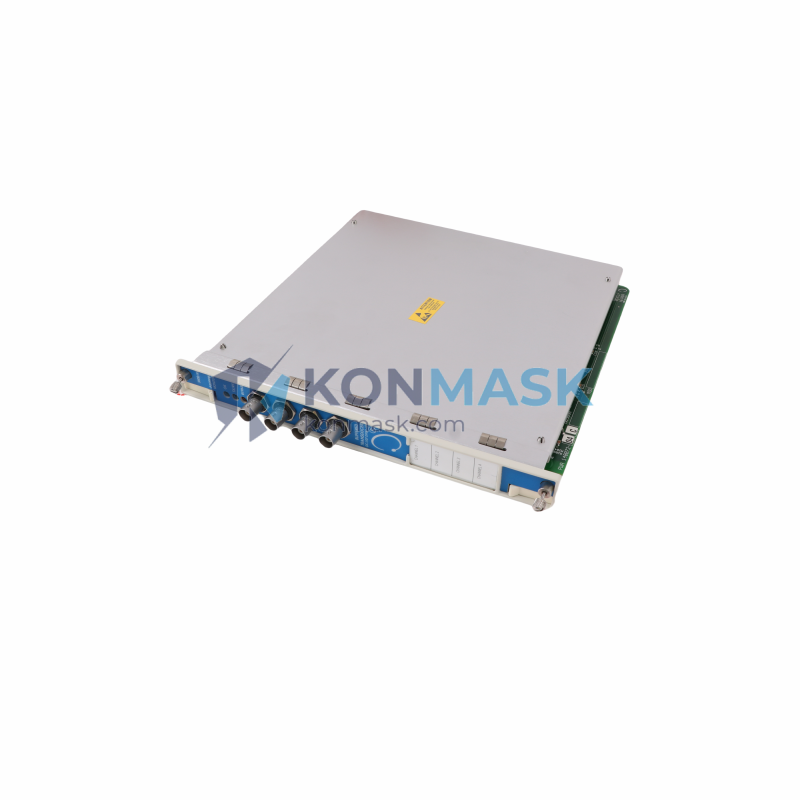

The 3500/45 140072-04 is a dual-channel position monitor card designed for the Bently Nevada 3500 Series Machinery Protection System (MPS) — the global industry standard for continuous, real-time protection of rotating machinery in oil & gas, power generation, petrochemical, and heavy industrial applications. Within the 3500 platform, the 3500/45 occupies a specialized role: it processes DC-coupled signals from proximity probes or other position transducers to measure slow-moving or static displacement parameters such as thrust position, differential expansion, valve position, and eccentricity. Its part number suffix 140072-04 identifies a specific configuration variant, ensuring compatibility with the correct transducer types and rack communication protocols used in your system.
Technical Specifications
- Model: 3500/45
- Part Number: 140072-04
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500 Machinery Protection System
- Module Type: Dual-Channel Position Monitor
- Measured Parameters: Thrust position, differential expansion, valve position, eccentricity, piston rod drop
- Signal Input: DC-coupled, compatible with 3300 XL / 7200 Series proximity transducers
- Channels: 2 independent monitoring channels per module
- Rack Compatibility: Bently Nevada 3500 Series rack (standard and TMR configurations)
- Communication: Supports Modbus, Ethernet (rack-level), and System 1 software integration
- Alarm Outputs: Configurable Alert and Danger relay outputs per channel
- Power Supply: Supplied via 3500 rack backplane
- Weight: Approx. 900 g
- Compliance: CE, SIL-capable (system-level), API 670 compatible
Note: All specifications are based on published Bently Nevada documentation. Konmask.com does not modify or re-engineer OEM hardware.
Key Features & Benefits
- Dual-Channel Architecture: Monitors two independent position parameters simultaneously, reducing rack slot consumption and wiring complexity.
- DC-Coupled Input Processing: Accurately captures slow-moving and static displacement signals that AC-coupled vibration monitors cannot measure.
- Configurable Alert / Danger Thresholds: Field-configurable setpoints via Rack Configuration Software (RCS) allow precise tuning to machine-specific clearance limits.
- Seamless 3500 Rack Integration: Hot-swappable module design minimizes maintenance downtime; no rack power-down required for replacement.
- System 1 Software Compatibility: Full integration with Bently Nevada System 1 Evolution software for trending, diagnostics, and alarm management.
- API 670 Compliance: Meets the requirements of API Standard 670 for machinery protection systems in petroleum, petrochemical, and natural gas industries.
- TMR Support: Compatible with Triple Modular Redundancy (TMR) rack configurations for safety-critical applications.
Industry & Equipment Applications
- Power Generation: Steam turbine thrust position monitoring; differential expansion measurement during startup and load changes.
- Oil & Gas: Compressor piston rod drop monitoring; gas turbine axial position protection on offshore platforms and LNG facilities.
- Petrochemical & Refining: Reactor feed pump thrust monitoring; valve position feedback in critical process loops.
- Pulp & Paper / Heavy Industry: Large motor and gearbox axial position monitoring in continuous process environments.
- Marine & Offshore: Propulsion turbine and compressor protection on FPSOs and LNG carriers.
System Integration & Compatible Parts
The 3500/45 140072-04 is designed to operate within the complete Bently Nevada 3500 ecosystem. Typical bill of materials for a position monitoring channel includes:
- Transducer: Bently Nevada 3300 XL or 7200 Series proximity probe assembly
- Extension Cable: Matched armored extension cable (e.g., 330130 series)
- Proximitor / Driver: 3300 XL 8mm or 11mm Proximitor sensor
- Rack: Bently Nevada 3500/05 Rack Interface Module + 3500 mainframe
- Power Supply: 3500/15 Power Supply Module (redundant configuration recommended)
- Communication Gateway: 3500/92 or 3500/93 Communication Gateway for Modbus/Ethernet
- Software: Bently Nevada System 1 Evolution or Rack Configuration Software (RCS)
Konmask.com can assist in sourcing compatible components across the full 3500 Series platform. Contact our team with your rack configuration details for a complete BOM quotation.
Our Quality Assurance Process
- Source Verification: All Bently Nevada modules are sourced from authorized distributors, certified MRO suppliers, or directly from decommissioned OEM-maintained installations with full traceability documentation.
- Visual & Functional Inspection: Each unit undergoes visual inspection for physical damage, connector integrity, and label authenticity before shipment.
- Firmware & Configuration Check: Where applicable, modules are verified for factory firmware and cleared of site-specific configurations.
- Packaging: Anti-static packaging with moisture barrier and shock-absorbing foam; export-grade outer carton for international shipments.
- Documentation: Certificate of conformance, inspection report, and original manufacturer documentation provided upon request.
How to Order
- Submit your inquiry via the Contact / Request a Quote button on this page.
- Provide your full part number (3500/45 140072-04), required quantity, and delivery timeline.
- Our technical team will confirm availability, lead time, and pricing within 24 business hours.
- Upon agreement, we issue a proforma invoice; shipment is arranged via DHL / FedEx / sea freight per your preference.
- Post-shipment tracking and documentation (commercial invoice, packing list, COC) are provided for customs clearance.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on DCS, PLC, and machinery protection components — no generalist catalog noise.
- Global Sourcing Network: Access to hard-to-find and obsolete Bently Nevada parts through our verified supplier network across Asia, Europe, and North America.
- Technical Pre-Sales Support: Our engineers can review your rack configuration and confirm compatibility before you commit to a purchase.
- Fast International Shipping: Export experience to 50+ countries; full customs documentation support.
- Responsive Communication: Dedicated account management with response within 24 hours for all inquiries.
Frequently Asked Questions
Q: What is the difference between the 3500/45 and the 3500/42M?
A: The 3500/45 is a dedicated position monitor for DC-coupled signals (thrust, differential expansion, valve position), while the 3500/42M is a velocity monitor for seismic/velocity transducers. They serve different measurement parameters and are not interchangeable.
Q: Can the 3500/45 140072-04 be used in a TMR rack?
A: Yes, the 3500/45 is compatible with both standard and Triple Modular Redundancy (TMR) 3500 rack configurations, subject to the specific rack and I/O module arrangement.
Q: Do you provide a warranty on this module?
A: Konmask.com provides a standard inspection warranty covering physical and functional condition at time of shipment. Extended warranty options are available — please inquire when requesting a quote.
Q: How long does international shipping take?
A: Express courier (DHL/FedEx) typically delivers within 3–7 business days to most destinations. Sea freight options are available for bulk orders.
Q: Can you supply the full 3500 Series rack system, not just individual modules?
A: Yes. Konmask.com can source complete 3500 Series rack assemblies, individual I/O modules, power supplies, and communication gateways. Contact us with your full system requirements.
