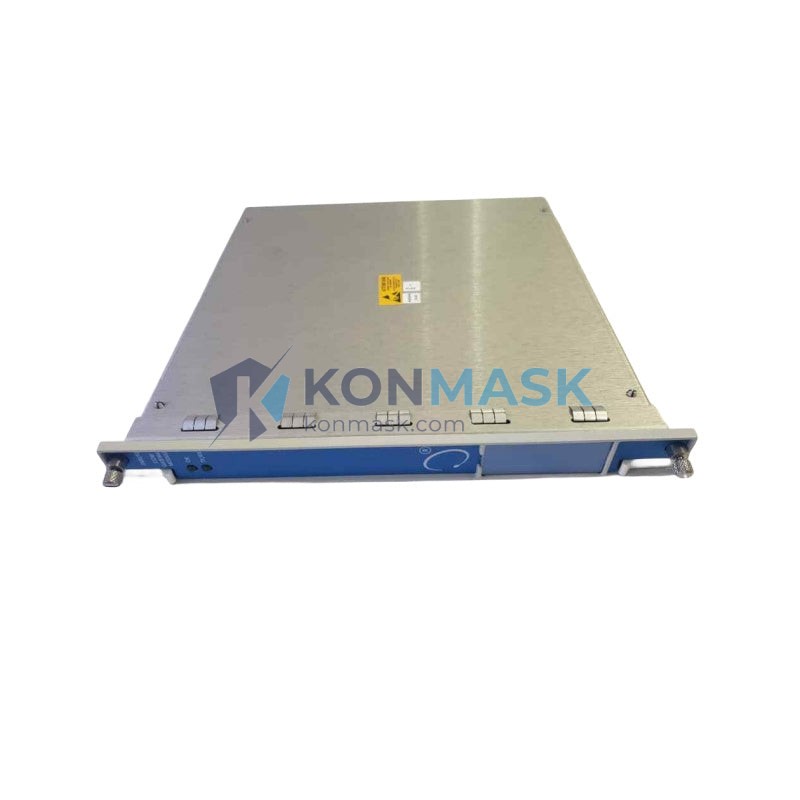

Bently Nevada 3500/92 (136180-01T) Communication Gateway Module – 3500 Series Machinery Protection System
When a critical rotating machine — a turbine, compressor, or pump — loses its communication link to the plant DCS or SCADA, operators go blind. Vibration trends vanish from the historian, alarm states fail to propagate, and maintenance teams are left making decisions without data. In high-stakes continuous process environments, that gap between the protection rack and the control network is not a minor inconvenience — it is a direct path to unplanned downtime, missed shutdowns, and catastrophic mechanical failure. The Bently Nevada 3500/92 Communication Gateway Module exists precisely to close that gap.
Within the 3500 Series Machinery Protection System — Bently Nevada’s flagship platform trusted by refineries, power generation facilities, and petrochemical plants worldwide — the 3500/92 occupies the role of data bridge. It translates the rack’s internal measurement and status data into industry-standard protocols that plant historians, DCS controllers, and asset management software can consume in real time. The 136180-01T variant is the production-standard configuration, widely deployed across global installations and fully supported within the Baker Hughes / Bently Nevada ecosystem.
Technical Specifications
- Part Number: 136180-01T
- Model: 3500/92
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500 Machinery Protection System
- Module Type: Communication Gateway
- Supported Protocols: Modbus/TCP, OPC DA (via compatible interface)
- Network Interface: Ethernet (RJ-45)
- Rack Compatibility: Bently Nevada 3500 Series Rack
- Power Supply: Supplied by rack backplane
- Operating Temperature: Per 3500 Series platform specification
- Certifications: CE, cULus (refer to official datasheet for current listing)
- Form Factor: Single-slot module, front-panel Ethernet port
Note: All specifications are sourced from publicly available Bently Nevada documentation. Konmask.com does not modify or fabricate technical parameters.
Key Features & Benefits
- Real-Time Data Bridge: Continuously exports vibration, position, speed, and alarm data from the 3500 rack to plant networks without interrupting protection functions.
- Modbus/TCP Support: Native Modbus/TCP enables direct integration with Emerson DeltaV, Honeywell Experion, ABB 800xA, Siemens PCS 7, and virtually any modern DCS or SCADA platform.
- Non-Intrusive Architecture: The gateway operates independently of the protection channel — communication faults do not affect trip or alarm logic, preserving SIL-rated protection integrity.
- Simplified Network Topology: Single Ethernet connection per rack replaces serial multi-drop wiring, reducing cable complexity and improving network reliability.
- Rack-Level Data Aggregation: One module serves the entire 3500 rack, providing a consolidated data source for all installed monitor modules.
- Historian-Ready Output: Compatible with OSIsoft PI, AspenTech IP.21, and other process historians for long-term trend storage and analysis.
- Hot-Swap Capable: Designed for insertion and removal under power in accordance with 3500 Series rack procedures, minimizing maintenance downtime.
Industry & Equipment Applications
- Oil & Gas: Upstream compressor trains, midstream pipeline pumping stations, LNG liquefaction turbines
- Power Generation: Steam turbine-generator sets, gas turbines, hydro units
- Petrochemical & Refining: Cracked gas compressors, reactor feed pumps, air separation units
- Pulp & Paper: Large fan and pump trains requiring continuous vibration monitoring
- Marine & Offshore: Platform compressors and propulsion machinery with DCS integration requirements
- Mining: SAG mill drives and large slurry pump monitoring systems
System Integration & Compatible Parts
The 3500/92 is designed to operate within a fully populated 3500 Series rack. Common companion modules include:
- 3500/15 – Power Supply Module (AC or DC input)
- 3500/20 – Rack Interface Module (RIM)
- 3500/22M – Transient Data Interface (TDI)
- 3500/25 – Key Phasor Module
- 3500/40M – Proximitor / Seismic Monitor
- 3500/42M – Proximitor / Seismic Monitor (enhanced)
- 3500/45 – Position Monitor
- 3500/50M – Tachometer Module
- 3500/53 – Overspeed Detection Module
Konmask.com maintains stock of multiple 3500 Series modules. Contact us to source a complete rack build or individual replacement modules.
Our Quality Assurance Process
Every Bently Nevada module shipped from Konmask.com passes through a documented inspection process:
- Visual Inspection: PCB, connectors, front panel, and labeling checked against OEM reference standards
- Part Number Verification: Model and revision codes confirmed against the physical module label and purchase documentation
- Functional Bench Test: Where test equipment is available, modules are powered and communication ports verified prior to shipment
- Secure Packaging: ESD-safe bags, foam-lined boxes, and humidity indicators used for all electronic modules
- Traceability: Each shipment includes a packing list with part number, serial number (if present), and inspection sign-off
How to Order
- Submit an inquiry via the Contact Us page or email support@konmask.com
- Provide your required quantity, delivery timeline, and destination country
- Receive a formal quotation with lead time and shipping options within 1 business day
- Confirm the order and receive proforma invoice for payment processing
- Module ships with full documentation and tracking information
For urgent requirements or large-volume orders, call us directly at +0086 19859288691.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, and machinery protection components — not general electronics.
- Global Export Experience: We ship to over 40 countries with full export documentation, including commercial invoices and packing lists.
- Responsive Technical Support: Our team includes engineers with hands-on experience in Bently Nevada systems who can assist with compatibility questions.
- Competitive Lead Times: In-stock items ship within 3–5 business days; sourced items typically within 2–4 weeks.
- Transparent Sourcing: We clearly communicate whether a module is new surplus, refurbished, or exchange — no surprises.
Frequently Asked Questions
Q: Is the 3500/92 (136180-01T) compatible with all 3500 Series racks?
A: The 3500/92 is designed for the standard 3500 Series 19-inch rack. Compatibility with specific rack revisions should be confirmed against the Bently Nevada 3500/92 product manual (GEK-91485 or equivalent). Contact us if you need assistance verifying compatibility.
Q: What communication protocols does the 3500/92 support?
A: The 3500/92 supports Modbus/TCP over Ethernet as its primary protocol. OPC DA access is typically achieved through a Bently Nevada System 1 software interface. Refer to the official datasheet for the full protocol matrix.
Q: Can the 3500/92 be replaced while the rack is powered?
A: The 3500 Series is designed for hot-swap maintenance of communication modules. However, always follow the specific procedures in the Bently Nevada 3500 System Rack Installation and Maintenance manual before performing any live maintenance.
Q: Do you provide a warranty on this module?
A: Yes. Konmask.com provides a standard 90-day warranty against defects in materials and workmanship for all modules. Extended warranty options are available — contact us for details.
Q: Can you source other 3500 Series modules to complete my rack?
A: Yes. We regularly source and stock a wide range of 3500 Series modules. Send us your complete BOM and we will provide availability and pricing for the full list.
