Bently Nevada 84661-10 — Precision Interconnect Cable | 3500 Series Vibration Monitoring Platform
Engineering Background
The Bently Nevada 3500 Series is the industry benchmark for continuous machinery protection in rotating equipment applications — turbines, compressors, pumps, and motors across oil & gas, power generation, and petrochemical facilities. Signal integrity between field-mounted transducers and the 3500 rack is non-negotiable: a degraded cable path introduces noise, offsets, and false trips that compromise both asset protection and process uptime. The 84661-10 Interconnect Cable is the OEM-specified solution for this critical signal path.
Product Positioning

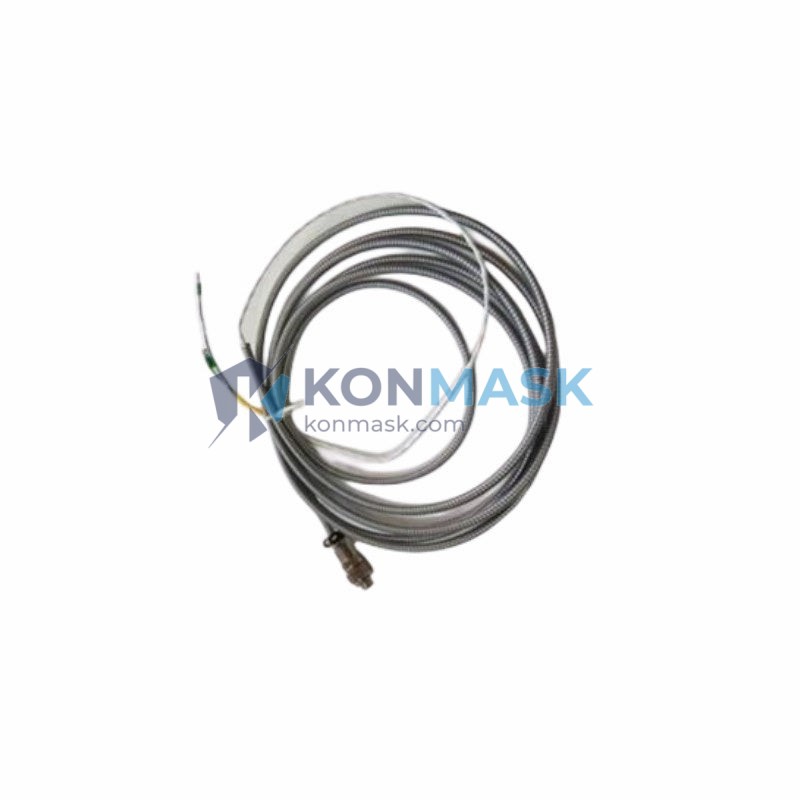

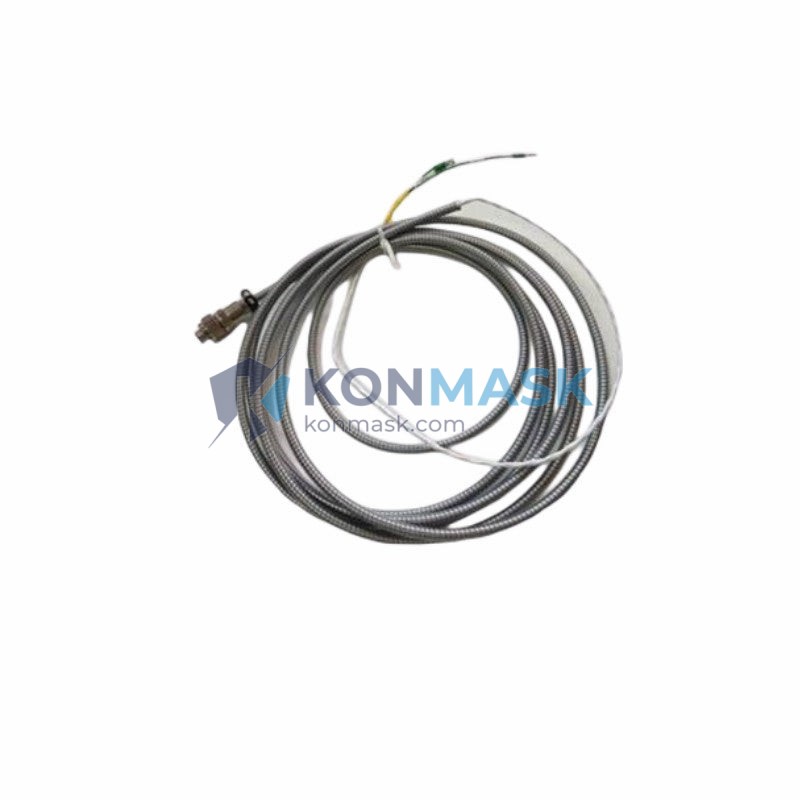

The 84661-10 is a factory-engineered interconnect cable designed to maintain the electrical and mechanical integrity of the Bently Nevada 3500 monitoring chain. It provides a reliable, low-noise signal conduit between proximity probes, velocity transducers, or accelerometers and the corresponding 3500 Series monitor modules. Procurement engineers specify this part number when replacing worn cables, commissioning new monitoring loops, or upgrading legacy wiring to OEM standards.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 84661-10 |
| Product Type | Interconnect Cable |
| Compatible Platform | Bently Nevada 3500 Series Machinery Protection System |
| Cable Length | 10 ft (3.05 m) — suffix “-10” denotes 10-foot standard length |
| Connector Type | OEM-specified multi-pin connectors, keyed for polarity protection |
| Signal Type | Low-level analog (vibration, position, speed signals) |
| Shielding | Foil + braid shield for EMI/RFI rejection |
| Jacket Material | PVC / industrial-grade outer jacket |
| Operating Temperature | -40°C to +85°C (typical industrial rating) |
| Weight (approx.) | 300 g |
| Compliance | Designed to Bently Nevada OEM specifications |
Note: Confirm exact connector pinout and cable gauge with your 3500 system documentation (part 129766-01 or equivalent) prior to installation.
Proven Application Environments
- Oil & Gas Upstream: Compressor trains, gas turbine packages, and wellhead pump monitoring loops where continuous vibration surveillance is mandatory per API 670.
- Power Generation: Steam turbine and generator sets requiring low-noise signal paths from proximity probes to 3500/40M or 3500/42M monitor cards.
- Petrochemical & Refining: Reactor feed pumps, centrifugal compressors, and critical agitators with 3500 rack-based protection systems.
- LNG Facilities: Cryogenic pump monitoring where cable integrity under thermal cycling is essential.
- Marine & Offshore: Topside machinery protection systems requiring vibration monitoring in high-EMI environments.
- Pulp & Paper / Mining: High-availability rotating equipment where unplanned downtime carries significant production cost.
Engineering Advantages
- OEM Signal Integrity: Manufactured to Bently Nevada electrical specifications — impedance, capacitance, and shielding matched to 3500 Series transducer outputs for accurate, drift-free readings.
- Plug-and-Play Replacement: Keyed OEM connectors eliminate wiring errors during field replacement, reducing MTTR in critical maintenance windows.
- EMI/RFI Immunity: Dual-layer shielding (foil + braid) rejects interference from VFDs, switchgear, and high-current bus bars common in industrial environments.
- Mechanical Durability: Industrial-grade jacket resists abrasion, oils, and UV exposure in exposed cable tray or conduit installations.
- Standardized Length: 10-foot standard length simplifies cable management and spare parts inventory for multi-loop monitoring racks.
- Traceability: OEM part number ensures compatibility verification against Bently Nevada system documentation and spare parts lists.
System Architecture & Signal Flow
In a typical 3500 Series monitoring loop, the signal chain is:
Transducer (Proximity Probe / Velocity / Accelerometer)
↓ Field wiring / junction box
↓ 84661-10 Interconnect Cable ← This component
↓ 3500 Series Monitor Module (e.g., 3500/40M, 3500/42M, 3500/45)
↓ 3500 Rack Backplane & Communication Gateway
↓ DCS / SCADA / Historian
The 84661-10 bridges the field junction point to the monitor card input, carrying raw transducer signals (typically -24 VDC bias, 200 mV/mil sensitivity for proximity probes) with minimal attenuation and noise injection. Correct cable routing — away from high-voltage conductors, with proper grounding at one end only — is essential for achieving rated system accuracy.
Sourcing & Quality Verification
- OEM Traceability: All units sourced through verified industrial distribution channels with documented supply chain records.
- Visual & Dimensional Inspection: Connector integrity, jacket condition, and labeling verified against OEM reference prior to dispatch.
- Functional Continuity Check: Conductor continuity and shield integrity tested before shipment.
- Packaging: Anti-static bagging with moisture-barrier outer packaging; part number and lot information labeled on outer carton.
- Warranty: 12-month warranty against manufacturing defects from date of shipment.
- Counterfeit Risk Mitigation: Konmask does not source from unverified grey-market channels; supply chain documentation available on request.
Procurement Process
- Confirm Compatibility: Verify your 3500 rack configuration and transducer type against Bently Nevada system documentation to confirm 84661-10 is the correct cable assembly for your loop.
- Request a Quote: Contact support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Lead Time: Standard stock items ship within 3–5 business days; expedited options available for critical maintenance shutdowns.
- Documentation: Certificate of conformance, packing list, and supply chain records provided with each order.
- Payment & Terms: T/T, L/C, and credit terms available for qualified accounts. Contact us to discuss your procurement requirements.
Technical FAQ
Q: Is the 84661-10 compatible with all 3500 Series monitor modules?
A: The 84661-10 is designed for the Bently Nevada 3500 platform. Compatibility depends on the specific monitor card and transducer type in your loop. Always cross-reference with your system’s wiring diagram and Bently Nevada documentation before installation.
Q: Can this cable be used with non-Bently Nevada monitoring systems?
A: The cable uses OEM-specific connectors keyed for the 3500 Series. Use with third-party systems is not recommended without verifying connector and electrical compatibility.
Q: What is the difference between 84661-10 and other 84661-xx variants?
A: The numeric suffix typically denotes cable length. The “-10” suffix indicates a 10-foot (approximately 3 m) assembly. Other lengths (e.g., -25, -50) are available for different installation distances. Contact us if you require a non-standard length.
Q: How should the cable shield be grounded?
A: Per Bently Nevada installation guidelines, the cable shield should be grounded at one end only (typically at the monitor rack end) to prevent ground loops that introduce 50/60 Hz noise into the vibration signal.
Q: What is the lead time for urgent maintenance requirements?
A: Konmask maintains stock of common Bently Nevada interconnect cables. For critical shutdowns, contact us directly for expedited shipping options.
Q: Do you provide documentation for quality audits?
A: Yes. Certificate of conformance and supply chain traceability documentation are available upon request for all orders.
