Shaft Vibration Monitoring Solution – Bently Nevada 330103-01-07-05-02-00 | 3300 Series

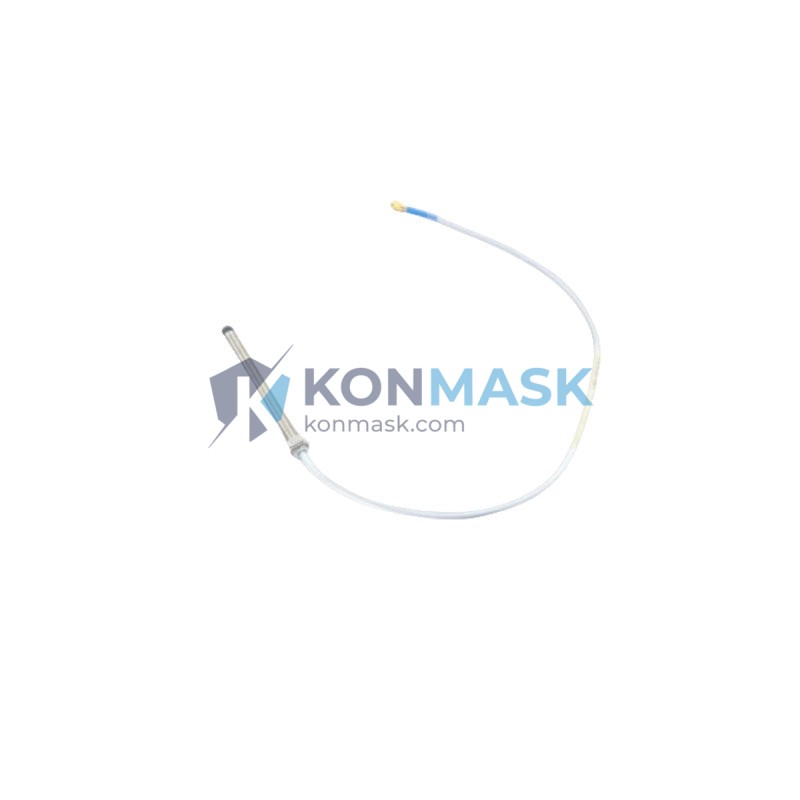

The Bently Nevada 330103-01-07-05-02-00 is an 8 mm eddy-current proximity probe from the industry-standard 3300 Series, engineered for continuous, non-contact measurement of radial shaft vibration, axial position, and differential expansion in critical rotating machinery. Designed to operate reliably in harsh industrial environments, this probe integrates seamlessly with Bently Nevada 3300 XL driver/extension cable assemblies and Rack-based monitoring systems.
Where This Product Is Used
The 330103-01-07-05-02-00 proximity probe is specified across a wide range of high-value rotating equipment applications:
- Steam & Gas Turbines – Continuous radial vibration surveillance on HP/LP rotor journals; early detection of rotor instability and oil-whirl phenomena.
- Centrifugal Compressors – Shaft orbit analysis and bearing clearance monitoring in petrochemical and LNG trains.
- Boiler Feed Pumps & Large Centrifugal Pumps – Axial thrust position monitoring to prevent seal and bearing failures.
- Gearboxes & Expanders – Gear-mesh frequency tracking and differential expansion measurement during thermal transients.
- Hydro Turbines & Motor-Driven Compressors – Long-term condition monitoring integrated with DCS/SCADA alarm management.
- Marine Propulsion Systems – Shaft alignment verification and vibration trending in confined machinery spaces.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330103-01-07-05-02-00 |
| Series | Bently Nevada 3300 XL |
| Probe Tip Diameter | 8 mm |
| Cable Length (Probe) | 1.0 m (39.4 in) integral armored cable |
| Thread Size | M10 × 1.0 |
| Sensitivity | 7.87 V/mm (200 mV/mil) nominal |
| Linear Range | 0.25 – 2.26 mm (10 – 89 mil) |
| Frequency Response | DC – 10 kHz (–3 dB) |
| Supply Voltage | –24 VDC (via driver) |
| Operating Temperature | –35 °C to +177 °C (–31 °F to +350 °F) |
| Connector | Integral coaxial, mates with 330130/330180 extension cable |
| Weight | Approx. 290 g (with cable) |
| Approvals | CE, FM, CSA, ATEX (consult datasheet for zone ratings) |
Why Engineers Specify This Model
- Non-contact measurement eliminates mechanical wear and enables continuous online monitoring without process interruption.
- Wide temperature range (–35 °C to +177 °C) suits both cryogenic and high-temperature turbine environments.
- High linearity & sensitivity (200 mV/mil) delivers precise sub-micron resolution for early fault detection.
- Armored integral cable resists oil, steam, and chemical exposure common in refinery and power-generation environments.
- Direct compatibility with Bently Nevada 3300 XL drivers, 3500 rack monitors, and System 1 software — no signal conditioning adapters required.
- Proven global installed base across API 670-compliant machinery protection systems in oil & gas, power, and petrochemical industries.
Complete System Bill of Materials
For a fully functional eddy-current measurement chain, pair this probe with:
- Extension Cable: Bently Nevada 330130-045-00-00 (4.5 m) or 330180-series (armored)
- Driver / Proximitor: Bently Nevada 330180-X1-05 or 3300 XL 8 mm Proximitor
- Monitor Rack: Bently Nevada 3500/40M Proximitor / Seismic Monitor
- Mounting Hardware: M10 × 1.0 locknut and bracket (application-specific)
- System Software: Bently Nevada System 1 Evolution for data trending and alarm management
Contact [email protected] for complete BOM quotations and system integration support.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition): probe and driver assembly meets non-contacting vibration transducer requirements.
- IEC 60079 – Equipment for explosive atmospheres (ATEX/IECEx zone ratings; verify specific suffix for hazardous area classification).
- ISO 10816 / ISO 20816 – Mechanical vibration evaluation of machines; probe output compatible with standard alarm setpoint methodology.
- CE Marking – Compliant with applicable EU directives for industrial instrumentation.
Quality Assurance & Sourcing
Konmask.com sources the 330103-01-07-05-02-00 exclusively through authorized distribution channels and verified surplus inventory with full traceability documentation. Every unit undergoes:
- Visual and dimensional inspection against OEM datasheet tolerances
- Functional sensitivity verification (mV/mil output check)
- Packaging integrity review and ESD-safe handling
- Certificate of conformance (CoC) available upon request
We do not source from unverified grey-market channels. Counterfeit risk is mitigated through documented supplier qualification.
How to Source This Part
- Add to Cart – Immediate checkout for in-stock units.
- Request a Quote – Email [email protected] for volume pricing, lead time, and freight options.
- Expedite Orders – Call/WhatsApp +0086 19859288691 for urgent plant-shutdown requirements.
- Cross-Reference – Provide your existing part number or tag number; our engineers will confirm compatibility.
Application-Specific FAQ
Q: Is the 330103-01-07-05-02-00 compatible with the Bently Nevada 3500 monitoring rack?
A: Yes. When paired with the correct 3300 XL Proximitor driver and 330130/330180 extension cable, the probe integrates directly with 3500/40M and 3500/42M monitor modules.
Q: What target material is required for accurate measurement?
A: The probe is calibrated for AISI 4140 steel. For other shaft materials (stainless, titanium, Inconel), a material correction factor must be applied — consult Bently Nevada application note 141-108.
Q: Can this probe be used in a hazardous area (Zone 1 / Division 1)?
A: Hazardous area suitability depends on the complete probe-driver assembly certification. Verify the ATEX/FM suffix codes on both the probe and Proximitor before installation in classified areas.
Q: What is the recommended gap voltage at installation?
A: Nominal gap voltage is –10.0 VDC (corresponding to approximately 1.0 mm gap) when powered by a –24 VDC Proximitor. Adjust per OEM commissioning procedure.
Q: Do you offer calibration or repair services?
A: We supply new and surplus units. For calibration or repair, contact your regional Bently Nevada / Baker Hughes service center. We can assist with sourcing replacement units during repair turnaround.
