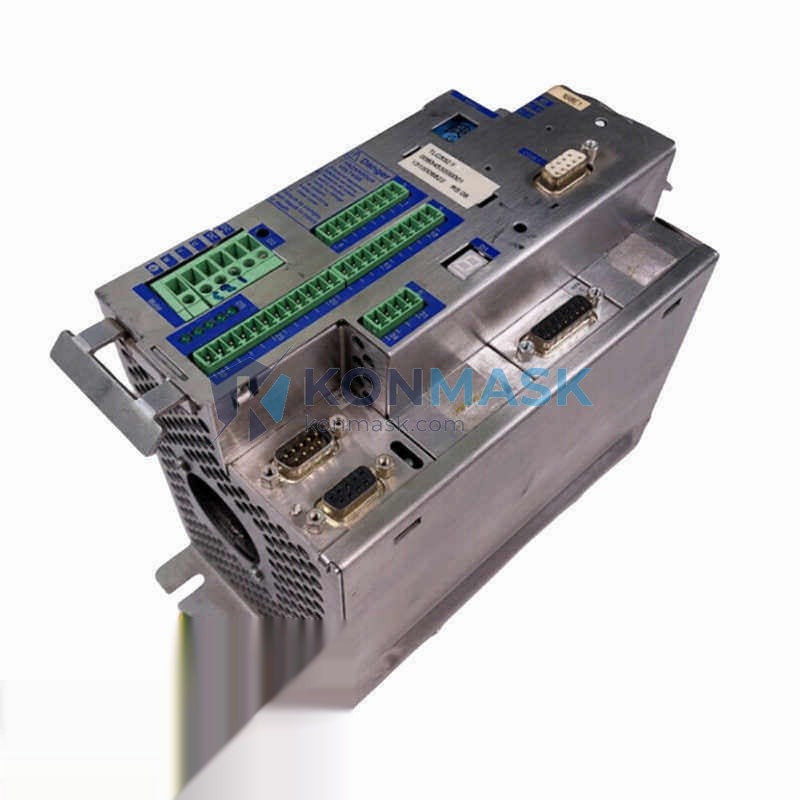

Precision Motion Control Solution — BERGER LAHR TLC532F | 0063453200001
Where This Product Is Used
The BERGER LAHR TLC532F AC Servo Drive is engineered for demanding industrial motion control environments where positioning accuracy, dynamic response, and continuous duty reliability are non-negotiable. Typical deployment scenarios include:
- CNC Machining Centers — Axis feed drives requiring sub-millimeter repeatability and smooth velocity profiles
- Automated Packaging Lines — High-cycle pick-and-place, form-fill-seal, and labeling machines demanding fast settling times
- Industrial Robotics — Joint actuators in articulated arms and SCARA robots where torque linearity is critical
- Textile & Printing Machinery — Web tension control and register correction requiring real-time torque adjustment
- Semiconductor & Electronics Assembly — Precision gantry and stage positioning in SMT and wafer-handling equipment
- Material Handling & Conveyors — Synchronised multi-axis transport systems in automotive and logistics facilities
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | BERGER LAHR (Schneider Electric) |
| Model / Part Number | TLC532F / 0063453200001 |
| Product Family | TLC Series AC Servo Drive |
| Drive Type | AC Servo Amplifier |
| Control Modes | Position, Velocity, Torque |
| Input Voltage | 3-phase AC (refer to nameplate for exact rating) |
| Communication Interface | Refer to unit label / documentation |
| Enclosure / Form Factor | Panel-mount module |
| Weight (approx.) | 250 g |
| Condition | New / Surplus / Refurbished — confirm at inquiry |
Note: Full electrical ratings, firmware version, and I/O configuration are confirmed at order. Contact Konmask for the complete datasheet.
Why Engineers Specify This Model
- Proven BERGER LAHR Lineage — Part of the Schneider Electric motion ecosystem; backward-compatible with legacy TLC-series installations, reducing retrofit risk
- Multi-Mode Flexibility — Switchable position / velocity / torque control modes allow a single drive to serve multiple machine axes
- Compact Panel Footprint — Slim module design minimises cabinet real estate in space-constrained control panels
- Robust EMC Design — Integrated filtering and shielding architecture reduces interference in electrically noisy factory environments
- Long Service Life — Industrial-grade components rated for continuous duty cycles typical of 24/7 production environments
- Global Installed Base — Widely documented; spare parts, motor matching data, and commissioning guides are readily available
Complete System Bill of Materials
For a fully operational servo axis based on the TLC532F, engineers typically specify the following complementary components (available through Konmask):
- BERGER LAHR / Schneider compatible AC servo motor (matched by frame size and encoder type)
- Feedback cable assembly (encoder / resolver — shielded, drag-chain rated)
- Power cable assembly (motor phase + brake — rated for continuous flexing)
- 24 VDC control power supply (for logic and brake circuits)
- Line filter / EMC choke (input side, per CE/UL installation requirements)
- Braking resistor (external, sized to application deceleration energy)
- PLC or motion controller with compatible pulse/analog/fieldbus output
- DIN rail, terminal blocks, and cabinet cooling components
Compliance & Industry Standards
- CE Marking — Designed to meet EU Machinery Directive and Low Voltage Directive requirements
- UL / cUL — Suitable for North American installations (verify specific listing on unit label)
- RoHS Compliance — Manufactured under Schneider Electric’s environmental product policy
- IEC 61800 Series — Adjustable speed electrical power drive systems standard
- EN 55011 / CISPR 11 — Industrial EMC emissions compliance
Quality Assurance & Sourcing
Konmask sources BERGER LAHR TLC532F units through authorised distribution channels and verified surplus markets. Every unit dispatched undergoes the following process:
- Visual and mechanical inspection (connectors, PCB, housing integrity)
- Label and part-number cross-verification against manufacturer records
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Traceable documentation provided on request (test report, COC)
We do not ship untested or cosmetically damaged units without prior written disclosure and buyer agreement.
How to Source This Part
- Add to Cart — For standard in-stock units, proceed directly to checkout
- Request a Quote — For volume orders (>3 units), OEM pricing, or specific firmware/hardware revisions, email support@konmask.com
- Provide Your Application Data — Share motor nameplate data and existing drive parameters for compatibility confirmation
- Lead Time — In-stock units ship within 1–3 business days; sourced units typically 7–21 days depending on origin
- Export & Customs — Konmask handles export documentation, HS code declaration, and commercial invoice preparation for international shipments
Application-Specific FAQ
Q: Is the TLC532F compatible with third-party servo motors?
A: Compatibility depends on motor feedback type (incremental encoder, resolver, etc.) and power rating. Provide your motor nameplate data and we will confirm before shipment.
Q: Can this drive replace an older BERGER LAHR unit with a different suffix?
A: TLC-series drives share a common platform but suffix codes denote specific current ratings and option cards. Contact us with your existing part number for a direct substitution assessment.
Q: Do you provide commissioning support?
A: Konmask can supply parameter backup files, wiring diagrams, and remote commissioning guidance. On-site support is available through our partner network — inquire at time of order.
Q: What warranty is provided?
A: New units carry the manufacturer’s standard warranty. Surplus and refurbished units carry a 90-day Konmask functional warranty. Full terms available on request.
Q: Can I return the unit if it does not match my application?
A: Returns are accepted within 14 days for uninstalled units in original packaging. Custom-sourced or programmed units may be subject to restocking fees.
