Precision Motion Control Solution – Berger Lahr TLD138F | TLD Series AC Servo Drive

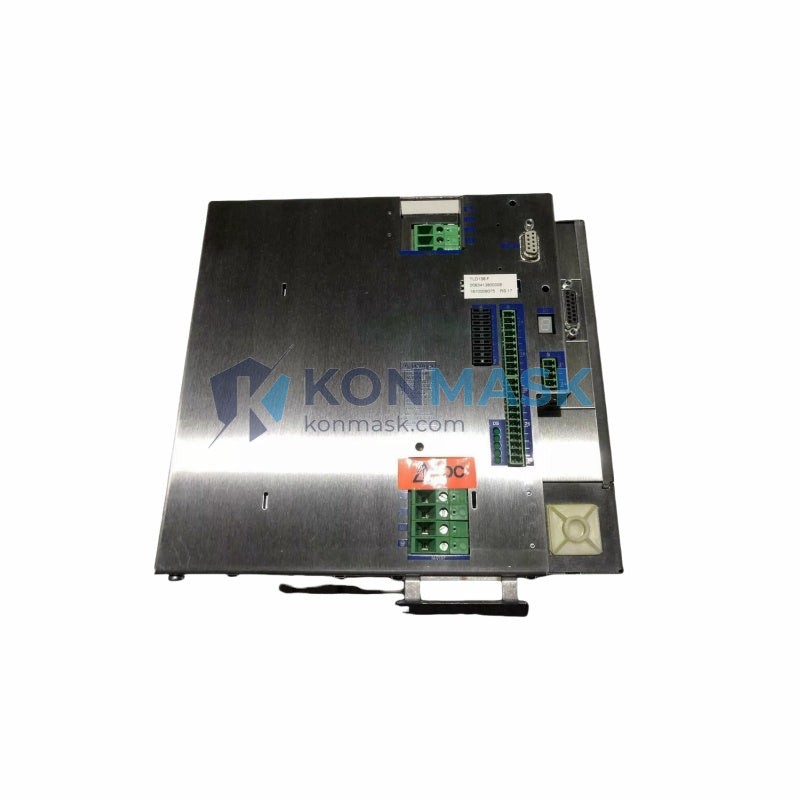

The Berger Lahr TLD138F is a high-performance AC servo drive from the renowned TLD Series, engineered for demanding motion control applications where accuracy, repeatability, and reliability are non-negotiable. Sourced through verified industrial supply channels, every unit offered by Konmask.com undergoes multi-point inspection before dispatch.
Where This Product Is Used
The TLD138F servo drive is specified by engineers across a wide range of precision-critical industries:
- CNC Machining Centers – Axis feed drives for milling, turning, and grinding machines requiring sub-millimeter positioning accuracy.
- Packaging Machinery – High-speed pick-and-place, form-fill-seal, and labeling lines demanding synchronized multi-axis motion.
- Textile & Weaving Equipment – Warp beam drives and rapier loom controls where consistent tension and speed are critical.
- Printing & Converting – Register control and web tension management in offset and flexographic printing lines.
- Semiconductor & Electronics Assembly – SMT placement machines and wafer handling systems requiring ultra-precise positioning.
- Robotics & Handling Systems – Articulated arm and gantry robot joint drives in automotive and logistics automation.
- Medical Device Manufacturing – Controlled-motion applications in diagnostic equipment and surgical device production lines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | TLD138F |
| Brand | Berger Lahr (Schneider Electric Group) |
| Series | TLD Series |
| Drive Type | AC Servo Drive / Servo Amplifier |
| Control Mode | Position / Speed / Torque |
| Interface | Analog / Pulse-Direction / Serial |
| Protection Class | IP20 (panel-mount) |
| Weight | Approx. 1.9 kg |
| Condition | New / Surplus New / Refurbished (specify on inquiry) |
| Origin | Germany / EU |
Full datasheet available upon request. Contact support@konmask.com for detailed electrical specifications.
Why Engineers Specify This Model
- Proven TLD Platform – The Berger Lahr TLD series has decades of field deployment in European and Asian industrial installations, with a well-documented reliability record.
- Multi-Mode Control Flexibility – Supports position, speed, and torque control modes, enabling integration into diverse PLC and motion controller architectures.
- Compact Panel-Mount Design – Optimized for DIN-rail or backplane mounting in standard control cabinets, minimizing panel footprint.
- Schneider Electric Ecosystem Compatibility – Fully compatible with Schneider/Telemecanique motion controllers and I/O systems, simplifying system integration.
- Long Service Life – Robust power stage design with thermal protection and fault diagnostics extends MTBF in continuous-duty applications.
- Obsolescence Management – As a legacy-platform specialist, Konmask.com maintains stock of TLD138F units to support installed base maintenance and line-down recovery.
Complete System Bill of Materials
The TLD138F is typically deployed as part of a complete servo system. Konmask.com can source the following complementary components:
- Servo Motor – Berger Lahr / Schneider BSH or SER series motors matched to TLD138F output ratings
- Feedback Encoder – Incremental or absolute encoder (resolver / SinCos) compatible with TLD interface
- Motion Controller – Schneider Lexium MC or Modicon M340/M580 with motion modules
- Regenerative Braking Resistor – External braking resistor for high-inertia deceleration applications
- EMC Line Filter – Class C2/C3 mains filter for CE-compliant installation
- 24 VDC Control Power Supply – Schneider Phaseo or equivalent regulated SMPS
- Shielded Servo Cable – Motor power and encoder cable assemblies to IEC 60204-1
Request a complete BOM quotation: support@konmask.com
Compliance & Industry Standards
- ✅ CE Marking – Compliant with EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU
- ✅ EMC Directive 2014/30/EU – Electromagnetic compatibility for industrial environments
- ✅ IEC 61800-3 – Adjustable speed electrical power drive systems standard
- ✅ IEC 61800-5-1 – Safety requirements for power drive systems
- ✅ UL Recognition – Suitable for North American market installations (verify specific listing on inquiry)
- ✅ RoHS Compliant – Restriction of Hazardous Substances (EU Directive 2011/65/EU)
Quality Assurance & Sourcing
At Konmask.com, every servo drive passes through our structured verification process before shipment:
- Visual & Physical Inspection – Label verification, connector integrity, housing condition, and serial number authentication against manufacturer records.
- Functional Power-On Test – Drive energized and fault-code diagnostics confirmed clear; control board and power stage verified operational.
- Parameter Baseline Check – Factory default parameters confirmed or documented; no unauthorized firmware modifications.
- ESD-Safe Packaging – Units packed in anti-static bags with foam cushioning and moisture-barrier outer carton for safe international transit.
We source from authorized distributors, OEM surplus channels, and decommissioned-equipment refurbishers — never from unverified grey-market brokers. Traceability documentation available on request.
How to Source This Part
- Submit Your Inquiry – Email support@konmask.com or call +0086 19859288691 with your required quantity, condition preference (new / surplus / refurbished), and delivery timeline.
- Receive Quotation – We respond within 1 business day with pricing, lead time, and available stock condition details.
- Order Confirmation – Confirm PO or proforma invoice; payment via T/T bank transfer, PayPal, or trade assurance.
- Inspection & Dispatch – Unit inspected, photographed, and shipped via DHL / FedEx / UPS with full tracking. Export documentation (commercial invoice, packing list, COO) included.
- After-Sales Support – 90-day warranty on verified units. Technical support available for installation and commissioning queries.
Application-Specific FAQ
Q: Can the TLD138F replace my existing Berger Lahr servo drive directly?
A: In most cases yes — the TLD series uses standardized connectors and parameter structures. We recommend sharing your existing drive’s parameter file or application notes so we can confirm compatibility before shipment.
Q: Is the TLD138F still in production?
A: The TLD series has been superseded by Schneider Lexium platforms, but Konmask.com maintains surplus and refurbished stock specifically to support legacy machine maintenance. We are a specialist source for discontinued Berger Lahr products.
Q: What servo motors are compatible with the TLD138F?
A: The TLD138F is designed for use with Berger Lahr SER and compatible brushless AC servo motors. Contact us with your motor nameplate data for a compatibility confirmation.
Q: Do you provide a warranty?
A: Yes. All verified units carry a 90-day functional warranty. Extended warranty options are available — contact us for details.
Q: Can you ship to my country?
A: We ship globally via DHL, FedEx, and UPS Express. Export documentation, customs declarations, and HS code classification are handled by our logistics team. Typical transit: 3–7 business days worldwide.
Q: What if I need multiple units or a long-term supply agreement?
A: We support blanket orders and scheduled releases for MRO and OEM customers. Contact our B2B team at support@konmask.com to discuss volume pricing and reserved stock arrangements.
