BERGER LAHR BLC382TCPUC1S LX800 Motion Controller | Replacement, Equivalent & Selection Guide

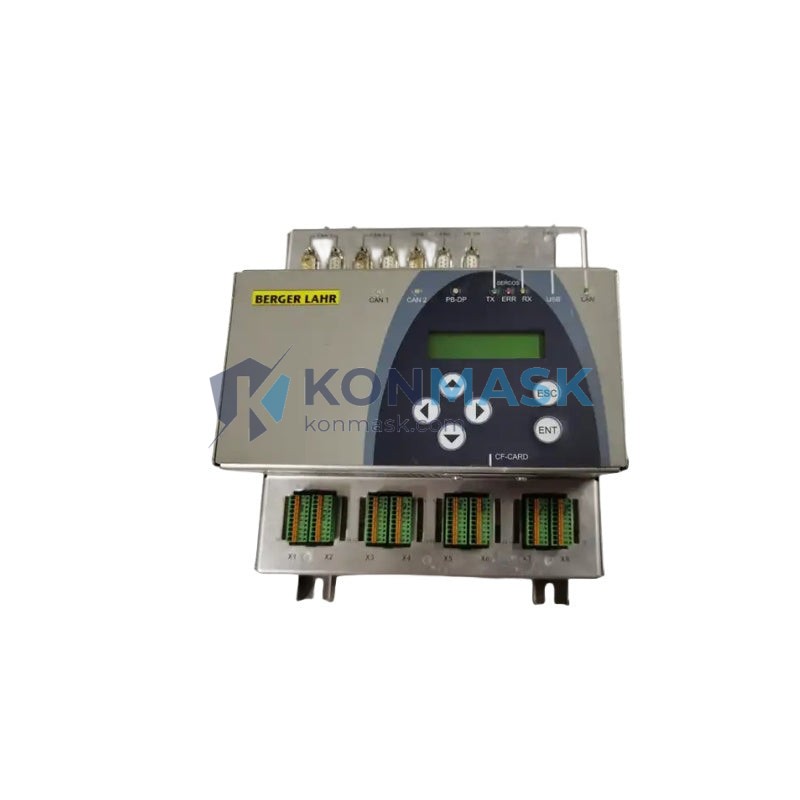

The BERGER LAHR BLC382TCPUC1S is a high-performance motion controller from the LX800 series, designed for precision multi-axis control in industrial automation systems. At Konmask.com, we specialize in sourcing, cross-referencing, and supplying original and compatible replacement units for this model.
Technical Specifications
- Manufacturer: BERGER LAHR (Schneider Electric)
- Model / SKU: BLC382TCPUC1S
- Series: LX800
- Type: Motion Controller / CNC Controller
- Communication Interface: TCP/IP (UC)
- Axes Support: Multi-axis (up to 8 axes depending on configuration)
- Programming Standard: IEC 61131-3 compatible
- Weight: 1,570 g (approx.)
- Mounting: DIN rail / panel mount
- Operating Temperature: 0°C – 55°C
- Power Supply: 24 VDC
- Certifications: CE, UL (verify with datasheet)
Compatible Replacement & Equivalent Models
If the BLC382TCPUC1S is discontinued or unavailable, the following models may serve as functional equivalents or drop-in replacements (subject to application verification):
- BERGER LAHR BLC382TCPUC2S – Upgraded firmware variant, same hardware platform
- BERGER LAHR BLC384TCPUC1S – Extended I/O version within LX800 series
- Schneider Electric LMC058CF1000 – Successor platform, Modicon LMC series
- Schneider Electric LMC078CF1000 – Higher-axis-count successor
- Siemens SINUMERIK 808D – Cross-brand CNC equivalent for milling/turning
- Mitsubishi MELSEC Q172DCPU – Alternative multi-axis motion controller
⚠ Always verify electrical, mechanical, and software compatibility before substitution. Contact our engineers for a free compatibility assessment.
Why Choose the Original BLC382TCPUC1S
- ✅ Proven reliability in demanding industrial environments
- ✅ Native integration with BERGER LAHR servo drives (WD3 / SD3 series)
- ✅ Supports HEDA (High-speed Ethernet Drive Architecture) for real-time synchronization
- ✅ Established spare-parts ecosystem with long service history
- ✅ Validated for legacy machine retrofits without full system redesign
Typical Applications
- CNC milling and turning machine tool control
- Packaging and labeling line automation
- Textile and printing machinery
- Semiconductor wafer handling systems
- Robotics and gantry positioning systems
- Conveyor synchronization and cam profiling
System Compatibility
- Drive Compatibility: BERGER LAHR WD3, SD3, DIAX04 servo drives
- Software: BERGER LAHR WinDrive, Schneider Electric SoMachine Motion
- Fieldbus: Ethernet TCP/IP, CANopen (optional)
- HMI Integration: Magelis, Vijeo Designer, third-party OPC-UA panels
- PLC Integration: Modicon M340, M580 via EtherNet/IP or Modbus TCP
Selection Guide
Use the table below to select the correct LX800 series controller for your application:
| Model | Axes | Interface | Key Feature |
|---|---|---|---|
| BLC382TCPUC1S | Up to 8 | TCP/IP | Standard motion, legacy support |
| BLC382TCPUC2S | Up to 8 | TCP/IP | Enhanced firmware |
| BLC384TCPUC1S | Up to 16 | TCP/IP | Extended I/O |
| LMC058CF1000 | Up to 8 | EtherNet/IP | Next-gen Schneider platform |
Need help selecting? Send your machine model and current controller part number to support@konmask.com for a free recommendation.
Quality Assurance & Sourcing
- 🔍 Source: Original manufacturer stock, authorized distributors, and certified refurbishers
- 🧪 Testing: Each unit undergoes functional power-on and communication verification
- 📦 Packaging: Anti-static ESD packaging with foam protection
- 📋 Documentation: Datasheet, wiring diagram, and firmware version record included on request
- 🔁 Warranty: 12-month warranty against manufacturing defects
- 🌍 Shipping: Worldwide DHL / FedEx express, typically 3–7 business days
How to Order
- Click Add to Cart or Contact Us for bulk/OEM pricing
- Provide your machine model and application details for compatibility confirmation
- Receive proforma invoice within 24 hours
- Payment via T/T, PayPal, or credit card
- Shipment with tracking number within 1–3 business days after payment
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Is the BLC382TCPUC1S still in production?
A: This model has been phased out by Schneider Electric / BERGER LAHR. We supply new-old-stock (NOS) and refurbished units. Contact us for current availability.
Q: Can I replace BLC382TCPUC1S with an LMC058?
A: Functionally similar, but the LMC058 uses a different software environment (SoMachine Motion vs. WinDrive). A migration project is typically required. We can assist with the transition.
Q: Do you provide the original programming software?
A: We can provide guidance on sourcing WinDrive or SoMachine Motion licenses. Contact our technical team.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. Out-of-stock units typically have a 2–4 week lead time from our global sourcing network.
Q: Can I send my faulty unit for repair?
A: Yes. We offer board-level repair services. Contact us with your unit’s fault description for a repair quote.
