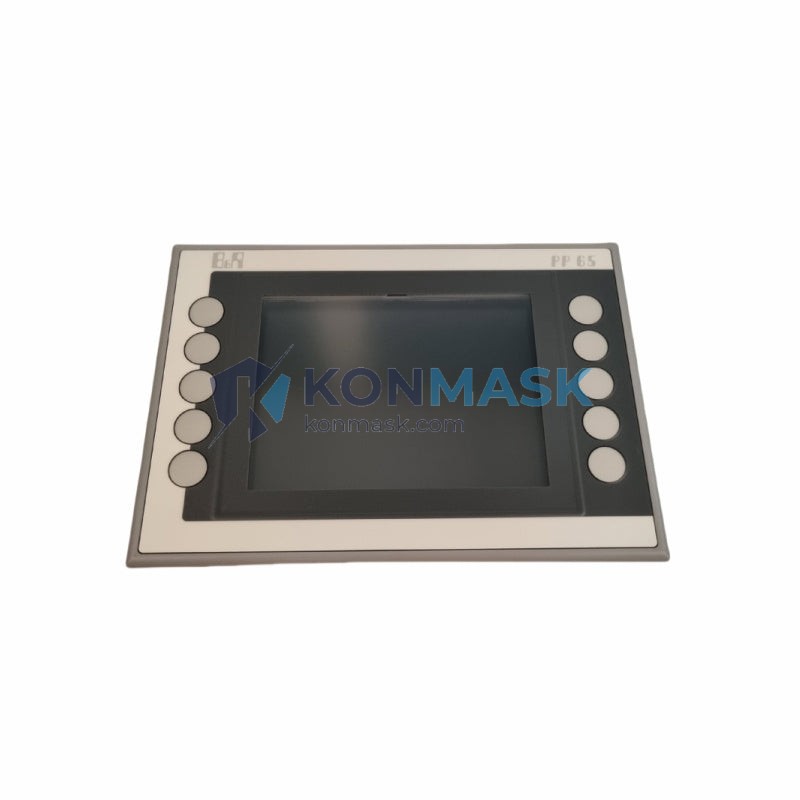

B&R 4PP065.0571-X74F Power Panel HMI Operator Interface | Power Panel Series
Engineering Background: The B&R 4PP065.0571-X74F is a compact Power Panel HMI from Bernecker + Rainer Industrie-Elektronik GmbH (B&R), a global leader in industrial automation and motion control. Designed for machine-level human-machine interface (HMI) applications, this panel integrates display, processing, and I/O connectivity into a single ruggedized unit optimized for demanding factory-floor environments.
Product Positioning: The 4PP065.0571-X74F targets OEM machine builders, system integrators, and plant engineers who require a reliable, compact HMI panel with proven compatibility across B&R Automation Studio ecosystems. It is a direct replacement and upgrade path for legacy B&R panel installations and is fully supported by B&R’s Automation Runtime environment.
Complete Technical Specifications
- Part Number / SKU: 4PP065.0571-X74F
- Manufacturer: B&R (Bernecker + Rainer Industrie-Elektronik GmbH)
- Series: Power Panel
- Display Size: 5.7-inch TFT LCD
- Display Resolution: 320 × 240 px (QVGA)
- Touchscreen: Resistive touch (single-point)
- Processor: Integrated ARM-based CPU
- Operating System: B&R Automation Runtime (real-time OS)
- Programming Environment: B&R Automation Studio
- Communication Interfaces: Ethernet (10/100 Mbit), USB, CAN, RS232/RS485 (model-dependent)
- Supply Voltage: 24 VDC (nominal)
- Power Consumption: Approx. 15–25 W (typical)
- Protection Rating: IP65 (front panel)
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: −20 °C to +70 °C
- Relative Humidity: 5–95% (non-condensing)
- Mounting: Panel cut-out, rear mounting clips
- Weight: Approx. 1,250 g
- Certifications: CE, UL (refer to B&R datasheet for full listing)
- Country of Origin: Austria
Proven Application Environments
- Packaging machinery and filling lines
- Plastics injection molding and extrusion control
- Textile and printing machine HMI stations
- Conveyor and material handling systems
- Food & beverage processing equipment
- HVAC and building automation control panels
- Semiconductor and electronics manufacturing
- Water treatment and pump station monitoring
Engineering Advantages
- Unified Platform: Combines HMI visualization and PLC logic in a single compact unit, reducing panel footprint and wiring complexity.
- Automation Studio Integration: Fully programmed and configured within B&R Automation Studio — one IDE for HMI, motion, and I/O logic.
- IP65 Front Protection: Sealed front panel withstands dust, coolant splash, and wash-down environments.
- Wide Communication Portfolio: Native Ethernet, CAN, and serial interfaces enable seamless integration into existing plant networks and fieldbus topologies.
- Long-Term Availability: B&R maintains extended product lifecycle support; spare parts and replacements are available through authorized distributors and verified secondary-market suppliers.
- Compact Form Factor: 5.7-inch panel fits standard cut-outs, enabling drop-in replacement of legacy HMI units without cabinet modification.
System Architecture & Signal Flow
The 4PP065.0571-X74F operates as a standalone Power Panel node within a B&R automation architecture. The integrated CPU executes Automation Runtime tasks cyclically, managing HMI screen rendering, PLC scan cycles, and communication stack processing concurrently. Field signals are acquired via onboard or expansion I/O modules connected through the B&R X2X Link or direct terminal blocks. Operator inputs via the resistive touchscreen are processed by the HMI runtime layer and mapped to PLC variables in shared memory, enabling deterministic response times suitable for machine-safety-adjacent (non-SIL) supervisory functions. Ethernet connectivity supports SCADA/MES integration via OPC-UA or Modbus TCP.
Sourcing & Quality Verification
- Stock Origin: Sourced from verified OEM overstock, authorized distributor surplus, and decommissioned plant equipment with documented service history.
- Inspection Protocol: Each unit undergoes visual inspection, power-on functional test, and communication port verification prior to shipment.
- Authenticity: All B&R part numbers are cross-referenced against official B&R product catalogs. Counterfeit-risk screening is applied to every incoming batch.
- Packaging: Anti-static ESD bag + foam-lined carton. Original B&R packaging retained where available.
- Warranty: 90-day operational warranty against DOA and functional defects. Extended warranty available upon request.
Procurement Process
- Inquiry: Submit your part number and required quantity via the product page or email support@konmask.com.
- Quote: Receive a formal quotation with lead time, unit price, and shipping options within 1 business day.
- Order Confirmation: Purchase order or online checkout accepted. Proforma invoice issued for wire transfer payments.
- Inspection & Dispatch: Unit tested, photographed, and dispatched with tracking within 2–5 business days.
- Delivery: DHL / FedEx / UPS express worldwide. Customs documentation (commercial invoice, packing list, HS code) provided.
- After-Sales: Technical support available via email and WhatsApp for installation and commissioning queries.
Technical FAQ
Q: Is the 4PP065.0571-X74F compatible with Automation Studio 4.x?
A: Yes. The Power Panel series is supported under Automation Studio 4.x with the appropriate hardware configuration package. Confirm firmware version compatibility with your AS project version before deployment.
Q: Can this panel replace a 4PP065.0571-P74F or other 4PP065 variants?
A: The 4PP065 platform shares a common mechanical footprint. However, the suffix (X74F vs P74F) denotes different interface or memory configurations. Verify the exact variant required by your machine documentation before ordering.
Q: What is the typical lead time for this part?
A: In-stock units ship within 2–5 business days. For out-of-stock inquiries, sourcing lead time is typically 1–3 weeks depending on global availability.
Q: Do you provide a test report or functional verification certificate?
A: Yes. A functional test report is available upon request at time of order. Photos of the specific unit can be provided prior to shipment.
Q: Is this unit new or refurbished?
A: Stock condition is clearly stated in the listing (New / Refurbished / Used-Tested). Contact us to confirm the condition of current available stock.
