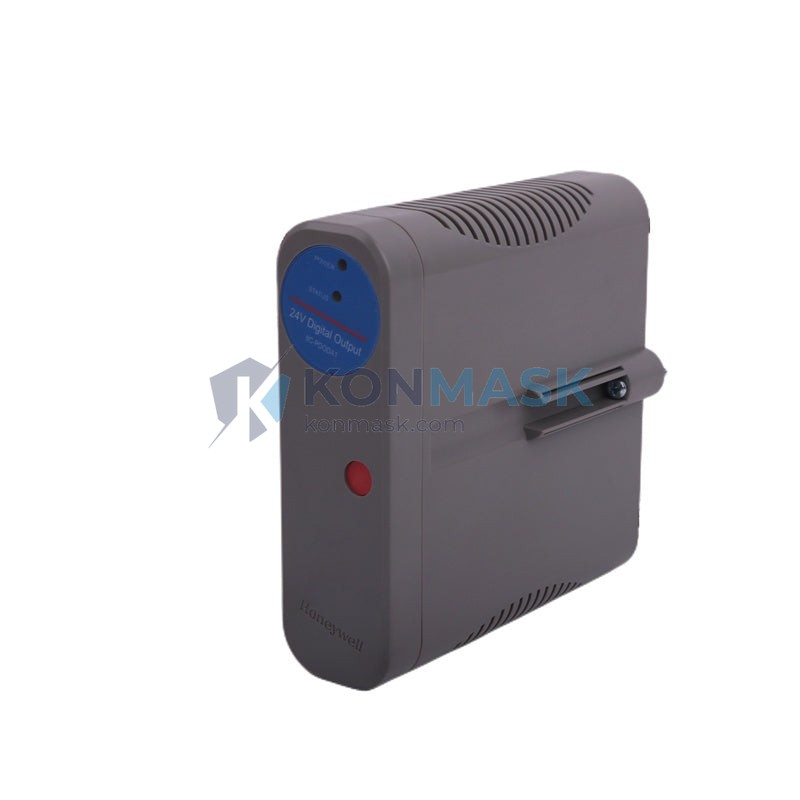

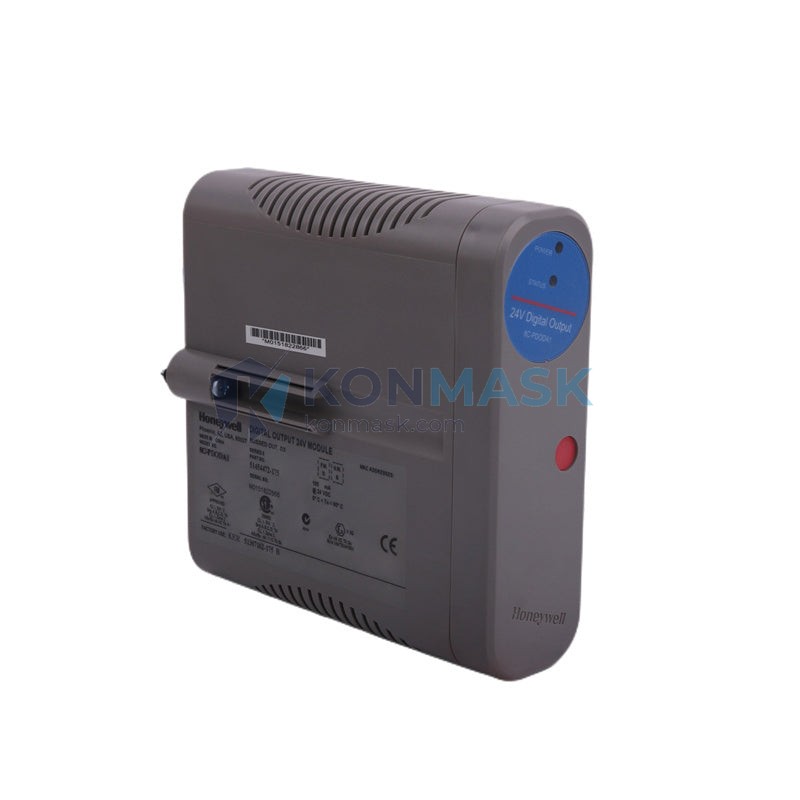

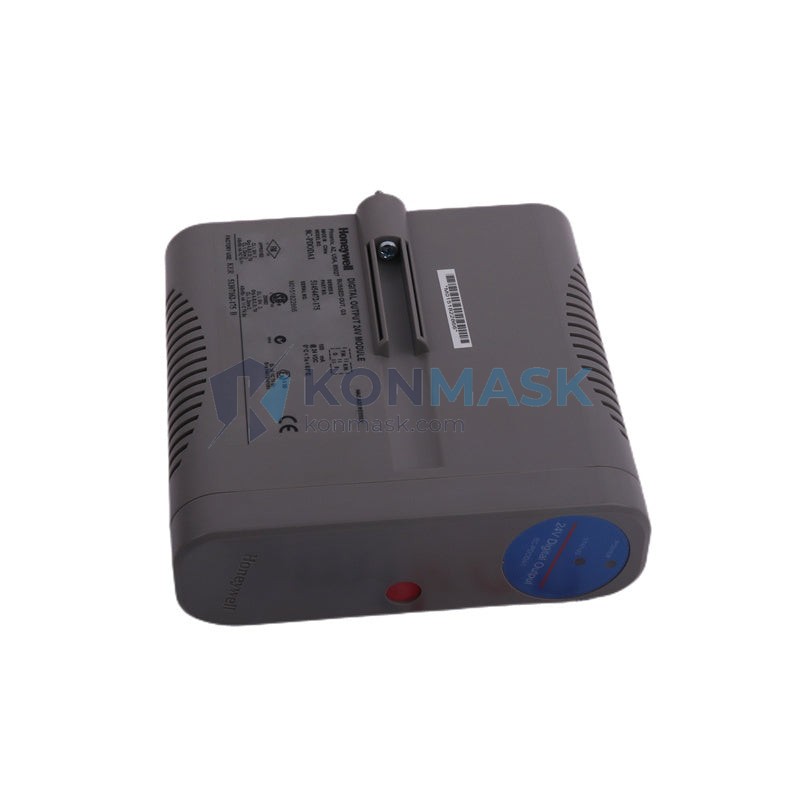

HONEYWELL 8C-PDODA1 51454472-175 Output Module | Replacement, Equivalent & Selection Guide
The HONEYWELL 8C-PDODA1 (Part No. 51454472-175) is a digital output module designed for use within Honeywell’s C300 Controller platform, part of the Experion PKS (Process Knowledge System) distributed control system (DCS). It provides 8-channel digital output capability for process control applications in industries requiring high reliability and precision signal management.
Buyers searching for a replacement or equivalent to the 8C-PDODA1 often face challenges sourcing this module due to long lead times, EOL transitions, or budget constraints. This guide helps you identify compatible substitutes, understand critical selection criteria, and make a confident procurement decision.
Technical Specifications
- Part Number: 8C-PDODA1 / 51454472-175
- Manufacturer: Honeywell Process Solutions
- Module Type: Digital Output (DO)
- Channel Count: 8 channels
- Platform: Experion PKS — C300 Controller Series
- Output Signal: 24 VDC digital output
- Communication: FTE (Fault Tolerant Ethernet) backplane interface
- Isolation: Channel-to-channel and channel-to-bus isolation
- Mounting: Series C I/O Link — CIOM-A chassis compatible
- Diagnostics: Online diagnostics with fault reporting
- Operating Temperature: 0°C to 60°C
- Certifications: CE, UL, FM (refer to datasheet for full listing)
- Weight: Approx. 300 g
⚠ Key parameters affecting replacement decisions: channel count (8 DO), backplane interface type (CIOM-A), output voltage (24 VDC), and FTE compatibility.
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
These modules share the same part family and are physically and electrically interchangeable with the 8C-PDODA1 in a CIOM-A chassis:
- 51454472-175 — OEM part number variant; functionally identical, same firmware baseline
- 8C-PDODA1 (Rev B/C) — Later hardware revisions; backward compatible in most C300 configurations (verify firmware version with Honeywell)
2. Functional Equivalents
Modules with equivalent I/O function within the Experion PKS ecosystem, requiring configuration verification:
- 8C-PDODA2 — 8-channel DO variant with extended diagnostics; same chassis fit, verify output current rating
- 8C-PDODA1A — Alternate suffix variant; confirm chassis slot compatibility and firmware support before substitution
3. Cross-Brand Alternatives
For system migrations or multi-vendor environments — these require engineering evaluation and are not plug-and-play replacements:
- Emerson DeltaV DO Module (MD Plus Series) — Comparable 8-channel DO for DeltaV DCS; requires full system re-engineering
- ABB S800 DO820 — 8-channel digital output for ABB 800xA; cross-brand migration only
- Siemens ET 200M DO module — Functional analog for Siemens PCS 7; not interchangeable without platform migration
⚠ Cross-brand alternatives require full I/O mapping, wiring, and configuration changes. Consult Konmask engineering support before proceeding.
Why Choose the Original Model
- Precision & Reliability: Factory-calibrated to Honeywell Experion PKS specifications — zero re-tuning required upon installation
- Certifications: Carries full CE, UL, and FM approvals validated for the C300 platform; third-party substitutes may not carry equivalent certifications
- Seamless Compatibility: Guaranteed interoperability with CIOM-A chassis, C300 controller, and FTE network without firmware conflicts
- OEM Technical Support: Eligible for Honeywell TAC (Technical Assistance Center) support and firmware update pathways
- Warranty Coverage: Original modules sourced through authorized channels carry manufacturer warranty; aftermarket substitutes typically do not
- Audit & Compliance: Maintains system integrity for SIL, ATEX, or functional safety audits where OEM BOM traceability is required
Typical Applications
- Oil & Gas: Wellhead control panels and pipeline valve actuation in upstream/midstream facilities
- Petrochemical: Reactor interlock and shutdown system digital output control
- Power Generation: Turbine control and auxiliary system switching in combined-cycle plants
- Pulp & Paper: Digester and bleaching process digital output management
- Pharmaceutical: Batch process control with FDA 21 CFR Part 11 compliant DCS environments
- Water Treatment: Pump and valve control in municipal and industrial water/wastewater systems
System Compatibility
The 8C-PDODA1 is designed to operate within the following Honeywell Experion PKS ecosystem components:
- C300 Controller (51309288-175) — Primary controller managing this I/O module via FTE
- CIOM-A Chassis — Required mounting chassis; module occupies one I/O slot
- FTE Switch (FTEB) — Fault Tolerant Ethernet backbone for redundant communication
- Power Supply Module (51454401-175) — Chassis power supply; verify amperage capacity when adding modules
- Experion PKS R500+ Software — Control Builder configuration environment for I/O assignment
- Field Termination Assembly (FTA) — Wiring interface; select FTA model matching output signal type
Selection Guide
Answer these three questions to confirm the 8C-PDODA1 is the right module for your application:
-
Is your DCS platform Honeywell Experion PKS with a C300 Controller?
If yes, the 8C-PDODA1 is a direct fit. If you operate a different Honeywell platform (e.g., TDC 3000, ControlEdge), contact Konmask for platform-specific guidance. -
Does your chassis use the CIOM-A backplane interface?
Confirm chassis model before ordering. CIOM-B or Series A chassis require different module variants. -
Do you require 24 VDC digital output with 8 channels?
If your application requires analog output, higher channel density, or HART capability, Konmask can recommend the correct module variant.
📩 Not sure? Contact Konmask at support@konmask.com — our engineers will confirm compatibility within 24 hours.
Quality Assurance & Sourcing
All HONEYWELL 8C-PDODA1 modules supplied by Konmask are sourced through the following verified channels:
- Authorized Honeywell distributors and certified resellers
- Decommissioned plant surplus with full traceability documentation
- Factory-refurbished units with OEM-equivalent testing
4-Step Inspection Process:
- Visual Inspection: Board-level check for physical damage, corrosion, and component integrity
- Functional Test: Power-on and I/O channel verification against OEM specifications
- Firmware Verification: Confirm firmware version compatibility with target C300 system
- Documentation Review: Cross-reference serial number against manufacturer records
Available Documentation: Test reports, certificate of conformance (CoC), material traceability records, and datasheet upon request.
How to Order
- Submit Your Inquiry: Email support@konmask.com with your part number, quantity, and required delivery timeline — or use the contact form on this page
- Receive Quote & Confirmation: Konmask will confirm stock availability, pricing, and lead time within 24 hours
- Confirm & Ship: Upon order confirmation, modules are inspected, packaged, and dispatched with full documentation
📞 +0086 19859288691 | 📧 support@konmask.com
Replacement & Compatibility FAQ
Q1: Can I use the 8C-PDODA1 as a direct replacement for the 51454472-175?
Yes. The 8C-PDODA1 and 51454472-175 are the same module — the latter is the Honeywell OEM part number. They are fully interchangeable as a drop-in replacement in any CIOM-A chassis slot.
Q2: Is the 8C-PDODA1 compatible with all Honeywell Experion PKS versions?
The module is compatible with Experion PKS R400 and above. For R300 or earlier systems, firmware compatibility must be verified. Konmask can provide version-specific guidance to ensure a compatible substitute is selected.
Q3: What is the best equivalent or substitute if the 8C-PDODA1 is unavailable?
The closest functional equivalent within the Honeywell ecosystem is the 8C-PDODA2, which offers the same 8-channel DO function with enhanced diagnostics. For cross-brand substitution, a full engineering assessment is required. Contact Konmask for a vetted equivalent recommendation based on your specific system configuration.
