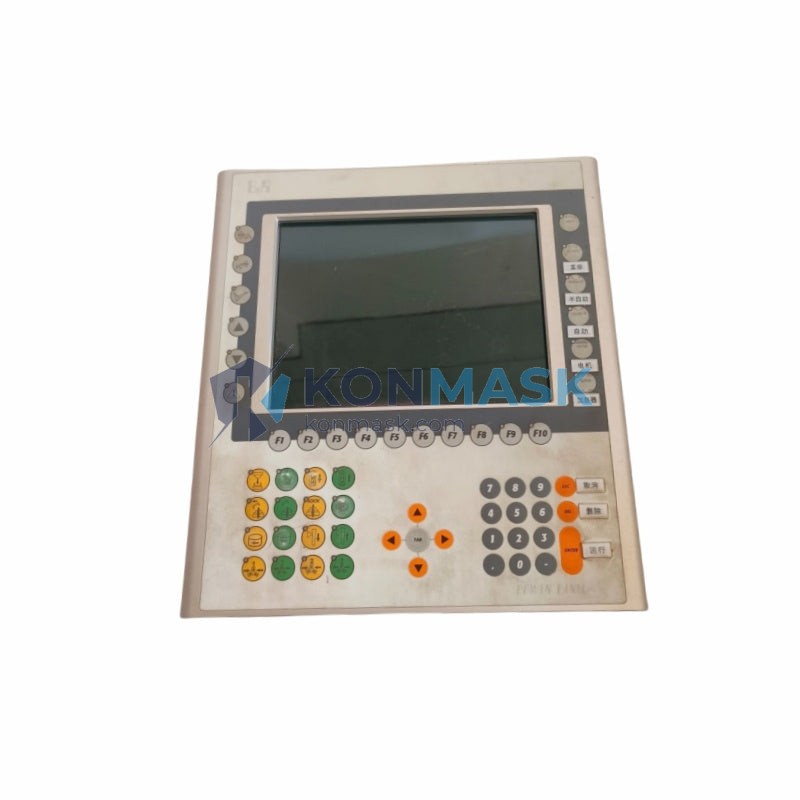

B&R 4PP251.1043-75 – 10.4″ Integrated HMI Power Panel | Automation Runtime Platform
Engineering Background: The B&R Power Panel 4PP251 series represents B&R Automation’s flagship line of integrated operator panel controllers — combining a high-resolution industrial touchscreen with a full-featured IEC 61131-3 controller in a single compact unit. Designed for machine builders and system integrators who demand deterministic control with rich visualization, the 4PP251.1043-75 eliminates the need for a separate PLC cabinet, reducing panel footprint and wiring complexity.
Product Positioning: The 4PP251.1043-75 is purpose-built for mid-to-high complexity OEM machinery, packaging lines, and process automation cells where a unified HMI+PLC architecture is preferred. It runs B&R’s Automation Runtime (AR) operating system, ensuring seamless integration with Automation Studio development tools and the broader B&R ecosystem including POWERLINK, X2X Link, and SafeLOGIC.
Complete Technical Specifications
- Part Number: 4PP251.1043-75
- Display: 10.4″ TFT Color LCD, SVGA (800 × 600 px)
- Touchscreen: Resistive analog touch, single-point
- Processor: Intel Atom / Celeron class (platform-dependent revision)
- Operating System: B&R Automation Runtime (AR)
- Programming Standard: IEC 61131-3 (LD, FBD, SFC, ST, IL)
- Development Tool: B&R Automation Studio
- Fieldbus Interfaces: POWERLINK (integrated), X2X Link expansion
- Communication Ports: Ethernet (RJ45), USB, RS232/RS485 (model-dependent)
- Storage: CompactFlash / onboard flash (application + data logging)
- Supply Voltage: 24 V DC (nominal)
- Power Consumption: Refer to B&R datasheet for exact wattage
- Protection Rating: IP65 front panel
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: -20 °C to +70 °C
- Humidity: 5–95% RH, non-condensing
- Weight: Approx. 1,900 g
- Mounting: Panel cutout, rear-mount with clamps
- Certifications: CE, UL (verify with B&R datasheet for specific revision)
Proven Application Environments
- Packaging machinery (form-fill-seal, cartoners, labelers)
- Plastics injection molding and extrusion lines
- Textile and printing machine control
- Conveyor and material handling systems
- Pharmaceutical and food-grade process equipment (IP65 front)
- Water treatment and HVAC plant automation
- OEM machine builder panels requiring compact HMI+PLC integration
Engineering Advantages
- Unified HMI + PLC: Eliminates separate controller hardware, reducing BOM cost and panel space by up to 40%.
- Automation Runtime: Hard real-time OS with deterministic cycle times; supports motion, safety, and process tasks concurrently.
- POWERLINK Integration: IEEE 1588-synchronized fieldbus for isochronous motion control without additional master hardware.
- Automation Studio Ecosystem: Single IDE for HMI visualization (mapp View / VC4), PLC logic, motion, and diagnostics.
- IP65 Front Panel: Suitable for wash-down and dusty industrial environments without additional enclosure.
- Long Service Life: B&R industrial-grade components rated for continuous 24/7 operation.
System Architecture & Signal Flow
The 4PP251.1043-75 operates as a standalone controller node. Field I/O is connected via X2X Link expansion modules or directly through onboard I/O (if equipped). POWERLINK connects to servo drives (ACOPOS series) or distributed I/O (X20 system) over a standard Ethernet cable. The Automation Runtime scheduler manages HMI rendering, PLC scan cycles, and communication tasks in isolated time slices, ensuring visualization latency does not impact control determinism. Engineering workstations connect via Ethernet using Automation Studio for online programming, monitoring, and firmware updates.
Sourcing & Quality Verification
- Condition: Genuine B&R surplus / refurbished stock — each unit inspected before shipment.
- Authenticity: All units sourced through verified industrial surplus channels; original B&R labeling and serial numbers intact.
- Testing: Power-on functional test performed; display, touch, and communication ports verified.
- Warranty: 90-day Konmask operational warranty; extended warranty available on request.
- Documentation: B&R original datasheet and wiring diagram available upon request.
Procurement Process
- Submit your inquiry or place order directly on Konmask.com.
- Receive proforma invoice within 1 business day.
- Payment via T/T bank transfer, PayPal, or trade assurance.
- Unit ships within 3–5 business days via DHL / FedEx with tracking.
- Export documentation (commercial invoice, packing list, CO if required) provided.
Technical FAQ
Q: Is the 4PP251.1043-75 compatible with Automation Studio 4.x?
A: Yes. The 4PP251 series is supported in Automation Studio 4.x. Verify the exact AR version compatibility in the B&R online help for your specific firmware revision.
Q: Can this unit replace a 4PP251.1043-K75 or similar suffix variant?
A: Suffix variants may differ in memory, communication options, or display brightness. Always cross-reference the full part number with B&R’s product catalog before substitution.
Q: Does Konmask provide firmware or Automation Studio project files?
A: Konmask supplies hardware only. Firmware and application projects are the responsibility of the end user / OEM. B&R Automation Studio is freely downloadable from br-automation.com.
Q: What is the lead time for bulk orders?
A: Contact us for volume pricing and availability. Stock levels fluctuate; early inquiry is recommended for project quantities of 3+ units.
