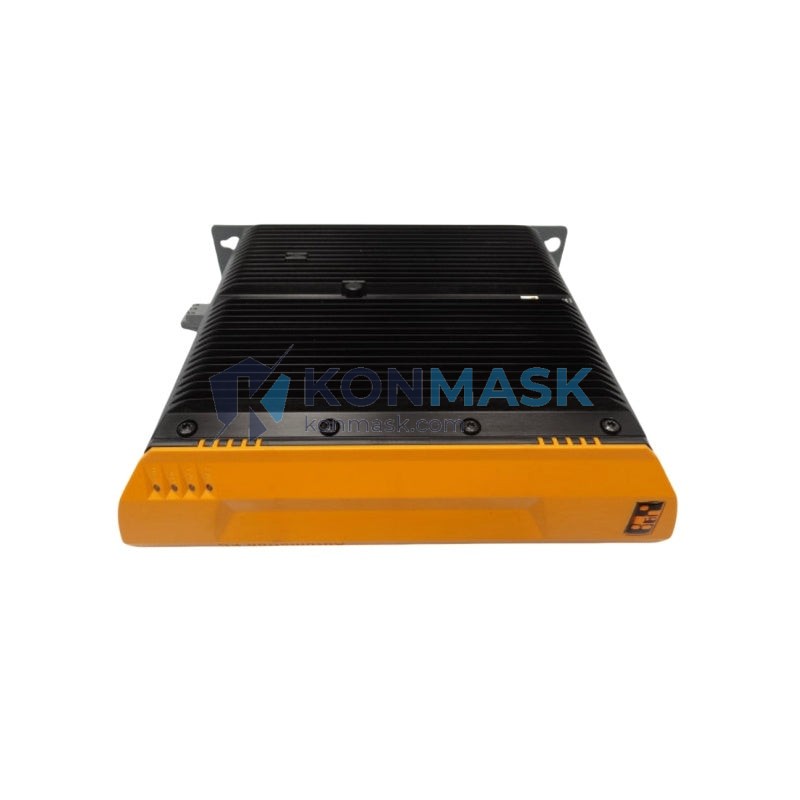

B&R 5PC600.SX01-00 – Compact Fanless System Unit | APC620 Automation Platform
Engineering Background: The APC620 series represents B&R’s (Bernecker + Rainer) flagship line of fanless industrial panel computers, engineered for demanding machine-control and process-automation environments. Designed and manufactured in Austria, the APC620 platform integrates seamlessly with B&R’s Automation Studio development environment and POWERLINK real-time Ethernet backbone.
Product Positioning: The 5PC600.SX01-00 is the base system unit of the APC620 family — a compact, slot-expandable, fanless chassis designed for OEM machine builders and system integrators who require a deterministic, long-lifecycle industrial computing platform. It serves as the computational core for HMI, motion control, and data-acquisition applications across discrete manufacturing, packaging, and energy sectors.
Complete Technical Specifications
- Part Number / SKU: 5PC600.SX01-00
- Product Family: APC620 (Automation PC 620)
- Manufacturer: B&R Industrial Automation GmbH (Austria)
- Form Factor: Compact system unit, fanless design
- Expansion Slots: 1× IF slot (for CPU / interface modules)
- Display Interface: Via add-on display module (SDL/DVI)
- Power Supply: 24 VDC nominal (18–30 VDC range)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: −20 °C to +70 °C
- Relative Humidity: 5–95% non-condensing
- Protection Rating: IP20 (front panel upgradeable with panel mount)
- Vibration Resistance: IEC 60068-2-6 compliant
- Shock Resistance: IEC 60068-2-27 compliant
- Weight: Approx. 3.4 kg (base unit)
- Certifications: CE, UL, cUL
- Country of Origin: Austria
Proven Application Environments
- CNC machine tool control and HMI integration
- Packaging and labeling line automation
- Printing and converting machinery
- Semiconductor and electronics assembly equipment
- Energy management and substation automation
- Pharmaceutical batch process control
- Robotics cell supervisory control
Engineering Advantages
- Fanless & Sealed: Eliminates mechanical wear, reduces maintenance intervals, and enables deployment in dusty or humid environments.
- Modular Architecture: CPU, memory, and interface modules are field-replaceable without tools, minimizing downtime during upgrades.
- Long-Term Availability: B&R commits to 10+ year product lifecycle support, critical for OEM machine builders with long production runs.
- Automation Studio Integration: Native support for B&R’s IEC 61131-3 programming environment, motion libraries, and POWERLINK real-time Ethernet.
- Deterministic Performance: Real-time OS support ensures cycle-accurate task execution for motion and safety applications.
- Compact Footprint: Optimized for panel-mount or DIN-rail installation in space-constrained control cabinets.
System Architecture & Signal Flow
The 5PC600.SX01-00 chassis accepts a single CPU/interface module inserted into the IF slot, which provides the processing core, memory, and primary I/O connectivity. The system unit routes 24 VDC power to all installed modules via an internal backplane bus. Display output is routed through B&R’s SDL (Smart Display Link) or DVI interface modules to compatible B&R panel displays. Field I/O is connected via POWERLINK, X2X Link, or direct digital/analog I/O modules depending on the installed CPU module. The compact chassis supports panel-mount integration, with front-accessible USB and CF/SSD storage for easy media replacement without opening the control cabinet.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels with full traceability.
- Each unit undergoes incoming inspection: visual check, label verification, and functional power-on test where applicable.
- Original B&R packaging and documentation preserved where available.
- Counterfeit-risk mitigation: serial numbers cross-referenced against B&R’s authorized distribution records.
- Condition clearly stated in listing (New / Refurbished / Surplus New).
Procurement Process
- Confirm compatibility: Verify your required CPU module (e.g., 5PC600.E855-00) and interface modules match the 5PC600.SX01-00 chassis slot configuration.
- Request a quote: Contact [email protected] for volume pricing, lead time, and export documentation.
- Place order: Secure checkout via Konmask.com with HKD / USD / EUR payment options.
- Shipping: DHL / FedEx express worldwide; EXW Shenzhen or CIF destination available for bulk orders.
- After-sales: 12-month warranty on verified new units; 90-day warranty on surplus/refurbished units.
Technical FAQ
Q: Is the 5PC600.SX01-00 compatible with Windows 10 IoT?
A: Compatibility depends on the installed CPU module. Modules such as the 5PC600.E855-00 support Windows 10 IoT Enterprise. Confirm the CPU module part number for OS compatibility.
Q: Can I use this unit without a B&R display?
A: Yes. With an appropriate DVI interface module, standard industrial monitors can be connected. SDL is proprietary to B&R panel displays.
Q: What is the maximum RAM supported?
A: RAM capacity is determined by the installed CPU module, not the chassis. Refer to the specific CPU module datasheet for memory specifications.
Q: Is Automation Studio required for programming?
A: Automation Studio is the native IDE. Third-party SCADA or OPC-UA clients can interface with the APC620 at the application layer without Automation Studio on the target.
Q: Do you provide export documentation for customs?
A: Yes. Commercial invoice, packing list, and HS code declaration (HS 8537.10) are provided with every international shipment.
