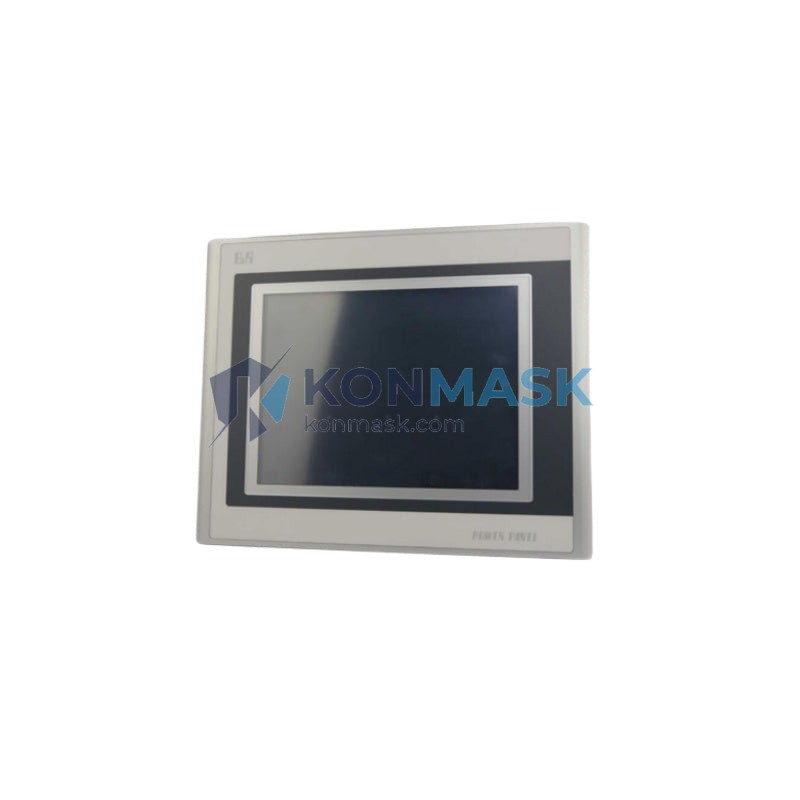

B&R 5PP320.1043-39 Power Panel | Replacement, Equivalent & Selection Guide
The B&R 5PP320.1043-39 is a compact industrial Power Panel HMI combining a touch-screen operator interface with an integrated PLC controller. Designed for demanding automation environments, it delivers reliable real-time control, intuitive visualization, and seamless integration with B&R’s Automation Studio ecosystem. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | 5PP320.1043-39 |
| Brand | B&R (Bernecker + Rainer) |
| Product Family | Power Panel 300 Series |
| Display Size | 10.4″ TFT Color Touch Screen |
| Resolution | 800 × 600 (SVGA) |
| CPU | Intel Atom / ARM-based (series dependent) |
| Operating System | B&R Automation Runtime |
| Communication Interfaces | Ethernet (2×), USB, CAN, RS232/RS485 |
| I/O Expansion | Via X2X Link / POWERLINK |
| Supply Voltage | 24 V DC |
| Operating Temperature | 0 °C to +50 °C |
| Protection Rating | IP65 (front panel) |
| Certifications | CE, UL |
| Weight | ~200 g (panel unit) |
Note: Always verify specifications against the official B&R datasheet before system integration.
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as functional replacements or equivalents for the 5PP320.1043-39. Compatibility depends on your specific application, software version, and I/O requirements — always validate before deployment.
| Model | Brand | Display | Notes |
|---|---|---|---|
| 5PP320.1043-00 | B&R | 10.4″ | Same family, different firmware variant |
| 5PP320.1043-29 | B&R | 10.4″ | Alternate suffix — verify I/O config |
| 5PP320.0571-39 | B&R | 5.7″ | Smaller display, same PP300 platform |
| 5PP320.1505-39 | B&R | 15″ | Larger display upgrade option |
| 4PP420.1043-75 | B&R | 10.4″ | PP400 series — enhanced performance |
| Siemens KTP1000 Basic | Siemens | 10″ | Cross-brand alternative; requires software migration |
| Weintek MT8102iE | Weintek | 10.1″ | Cost-effective HMI; standalone (no integrated PLC) |
📌 Need help selecting the right replacement? Contact our engineers at [email protected].
Why Choose the Original Model
- Seamless B&R Ecosystem Integration — Native POWERLINK and X2X Link support for zero-compromise connectivity with B&R I/O, drives, and safety modules.
- Automation Studio Compatibility — Full support for B&R’s unified engineering environment; no additional HMI software license required.
- Proven Industrial Reliability — IP65 front panel, wide temperature range, and vibration resistance for harsh factory environments.
- Integrated PLC + HMI — Eliminates the need for a separate controller, reducing panel space and wiring complexity.
- Long-Term Availability — B&R maintains extended product lifecycle support for industrial customers.
Typical Applications
- Machine tool control panels and CNC operator interfaces
- Packaging and labeling machine HMI stations
- Conveyor and material handling system control
- Injection molding and press machine interfaces
- Food & beverage processing line visualization
- Water treatment and HVAC building automation
- Pharmaceutical and cleanroom equipment control
System Compatibility
- B&R Automation Studio 4.x and above (programming, visualization, motion)
- POWERLINK real-time Ethernet fieldbus
- X2X Link for local I/O expansion modules
- OPC UA / Modbus TCP for third-party SCADA/MES integration
- VNC Remote Access for remote diagnostics and monitoring
- Compatible with B&R ACOPOSmulti, ACOPOS P3 servo drive families
Selection Guide
Use the criteria below to confirm the 5PP320.1043-39 is the right choice — or to identify a better-fit alternative:
| Requirement | Recommendation |
|---|---|
| Display size needed: 10.4″ | ✅ 5PP320.1043-39 is ideal |
| Need larger display (15″) | Consider 5PP320.1505-39 |
| Need smaller / lower cost | Consider 5PP320.0571-39 (5.7″) |
| Higher CPU performance required | Upgrade to PP400 series (4PP420.x) |
| Cross-brand migration acceptable | Siemens KTP1000 or Weintek MT8102iE |
| Standalone HMI only (no PLC) | Weintek / Weinview series |
| Existing B&R project, drop-in swap | Match suffix (-39) for exact replacement |
Quality Assurance & Sourcing
- ✅ Genuine & Refurbished Stock — All units sourced from verified industrial supply chains; refurbished units undergo full functional testing.
- ✅ Inspection & Testing — Power-on test, display calibration, communication port verification, and firmware check performed before shipment.
- ✅ Warranty — 90-day replacement warranty on all units; extended warranty available on request.
- ✅ Traceability — Serial number and batch documentation provided with every order.
- ✅ Global Shipping — DHL / FedEx express worldwide; export documentation and customs support included.
How to Order
- Confirm the exact part number: 5PP320.1043-39 (check the nameplate on your existing unit).
- Note your required quantity and preferred condition (new / refurbished / exchange).
- Contact us via email or phone with your PO or inquiry details.
- Receive a formal quotation within 1 business day.
- Approve the quote → payment → shipment with tracking number provided.
📧 [email protected] | 📞 +0086 19859288691 | 🌐 konmask.com
Replacement & Compatibility FAQ
Q: Can I replace 5PP320.1043-39 with a different suffix variant (e.g., -29 or -00)?
A: Suffix variants may differ in firmware, memory, or I/O configuration. Always compare the full datasheet before substituting. Contact us for a compatibility check.
Q: Is the 5PP320.1043-39 still in production?
A: B&R periodically updates its Power Panel lineup. We maintain stock of both current and legacy units. Contact us to confirm current availability.
Q: Can I use a Siemens or Weintek HMI as a replacement?
A: Cross-brand replacement requires software migration (rewriting the HMI/PLC program). This is feasible but involves engineering effort. We can advise on migration scope.
Q: Do you provide programming or configuration support?
A: We offer hardware supply and basic technical guidance. For full Automation Studio programming services, we can refer you to certified B&R system integrators.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–4 week lead time. Contact us for real-time availability.
