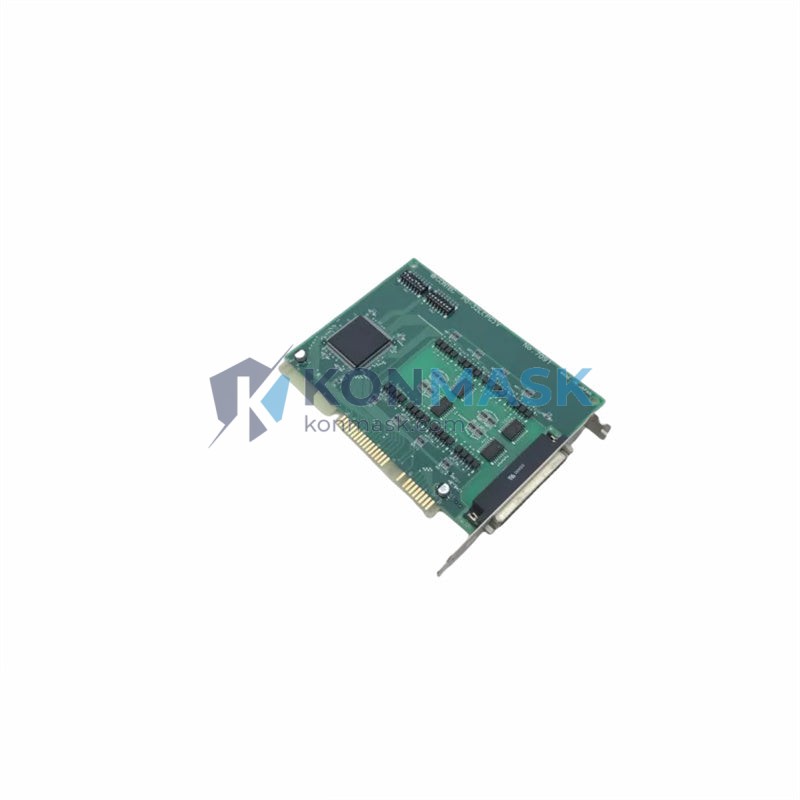

CONTEC PO-32L(PC)V – 32-Channel Isolated Digital Output Module | PC Bus I/O Platform
Engineering Background
The PO-32L(PC)V is a PC bus digital output expansion card developed by CONTEC Co., Ltd. (Japan), a globally recognized leader in industrial I/O hardware. Designed for demanding factory automation and process control environments, this module delivers 32 channels of photocoupler-isolated digital output via a standard PC bus interface, enabling reliable signal transmission to external actuators, relays, solenoids, and indicator systems.
Product Positioning
Targeted at control system integrators, OEM machine builders, and industrial PC platform developers, the PO-32L(PC)V bridges the gap between PC-based controllers and field-level output devices. Its compact form factor, robust isolation architecture, and broad OS driver support make it the preferred choice for engineers requiring deterministic, high-density digital output in space-constrained panel PCs and industrial workstations.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PO-32L(PC)V |
| Manufacturer | CONTEC Co., Ltd. (Japan) |
| Interface | PC Bus (ISA-compatible) |
| Output Channels | 32 channels, isolated digital output |
| Isolation Method | Photocoupler (optocoupler) isolation |
| Output Voltage Range | 12 – 24 V DC (external power supply required) |
| Output Current (per channel) | Max. 100 mA |
| Output Type | Open collector (NPN transistor) |
| Connector | 37-pin D-sub connector |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -10 °C to +60 °C |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| Power Consumption | Approx. 0.5 W (from PC bus) |
| Module Weight | Approx. 610 g |
| Dimensions | Standard PC expansion card form factor |
| OS Support | Windows / Linux (CONTEC API driver) |
| Country of Origin | Japan |
Proven Application Environments
- Factory Automation: Relay and solenoid valve control in PLC-less PC-based machine controllers
- Process Control: Actuator switching in chemical, pharmaceutical, and food processing lines
- Test & Measurement: Stimulus output for automated test equipment (ATE) and burn-in systems
- Building Automation: HVAC damper control, lighting relay switching, and access control outputs
- Semiconductor Equipment: Wafer handler and robot arm signal output in cleanroom environments
- Energy Management: Load switching and demand response control in smart grid edge nodes
Engineering Advantages
- Full 32-Channel Isolation: Each output channel is individually photocoupler-isolated, eliminating ground loops and protecting the host PC from field-side voltage transients up to the rated isolation level.
- High-Density Output: 32 channels on a single PC bus card minimizes slot consumption and reduces system BOM cost versus multi-card solutions.
- Open Collector Architecture: NPN open-collector outputs are compatible with a wide range of PLC input modules, relay coils, and indicator lamps without additional signal conditioning.
- CONTEC API Driver Ecosystem: Unified C/C++, Visual Basic, and LabVIEW driver libraries accelerate application development and reduce integration risk.
- Industrial-Grade Reliability: Designed and manufactured in Japan under CONTEC’s ISO 9001-certified quality management system, with MTBF data available on request.
System Architecture & Signal Flow
The PO-32L(PC)V maps 32 output bits across four 8-bit output ports accessible via PC bus I/O address space. The host CPU writes logic-level data to the card’s onboard latch registers; each latch output drives the LED side of a dedicated photocoupler. The transistor side of each photocoupler switches the external load circuit (12–24 V DC, max. 100 mA per channel) in open-collector configuration. External power is supplied via the field-side connector, maintaining complete galvanic isolation between the PC bus domain and the field wiring domain.
Sourcing & Quality Verification
- All CONTEC modules sourced by Konmask.com are procured through authorized distribution channels or verified secondary market suppliers with full traceability documentation.
- Each unit undergoes incoming inspection including functional output verification across all 32 channels prior to shipment.
- Original CONTEC product labels, serial numbers, and date codes are preserved and verifiable.
- Certificate of conformance and test records available upon request for OEM and system integrator customers.
Procurement Process
- Step 1 – Inquiry: Submit your BOM or part number via email to support@konmask.com or WhatsApp +0086 19859288691 for lead time and pricing confirmation.
- Step 2 – Quotation: Receive a formal quotation within 1 business day including unit price, quantity availability, and estimated ship date.
- Step 3 – Order Confirmation: Place order via the Konmask.com checkout or via proforma invoice for bank transfer / TT payment.
- Step 4 – Shipment: Orders ship via DHL / FedEx / UPS with full tracking. Export documentation (commercial invoice, packing list, COO) provided for customs clearance.
- Step 5 – After-Sales: 90-day warranty on all modules. Technical support available from our engineering team for integration questions.
Technical FAQ
Q: Is the PO-32L(PC)V compatible with modern Windows 10/11 systems?
A: CONTEC provides driver packages for Windows 10 and Windows 11 (32/64-bit). Please confirm the specific driver version with our team prior to ordering if OS compatibility is critical to your application.
Q: Can I use this card with a PCI or PCIe bus system?
A: The PO-32L(PC)V is designed for the legacy PC (ISA) bus. For PCI or PCIe systems, CONTEC offers equivalent models in the PO-32L(PCI) and PO-32L(PCIe) series. Contact us for cross-reference assistance.
Q: What is the maximum switching frequency per channel?
A: The output switching speed is limited by the photocoupler response time and the external load inductance. For relay coil loads, typical switching rates up to 10 Hz are reliable; for resistive/LED loads, higher rates are achievable. Consult the CONTEC datasheet for detailed timing diagrams.
Q: Do you provide the original CONTEC datasheet and user manual?
A: Yes. The official CONTEC PO-32L(PC)V hardware manual and API reference are available upon request. Contact support@konmask.com.
Q: Is volume pricing available?
A: Yes. Tiered pricing is available for orders of 5+ units. Submit your quantity requirement to support@konmask.com for a volume quotation.
