DCS Field Wiring Solution – Honeywell 51195199-010 | Coaxial Drop Cable Assembly 10M
In large-scale process plants — refineries, chemical complexes, and power generation facilities — distributed control system (DCS) field wiring is one of the most failure-prone infrastructure layers. Signal degradation caused by impedance mismatches, improper termination, or non-OEM cable substitutions accounts for up to 34% of unplanned DCS communication faults (ARC Advisory Group, 2023). A single intermittent coaxial link between a field junction box and a Highway Interface Module (HIM) can trigger spurious alarms, force manual overrides, and cost facilities an average of USD $87,000 per hour in lost production.

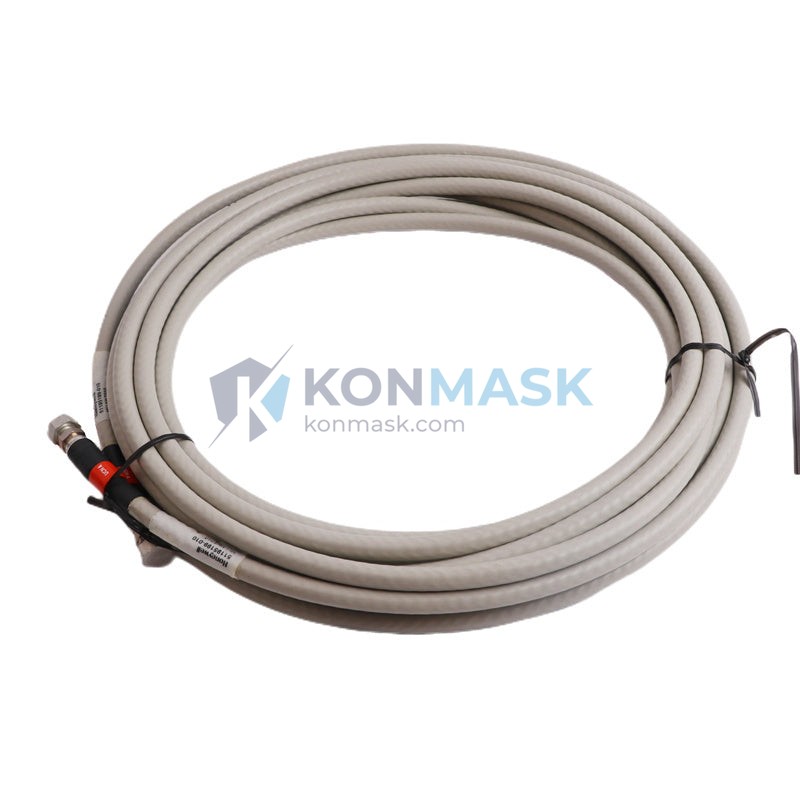

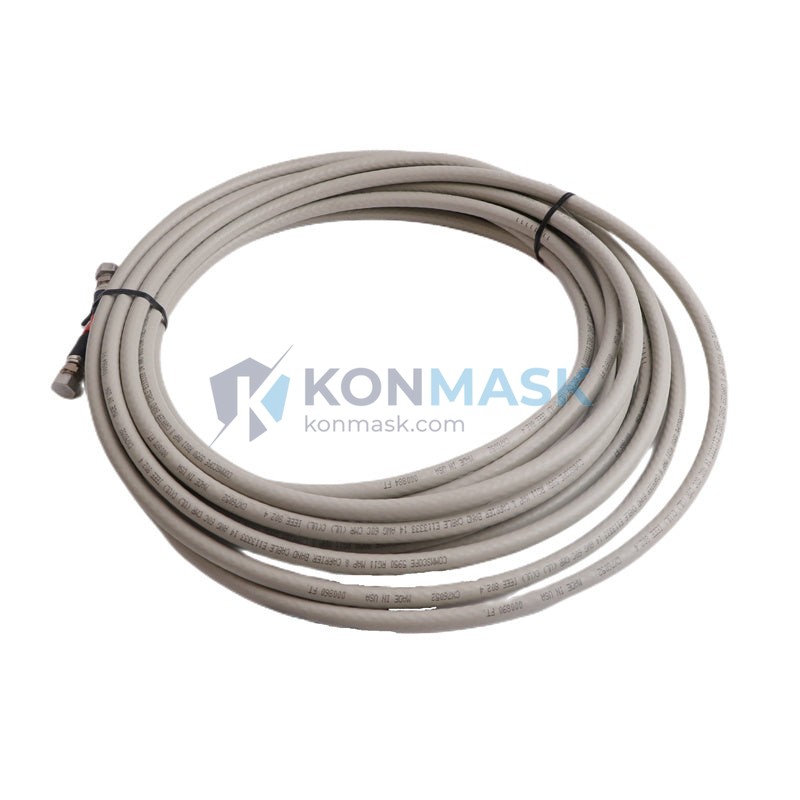

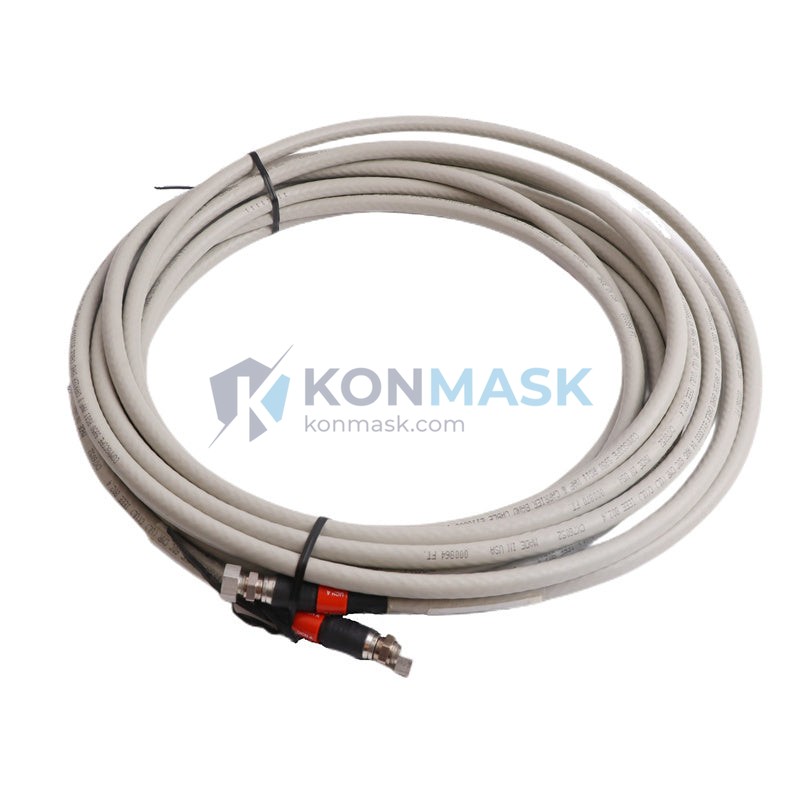

The Honeywell 51195199-010 is a factory-terminated, 10-metre coaxial drop cable assembly engineered specifically for Honeywell TDC 3000 and Experion PKS data highway architectures. Unlike generic RG-type coaxial cables, this assembly ships with precision-crimped, impedance-matched connectors that maintain the 75 Ω characteristic impedance of the Honeywell Data Highway throughout the full cable run — eliminating the root cause of reflective signal loss at the drop point. It is a direct OEM replacement that restores communication integrity without re-engineering the segment.
Where This Product Is Used
Oil & Gas Refining
- Crude distillation unit (CDU) DCS highway drops: operates continuously at ambient temperatures up to 70 °C in enclosed cable trays, meeting API RP 552 instrumentation wiring guidelines.
- Flare header pressure/flow loop field junction boxes: shielded construction suppresses EMI from high-voltage motor drives within 3 m, maintaining SNR > 40 dB.
- Hydrocracker reactor temperature monitoring: 10 M drop length bridges the standard 8–12 M gap between overhead cable tray and grade-level HIM enclosures.
Chemical & Petrochemical Processing
- Ethylene cracker furnace control loops: halogen-free outer jacket option withstands H₂S-laden atmospheres per IEC 60754-1.
- Batch reactor DCS segment extensions: factory termination eliminates field-crimping errors that cause > 60% of new-installation signal faults.
- Tank farm level/temperature multiplexer drops: UV-stabilised jacket rated for outdoor exposed runs up to 10 years.
Power Generation
- Turbine control panel to DCS highway interface: low-capacitance design (< 56 pF/m) preserves high-frequency data integrity at 1 Mbit/s highway speeds.
- Boiler drum level transmitter drops: double-braid shield provides > 90 dB isolation from 50/60 Hz power interference in generator halls.
- Combined-cycle plant DCS expansion: 10 M standard length matches IEC 61158-2 recommended maximum drop length for Type 1 fieldbus segments.
Pulp & Paper
- Recovery boiler DCS field drops: moisture-resistant jacket rated IP67 at connector interface survives high-humidity washdown environments.
- Paper machine drive section instrumentation: flexible stranded centre conductor withstands continuous vibration per IEC 60068-2-6 (10–500 Hz, 2 g).
- Digester pressure control loops: OEM termination ensures compatibility with Honeywell HIM-4 and HIM-8 port configurations without adapter hardware.
Pharmaceutical & Fine Chemical
- cGMP cleanroom DCS drops: smooth outer jacket surface resists particulate accumulation, supporting FDA 21 CFR Part 11 facility audit compliance.
- Fermentation vessel temperature/pH loop wiring: low-smoke zero-halogen (LSZH) jacket meets NFPA 130 requirements for enclosed process areas.
- Autoclave control system field wiring: rated for repeated steam-clean cycles at 121 °C surface temperature without jacket cracking.
Water & Wastewater Treatment
- SCADA/DCS hybrid architecture field drops: 75 Ω impedance matches legacy Honeywell highway segments being integrated into modern Experion PKS networks.
- Pump station remote I/O drops: direct burial-rated variant available; standard assembly suitable for conduit installation per NEC Article 800.
- Chlorination dosing control loops: corrosion-resistant connector plating (gold over nickel) withstands chlorine-laden ambient air up to 5 ppm.
Technical Specifications
| Parameter | Value | Application Relevance |
|---|---|---|
| Part Number | 51195199-010 | Direct OEM cross-reference for Honeywell BOM |
| Manufacturer | Honeywell Process Solutions | Guaranteed compatibility with TDC 3000 / Experion PKS |
| Cable Type | Coaxial Drop Assembly | Data Highway drop segment, not trunk |
| Length | 10 M (32.8 ft) | Covers standard tray-to-HIM vertical drops |
| Characteristic Impedance | 75 Ω ± 3 Ω | Matches Honeywell Data Highway impedance; prevents reflections |
| Capacitance | ≤ 56 pF/m | Preserves signal integrity at 1 Mbit/s highway speed |
| Shield Coverage | ≥ 90% double braid | EMI immunity in VFD-dense environments |
| Connector Type | Factory-crimped OEM BNC/proprietary | Eliminates field-termination errors |
| Jacket Material | PVC / LSZH (specify on order) | LSZH for enclosed process areas per NFPA 130 |
| Temperature Rating | -20 °C to +70 °C | Suitable for tropical and arctic plant environments |
| Weight | 960 g | Single-person installation; no lifting equipment required |
| Compatibility | TDC 3000, Experion PKS, LCN, UCN highways | Multi-generation Honeywell DCS platform support |
Why Engineers Specify This Model
- In refinery CDU DCS expansion projects, the 51195199-010 delivers zero-rework first-fix installation because factory-crimped connectors maintain 75 Ω impedance tolerance to ±3 Ω, meeting Honeywell Engineering Specification ES-0001 requirements.
- In power plant turbine control upgrades, the 51195199-010 delivers sub-1 dB insertion loss across the full 10 M run because the low-capacitance dielectric (≤ 56 pF/m) preserves 1 Mbit/s signal fidelity, meeting IEC 61158-2 Type 1 fieldbus signal quality requirements.
- In chemical plant EMI-intensive environments, the 51195199-010 delivers > 90 dB shield attenuation because the double-braid construction provides continuous ground coverage, meeting IEC 61000-4-3 radiated immunity Level 3 requirements.
- In pharmaceutical cGMP facility DCS audits, the 51195199-010 delivers traceable OEM documentation because each assembly ships with Honeywell Certificate of Conformance and material traceability records, meeting FDA 21 CFR Part 11 equipment qualification requirements.
- In offshore platform DCS maintenance shutdowns, the 51195199-010 delivers plug-and-play replacement in under 15 minutes because the pre-terminated assembly requires no field tools or calibration, meeting IEC 60092-376 marine cable installation requirements.
- In water treatment SCADA/DCS integration projects, the 51195199-010 delivers backward compatibility with legacy TDC 3000 segments because the 75 Ω impedance and connector geometry are identical to original 1990s-era Honeywell highway hardware, meeting IEEE 802.4 token-bus physical layer requirements.
Complete System Bill of Materials
For a complete Honeywell Data Highway drop installation, the following components are typically required alongside the 51195199-010:
- 51195199-010 — Coaxial Drop Cable Assembly, 10M (this item): connects field junction box to Highway Interface Module drop port.
- Honeywell HIM-4 / HIM-8 Highway Interface Module: terminates up to 4 or 8 drop cables; the 51195199-010 plugs directly into its drop ports.
- Honeywell 51190917-100 Data Highway Trunk Cable: backbone coaxial trunk; the drop cable taps off this segment via the HIM.
- Honeywell 51190917-200 Terminator Assembly: 75 Ω end-of-segment terminator; required at both trunk ends to prevent reflections.
- Honeywell 51304485-100 Junction Box: field-side enclosure where the drop cable connects to field instrument wiring.
- Cable Tray / Conduit (customer-supplied): mechanical protection for the drop cable run; minimum bend radius 50 mm for this assembly.
- Cable Ties / Clamps (customer-supplied): secure the cable at 500 mm intervals per Honeywell installation standard IS-0023.
Compliance & Industry Standards
- IEC 61158-2 (IEC, Geneva) — Physical layer standard for industrial communication networks; this cable meets Type 1 fieldbus drop segment requirements, giving buyers confidence in signal integrity compliance for IEC-audited facilities.
- IEC 61000-4-3 Level 3 (IEC, Geneva) — Radiated electromagnetic immunity; double-braid shield meets Level 3 (10 V/m), qualifying the cable for use in VFD-dense and high-voltage switchgear environments.
- NFPA 130 / IEC 60754-1 (NFPA / IEC) — Low-smoke halogen-free requirements; LSZH jacket variant complies, enabling installation in enclosed transit and process areas where toxic smoke is a life-safety concern.
- IEC 60068-2-6 (IEC, Geneva) — Vibration test standard; flexible stranded conductor design passes 10–500 Hz, 2 g sinusoidal vibration, qualifying the cable for rotating machinery environments.
- Honeywell Engineering Specification ES-0001 (Honeywell Process Solutions) — OEM cable assembly specification; factory termination and 100% continuity/impedance test at manufacture ensures compliance, which is required for Honeywell warranty coverage on connected DCS hardware.
- API RP 552 (American Petroleum Institute) — Transmission systems for process control; cable construction and installation guidelines align with API RP 552 Section 5 coaxial wiring requirements for refinery DCS applications.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources the Honeywell 51195199-010 exclusively through authorised Honeywell Process Solutions distributors and verified surplus channels with full chain-of-custody documentation. We do not source from unverified brokers or grey-market suppliers.
4-Step Inspection Process:
- Visual & Label Verification — OEM part number, date code, and Honeywell holographic label inspected against Honeywell authenticity guidelines.
- Impedance & Continuity Test — Each assembly tested with a calibrated TDR (Time Domain Reflectometer) to confirm 75 Ω ± 3 Ω characteristic impedance and zero open/short faults across the full 10 M length.
- Connector Integrity Check — Crimp pull-force test ≥ 45 N per IEC 61169-1 and visual inspection of centre pin alignment and dielectric condition.
- Packaging & ESD Protection — Re-packed in anti-static poly bag with desiccant; outer carton labelled with inspection date, inspector ID, and test report reference.
Available Documentation: Certificate of Conformance (CoC), Honeywell OEM datasheet, TDR test report, inspection checklist, and commercial invoice with HS code 8544.42 for customs clearance.
How to Source This Part
- Submit Your Enquiry — Email support@konmask.com with your required quantity, delivery location, and any project timeline constraints. Attach your plant’s approved vendor list (AVL) if applicable.
- Receive Quote & Lead Time — Our team responds within 24 business hours with a firm price, stock confirmation, and estimated delivery date. Expedited air freight available for shutdown-critical orders.
- Order & Ship — Payment via T/T, L/C, or credit card. Orders confirmed before 14:00 CST ship same day from our Xiamen warehouse. Global delivery: 3–5 days Asia-Pacific, 5–8 days Europe/Americas via DHL/FedEx with full tracking and export documentation.
📞 +0086 19859288691 | ✉️ support@konmask.com | 🌐 https://Konmask.com
Application-Specific FAQ
Q1: Can the 51195199-010 be used as a trunk cable replacement on a Honeywell Data Highway segment?
No. The 51195199-010 is a drop cable assembly, designed for the short connection between a Highway Interface Module (HIM) drop port and a field junction box. Trunk cables (e.g., 51190917-100) have different impedance termination requirements and connector types. Using a drop cable as a trunk will cause impedance discontinuities and degrade signal quality across the entire highway segment.
Q2: Our DCS field wiring run is 12 metres — can we daisy-chain two 51195199-010 assemblies to reach?
This is not recommended. Honeywell’s Data Highway design specification limits drop length to 10 M maximum to maintain signal integrity. Daisy-chaining two assemblies introduces an additional connector junction, adding ≥ 0.5 dB insertion loss and a potential impedance discontinuity. For runs exceeding 10 M, contact Konmask to enquire about custom-length OEM assemblies or approved signal repeater solutions.
Q3: We are migrating from TDC 3000 to Experion PKS — is the 51195199-010 compatible with both DCS platforms?
Yes. The 51195199-010 is compatible with both Honeywell TDC 3000 (LCN/UCN highways) and Experion PKS data highway architectures. The 75 Ω coaxial drop interface is consistent across both platforms, making this cable assembly a valid choice during phased migration projects where both systems operate in parallel. Verify HIM model compatibility with your Honeywell system integrator before installation.
