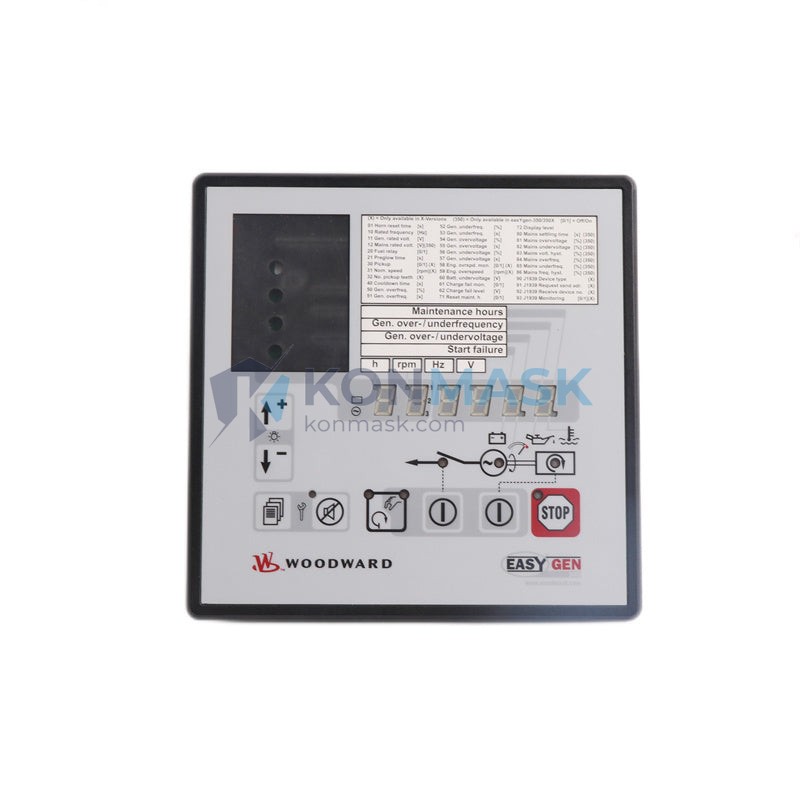

Genset & Turbine Control Solution – WOODWARD 8440-1750 EasyGen-1500-55B | EasyGen-1500 Series
In critical power generation facilities—from offshore platforms to municipal water treatment plants—unplanned generator trips cost an average of $5,000–$260,000 per hour in lost production and emergency response. Over 34% of these incidents trace back to inadequate genset control logic: imprecise speed governing, failed load-sharing synchronization, or protection relay mis-coordination. When a single controller failure cascades into a full blackout, the consequences extend far beyond financial loss into safety and regulatory liability.
The WOODWARD 8440-1750 EasyGen-1500-55B addresses these failure modes at the hardware and firmware level. Engineered as a dedicated genset management unit, it integrates speed governing, voltage regulation, load sharing, protection relay functions, and CAN/Modbus communications into a single DIN-rail mounted module. By consolidating what previously required 4–6 discrete relays and a separate governor into one certified controller, it eliminates inter-device wiring faults, reduces panel footprint by up to 60%, and provides deterministic response times under 20 ms for protection trips—keeping your generation assets online and your facility compliant.
Where This Product Is Used
1. Oil & Gas – Upstream & Midstream Power Generation
Drilling rigs and compressor stations rely on diesel or gas gensets as primary or backup power. The EasyGen-1500-55B manages isochronous load sharing between parallel gensets (up to 32 units via CAN bus), handles automatic mains failure (AMF) sequences, and provides overcurrent/reverse power protection per API 670 and IEC 60034-1. Typical environment: −20°C to +70°C ambient, high vibration (Class III), explosive-atmosphere adjacent panels requiring ATEX-rated enclosures.
2. Marine & Offshore – Vessel Power Management
Dynamic positioning (DP) vessels and FPSOs demand zero-interruption power. The module’s droop/isochronous switching and dead-bus detection enable seamless generator changeover without DP system dropout. Compliant with DNV GL and Lloyd’s Register class notation requirements. Operating environment: salt-spray exposure, 5–95% RH non-condensing, continuous vibration per IEC 60068-2-6.
3. Power Utilities – Distributed Generation & Peaker Plants
Municipal utilities deploying gas-engine peaker units use the EasyGen-1500-55B for grid-parallel synchronization, reactive power (VAR) control, and SCADA integration via Modbus RTU/TCP. The module supports IEEE 1547 anti-islanding protection and NERC CIP-compatible event logging. Typical scenario: 1–10 MW gas genset banks, 11 kV bus, automated load dispatch from EMS.
4. Industrial Manufacturing – Captive Power & UPS Backup
Automotive, chemical, and semiconductor fabs with 24/7 production lines use captive gensets rated 500 kW–5 MW. The controller’s configurable protection thresholds (ANSI 27/59/81/32/46/51) and PLC-compatible digital I/O allow seamless integration with existing Siemens S7 or Allen-Bradley ControlLogix systems. Environment: 0–55°C, IEC 60529 IP20 panel mounting, EMC per IEC 61000-4 series.
5. Data Centers – Critical Power Infrastructure
Tier III/IV data centers require generator-to-UPS transfer in <10 seconds. The EasyGen-1500-55B's AMF logic with configurable time delays (0.1 s resolution) and battery-backed RTC for event timestamping supports ANSI/TIA-942 and EN 50600 compliance audits. Typical deployment: N+1 or 2N diesel genset configurations, 400 V/480 V bus, BMS integration via Modbus.
6. Water & Wastewater – Pump Station Backup Power
Municipal lift stations and treatment plants must maintain continuous pump operation during grid outages per EPA 40 CFR Part 122 permit conditions. The module automates start/stop sequences, monitors genset health parameters (coolant temp, oil pressure, battery voltage), and triggers alarms to SCADA via dry-contact outputs. Environment: high humidity, H₂S exposure risk, wide temperature swings (−10°C to +50°C).
Technical Specifications
| Part Number | 8440-1750 |
| Model | EasyGen-1500-55B |
| Manufacturer | WOODWARD |
| Supply Voltage | 8–35 VDC (battery-tolerant) — critical for AMF applications with degraded battery |
| Generator Voltage Input | Up to 690 VAC (L-L), configurable PT ratio — supports MV applications via external PT |
| Frequency Range | 40–70 Hz — covers 50 Hz and 60 Hz grid standards globally |
| Current Input | 1 A or 5 A CT secondary — matches standard protection CT ratings |
| Digital Inputs | 12 configurable — enables custom AMF logic and external interlock wiring |
| Relay Outputs | 7 relay outputs (5 A, 250 VAC) — direct drive of contactors and alarms |
| Analog Outputs | 2 × 0–20 mA / 4–20 mA — governor and AVR interface for speed/voltage control |
| Communication | CAN bus (J1939/CANopen), Modbus RTU (RS-485), optional Modbus TCP — SCADA/DCS integration |
| Protection Functions | ANSI 27/59 (under/overvoltage), 81U/81O (under/overfrequency), 32 (reverse power), 46 (negative sequence), 51/51N (overcurrent) — full genset protection suite |
| Synchronization | Automatic synchronizer with check sync relay — dead-bus and live-bus closing |
| Load Sharing | Isochronous and droop, up to 32 units parallel — scalable genset plant |
| Display | Backlit LCD, 4-line × 20-character — local parameter viewing without laptop |
| Operating Temperature | −20°C to +70°C — suitable for outdoor and tropical installations |
| Storage Temperature | −40°C to +85°C |
| Humidity | 5–95% RH, non-condensing |
| Mounting | Panel cutout, DIN rail adapter available |
| Dimensions | 144 × 144 × 65 mm (H × W × D) |
| Weight | Approx. 0.8 kg |
| Certifications | CE, UL, cUL, DNV GL type approval |
| EMC Compliance | IEC 61000-4-2/3/4/5/6/8/11 |
Why Engineers Specify This Model
- In offshore DP vessel power management, the EasyGen-1500-55B delivers sub-20 ms protection trip response because its protection functions execute on a dedicated real-time kernel independent of the HMI task, meeting DNV GL DYNPOS-AUTR redundancy requirements.
- In oil & gas compressor station AMF applications, the 8440-1750 delivers reliable cold-start sequencing down to −20°C because its wide-range DC supply (8–35 VDC) tolerates battery voltage sag during engine cranking, meeting API 670 auxiliary system availability requirements.
- In data center N+1 genset configurations, the EasyGen-1500-55B delivers seamless dead-bus and live-bus synchronization because its auto-synchronizer continuously monitors phase angle, voltage, and frequency differentials before issuing a close command, meeting ANSI/TIA-942 Tier III transfer time requirements.
- In municipal water treatment backup power, the 8440-1750 delivers comprehensive genset health monitoring via Modbus SCADA integration because its 12 configurable digital inputs map directly to engine sensor outputs (coolant temp, oil pressure, fuel level), meeting EPA 40 CFR Part 122 continuous operation permit conditions.
- In industrial captive power plants with parallel gensets, the EasyGen-1500-55B delivers stable isochronous load sharing across up to 32 units because its CAN bus load-sharing algorithm uses real-time kW feedback with <1% steady-state deviation, meeting IEC 60034-1 generator performance standards.
- In peaker plant grid-parallel operation, the 8440-1750 delivers IEEE 1547-compliant anti-islanding protection because its rate-of-change-of-frequency (ROCOF) and vector shift detection algorithms operate within the 160 ms detection window mandated by IEEE 1547-2018 and IEC 62116.
Complete System Bill of Materials
The following components are typically specified alongside the EasyGen-1500-55B in a complete genset control panel build:
- WOODWARD 8440-1750 EasyGen-1500-55B — Primary genset management controller (this unit)
- Current Transformers (CT), 5 A secondary, metering class 0.5 — Provide current measurement inputs to the controller’s ANSI 51/46 protection functions; one per phase
- Potential Transformers (PT), 100 VA, 0.5% accuracy — Step down generator terminal voltage to controller input range; required for MV applications above 690 V
- WOODWARD ProAct or EG3P Governor Actuator — Receives 4–20 mA speed reference from the EasyGen analog output for fuel rack positioning on diesel engines
- Automatic Voltage Regulator (AVR), compatible 4–20 mA input — Interfaces with EasyGen analog output channel 2 for reactive power and voltage droop control
- RS-485 to Ethernet Modbus Gateway — Bridges EasyGen Modbus RTU port to plant SCADA Ethernet network; enables remote monitoring without replacing existing wiring
- 24 VDC UPS / Battery Charger Module — Maintains controller supply voltage during mains failure; critical for AMF applications where battery may be partially discharged
- DIN Rail Terminal Blocks, 4 mm², with test points — Provide safe, maintainable wiring termination for all I/O connections; test points allow live circuit verification without disconnection
- Surge Protection Device (SPD), Class II, for DC supply rail — Protects controller from lightning-induced transients on battery/DC bus; required per IEC 60364-5-53 in outdoor installations
- Panel-mount Ethernet Switch, industrial grade (−40°C rated) — Distributes Modbus TCP and remote HMI traffic within the control panel; DIN rail mount matches EasyGen form factor
Compliance & Industry Standards
- CE Marking (EU Declaration of Conformity) — Issued by WOODWARD under EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. Confirms the unit meets European safety and electromagnetic compatibility requirements, enabling legal sale and installation across all EU member states.
- UL / cUL Listed — Certified by Underwriters Laboratories to UL 508 (Industrial Control Equipment) for US and Canadian markets. Required by NEC Article 409 for industrial control panels; simplifies AHJ approval during commissioning.
- DNV GL Type Approval — Issued by Det Norske Veritas Germanischer Lloyd for marine and offshore applications. Confirms the unit meets DNV GL Rules for Classification of Ships, Pt. 4 Ch. 8 (Electrical Installations). Required for installation on classed vessels and offshore structures.
- IEC 61000-4 Series (EMC Immunity) — Tested to IEC 61000-4-2 (ESD), -4-3 (radiated immunity), -4-4 (EFT), -4-5 (surge), -4-6 (conducted immunity), -4-8 (power frequency magnetic field), -4-11 (voltage dips). Ensures reliable operation in electrically noisy industrial environments adjacent to VFDs, switchgear, and welding equipment.
- IEC 60068-2-6 (Vibration) — Validated for sinusoidal vibration per IEC 60068-2-6 Test Fc. Confirms mechanical integrity in high-vibration environments such as engine rooms, compressor skids, and marine vessels.
- IEEE 1547-2018 (Grid Interconnection) — Anti-islanding and grid protection functions designed to meet IEEE 1547-2018 requirements for distributed energy resources. Relevant for utility-parallel genset applications subject to utility interconnection agreements.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources the WOODWARD 8440-1750 EasyGen-1500-55B through authorized industrial surplus channels, OEM-certified distributors, and verified secondary market suppliers with documented chain of custody. All units are traceable to original WOODWARD manufacturing records where available.
4-Step Inspection Process:
- Visual & Physical Inspection — Enclosure integrity check, connector pin inspection, label verification (part number, serial number, firmware revision sticker), and cosmetic grading against WOODWARD factory standards.
- Functional Power-On Test — Unit powered at 24 VDC; LCD display, keypad navigation, and communication port activity verified. Firmware version logged and compared against WOODWARD release history.
- I/O Continuity & Isolation Test — All digital input and relay output channels tested for continuity and correct isolation resistance (>100 MΩ at 500 VDC) using calibrated insulation tester.
- Communication Protocol Verification — Modbus RTU register map queried via RS-485 test bench; CAN bus node address and baud rate confirmed. Results documented in unit-specific test report.
Documentation Available Upon Request: Original WOODWARD datasheet, factory calibration certificate (where available), inspection test report, photos of physical unit, and Modbus register map (WOODWARD document 26839).
How to Source This Part
- Submit Your Inquiry — Contact us via the product page, email [email protected], or WhatsApp/phone at +0086 19859288691 with your required quantity, delivery timeline, and any specific firmware or hardware revision requirements.
- Receive Quote & Availability Confirmation — Our team responds within 24 hours with stock status, unit condition grade, available documentation, and a firm price quote in your preferred currency (USD, EUR, HKD, CNY).
- Order, Inspect & Ship — Upon order confirmation, units undergo final inspection and are packed in anti-static, shock-protected packaging. We ship globally via DHL Express, FedEx International Priority, or freight forwarder of your choice. Export documentation (commercial invoice, packing list, COO) provided for all international shipments. Typical dispatch: 1–3 business days from payment confirmation.
Application-Specific FAQ
Q: Can the EasyGen-1500-55B handle isochronous load sharing in an offshore genset application where generators have different kW ratings?
A: Yes. The EasyGen-1500-55B supports both equal and proportional (kW-rated) load sharing via its CAN bus load-share line. In offshore applications with mixed-rating gensets (e.g., one 1,000 kW and two 500 kW units), the controller’s load-share algorithm distributes load proportionally to each unit’s rated capacity, maintaining stable frequency without manual governor adjustment. Up to 32 units can participate on a single CAN network.
Q: In a data center AMF application, what is the minimum transfer time from mains failure detection to genset breaker close?
A: The EasyGen-1500-55B’s AMF sequence is fully configurable with 0.1-second resolution on all time delays. A typical optimized sequence—mains failure detection (0.5 s) → start command → engine run-up → voltage/frequency in-range detection → dead-bus breaker close—can achieve total transfer times of 8–12 seconds for a pre-warmed engine, well within the 10-second requirement of most Tier III data center specifications. All delay parameters are accessible via the front-panel keypad or Modbus register writes.
Q: Is the 8440-1750 suitable for gas turbine control applications, or is it limited to reciprocating engine gensets?
A: The EasyGen-1500-55B is optimized for reciprocating engine (diesel and gas) genset applications where the controller interfaces with a separate governor actuator and AVR. For gas turbine control applications requiring integrated fuel metering valve control, turbine speed governing, and compressor surge protection, WOODWARD’s dedicated turbine control platforms (e.g., MicroNet, Peak 150) are the appropriate solution. The EasyGen-1500-55B can, however, manage the electrical protection, synchronization, and load-sharing functions for a gas turbine genset when a separate turbine controller handles the prime mover control loop.
