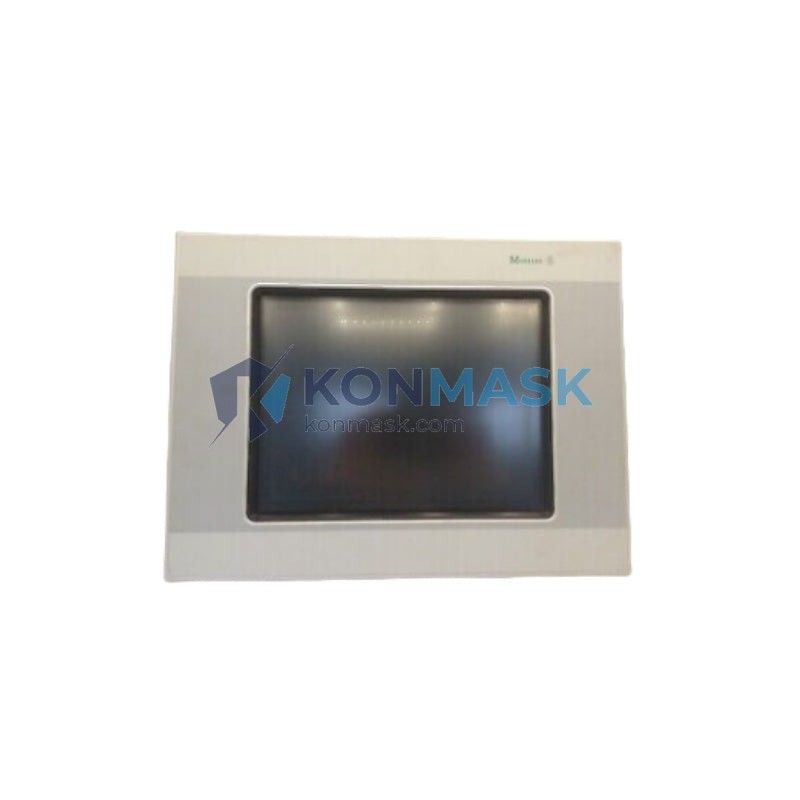

EATON XVC-601-GTI-10-DPM-V1-000 – 10.4″ TFT Control PC Panel | XVC-600 Visualization Platform
Engineering Background
The EATON XVC-601-GTI-10-DPM-V1-000 is a high-performance Control PC Panel engineered within EATON’s XVC-600 series visualization platform. Designed and manufactured in Germany to IEC/EN industrial standards, this unit integrates a 10.4-inch TFT color display with an embedded control PC architecture, delivering deterministic HMI performance in demanding industrial environments. It is purpose-built for machine builders, system integrators, and OEM automation engineers who require a compact, ruggedized operator interface with direct PLC connectivity.
Product Positioning
As a member of EATON’s XVC (eXtended Visualization and Control) family, the XVC-601-GTI-10-DPM-V1-000 bridges the gap between standalone HMI panels and full industrial PCs. It supports PROFIBUS-DP and Ethernet communication, making it compatible with EATON’s XC series PLCs as well as third-party controllers. The unit is suited for panel-mount installation in control cabinets across manufacturing, energy, and process automation sectors.
Complete Technical Specifications
| Part Number / SKU | XVC-601-GTI-10-DPM-V1-000 |
| Manufacturer | EATON (Moeller Series) |
| Series / Platform | XVC-600 eXtended Visualization & Control |
| Display Type | 10.4″ TFT Color LCD |
| Display Resolution | 640 × 480 px (VGA) |
| Touchscreen | Resistive touch (single-point) |
| Processor | Embedded x86-compatible Control PC |
| Operating System | Windows CE / XP Embedded (version-dependent) |
| Communication Interfaces | PROFIBUS-DP (DPM), Ethernet 10/100 Mbps, RS-232/485 |
| Fieldbus Protocol | PROFIBUS-DP Master (DPM) |
| Supply Voltage | 24 V DC (±20%) |
| Power Consumption | ≤ 30 W (typical) |
| Protection Rating | IP65 (front panel) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting Type | Panel-mount (cutout installation) |
| Dimensions (W × H × D) | Approx. 310 × 240 × 65 mm |
| Weight | Approx. 4.5 kg |
| Country of Origin | Germany (DE) |
| HS Code | 853710 |
| Certifications | CE, UL (market-dependent) |
| Software | Compatible with GALILEO / GALILEO-I visualization software |
Proven Application Environments
- Machine Tool & CNC Control: Operator interface for machining centers, lathes, and milling systems requiring real-time status visualization.
- Packaging & Material Handling: Line HMI for conveyor systems, palletizers, and filling machines with PROFIBUS-DP network integration.
- Energy & Power Distribution: Substation and switchgear monitoring panels in medium-voltage environments.
- Water & Wastewater Treatment: SCADA-connected operator stations for pump control and process monitoring.
- Automotive Assembly Lines: Embedded control panels for robotic cell supervision and production data logging.
- Building Automation & HVAC: Central control interface for large-scale HVAC and BMS installations.
Engineering Advantages
- Integrated Control PC Architecture: Eliminates the need for a separate IPC, reducing panel footprint and wiring complexity.
- Native PROFIBUS-DP Master: Direct fieldbus master capability (DPM) enables seamless integration with distributed I/O, drives, and sensors without additional gateways.
- IP65 Front Panel Sealing: Protects against dust ingress and water jets, suitable for wash-down and harsh industrial environments.
- GALILEO Software Ecosystem: Full compatibility with EATON’s GALILEO visualization suite for rapid HMI development, tag management, and alarm handling.
- Wide Supply Voltage Tolerance: 24 V DC ±20% input range ensures stable operation across fluctuating industrial power supplies.
- Compact Panel-Mount Form Factor: Standardized cutout dimensions simplify retrofit and new-build cabinet integration.
System Architecture & Signal Flow
The XVC-601-GTI-10-DPM-V1-000 operates as a PROFIBUS-DP Master (Class 1) on the fieldbus network, cyclically exchanging process data with DP slave devices (I/O modules, drives, encoders). The embedded Control PC runs the GALILEO runtime environment, rendering HMI screens and executing visualization logic. Ethernet connectivity provides integration with SCADA systems, MES layers, or remote engineering workstations via standard TCP/IP protocols. The 24 V DC power supply feeds both the display backlight and the control PC subsystem through an internal regulated power stage.
Typical Signal Flow:
- Field Devices (DP Slaves) → PROFIBUS-DP Bus → XVC-601 DP Master Port
- XVC-601 Control PC ↔ GALILEO Runtime ↔ TFT Display / Touch Input
- XVC-601 Ethernet Port ↔ SCADA / MES / Engineering PC (TCP/IP)
- XVC-601 RS-232/485 ↔ Serial Peripherals / Barcode Readers / Printers
Sourcing & Quality Verification
- Genuine OEM Parts: All units sourced directly from authorized EATON distributors or verified surplus channels with full traceability.
- Pre-Shipment Inspection: Each unit undergoes visual inspection, label verification (part number, serial number, date code), and functional power-on testing where applicable.
- Packaging Integrity: Original EATON packaging preserved where available; otherwise repackaged in anti-static ESD-safe materials with foam cushioning.
- Documentation: Certificate of conformity and test records available upon request for critical procurement.
- Counterfeit Prevention: All units verified against EATON’s published part number structure and physical authenticity markers prior to listing.
Procurement Process
- Inquiry & Quotation: Contact us via email at [email protected] or WhatsApp +0086 19859288691 with your required quantity and delivery timeline.
- Order Confirmation: Receive a proforma invoice with part number, quantity, unit price, and shipping terms (EXW / DDP / DAP available).
- Payment: T/T (Bank Transfer), PayPal, or other agreed methods. Lead time confirmed upon payment receipt.
- Shipment: Dispatched via DHL / FedEx / UPS Express or sea freight for bulk orders. Tracking number provided within 24 hours of dispatch.
- After-Sales Support: 12-month warranty on genuine new units. Technical support available for integration and commissioning queries.
Technical FAQ
Q: Is the XVC-601-GTI-10-DPM-V1-000 compatible with third-party PLCs?
A: Yes. Via PROFIBUS-DP and Ethernet, it can communicate with any DP-compliant PLC or Modbus TCP-capable controller. GALILEO supports OPC DA/UA for broader connectivity.
Q: What visualization software is required?
A: EATON GALILEO or GALILEO-I is the native development environment. Projects are compiled and downloaded to the XVC-601 runtime via Ethernet or USB.
Q: Can the unit be used as a standalone PC without PLC connection?
A: Yes. The embedded Control PC can run standard Windows CE/XP Embedded applications independently of any fieldbus connection.
Q: What is the display backlight lifetime?
A: Typical TFT backlight lifetime is 50,000 hours at rated brightness. Backlight dimming is configurable via GALILEO to extend service life.
Q: Is a replacement unit available if the original is discontinued?
A: Konmask maintains stock of legacy EATON XVC series panels. Contact us for availability of exact replacements or recommended migration paths to current XVC-600 variants.
