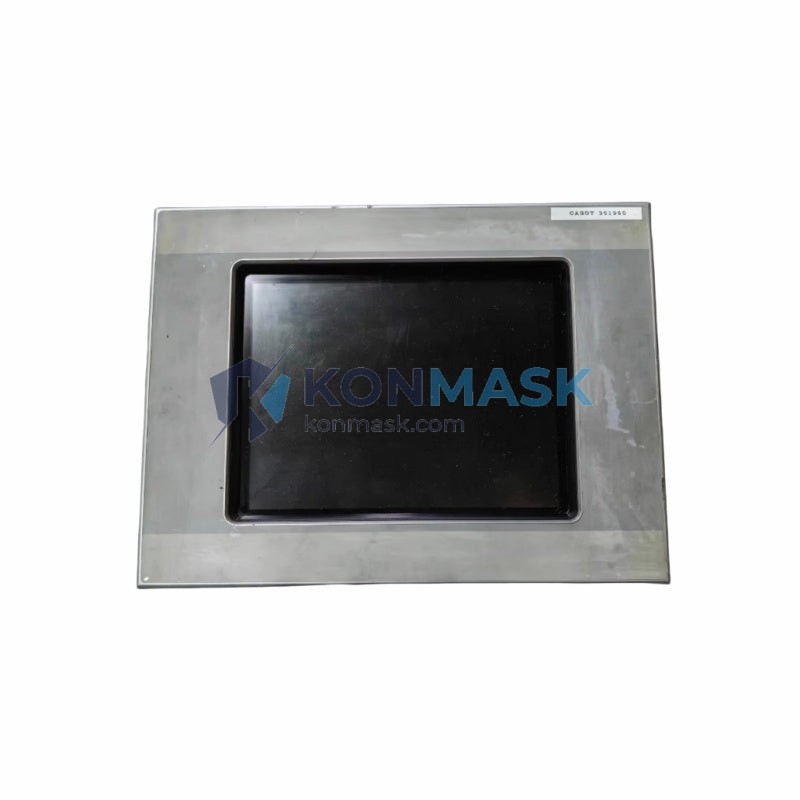

EATON MC2-440-10TVB-1-10 – 10″ Industrial Touch Screen HMI Panel | XV-Series Operator Interface Platform
Engineering Background: The EATON MC2-440-10TVB-1-10 is a high-performance 10-inch color touch screen Human-Machine Interface (HMI) panel engineered for demanding industrial automation environments. Built on EATON’s proven XV-Series platform, this unit delivers robust operator control, real-time process visualization, and seamless integration with EATON PLCs, third-party controllers, and fieldbus networks. Designed and manufactured in Germany, it meets the stringent quality and reliability standards expected in process control, machine building, and factory automation applications.
Product Positioning: Targeted at OEM machine builders, system integrators, and plant engineers who require a reliable, long-lifecycle HMI with broad communication protocol support. The MC2-440-10TVB-1-10 is the preferred choice for applications demanding high-resolution visualization, multi-protocol connectivity, and IP65-rated front panel protection in harsh industrial settings.
Complete Technical Specifications
- Part Number / SKU: MC2-440-10TVB-1-10
- Manufacturer: EATON Corporation (Moeller Series)
- Series / Platform: XV-Series (MC2-440 Family)
- Display Size: 10.4″ TFT Color LCD
- Display Resolution: 640 × 480 pixels (VGA)
- Touch Technology: Resistive touch screen
- Processor: Industrial-grade ARM/x86 embedded processor
- Operating System: Embedded Windows CE / Linux (platform-dependent)
- Memory: Flash storage + RAM (refer to EATON datasheet for exact values)
- Communication Interfaces: Ethernet (RJ45), RS-232, RS-485, USB Host/Device, CAN
- Supported Protocols: Modbus RTU/TCP, PROFIBUS DP, CANopen, EtherNet/IP, IEC 60870
- Supply Voltage: 24 V DC (nominal)
- Power Consumption: Approx. 15–25 W (typical)
- Front Panel Protection: IP65 (dust-tight and water jet resistant)
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: −20 °C to +70 °C
- Humidity: 5–95% RH, non-condensing
- Mounting: Panel cut-out mounting (front flush)
- Dimensions: Refer to EATON installation drawing MC2-440-10TVB
- Weight: Approx. 3.5 kg
- Certifications: CE, UL, cUL
- Country of Origin: Germany
Proven Application Environments
- Discrete manufacturing: CNC machine tools, assembly lines, robotic cells
- Process industries: water treatment, chemical dosing, HVAC control
- Energy & utilities: substation automation, generator control panels
- Food & beverage: hygienic machine interfaces requiring IP65 front protection
- Building automation: BMS operator stations and field control panels
- OEM machine builders requiring a standardized, long-lifecycle HMI platform
Engineering Advantages
- Wide Protocol Support: Native connectivity to EATON PLCs (XC/XVC series) and third-party controllers via Modbus, CANopen, PROFIBUS, and EtherNet/IP eliminates the need for protocol converters.
- IP65 Front Panel: Sealed front bezel withstands wash-down, dust, and coolant splash in production environments.
- Long Product Lifecycle: EATON’s XV-Series is supported with spare parts and firmware updates over an extended service window, reducing total cost of ownership.
- Vibration & Shock Resistance: Designed to IEC 60068 standards for reliable operation in mobile and high-vibration machinery.
- Intuitive Engineering Software: Compatible with EATON Galileo/Xsoft-CoDeSys programming environment for rapid HMI project development.
- Compact Panel Integration: Slim depth profile minimizes enclosure depth requirements for space-constrained control cabinets.
System Architecture & Signal Flow
The MC2-440-10TVB-1-10 operates as the operator interface layer within a typical automation architecture:
- Field Level: Sensors, actuators, and I/O modules communicate via fieldbus (PROFIBUS DP, CANopen, Modbus RTU) to the connected PLC or directly to the HMI via serial ports.
- Control Level: The HMI exchanges real-time process data with the PLC (EATON XC/XVC or third-party) over Ethernet (Modbus TCP / EtherNet/IP) or serial links.
- Visualization Layer: The 10.4″ TFT display renders process graphics, alarms, trends, and recipes. Operators interact via the resistive touch screen to issue setpoints and acknowledge alarms.
- Data Management: Historical data, alarm logs, and recipe files are stored internally or transferred to a host SCADA/MES system via Ethernet or USB.
Sourcing & Quality Verification
- OEM Authenticity: All units sourced through authorized EATON distribution channels or verified surplus with full traceability documentation.
- Incoming Inspection: Each unit undergoes visual inspection, label verification (part number, date code, country of origin), and functional power-on test prior to dispatch.
- Packaging: Shipped in original or equivalent anti-static protective packaging with foam cushioning to prevent transit damage.
- Documentation: Certificate of conformity and test report available upon request. EATON original datasheet and wiring diagram provided with shipment.
- Warranty: 12-month Konmask warranty against manufacturing defects. DOA replacement within 30 days of receipt.
Procurement Process
- Inquiry: Submit your RFQ with required quantity and delivery timeline via email or the product page inquiry form.
- Quotation: Konmask responds within 1 business day with pricing, lead time, and stock availability confirmation.
- Order Confirmation: Purchase order accepted via email. Proforma invoice issued for payment processing.
- Payment: T/T (bank transfer), PayPal, or credit card accepted. Orders processed upon payment clearance.
- Dispatch: Units shipped within 2–5 business days from verified stock. Express (DHL/FedEx/UPS) and economy freight options available.
- After-Sales: Technical support available via email and phone. Replacement or refund processed per Konmask warranty policy.
Technical FAQ
Q: Is the MC2-440-10TVB-1-10 compatible with non-EATON PLCs?
A: Yes. Via Modbus RTU/TCP, EtherNet/IP, and CANopen, it connects to Siemens, Allen-Bradley, Mitsubishi, Omron, and other major PLC brands.
Q: What programming software is required?
A: EATON Galileo (for XV-Series HMI projects) or Xsoft-CoDeSys for combined PLC+HMI configurations. Both are available from EATON’s software portal.
Q: Can this unit be used outdoors?
A: The front panel is IP65-rated, but the unit is designed for indoor industrial environments. Extended outdoor use requires an additional weatherproof enclosure.
Q: What is the display backlight lifetime?
A: Typical CCFL/LED backlight lifetime is 50,000 hours at rated brightness. Backlight replacement service is available through EATON authorized service centers.
Q: Do you provide the original EATON datasheet?
A: Yes. The official EATON MC2-440-10TVB-1-10 datasheet and installation manual are included with every shipment and available on request prior to purchase.
