Packaging & Motion Control Solution — ELAU MC-4/11/01/400 | PacDrive Servo Drive

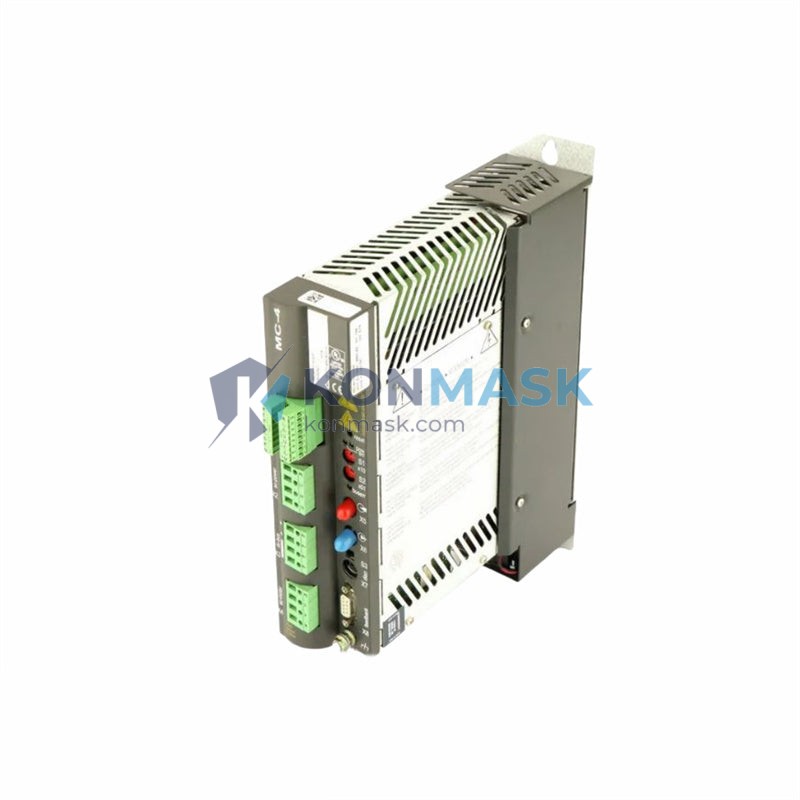

The ELAU MC-4/11/01/400 is a compact, high-performance servo drive axis module from the PacDrive series, engineered for precision motion control in demanding industrial automation environments. Whether you are maintaining an existing PacDrive system or specifying a replacement, Konmask.com provides verified, in-stock units with full technical support.
Where This Product Is Used
The MC-4/11/01/400 is widely deployed across industries that demand synchronized, high-speed motion:
- Packaging Machinery — Flow wrappers, cartoners, case packers, and form-fill-seal machines requiring multi-axis synchronization
- Printing & Converting — Web tension control, register control, and cut-to-length applications
- Food & Beverage Processing — Hygienic-environment conveyors, filling lines, and capping stations
- Pharmaceutical Manufacturing — Blister packaging, labeling, and serialization lines
- Textile & Nonwoven — Winding, unwinding, and cross-cutting systems
- General Factory Automation — Any application requiring coordinated servo motion via CANopen or SERCOS
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ELAU (Schneider Electric) |
| Model / SKU | MC-4/11/01/400 |
| Series | PacDrive (MC-4 Axis Module) |
| Rated Output Current | 11 A |
| Supply Voltage | 400 V AC (3-phase) |
| Communication Interface | CANopen / SERCOS II |
| Encoder Interface | Resolver / SinCos / EnDat |
| Protection Class | IP20 |
| Cooling | Forced air (internal fan) |
| Weight | 1.56 kg |
| Mounting | DIN rail / panel mount |
| Compatible Controller | ELAU PacDrive C400 / C600 |
Why Engineers Specify This Model
- Compact Form Factor — Slim axis module design minimizes cabinet footprint in multi-axis configurations
- Seamless PacDrive Integration — Native compatibility with ELAU C400/C600 controllers and SynqNet motion bus
- High Dynamic Response — Fast current loop enables tight velocity and position control for high-speed packaging
- Flexible Encoder Support — Accepts resolver, SinCos, and EnDat feedback for broad motor compatibility
- Proven Reliability — Widely installed base across global OEM packaging machine builders
- Schneider Electric Ecosystem — Full backward compatibility with legacy ELAU PacDrive infrastructure post-acquisition
Complete System Bill of Materials
A typical PacDrive motion system using the MC-4/11/01/400 includes:
- ELAU PacDrive Controller — C400 or C600 (e.g., C400/A/0/0/0/00)
- ELAU PS-5 Power Supply — DC bus power for axis modules
- ELAU MC-4/11/01/400 — Servo drive axis module (this unit)
- ELAU SM servo motor — Matched to axis current rating
- CANopen / SERCOS II communication cable
- Resolver or encoder feedback cable
- 24 V DC control power supply
Contact support@konmask.com for complete BOM sourcing assistance.
Compliance & Industry Standards
- CE Marked — Compliant with EU Machinery Directive and Low Voltage Directive
- UL Listed — Suitable for North American industrial installations
- RoHS Compliant — Meets EU hazardous substance restrictions
- IEC 61800-5-1 — Safety requirements for adjustable speed electrical power drive systems
- EN 61000 — EMC compliance for industrial environments
Quality Assurance & Sourcing
- ✅ Fully Tested — Each unit undergoes functional power-on and communication verification before shipment
- ✅ Genuine OEM Hardware — Sourced from decommissioned production lines and authorized channels
- ✅ Inspection Report Available — Detailed test records provided on request
- ✅ Secure Packaging — Anti-static, foam-padded packaging to prevent transit damage
- ✅ Warranty — 90-day replacement warranty on all units
How to Source This Part
- Click Add to Cart or Contact Us for a custom quote
- Provide your machine model and current firmware version for compatibility confirmation
- Receive order confirmation with lead time and shipping options
- Units ship within 1–3 business days from verified stock
📧 support@konmask.com | 📞 +0086 19859288691
Application-Specific FAQ
Q: Is the MC-4/11/01/400 compatible with the ELAU C400 controller?
A: Yes. The MC-4 axis module is natively designed for the PacDrive C400 and C600 controller platforms via CANopen or SERCOS II bus.
Q: Can this drive control any servo motor?
A: It is optimized for ELAU SM-series motors but supports any motor with resolver, SinCos, or EnDat encoder feedback within the rated current envelope.
Q: What is the difference between MC-4/11/01/400 and MC-4/22/01/400?
A: The key difference is rated output current — 11 A vs. 22 A. Select based on your motor’s continuous and peak current requirements.
Q: Do you supply the matching PS-5 power supply?
A: Yes. We stock the ELAU PS-5 DC bus power supply. Contact us for a bundled quote.
Q: Can I use this in a new machine design?
A: The PacDrive platform is mature. For new designs, Schneider Electric recommends the LMC series. However, for existing PacDrive installations, the MC-4/11/01/400 remains the correct replacement.
