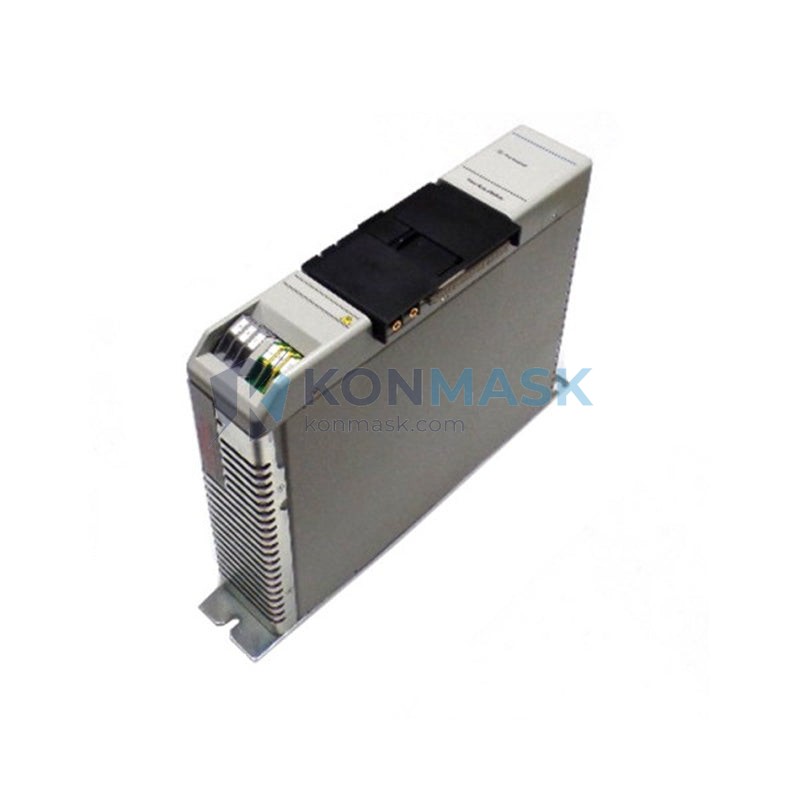

Precision Motion Control Solution — Allen-Bradley 1394C-AM75-IH | 1394 Series AC Servo Drive
The Allen-Bradley 1394C-AM75-IH is a high-performance AC servo drive from Rockwell Automation’s 1394 Series, engineered for demanding multi-axis motion control applications. With a 7.5 kW continuous power rating and integrated high-bandwidth current loop, this drive delivers the dynamic response and positional accuracy required in modern automated manufacturing environments. Procurement engineers and system integrators worldwide specify the 1394C-AM75-IH where throughput, repeatability, and uptime are non-negotiable.
Where This Product Is Used
The 1394C-AM75-IH is deployed across a broad spectrum of industrial automation environments:
- CNC Machining Centers — Axis interpolation for milling, turning, and grinding machines requiring sub-micron positional repeatability.
- Packaging Machinery — High-speed pick-and-place, form-fill-seal, and cartoning lines where coordinated multi-axis motion is critical.
- Robotics & Gantry Systems — Servo amplifier for articulated arm robots and linear gantry positioners in automotive and electronics assembly.
- Printing & Converting — Register control and tension management on web-fed printing presses and slitter-rewinders.
- Semiconductor & Electronics Manufacturing — Wafer handling, PCB drilling, and SMT placement machines demanding ultra-low following error.
- Material Handling & Conveyors — Synchronized multi-drive conveyor indexing and palletizing systems.
- Plastics & Injection Molding — Clamp, injection, and ejector axis control on servo-hydraulic and all-electric molding machines.
Technical Specifications
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Part Number | 1394C-AM75-IH |
| Series | 1394 Multi-Axis Motion Control System |
| Drive Type | AC Servo Drive (Axis Module) |
| Continuous Output Power | 7.5 kW |
| Continuous Output Current | ~15 A (axis-dependent; verify with 1394 system sizing tool) |
| Input Bus Voltage | DC Bus from 1394 System Power Supply (230 V or 460 V AC input) |
| Feedback Interface | Incremental Encoder / Resolver (IH suffix = High-resolution encoder) |
| Communication | Backplane interface to 1394 GMC/GMCSE system controller |
| Current Loop Bandwidth | Up to 2,500 Hz |
| Velocity Loop Bandwidth | Up to 250 Hz |
| Protection Class | IP20 (panel-mount) |
| Ambient Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | 5 % to 95 % non-condensing |
| Weight | 7.6 kg |
| Mounting | DIN rail / panel mount within 1394 chassis |
| Certifications | UL, CE, cUL |
Why Engineers Specify This Model
- Multi-Axis Shared DC Bus — The 1394 architecture shares a common DC bus across all axis modules, enabling regenerative energy exchange between axes and reducing overall power consumption by up to 30% versus standalone drives.
- High-Resolution Feedback (IH Suffix) — The -IH designation confirms compatibility with high-resolution encoder feedback, enabling fine interpolation and superior surface finish in machining applications.
- Tight Integration with Logix Platform — Native coordination with Allen-Bradley’s 1394 GMC/GMCSE motion controller and seamless migration path to Kinetix via ControlLogix/Studio 5000.
- Deterministic Real-Time Control — Synchronous current and velocity loop execution ensures repeatable, jitter-free motion profiles critical for coordinated multi-axis contouring.
- Proven Field Reliability — The 1394 platform has accumulated millions of operating hours across global installations in automotive, aerospace, and consumer goods manufacturing.
- Compact Axis Module Form Factor — Modular design minimizes panel footprint; additional axes can be added without replacing the power supply or controller.
Complete System Bill of Materials
The 1394C-AM75-IH axis module operates within the 1394 Multi-Axis Motion Control System. A complete system typically includes:
- System Power Supply — e.g., 1394-SJT22-T (22 kW, 460 V) or equivalent rated for total axis load
- Motion Controller — 1394-GM1 (GMC) or 1394-GM1-SE (GMCSE with SynchLink)
- Axis Modules — 1394C-AM75-IH (this unit) × number of axes required
- Servo Motors — Compatible MPL / MPF / TL-Series motors with matching feedback type
- Feedback Cables — 2090-Series motor feedback cables (length per installation)
- Power Cables — 2090-Series motor power cables
- Programming Software — RSLogix 5000 / Studio 5000 with Motion module license
- Communication Module (optional) — 1394-SR9 SynchLink fiber module for multi-system synchronization
Contact support@konmask.com for complete BOM assistance and compatibility verification.
Compliance & Industry Standards
- UL 508C — Power Conversion Equipment (USA)
- CSA C22.2 No. 14 — Industrial Control Equipment (Canada, cUL)
- EN 61800-3 — Adjustable Speed Electrical Power Drive Systems — EMC requirements
- EN 61800-5-1 — Safety requirements for adjustable speed electrical power drive systems
- CE Marking — Compliant with EU Machinery Directive and Low Voltage Directive
- RoHS — Restriction of Hazardous Substances compliant
Quality Assurance & Sourcing
Konmask.com sources the 1394C-AM75-IH exclusively through verified industrial supply channels. Every unit offered undergoes the following quality verification process before dispatch:
- Visual Inspection — Housing integrity, label authenticity, connector condition, and absence of rework or counterfeit indicators.
- Firmware & Label Cross-Check — Catalog number, series letter, and firmware revision verified against Rockwell Automation’s published product records.
- Functional Power-On Test — Where test equipment is available, units are powered and fault-code-free operation is confirmed prior to shipment.
- Traceability Documentation — Supply chain documentation available on request for regulated industries (aerospace, defense, medical).
- Warranty — 12-month warranty against defects in materials and workmanship from date of shipment.
How to Source This Part
- Submit RFQ — Email support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Receive Quote — Pricing, lead time, and availability confirmed within 1 business day.
- Order Confirmation — Purchase order accepted via email; proforma invoice issued for prepayment or net terms (approved accounts).
- Inspection & Dispatch — Unit inspected, packed to IPC/JEDEC standards, and shipped via DHL / FedEx / SF Express with full tracking.
- After-Sales Support — Technical support available for installation, parameter configuration, and troubleshooting.
Application-Specific FAQ
Q: Is the 1394C-AM75-IH compatible with all 1394 system power supplies?
A: The axis module is compatible with 1394 system power supplies rated to supply sufficient DC bus current for the combined axis load. Always use Rockwell Automation’s 1394 System Sizing Tool to verify power supply selection before ordering.
Q: What servo motors are compatible with the 1394C-AM75-IH?
A: The drive is compatible with Allen-Bradley MPL, MPF, and TL-Series servo motors with matching feedback type (incremental encoder for -IH suffix). Consult the 1394 System Design Guide (publication 1394-UM001) for the full motor compatibility matrix.
Q: Can this drive be used as a standalone unit without the 1394 system controller?
A: No. The 1394C-AM75-IH is an axis module designed to operate within the 1394 multi-axis chassis. It requires a 1394 GMC or GMCSE motion controller and a 1394 system power supply to function.
Q: Is a replacement or repair service available?
A: Yes. Konmask.com can facilitate exchange units and connect customers with certified Rockwell Automation repair centers. Contact us for details.
Q: What is the lead time for the 1394C-AM75-IH?
A: Lead time depends on current stock levels. In-stock units ship within 3–5 business days internationally. Contact us for real-time availability.
Q: Do you provide export documentation for international shipments?
A: Yes. Commercial invoice, packing list, certificate of origin, and ECCN classification documentation are provided for all international orders.
