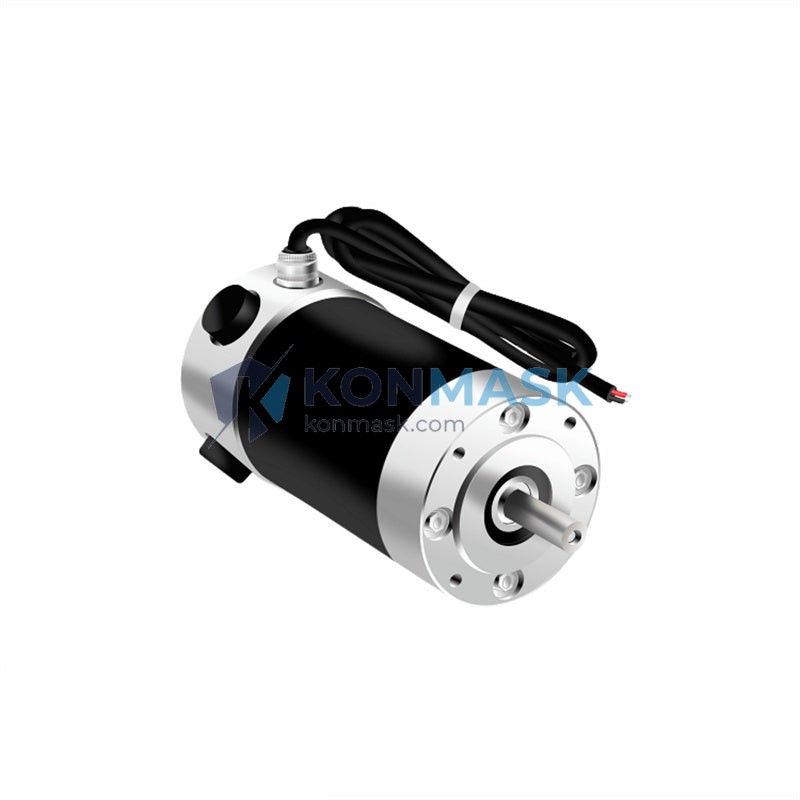

ELECTRO-CRAFT E650 – Brushed DC Servo Motor | E-Series Motion Control Platform
Engineering Background: In high-precision motion control applications — CNC machining centers, robotic arms, semiconductor handling equipment, and automated assembly lines — a failed or unavailable servo motor doesn’t just cause downtime. It halts entire production cells, triggers cascading failures in synchronized multi-axis systems, and can result in tens of thousands of dollars in lost output per hour. The ELECTRO-CRAFT E650 is engineered to eliminate that risk. Built to deliver consistent torque, accurate speed regulation, and long service life under continuous industrial duty cycles, the E650 is a mission-critical component that keeps your motion system running.
Product Positioning: The ELECTRO-CRAFT E650 belongs to the E-Series brushed DC servo motor platform — a product line long recognized in North American and global industrial automation markets for its robust mechanical construction and reliable electromagnetic performance. The E650 occupies the mid-to-high torque segment of the E-Series lineup, making it the preferred choice for applications demanding sustained rotational force, precise velocity control, and compatibility with a wide range of servo amplifiers and drive controllers. Whether you are maintaining legacy automation equipment or sourcing a proven replacement for a critical axis, the E650 delivers the performance specifications your engineering team requires.
Complete Technical Specifications
- Manufacturer: ELECTRO-CRAFT (Rockwell Automation / Regal Beloit heritage)
- Model / SKU: E650
- Motor Type: Brushed DC Servo Motor
- Series: E-Series
- Weight: 2,170 g (approx. 4.78 lbs)
- Country of Origin: United States
- Mounting: Standard NEMA flange (verify with datasheet for exact frame size)
- Feedback: Compatible with tachometer and encoder feedback configurations (verify with specific unit)
- Insulation Class: Industrial-grade (consult OEM datasheet for exact class rating)
- Duty Cycle: Continuous industrial duty
- Condition: New / Surplus New / Refurbished — specify at time of inquiry
Note: Exact electrical parameters (voltage, current, RPM, torque ratings) vary by sub-variant. Contact Konmask.com with your full nameplate data or application requirements for specification confirmation.
Proven Application Environments
- CNC milling, turning, and grinding machine tool axes
- Industrial robotic arm joints and end-effector drives
- Semiconductor wafer handling and pick-and-place systems
- Automated assembly and packaging line conveyors
- Printing and converting machine web tension control
- Medical device manufacturing equipment
- Textile and winding machinery
- Test and measurement motion platforms
Engineering Advantages
- Proven Brushed DC Architecture: Delivers linear torque-speed characteristics ideal for legacy servo drive systems requiring predictable, tunable performance.
- High Torque Density: The E650 frame size provides substantial continuous and peak torque output relative to its physical envelope, reducing the need for external gearboxes in many applications.
- Wide Drive Compatibility: Designed to interface with ELECTRO-CRAFT servo amplifiers (e.g., BRU, 9000 Series) as well as third-party PWM and linear servo drives.
- Robust Mechanical Construction: Industrial-grade housing and bearing system engineered for continuous duty in demanding factory environments.
- Long Service Life: Quality brush and commutator materials extend maintenance intervals and reduce total cost of ownership.
- Drop-in Replacement Availability: Konmask.com maintains sourcing channels for E-Series motors, enabling fast replacement without system redesign.
System Architecture & Signal Flow
The ELECTRO-CRAFT E650 operates within a closed-loop servo system architecture. The motion controller (PLC or CNC) generates a velocity or torque command signal, which is transmitted to a compatible servo amplifier. The amplifier converts this command into a regulated DC power output to the E650 motor armature. A feedback device (tachometer for analog velocity loops, or encoder for digital position loops) mounted on the motor shaft returns real-time speed and position data to the amplifier and controller, closing the control loop. This architecture enables precise, repeatable motion profiles essential for high-accuracy industrial processes.
Typical compatible drive platforms: ELECTRO-CRAFT BRU Series, ELECTRO-CRAFT 9000 Series, and compatible third-party analog/PWM servo amplifiers.
Sourcing & Quality Verification
At Konmask.com, every ELECTRO-CRAFT E650 unit goes through a structured sourcing and verification process before it is offered to customers:
- Supply Chain Traceability: Units are sourced from authorized distributors, OEM surplus channels, and verified industrial suppliers with documented provenance.
- Visual & Mechanical Inspection: Each unit is inspected for housing integrity, shaft condition, brush wear, connector integrity, and nameplate legibility.
- Electrical Continuity Check: Armature and field winding resistance verified against reference specifications.
- Counterfeit Screening: Label authenticity, date codes, and construction details are cross-referenced against known genuine units.
- Packaging & ESD Protection: Units are packaged with appropriate mechanical protection and, where applicable, ESD-safe materials for international shipment.
Procurement Process
- Submit Inquiry: Contact us via the product page inquiry form or email support@konmask.com with your required model, quantity, and delivery timeline.
- Specification Confirmation: Our technical team will confirm the exact sub-variant, condition, and compatibility with your existing system.
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 1 business day.
- Order Confirmation: Approve the quotation and complete payment via your preferred method (T/T, PayPal, or other agreed terms).
- Shipment & Documentation: Unit ships with packing list, inspection report, and tracking information. Export documentation available upon request.
- After-Sales Support: Our engineering team remains available for installation guidance and compatibility troubleshooting post-delivery.
Technical FAQ
- Q: Is the ELECTRO-CRAFT E650 still in production?
- A: The E-Series brushed DC servo motor line has been discontinued by the OEM. Konmask.com specializes in sourcing verified surplus and new-old-stock units to support legacy system maintenance.
- Q: What servo amplifier is compatible with the E650?
- A: The E650 is designed for use with ELECTRO-CRAFT BRU and 9000 Series amplifiers. It is also compatible with third-party analog and PWM servo drives — contact us with your drive model for compatibility confirmation.
- Q: Can you provide the full electrical specifications (voltage, RPM, torque)?
- A: Exact parameters depend on the specific sub-variant. Please provide your nameplate data or application requirements and our team will confirm the matching specification sheet.
- Q: What is the lead time for the E650?
- A: Lead time varies by stock availability. In-stock units typically ship within 3–5 business days. Contact us for current availability.
- Q: Do you offer a warranty on the E650?
- A: Yes. Konmask.com provides a quality assurance warranty on all shipped units. Terms are specified in the quotation. Contact support@konmask.com for details.
- Q: Can you ship internationally?
- A: Yes. We ship globally via DHL, FedEx, UPS, and freight forwarder. Export documentation and customs support are available upon request.
