Allen-Bradley 2098-DSD-005X Digital Servo Drive | Replacement, Equivalent & Selection Guide

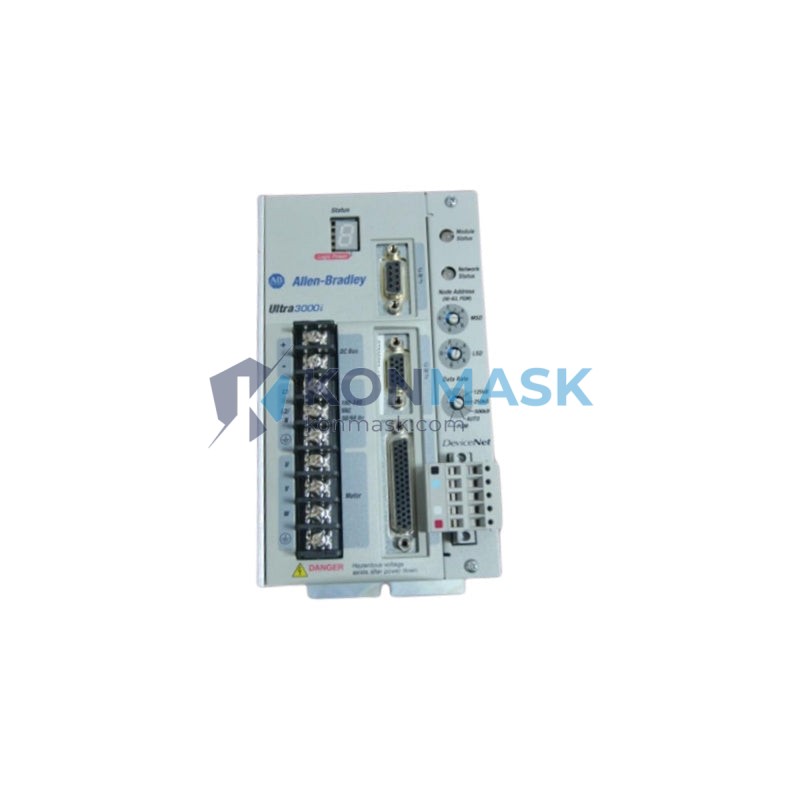

The Allen-Bradley 2098-DSD-005X is a compact Digital Servo Drive from Rockwell Automation’s Ultra 3000 series, designed for precise motion control in demanding industrial automation environments. Whether you are sourcing an original unit, seeking a compatible replacement, or evaluating equivalent alternatives, this guide provides the technical depth and selection criteria you need.
Technical Specifications
- Part Number: 2098-DSD-005X
- Series: Ultra 3000 Digital Servo Drive
- Manufacturer: Allen-Bradley / Rockwell Automation
- Drive Type: Digital Servo Drive (DSP-based)
- Continuous Output Current: 5 A RMS
- Peak Output Current: 15 A RMS
- Input Voltage: 120/240 VAC, Single-Phase
- Bus Voltage: 170/340 VDC
- Control Interface: Analog ±10 V / Step & Direction / Indexer
- Feedback: Incremental Encoder, Resolver (model-dependent)
- Communication: Serial RS-232 (Ultra Ware software)
- Protection: Over-current, Over-voltage, Under-voltage, Over-temperature, Short-circuit
- Operating Temperature: 0 °C to 45 °C
- Weight: Approx. 250 g
- Certifications: UL, CE
Compatible Replacement & Equivalent Models
When the original 2098-DSD-005X is unavailable or cost-prohibitive, the following models offer compatible or equivalent performance:
- 2098-DSD-005 (non-X variant) — Standard version without extended I/O; direct functional equivalent for most applications.
- 2098-DSD-010X — Higher current (10 A) variant; suitable when motor demands exceed 5 A continuous.
- 2098-DSD-HV030X — High-voltage variant for 480 VAC three-phase systems.
- Kinetix 300 (2097-Vxx) — Next-generation Rockwell drive with EtherNet/IP; recommended for new designs requiring network integration.
- Kinetix 350 (2097-V3xPRx) — Single-axis EtherNet/IP drive; modern replacement with enhanced diagnostics.
- Third-party equivalents: Yaskawa SGDV series, Mitsubishi MR-J4 series, and Panasonic MINAS A6 series offer comparable analog/pulse-train servo drive functionality and may serve as cross-brand alternatives in retrofit projects.
Note: Always verify motor-drive compatibility (voltage, current, feedback type) before substitution. Contact Konmask.com for application-specific guidance.
Why Choose the Original Model
- Proven Reliability: The Ultra 3000 platform has decades of field-proven performance in North American and global manufacturing.
- Native Rockwell Integration: Seamless configuration via Ultra Ware software and full compatibility with Allen-Bradley PLCs (SLC 500, ControlLogix, CompactLogix).
- Exact Fit: Identical mechanical footprint and connector pinout eliminates retrofit engineering costs.
- Warranty & Support: Genuine units sourced through authorized channels carry manufacturer traceability and support.
- Regulatory Compliance: Pre-certified UL/CE markings simplify machine safety documentation.
Typical Applications
- CNC machine tool axes (milling, turning, grinding)
- Packaging machinery (form-fill-seal, cartoning, labeling)
- Semiconductor and electronics assembly equipment
- Printing and converting machinery
- Robotics and pick-and-place systems
- Material handling conveyors and gantry systems
- Medical device manufacturing equipment
System Compatibility
- PLCs: Allen-Bradley SLC 500, MicroLogix, ControlLogix (1756), CompactLogix (1769)
- HMIs: PanelView series via PLC integration
- Motors: Allen-Bradley MPL, MPM, MPS, TL, and compatible third-party servo motors (verify feedback type)
- Software: Ultra Ware (v4.x and above) for drive configuration and tuning
- Network: Standalone analog/pulse-train; no native fieldbus (use Kinetix 300/350 for EtherNet/IP)
Selection Guide
Use the following criteria to confirm the 2098-DSD-005X is the right drive for your application:
- Motor continuous current ≤ 5 A RMS — If motor nameplate exceeds 5 A, select 2098-DSD-010X or higher.
- Supply voltage: 120 or 240 VAC single-phase — For 480 VAC three-phase, select the HV series.
- Feedback type: Incremental encoder or resolver — Confirm motor feedback matches drive input.
- Control mode: Analog ±10 V, Step/Direction, or Indexer — For EtherNet/IP or SERCOS, select Kinetix series.
- Extended I/O required? — The “-X” suffix indicates extended I/O option; select non-X if not needed.
- New design vs. retrofit: For new designs, consider Kinetix 350 for future-proofing; for direct replacement, use 2098-DSD-005X.
Quality Assurance & Sourcing
- Authenticity: All units at Konmask.com are sourced from verified supply chains with full traceability documentation available on request.
- Inspection: Each unit undergoes visual and functional pre-shipment inspection.
- Condition: New, surplus-new, and refurbished grades available — specify your requirement at inquiry.
- Lead Time: In-stock units ship within 1–3 business days; ex-stock lead times quoted per order.
- Packaging: ESD-safe packaging with original or equivalent protective materials.
- Documentation: Datasheet, wiring diagram, and certificate of conformance available upon request.
How to Order
- Step 1: Confirm part number: 2098-DSD-005X (check nameplate on existing drive).
- Step 2: Specify quantity and required condition (new / surplus / refurbished).
- Step 3: Contact us via email or phone for stock confirmation and pricing.
- Step 4: Receive quotation within 24 hours on business days.
- Step 5: Confirm order and arrange payment — we support T/T, PayPal, and trade terms for qualified accounts.
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace a 2098-DSD-005X with a 2098-DSD-005 (non-X)?
A: Yes, in most cases. The non-X variant lacks the extended I/O connector. If your wiring does not use the extended I/O, the non-X is a direct drop-in replacement.
Q: Is the 2098-DSD-005X compatible with Kinetix motors?
A: It is compatible with Allen-Bradley servo motors that use incremental encoder or resolver feedback. Verify the motor’s feedback type and connector pinout before installation.
Q: Can I use a Kinetix 300 as a replacement?
A: The Kinetix 300 (2097-V series) is a functional upgrade with EtherNet/IP capability. It requires software reconfiguration and may need wiring adaptation, but is the recommended modern replacement for new installations.
Q: What is the difference between 2098-DSD-005X and 2098-DSD-010X?
A: The primary difference is continuous output current: 5 A vs. 10 A. Select based on your motor’s rated current. Both share the same form factor and interface options.
Q: Do you provide a warranty on sourced units?
A: Yes. Konmask.com provides a limited warranty on all units. Terms vary by condition grade — contact us for details.
