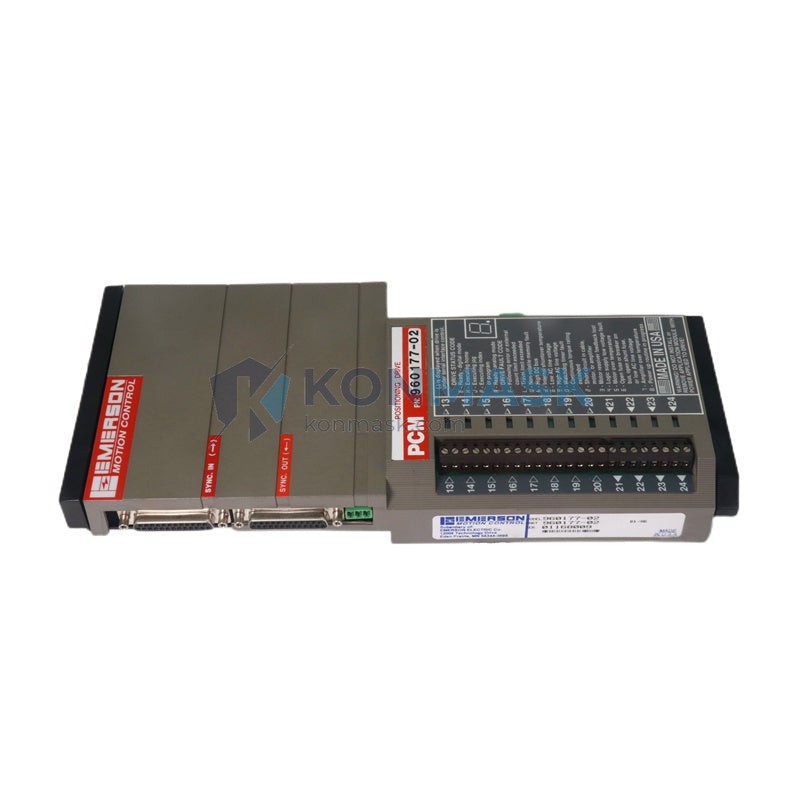

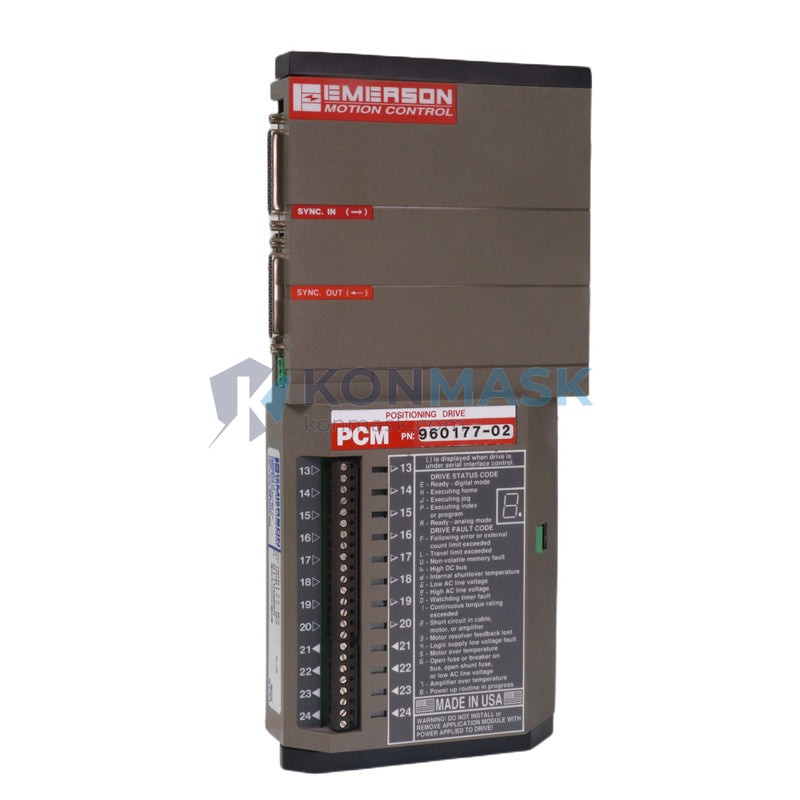

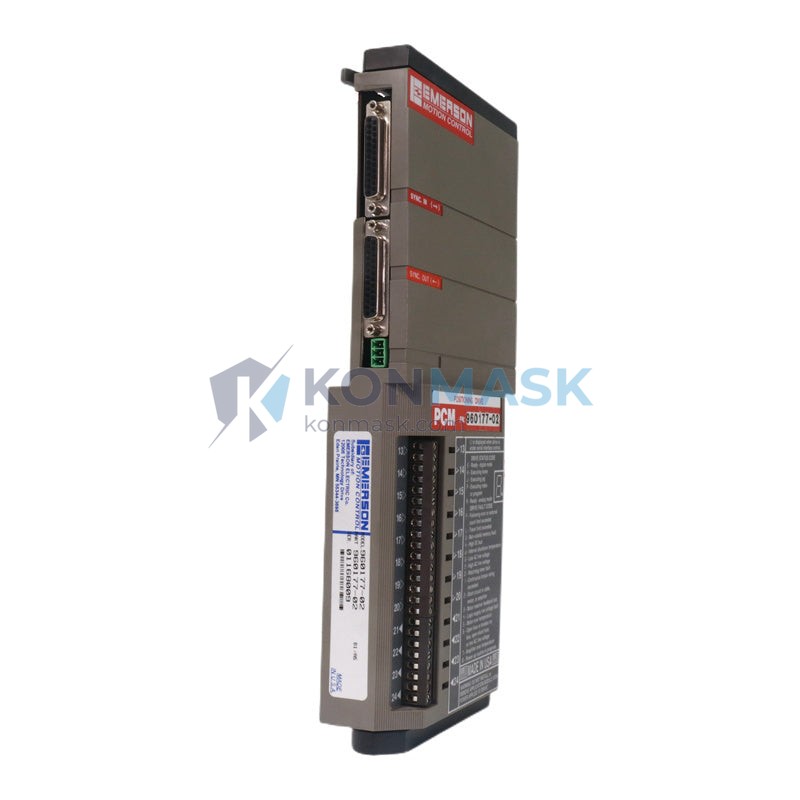

Emerson 960177-02 Module Positioning Drive – Unidrive SP Series
When a positioning module fails mid-cycle on a high-speed packaging line or a CNC transfer machine, the entire production cell stops. There is no graceful degradation — the axis loses its reference, the PLC throws a fault, and operators are left waiting for a replacement that must arrive before the next shift. The Emerson 960177-02 is the component that sits between a running plant and an unplanned shutdown, and its absence is felt immediately in lost throughput, scrap, and maintenance overtime.
Within the Unidrive SP family, the 960177-02 occupies the positioning-specialist tier: it extends the drive’s core vector control with dedicated motion sequencing, encoder feedback processing, and position-loop closure — capabilities that general-purpose drives in the same cabinet simply cannot replicate. Unidrive SP drives are deployed across tens of thousands of machines globally in sectors from automotive body-in-white to pharmaceutical filling, making the 960177-02 one of the most field-proven positioning option modules in the IEC 61800-series drive ecosystem.
Technical Specifications
Electrical
- Compatible Drive Platform: Emerson Unidrive SP (all frame sizes)
- Module Interface: Internal option slot (slot 1, 2, or 3)
- Encoder Input: Incremental quadrature (A, B, Z) and simulated encoder output
- Position Reference: ±32-bit position register
- Supply: Powered via drive option slot (no external PSU required)
Mechanical
- Form Factor: Plug-in option module (Unidrive SP standard footprint)
- Weight: 740 g (module + packaging)
- Connector: 15-way D-sub encoder interface + internal bus connector
Environmental
- Operating Temperature: 0 °C to +50 °C (drive ambient)
- Storage Temperature: −40 °C to +70 °C
- Humidity: 5–95% RH, non-condensing
- Pollution Degree: 2 (IEC 60664-1)
Certifications & Standards
- CE Marked (EMC Directive 2014/30/EU, LVD 2014/35/EU)
- Compliant with IEC 61800-3 (EMC requirements for variable-speed drives)
- UL/cUL recognized component
Note: Specifications are based on Emerson/Nidec Control Techniques published data for the Unidrive SP option module range. Always verify against the drive’s firmware version before installation.
Key Features & Benefits
- Closed-loop position control without an external motion controller — Eliminates the need for a separate PLC axis card, reducing panel BOM cost by one discrete component and the associated wiring.
- On-board motion sequencer with up to 16 stored position profiles — Executes point-to-point moves autonomously, cutting PLC scan-cycle load and enabling sub-millisecond position-trigger response times that external controllers cannot match.
- Incremental encoder feedback at up to 250 kHz input frequency — Supports high-resolution linear and rotary encoders, maintaining positioning repeatability of ±1 encoder count across the full speed range.
- Simulated encoder output for master-slave synchronization — Allows the 960177-02-equipped drive to act as a virtual master axis, enabling electronic gearing without additional hardware — a requirement in IEC 61800-7 (CiA 402) compliant motion architectures.
- Hot-swap compatible option slot design — Module can be replaced without removing the drive from the panel, reducing mean time to repair (MTTR) in live production environments.
- Firmware-configurable homing routines (8 standard methods) — Covers limit-switch, marker-pulse, and torque-based homing, eliminating custom PLC homing code for the majority of machine types.
Industry & Equipment Applications
- Packaging Machinery — Servo-controlled film-feed axes on flow wrappers, registration control on rotary die-cutters, and pick-and-place gantry positioning on case erectors.
- Automotive Manufacturing — Transfer line shuttle positioning, welding gun stroke control, and body-panel press feeder synchronization in body-in-white cells.
- Printing & Converting — Web tension and register control on flexographic presses, slitter-rewinder traverse positioning, and laminator nip-gap adjustment.
- Food & Beverage Processing — Filling head indexing on rotary fillers, conveyor divert gate positioning, and portion-control cut-off axes on bread and cheese lines.
- Material Handling & Logistics — Stacker-crane horizontal and vertical axis control, automated storage and retrieval system (ASRS) shuttle drives, and sortation divert actuators.
- Machine Tool & Woodworking — CNC router axis drives, panel saw fence positioning, and spindle orientation on machining centers where a full servo amplifier is cost-prohibitive.
System Integration & Compatible Parts
Host Drives (upstream): Emerson Unidrive SP — SP0201, SP0401, SP1201, SP2801, SP4801, SP6001, SP9401 and all intermediate frame sizes. The 960177-02 occupies one option slot; remaining slots can simultaneously host a fieldbus module (e.g., SM-Profibus, SM-EtherCAT) and an I/O expansion module.
Encoder Interfaces (downstream): Compatible with standard 5 V differential TTL incremental encoders (A, B, Z). For absolute encoder feedback, pair with the SM-Encoder Plus (part 9200-0157) or SM-Resolver (part 9200-0158) in a second option slot.
Fieldbus Co-modules: SM-Profibus DP (9200-0152), SM-DeviceNet (9200-0153), SM-CANopen (9200-0154), SM-EtherCAT (9200-0155) — all can coexist in remaining option slots.
Equivalent / Replacement Consideration: The SM-Applications Plus (9200-0162) provides a superset of 960177-02 functionality via IEC 61131-3 onboard PLC; suitable as an upgrade replacement where additional logic capacity is required. Direct form-fit-function substitution requires firmware version SP01.08.00 or later on the host drive.
Our Quality Assurance Process
- Visual & Physical Inspection — Each unit is examined for connector pin integrity, PCB condition, label legibility, and absence of corrosion or mechanical damage before entering stock.
- Functional Bench Test — Where test fixtures are available, modules are powered via a compatible Unidrive SP host and verified for correct option-slot enumeration, parameter read/write, and encoder signal pass-through.
- Serialization & Traceability Check — Serial numbers are cross-referenced against Emerson/Nidec Control Techniques production records where accessible; counterfeit-risk items are quarantined and not listed.
- Secure Packaging — Units are shipped in anti-static bags with foam cushioning inside double-wall cartons, with desiccant included for sea-freight orders.
Available Documentation: Test report, high-resolution photos of actual unit, original Emerson datasheet, packing list with serial number, and Certificate of Conformity on request.
How to Order
- Submit Your Inquiry — Email support@konmask.com or use the contact form with your required quantity, delivery timeline, and destination country.
- Receive Quotation — Our team responds within 24 hours with stock confirmation, unit price (EXW Xiamen), lead time, and available shipping options (DHL Express, FedEx, sea freight LCL).
- Confirm & Ship — Upon order confirmation and payment, units are inspected, photographed, and dispatched with full tracking. Export documentation (commercial invoice, packing list, COO) is provided as standard.
Why Choose Konmask.com?
- Specialized Industrial Automation Inventory — We stock PLC modules, DCS cards, servo drives, and option modules from Emerson, Siemens, ABB, Rockwell, and Schneider — not a general electronics distributor.
- Engineer-Led Technical Support — Inquiries are handled by staff with hands-on experience in drive commissioning and PLC integration, not a call-center script.
- Transparent Stock & Condition Reporting — Every listing states actual condition (new surplus, refurbished, or used-tested). No misleading “like new” descriptions.
- Global Export Experience — We have shipped to 40+ countries with full compliance documentation. EXW, CIF, and DAP Incoterms available.
- Responsive B2B Communication — 24-hour response guarantee on all inquiries, with a dedicated account contact for repeat buyers and MRO procurement teams.
Frequently Asked Questions
Q: Is the Emerson 960177-02 compatible with all Unidrive SP frame sizes for closed-loop positioning applications?
A: Yes. The 960177-02 fits the standard option slot present on all Unidrive SP frame sizes (frame 1 through frame 6). Functionality is identical across frames; the only variable is the host drive’s current rating and the motor it controls. Confirm your drive’s firmware is SP01.06.00 or later for full positioning feature support.
Q: Can the 960177-02 positioning module replace a separate motion controller or PLC axis card in a retrofit project?
A: In many retrofit scenarios, yes. The module’s 16-profile onboard sequencer and 8 homing methods cover the majority of point-to-point and homing requirements without additional hardware. For complex multi-axis coordinated motion (e.g., contouring, electronic cam), a dedicated motion controller remains necessary. We recommend sharing your machine’s motion profile requirements so we can advise on suitability before purchase.
Q: What is the lead time and shipping option for the Emerson 960177-02 to Southeast Asia or the Middle East?
A: In-stock units typically ship within 2–3 business days of order confirmation. DHL Express to Southeast Asia (Singapore, Malaysia, Thailand) takes 3–5 business days; to the Middle East (UAE, Saudi Arabia) 4–6 business days. Sea freight LCL is available for larger orders. All shipments include full export documentation and real-time tracking.
