Emerson KJ3002X1-BA1 12P0680X132 Analog Input Module | Replacement, Equivalent & Selection Guide

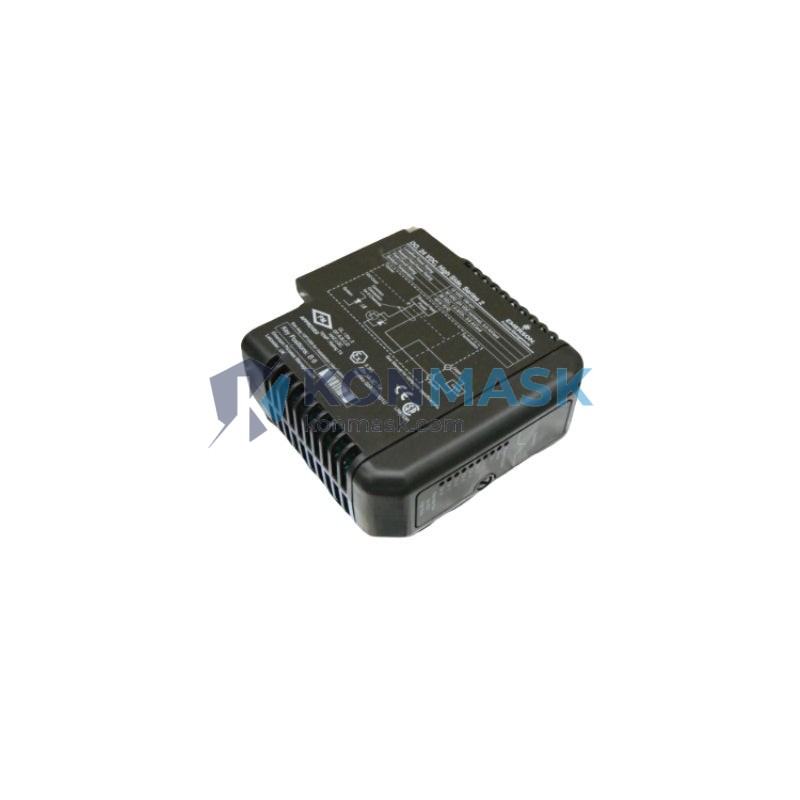

The Emerson KJ3002X1-BA1 (Part No. 12P0680X132) is a high-precision analog input module designed for use in Emerson DeltaV distributed control systems (DCS). This page provides full technical specifications, compatible replacement options, equivalent models, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Manufacturer: Emerson (Fisher-Rosemount)
- Model Number: KJ3002X1-BA1
- Part Number: 12P0680X132
- Module Type: Analog Input (AI)
- Channel Count: 8 channels (typical for DeltaV AI series)
- Input Signal Types: 4–20 mA HART, 1–5 VDC
- HART Protocol: Supported (per-channel)
- Power Supply: Supplied via DeltaV I/O bus (no external power required)
- Isolation: Channel-to-channel and channel-to-bus isolation
- Operating Temperature: 0°C to 60°C
- Mounting: DeltaV I/O carrier / subsystem
- Communication Bus: DeltaV proprietary I/O bus
- Approvals: CE, FM, CSA (verify current certifications with Emerson)
- Weight: Approx. 200 g
Note: Specifications are based on published Emerson DeltaV documentation. Always verify against the official datasheet for your revision.
Compatible Replacement & Equivalent Models
When the KJ3002X1-BA1 is unavailable or end-of-life, the following models may serve as functional replacements. Compatibility depends on firmware version, carrier type, and DeltaV system revision — always validate before installation.
| Model | Manufacturer | Channels | HART | Compatibility Notes |
|---|---|---|---|---|
| KJ3002X1-BA1 (12P0680X132) | Emerson | 8 AI | Yes | Original / OEM |
| KJ3002X1-BB1 | Emerson | 8 AI | Yes | Revised hardware revision; same carrier |
| KJ3002X1-BC1 | Emerson | 8 AI | Yes | Later revision; confirm firmware compatibility |
| VE3008 | Emerson (PROVOX legacy) | 8 AI | No | Legacy; not a direct drop-in |
Important: Third-party or aftermarket replacements exist but must be validated against your DeltaV system version. Contact [email protected] for cross-reference assistance.
Why Choose the Original Model
- Guaranteed DeltaV Compatibility: Engineered and certified specifically for Emerson DeltaV I/O subsystems — no firmware conflicts.
- HART Pass-Through: Full per-channel HART communication for advanced diagnostics and device management.
- Proven Field Reliability: Widely deployed in oil & gas, chemical, and power generation facilities globally.
- OEM Support & Lifecycle: Eligible for Emerson service contracts, firmware updates, and spare parts programs.
- Regulatory Compliance: Meets CE, FM, and CSA requirements for hazardous and industrial environments.
Typical Applications
- Oil & gas upstream/downstream process control
- Chemical and petrochemical plant automation
- Power generation and utilities
- Pharmaceutical batch processing (FDA-regulated environments)
- Pulp & paper and water treatment facilities
- Any DeltaV-based DCS installation requiring 4–20 mA HART analog input acquisition
System Compatibility
- DCS Platform: Emerson DeltaV (all major versions; confirm with your system revision)
- Carrier / Subsystem: DeltaV 8-slot and 12-slot I/O carriers
- Controller Compatibility: DeltaV MD, MD Plus, SD, SD Plus, MQ controllers
- Software: DeltaV Operate, DeltaV Diagnostics, AMS Device Manager (HART)
- Not Compatible With: Emerson Ovation, PROVOX, or third-party DCS platforms without adaptation
Selection Guide
Use the following criteria to confirm the KJ3002X1-BA1 is the right module for your application:
- ✅ Your DCS is Emerson DeltaV
- ✅ You require 4–20 mA or 1–5 VDC analog inputs
- ✅ HART communication is needed for field device diagnostics
- ✅ You have an 8-slot or 12-slot DeltaV I/O carrier available
- ✅ Operating environment is within 0–60°C
- ⚠️ If you need more than 8 channels per module, consider the KJ3002X1 series with multi-module expansion
- ⚠️ If your DeltaV version is below v7.x, confirm firmware compatibility before ordering
- ❌ Not suitable for standalone (non-DeltaV) PLC or SCADA systems without a gateway
Quality Assurance & Sourcing
- Source: Konmask.com sources KJ3002X1-BA1 modules from authorized distributors and verified surplus channels.
- Inspection: All units undergo visual inspection, label verification, and functional pre-shipment checks.
- Condition Options: New (factory sealed), Refurbished (tested & certified), and Surplus (as-removed, tested).
- Warranty: 12-month warranty on all supplied units (terms apply).
- Traceability: Full documentation available on request (test reports, certificates of conformance).
How to Order
- Confirm your DeltaV system version and carrier slot availability.
- Specify required condition: New / Refurbished / Surplus.
- Contact us via email or phone with your PO or RFQ.
- Receive quotation within 1 business day.
- Units ship within 3–7 business days (expedited available).
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace KJ3002X1-BA1 with KJ3002X1-BB1 or BC1?
A: In most cases yes — these are hardware revisions of the same module family. However, always verify firmware compatibility with your DeltaV system version before swapping.
Q: Is this module compatible with non-Emerson DCS systems?
A: No. The KJ3002X1-BA1 uses Emerson’s proprietary DeltaV I/O bus and is not natively compatible with third-party DCS or PLC platforms.
Q: Do you supply new or used units?
A: Both. We offer factory-new, certified refurbished, and tested surplus units. Condition is clearly stated on each order.
Q: What is the lead time?
A: Standard stock ships within 3–7 business days. For urgent requirements, contact us for expedited options.
Q: Can you provide a certificate of conformance or test report?
A: Yes. Full traceability documentation is available upon request for all units.
Q: What if the KJ3002X1-BA1 is discontinued?
A: We maintain surplus inventory and can assist with cross-referencing to current Emerson equivalents or compatible third-party alternatives.
