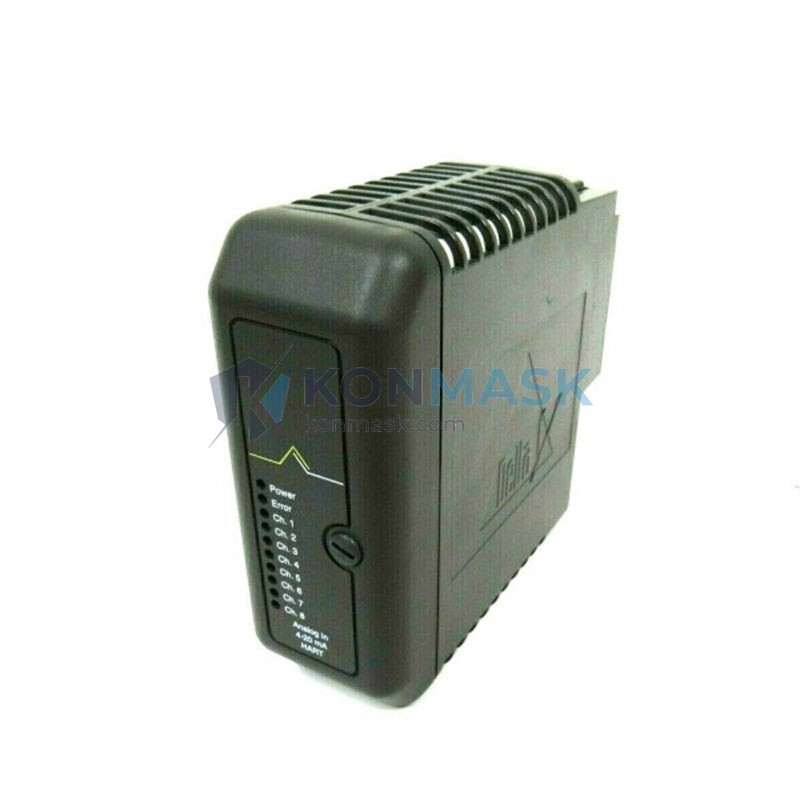

EMERSON KJ3002X1-BA1 (12P0680X122) Analog Input Module | Replacement, Equivalent & Selection Guide
The EMERSON KJ3002X1-BA1 (part number 12P0680X122) is a high-precision Analog Input Module designed for the DeltaV™ Distributed Control System (DCS). It converts real-world analog signals (4–20 mA / 1–5 V) into digital data for process monitoring and control in demanding industrial environments. This page is your complete reference for sourcing, selecting, and identifying compatible replacement and equivalent modules.
Selection Background
When the KJ3002X1-BA1 reaches end-of-life, becomes obsolete, or is urgently needed as a spare, engineers must evaluate replacement and equivalent options carefully. Signal range, channel count, isolation architecture, and DeltaV firmware compatibility are all critical factors that determine whether a substitute module can perform a true drop-in replacement or requires configuration changes. This guide captures the most common KJ3002X1-BA1 replacement, equivalent, substitute, and vs search scenarios to help you make the right decision fast.
Technical Specifications
| Part Number | KJ3002X1-BA1 / 12P0680X122 |
| Manufacturer | Emerson (Fisher-Rosemount / DeltaV) |
| Module Type | Analog Input (AI) |
| Channel Count | 8 channels (key for replacement sizing) |
| Input Signal | 4–20 mA / 1–5 VDC (HART-capable) |
| Resolution | 16-bit ADC |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Communication Bus | DeltaV I/O Bus (proprietary) |
| Power Supply | Supplied via DeltaV carrier/bus |
| Operating Temperature | 0°C to 60°C |
| Certifications | CE, FM, CSA, ATEX (zone-dependent) |
| Form Factor | DeltaV I/O card — fits standard DeltaV carrier |
| Firmware | DeltaV v7.x and above compatible |
⚠ Channel count, signal type, and bus protocol are the three parameters most critical to any replacement decision.
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
These modules share the same form factor, bus interface, and signal range and can replace the KJ3002X1-BA1 with no wiring or configuration changes:
- KJ3002X1-BB1 — Revised hardware revision of the same module; verify firmware compatibility with your DeltaV version.
- KJ3002X1-BC1 — Later revision; functionally identical, may include minor EMC improvements.
2. Functional Equivalents (Same Function, Minor Config Required)
These modules perform the same analog input function but may require channel mapping or DeltaV database updates:
- KJ3002X1-CA1 — Extended temperature variant; same channel count and signal range, different thermal rating.
- KJ3001X1-BA1 — 4-channel AI equivalent; suitable when only partial channel count is needed. Requires carrier slot reassignment.
3. Cross-Brand Alternatives (Engineering Review Required)
These third-party modules offer similar analog input functionality but require protocol adapters or migration planning:
- Honeywell HC900 AI Module — Comparable 8-ch AI; requires gateway or migration to HC900 platform.
- ABB S800 AI810 — 8-ch 4–20 mA AI; compatible with ABB 800xA, not DeltaV native. Suitable for cross-platform migration projects.
- Siemens ET 200SP AI 8xU/I — Functional substitute in Siemens TIA Portal environments only.
⚠ Cross-brand alternatives are NOT plug-and-play. Always consult Konmask engineers before ordering for a cross-brand substitution.
Why Choose the Original Model
- Precision & Accuracy: 16-bit resolution ensures ±0.1% full-scale accuracy — critical for process control loops.
- Certified Compatibility: Factory-validated for DeltaV I/O bus; no integration risk or firmware conflicts.
- Safety Certifications: FM, CSA, and ATEX approvals maintained — essential for hazardous area installations.
- OEM Technical Support: Emerson DeltaV support covers this module; cross-brand substitutes void OEM support agreements.
- Warranty & Traceability: Full serial number traceability and manufacturer warranty available through authorized channels.
- Long-Term Availability: Konmask maintains stock of genuine and tested-equivalent units to minimize downtime risk.
Typical Applications
- Oil & Gas: Wellhead pressure and flow monitoring in upstream production facilities.
- Chemical Processing: Reactor temperature and level measurement in continuous process plants.
- Power Generation: Turbine inlet/outlet analog signal acquisition in combined-cycle power plants.
- Pulp & Paper: Digester pressure and consistency control loops.
- Water Treatment: pH, dissolved oxygen, and flow rate monitoring in municipal water plants.
- Pharmaceutical: Cleanroom environmental monitoring (temperature, humidity, pressure differential) under FDA 21 CFR Part 11 environments.
System Compatibility
The KJ3002X1-BA1 is designed for use within the Emerson DeltaV DCS ecosystem. Typical companion components include:
- KJ3001X1-BA1 — 4-channel AI module (same carrier, smaller footprint)
- KJ4001X1-BA1 — Analog Output module (paired for closed-loop control)
- KJ1501X1-BA1 — DeltaV I/O Carrier (8-slot, required mounting hardware)
- KJ2201X1-BA1 — DeltaV Controller (M-series, hosts I/O bus)
- KJ4002X1-BA1 — Discrete Output module (for actuator control in same cabinet)
- VE4001S2T2B4 — DeltaV Workstation (engineering/operator interface)
Selection Guide
Answer these three questions before ordering to confirm the right module for your application:
- How many analog input channels do you need? — The KJ3002X1-BA1 provides 8 channels. If you need fewer, the KJ3001X1-BA1 (4-ch) may reduce cost. If you need more, consider multiple modules or a higher-density card.
- Is your system running DeltaV firmware v7.x or later? — Earlier firmware versions may require a module revision check. Contact Konmask with your DeltaV version for confirmation.
- Is the installation in a hazardous area (Zone 1/2 or Div 1/2)? — Verify the specific ATEX/FM approval category matches your area classification before substituting any module.
📩 Not sure? Contact Konmask with your DeltaV version, carrier model, and application details — we respond within 24 hours.
Quality Assurance & Sourcing
Konmask sources the KJ3002X1-BA1 through verified industrial surplus channels, authorized distributors, and OEM-certified refurbishers. Every unit undergoes our 4-step inspection process:
- Visual Inspection: PCB condition, connector integrity, label verification, and revision marking check.
- Functional Test: Signal input/output verification across all 8 channels using calibrated test equipment.
- Firmware Verification: Firmware revision confirmed and documented against DeltaV compatibility matrix.
- Documentation Package: Test report, serial number record, and certificate of conformance issued with every shipment.
Available documentation: Test report · Certificate of conformance · Datasheet · Material safety data (where applicable)
How to Order
- Submit your inquiry — Email support@konmask.com or call +0086 19859288691 with your part number, quantity, and DeltaV version.
- Receive quote & availability confirmation — Konmask will confirm stock, lead time, and pricing within 24 hours.
- Place order & ship — Secure payment, professional packaging, and worldwide shipping with full tracking provided.
Replacement & Compatibility FAQ
Q: Can I use the KJ3002X1-BB1 as a direct replacement for the KJ3002X1-BA1?
A: Yes, in most cases the KJ3002X1-BB1 is a direct drop-in replacement for the KJ3002X1-BA1. Both share the same DeltaV I/O bus interface and 8-channel analog input architecture. We recommend verifying your DeltaV firmware version before swapping.
Q: Is there a cross-brand equivalent to the KJ3002X1-BA1 that is compatible with DeltaV?
A: There is no true plug-and-play cross-brand equivalent for the DeltaV proprietary I/O bus. Third-party substitutes from Honeywell, ABB, or Siemens require platform migration or protocol gateways. Konmask recommends sourcing genuine or revision-equivalent Emerson modules to maintain DeltaV system integrity.
Q: How do I know if a used KJ3002X1-BA1 is compatible with my DeltaV version?
A: Compatibility depends on the module’s firmware revision and your DeltaV controller version. Konmask documents the firmware revision of every unit and cross-references it against Emerson’s compatibility matrix. Share your DeltaV version with us and we will confirm substitute suitability before shipment.
