EMERSON KJ3204X1-BA1 (12P3275X042) – Discrete Output Module | DeltaV™ Series
Engineering Background

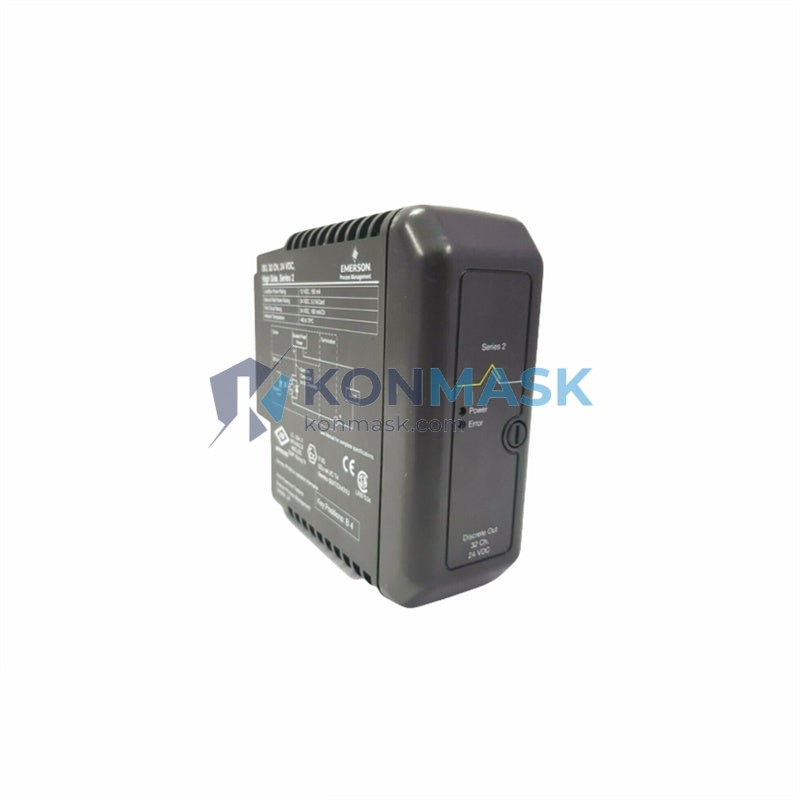

The EMERSON KJ3204X1-BA1, cross-referenced as 12P3275X042, is a factory-hardened Discrete Output (DO) card engineered for the Emerson DeltaV™ Distributed Control System. Designed to interface directly with field actuators, solenoids, motor starters, and on/off control devices, this module delivers deterministic, high-integrity digital switching in safety-critical and continuous-process environments.
Product Positioning
Targeted at procurement engineers and MRO specialists sourcing verified replacement or expansion I/O cards for existing DeltaV architectures, the KJ3204X1-BA1 eliminates the need for costly system redesigns. It slots directly into standard DeltaV I/O subsystem carriers, maintaining full compatibility with DeltaV Explorer configuration tools and existing marshalling infrastructure.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson Electric / Fisher-Rosemount |
| Part Number | KJ3204X1-BA1 |
| Cross Reference | 12P3275X042 |
| Module Type | Discrete Output (DO) |
| Platform | DeltaV™ Distributed Control System |
| Output Channels | 8 channels (typical for DeltaV DO series) |
| Output Type | Solid-state / relay discrete output |
| Signal Voltage | 24 VDC (field-side) |
| Communication Bus | DeltaV I/O Bus (proprietary) |
| Mounting | DeltaV I/O Subsystem Carrier |
| Isolation | Channel-to-bus optical isolation |
| Diagnostics | Online self-diagnostics, LED status indicators |
| Weight | 1,570 g (module + packaging) |
| Certifications | CE, UL (verify with datasheet for specific revision) |
| Operating Temperature | 0°C to 60°C |
| Humidity | 5% to 95% RH, non-condensing |
Proven Application Environments
- Oil & Gas: Wellhead control panels, compressor station automation, pipeline SCADA integration
- Petrochemical & Refining: Reactor sequencing, valve actuation, emergency shutdown (ESD) auxiliary outputs
- Power Generation: Turbine auxiliary control, BOP (Balance of Plant) discrete switching
- Pharmaceutical & Life Sciences: Batch process control, CIP/SIP sequence outputs, FDA 21 CFR Part 11 compliant DeltaV environments
- Pulp & Paper / Mining: Motor control center (MCC) interface, conveyor and pump on/off control
Engineering Advantages
- Hot-swap capable – Replace in live DeltaV systems without process shutdown (verify with site SOP)
- Plug-and-play integration – Auto-recognized by DeltaV Explorer; no manual address configuration required
- Optical isolation – Protects controller backplane from field-side transients and ground loops
- Onboard diagnostics – Real-time channel health reporting via DeltaV Operate and AMS Device Manager
- Compact form factor – Standard DeltaV I/O card footprint; no additional mounting hardware required
- Long service life – Industrial-grade components rated for continuous 24/7 operation
System Architecture & Signal Flow
The KJ3204X1-BA1 resides in the DeltaV I/O Subsystem, connected to a DeltaV Controller (MD, MD Plus, or SD series) via the I/O bus. Each output channel drives a field device through the marshalling cabinet terminal blocks. The module receives discrete command signals from the DeltaV controller over the proprietary I/O bus and switches the corresponding field output accordingly. Optical isolation between the bus side and field side ensures controller integrity even under field fault conditions.
Signal path: DeltaV Controller → I/O Bus → KJ3204X1-BA1 → Marshalling Terminal → Field Actuator/Solenoid
Sourcing & Quality Verification
- All units sourced from verified industrial surplus channels, OEM distributors, or decommissioned plant inventories
- Each module undergoes visual inspection for physical damage, label integrity, and firmware revision verification
- Functional bench testing available upon request prior to shipment
- Original Emerson packaging and documentation supplied where available
- Traceability documentation (lot records, decommission certificates) available for regulated industries
Procurement Process
- Submit RFQ – Contact [email protected] or call +0086 19859288691 with your required quantity and delivery timeline
- Receive Quote – Pricing confirmed within 1 business day; volume discounts available for 3+ units
- Order Confirmation – Pro forma invoice issued; payment via T/T, PayPal, or trade terms for approved accounts
- Inspection & Dispatch – Module inspected, photographed, and securely packaged; tracking provided within 24 hours of shipment
- After-Sales Support – 90-day warranty on verified functional units; technical support available post-installation
Technical FAQ
Q: Is KJ3204X1-BA1 compatible with all DeltaV controller versions?
A: Yes, it is compatible with DeltaV MD, MD Plus, SD, and SX controllers using standard I/O subsystem carriers. Confirm firmware compatibility with your DeltaV system version via Emerson’s compatibility matrix.
Q: Can this module be used in SIL-rated safety loops?
A: The standard KJ3204X1-BA1 is not a SIL-certified safety module. For SIL applications, Emerson’s DeltaV SIS platform with dedicated safety I/O cards is required.
Q: What is the difference between KJ3204X1-BA1 and 12P3275X042?
A: These are the same physical module. KJ3204X1-BA1 is the Emerson catalog part number; 12P3275X042 is the internal manufacturing/revision cross-reference number printed on the module label.
Q: Do you offer exchange or repair services?
A: Yes. Core exchange programs and third-party repair evaluation are available. Contact us with your defective unit details for a repair/exchange quote.
Q: What is the lead time for in-stock units?
A: In-stock units ship within 2–5 business days internationally. Express DHL/FedEx options available for urgent requirements.
