Emerson KJ4001X1-CJ1 – Channel Terminal Block | DeltaV Distributed Control System
Engineering Background

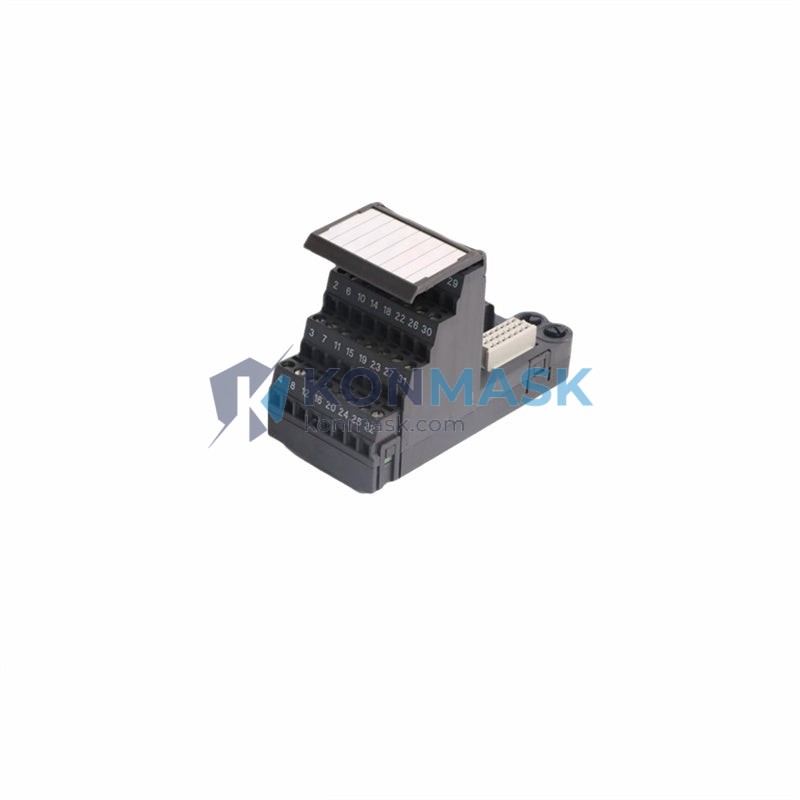

The KJ4001X1-CJ1 (Mfr. Part No. 12P1902X042) is a factory-engineered Channel Terminal Block designed exclusively for Emerson’s DeltaV™ distributed control system platform. It serves as the critical wiring interface between field instrumentation and DeltaV I/O subsystem cards, enabling reliable signal termination in process automation environments where uptime and signal integrity are non-negotiable.
Product Positioning
Targeted at process engineers, instrumentation technicians, and MRO procurement teams managing DeltaV-based control architectures in oil & gas, chemical, power generation, and pharmaceutical facilities. This terminal block is a direct OEM replacement component, ensuring full compatibility with existing DeltaV marshalling and I/O card assemblies without re-engineering.
Complete Technical Specifications
| Manufacturer | Emerson Electric / Fisher-Rosemount |
| Part Number | KJ4001X1-CJ1 |
| Manufacturer Reference | 12P1902X042 |
| Product Type | Channel Terminal Block |
| Platform | DeltaV™ Distributed Control System (DCS) |
| Function | Field wiring termination / I/O signal interface |
| Mounting | DeltaV I/O subsystem carrier / marshalling panel |
| Weight | 480 g (approx.) |
| Country of Origin | USA |
| Condition | New / Surplus New / Tested Refurbished (specify on order) |
Proven Application Environments
- Oil & Gas: Upstream wellhead control, midstream pipeline SCADA, downstream refinery DCS marshalling
- Chemical & Petrochemical: Reactor loop instrumentation, safety interlock wiring termination
- Power Generation: Turbine control panel I/O interface, boiler management system wiring
- Pharmaceutical & Life Sciences: cGMP-compliant process control, batch automation DCS wiring
- Pulp & Paper / Water Treatment: Continuous process monitoring and control signal termination
Engineering Advantages
- OEM Direct Compatibility: Engineered to Emerson DeltaV mechanical and electrical specifications — no adapter or modification required
- Signal Integrity: Precision terminal contacts minimize loop resistance variation and eliminate field wiring noise ingress
- Plug-and-Play Replacement: Drop-in replacement for existing KJ4001X1-CJ1 units; zero re-commissioning overhead
- Reduced Downtime: In-stock availability supports rapid MRO response for unplanned outages
- Traceable Provenance: Each unit sourced through verified supply channels with documentation available on request
System Architecture & Signal Flow
Within the DeltaV I/O subsystem, the Channel Terminal Block mounts directly onto the I/O card carrier. Field instrument cables terminate at the block’s screw or spring-clamp terminals. Signals pass through the block’s internal bus connector to the DeltaV I/O card (e.g., AI, AO, DI, DO series), which communicates upstream to the DeltaV controller via the DeltaV I/O bus. This architecture supports both traditional marshalled wiring and CHARM (Characterization Module) I/O configurations depending on the DeltaV generation deployed.
Sourcing & Quality Verification
- All units inspected prior to shipment: visual, mechanical fit, and connector integrity checks
- Serialization and revision markings verified against Emerson documentation where available
- Packaging: anti-static bag + foam-lined carton for transit protection
- Certificate of conformance (CoC) and test reports available upon request for critical applications
- Export compliance: EAR99 classification; no export license required for most destinations
Procurement Process
- Confirm Part Number: Verify KJ4001X1-CJ1 / 12P1902X042 against your DeltaV BOM or spare parts list
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and condition options
- Order Placement: Purchase order accepted via website checkout, email PO, or B2B wholesale portal
- Shipping: DHL / FedEx / UPS international express; EXW Xiamen or CIF destination available
- Documentation: Commercial invoice, packing list, CoC, and datasheet provided with each shipment
Technical FAQ
Q: Is KJ4001X1-CJ1 compatible with all DeltaV I/O card generations?
A: It is designed for specific DeltaV I/O subsystem generations. Please confirm your DeltaV system revision and I/O card model before ordering. Our engineers can assist with compatibility verification.
Q: What is the difference between KJ4001X1-CJ1 and other KJ4001 variants?
A: The “-CJ1” suffix and 12P1902X042 reference number denote a specific channel count and connector configuration. Cross-reference your existing hardware or contact us for a compatibility matrix.
Q: Can you supply in bulk for a DCS migration project?
A: Yes. We support project-based procurement with staged delivery, consolidated invoicing, and dedicated account management. Contact us for a project quote.
Q: Do you offer warranty on this part?
A: New units carry a 12-month warranty against manufacturing defects. Refurbished units carry a 90-day functional warranty. Terms available on request.
