EMERSON KJ3221X1-EA1 12P2534X022 Termination Block | Replacement, Equivalent & Selection Guide

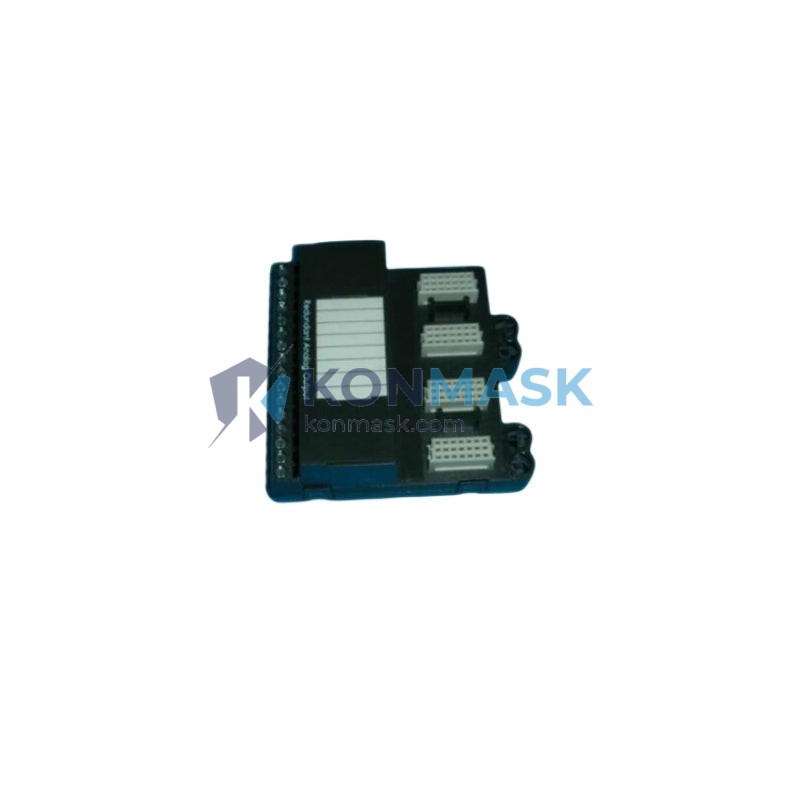

The EMERSON KJ3221X1-EA1 (P/N: 12P2534X022) is a field termination block designed for use within Emerson’s DeltaV distributed control system (DCS) platform. It provides reliable I/O signal termination between field wiring and DeltaV I/O subsystem cards, ensuring stable and noise-resistant connections in demanding industrial environments.
Technical Specifications
- Manufacturer: Emerson Electric / Fisher-Rosemount
- Part Number: KJ3221X1-EA1
- Reference P/N: 12P2534X022
- Type: Termination Block / Field Termination Assembly (FTA)
- Platform: DeltaV DCS
- Mounting: DIN rail compatible
- Signal Type: Analog / Digital I/O field wiring termination
- Operating Temperature: 0°C to 60°C (typical DeltaV range)
- Weight: Approx. 200 g
- Condition Available: New, Refurbished, Tested Used
Compatible Replacement & Equivalent Models
When the original KJ3221X1-EA1 is unavailable or discontinued, the following models may serve as functional equivalents depending on your I/O card pairing and system revision. Always verify compatibility with your DeltaV system documentation before substitution.
- KJ3221X1-BA1 – Earlier revision of the same FTA series; verify connector pinout compatibility
- KJ3221X1-CA1 – Intermediate revision; functionally equivalent in most DeltaV configurations
- KJ3222X1-EA1 – Adjacent model in the KJ32xx FTA family; check I/O card pairing
- Emerson VE3006 / VE3008 Series FTAs – Newer generation termination assemblies for upgraded DeltaV subsystems
- Third-party DIN-rail terminal blocks – Phoenix Contact, Weidmüller, or Wago equivalents for non-DeltaV-native wiring marshalling (signal conditioning required)
Note: Emerson part number suffixes (X1-BA1, X1-CA1, X1-EA1) typically denote hardware revisions. Confirm revision compatibility with your DeltaV I/O card before ordering a substitute.
Why Choose the Original Model
- Guaranteed DeltaV Compatibility: Factory-matched to Emerson DeltaV I/O subsystem cards with no additional configuration
- Certified Signal Integrity: Designed to Emerson’s EMC and noise immunity standards for process-critical environments
- Plug-and-Play Replacement: Direct drop-in for existing KJ3221X1-EA1 installations — no rewiring required
- Long-Term Support: Emerson spare parts ecosystem ensures availability of documentation, firmware, and technical support
- Regulatory Compliance: Meets applicable IEC, UL, and CE standards for industrial control equipment
Typical Applications
- Oil & gas upstream/downstream DCS field wiring termination
- Chemical and petrochemical plant process control marshalling
- Power generation and utilities DeltaV I/O subsystem expansion
- Pharmaceutical manufacturing with validated DeltaV control systems
- Pulp, paper, and mining automation using Emerson DeltaV platforms
System Compatibility
- DCS Platform: Emerson DeltaV (all major versions supporting KJ32xx FTA series)
- Compatible I/O Cards: DeltaV KJ3002, KJ3003, KJ3221 series I/O cards (verify per system BOM)
- Controller Compatibility: DeltaV MD, SD, MQ, and PK controllers
- Not Compatible With: Emerson Ovation, Foxboro I/A, or non-DeltaV DCS platforms without signal conversion
Selection Guide
Use the following criteria to confirm the KJ3221X1-EA1 is the correct termination block for your application:
- Step 1 – Identify your I/O card: Locate the DeltaV I/O card part number in your system BOM or cabinet label
- Step 2 – Match FTA to I/O card: Cross-reference the I/O card P/N against Emerson’s FTA compatibility matrix (available in DeltaV Hardware Reference Manual)
- Step 3 – Confirm revision suffix: Ensure the -EA1 revision is compatible with your installed I/O card revision
- Step 4 – Check channel count: Verify the number of field wiring channels matches your marshalling cabinet design
- Step 5 – Verify mounting: Confirm DIN rail spacing and cabinet depth accommodate the FTA form factor
If uncertain, contact our technical team with your DeltaV system version and I/O card P/N for a confirmed recommendation.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified industrial surplus channels
- New-in-box units include original Emerson packaging and documentation where available
- Refurbished and tested-used units undergo functional verification and visual inspection prior to shipment
- Traceability documentation available upon request for regulated industries
- 30-day return policy on all stocked items; warranty terms available on request
How to Order
- Online: Add to cart directly from this page — stock levels updated in real time
- Email: support@konmask.com — include P/N, quantity, and required condition (new / refurbished / tested)
- Phone / WhatsApp: +0086 19859288691 — available for urgent inquiries and bulk orders
- Lead Time: In-stock items ship within 1–3 business days; out-of-stock items subject to sourcing lead time (typically 2–4 weeks)
- Export: International orders accepted; export documentation and customs support available
Replacement & Compatibility FAQ
Q: Can I use KJ3221X1-CA1 instead of KJ3221X1-EA1?
A: In most DeltaV configurations, yes — the -CA1 and -EA1 are hardware revisions of the same FTA. However, always verify against your specific I/O card revision using Emerson’s compatibility documentation.
Q: Is this termination block compatible with DeltaV S-series controllers?
A: The KJ3221X1-EA1 is designed for the DeltaV traditional I/O subsystem. For DeltaV S-series (Electronic Marshalling), different FTA types are required. Contact us to confirm.
Q: Can I use a generic DIN rail terminal block as a replacement?
A: Generic terminal blocks can be used for field wiring marshalling but do not provide the same plug-and-play integration with DeltaV I/O cards. Signal conditioning and custom wiring will be required.
Q: Do you supply the matching DeltaV I/O card for this FTA?
A: Yes — contact us with your system requirements and we can source the complete I/O subsystem assembly including I/O card, FTA, and interconnect cable.
Q: What is the lead time for out-of-stock units?
A: Typical sourcing lead time is 2–4 weeks depending on market availability. Contact us for a firm quote and timeline.
