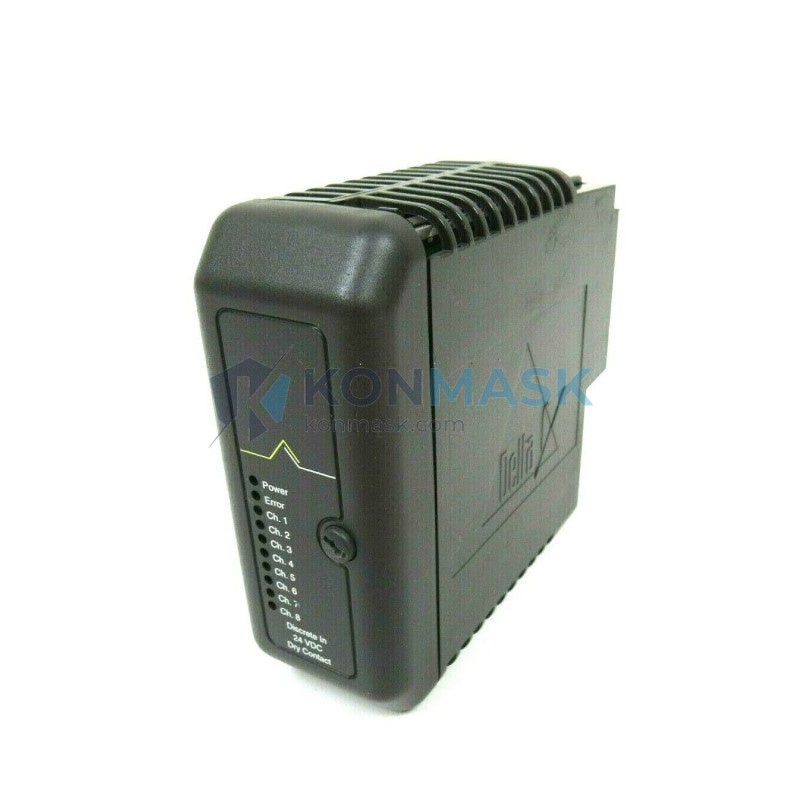

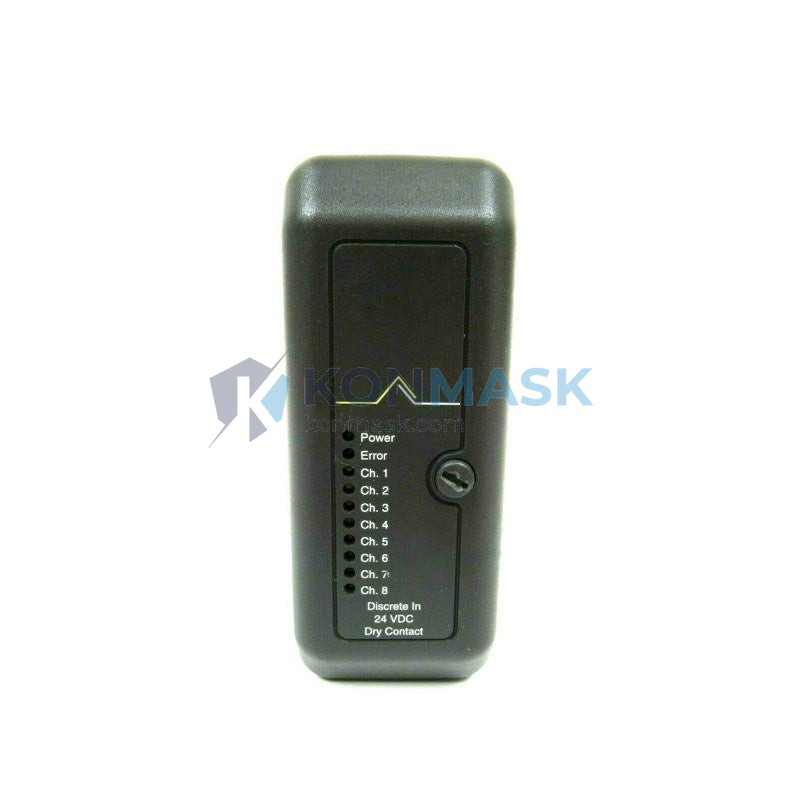

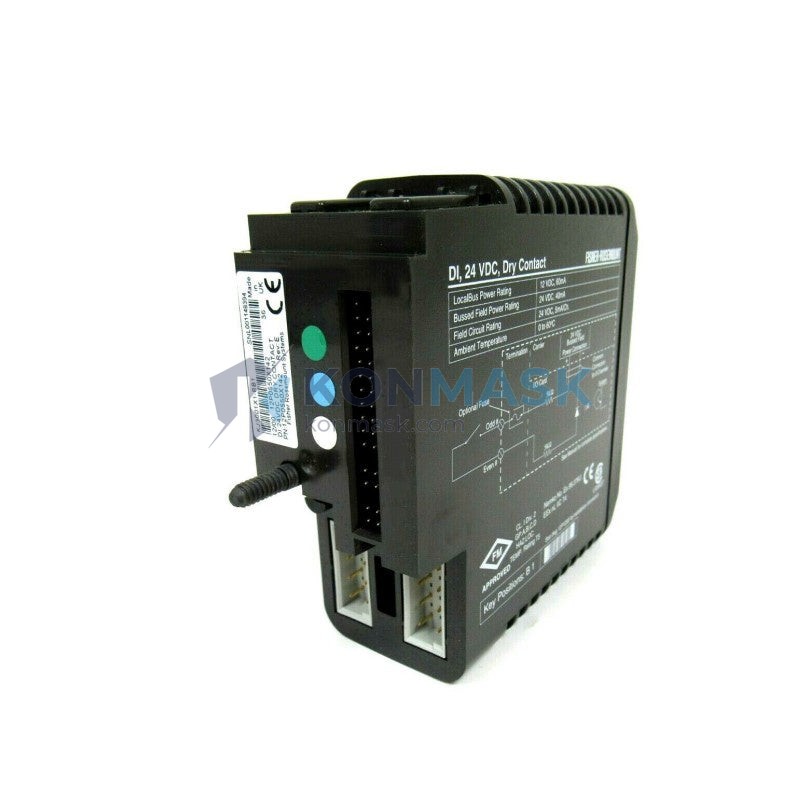

EMERSON KJ3001X1-BB1 Dry Contact Input Module – DeltaV Series (12P0550X142)
When a dry contact input module fails mid-process, the consequences are immediate and costly: discrete field signals go dark, the DCS loses visibility into valve positions, motor run feedback, and interlock status, and operators are forced into manual override or emergency shutdown. In a refinery, a paper mill, or a pharmaceutical batch reactor, that loss of signal integrity can mean unplanned downtime measured in hours — or worse, a safety incident. The KJ3001X1-BB1 12P0550X142 exists precisely to prevent that scenario.
Within the EMERSON DeltaV distributed control system architecture, the KJ3001X1-BB1 occupies a well-defined role: it is the discrete dry contact input card that bridges field-level switch contacts — limit switches, pressure switches, relay outputs — to the DeltaV controller logic. Part number 12P0550X142 identifies a specific hardware revision with confirmed compatibility across DeltaV S-series and M-series controller platforms. This module has been deployed in thousands of process plants globally, making it one of the most widely referenced discrete I/O cards in the DeltaV ecosystem.
Technical Specifications
Electrical
- Module Type: Dry Contact Digital Input
- Input Channels: 8 channels (isolated dry contact)
- Input Voltage Range: 24 VDC nominal (field-side)
- Contact Wetting Current: Sufficient to ensure reliable contact closure detection
- Isolation: Channel-to-channel and channel-to-bus isolation
- Bus Interface: DeltaV I/O bus (proprietary EMERSON backplane)
- Power Consumption: Per DeltaV I/O subsystem specification
Mechanical
- Form Factor: DeltaV I/O card, standard module footprint
- Mounting: DeltaV I/O carrier / marshalling cabinet rail
- Weight: Approx. 200 g
- Connector Type: Backplane edge connector (DeltaV standard)
Environmental
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Vibration / Shock: Per IEC 60068-2 industrial environment ratings
Certifications & Standards
- CE Marking (EMC Directive)
- UL Listed (industrial control equipment)
- Compliant with IEC 61131-2 (Programmable Controllers — Equipment Requirements)
- Note: Verify current certification status against EMERSON DeltaV hardware documentation for your specific revision.
Key Features & Benefits
- Isolated Dry Contact Inputs — Eliminates ground loop interference between field devices and the DCS backplane, reducing nuisance trips in electrically noisy environments such as motor control centers.
- Direct DeltaV Backplane Integration — Plugs directly into the DeltaV I/O carrier without additional signal conditioning hardware, cutting installation time by eliminating intermediate terminal blocks for each channel.
- 8-Channel Density per Slot — Achieves a compact I/O footprint; a single cabinet row can accommodate up to 64 discrete input points, reducing cabinet space requirements versus legacy relay-based marshalling.
- Compliant with IEC 61131-2 — Meets the electrical immunity and signal integrity requirements defined for industrial programmable controller I/O, supporting SIL-rated loop documentation where required.
- Hot-Swap Capable (DeltaV Architecture) — Supports module replacement under power within the DeltaV I/O subsystem, enabling maintenance without process shutdown in non-safety-rated loops.
- Wide Operating Temperature Range (0–60°C) — Suitable for installation in both climate-controlled control rooms and field junction boxes in moderate ambient conditions without additional thermal management.
Industry & Equipment Applications
- Oil & Gas — Upstream / Midstream: Wellhead pressure switch monitoring, pipeline valve position feedback, compressor run/stop status in SCADA-integrated DeltaV systems.
- Refining & Petrochemicals: Reactor interlock input from field-mounted limit switches, pump seal failure detection, flare system status monitoring.
- Pharmaceutical & Biotech (cGMP): Batch reactor door interlock, CIP/SIP cycle completion signals, clean room access control feedback — environments where signal traceability is required for 21 CFR Part 11 compliance.
- Pulp & Paper: Digester valve position, conveyor belt run feedback, emergency stop circuit monitoring integrated into DeltaV process control.
- Power Generation: Turbine auxiliary contact monitoring, breaker status input, cooling system flow switch feedback in combined-cycle plant DCS architectures.
- Water & Wastewater Treatment: Pump station run/fail status, high-level float switch input, UV disinfection system interlock monitoring in municipal SCADA/DCS hybrid systems.
System Integration & Compatible Parts
Upstream / Controller Side:
- DeltaV M-Series Controllers (MD, MD Plus, MD Controller)
- DeltaV S-Series Controllers (SD, SD Plus)
- DeltaV I/O Carrier (8-slot and 4-slot variants)
Downstream / Field Side:
- Dry contact relay outputs from motor starters, contactors, and field switches
- Limit switches (SPDT/DPDT), pressure switches, float switches
- Marshalling terminal blocks (Phoenix Contact, Weidmüller compatible)
Equivalent / Replacement Considerations:
- Verify hardware revision (12P0550X142) matches your DeltaV system version before substitution
- Cross-reference with EMERSON DeltaV hardware compatibility matrix for firmware alignment
- Contact Konmask.com for revision-specific availability and compatibility confirmation prior to ordering
Our Quality Assurance Process
- Visual & Physical Inspection: Each module is inspected for board-level damage, connector pin integrity, label legibility, and correct part number / revision marking before acceptance into inventory.
- Functional Verification: Where test equipment is available, modules are bench-tested for backplane communication response and channel continuity to confirm operational status.
- Packaging & ESD Protection: Modules are packed in anti-static bags with foam cushioning and clearly labeled with part number and revision for traceability during shipping.
- Documentation Provided on Request: Test reports, photos of physical condition, original EMERSON datasheet reference, and shipping documents (commercial invoice, packing list) available upon request.
How to Order
- Submit Your Inquiry: Send your required part number (KJ3001X1-BB1 12P0550X142), quantity, and delivery timeline via the contact form or email support@konmask.com.
- Receive Confirmation & Quote: Our team will confirm stock availability, hardware revision, and provide a formal quotation — typically within 24 hours on business days.
- Confirm & Ship: Upon order confirmation and payment arrangement, we prepare documentation and dispatch with your preferred freight method, including DHL, FedEx, and sea freight options.
Why Choose Konmask.com?
- Specialized in DCS / PLC Hardware: We focus exclusively on industrial automation components — EMERSON DeltaV, ABB, Honeywell, Siemens — not a general electronics distributor.
- Revision-Level Accuracy: We document hardware revisions and firmware compatibility, not just part numbers, to reduce the risk of incompatible substitutions reaching your site.
- Global Export Experience: Serving engineering teams and MRO procurement departments across Southeast Asia, the Middle East, Europe, and the Americas with compliant export documentation.
- Responsive Technical Support: Inquiries are handled by staff with hands-on DCS hardware knowledge, not a generic sales team — we can discuss compatibility, revision differences, and integration requirements.
- Transparent Condition Reporting: We clearly state whether a module is new-surplus, refurbished, or used-tested, and provide photographic evidence of condition before shipment.
Frequently Asked Questions
Q: Is the EMERSON KJ3001X1-BB1 12P0550X142 compatible with all DeltaV controller versions?
A: The KJ3001X1-BB1 is designed for the DeltaV I/O subsystem and is broadly compatible with M-series and S-series controllers. However, hardware revision 12P0550X142 should be cross-referenced against your specific DeltaV system version and firmware release. Contact us with your controller model and DeltaV software version for a compatibility confirmation before ordering.
Q: Can I replace a failed KJ3001X1-BB1 dry contact module without shutting down the DeltaV system?
A: DeltaV I/O architecture supports hot-swap replacement for non-safety-rated I/O modules, meaning the carrier remains powered during module exchange. However, the specific loop must be placed in manual or bypass mode in the DCS prior to physical removal to prevent false discrete inputs from triggering downstream logic. Always follow your site’s MOC (Management of Change) procedure.
Q: What is the difference between a dry contact input module and a wet contact (voltage) input module in DeltaV DCS applications?
A: A dry contact input module (such as the KJ3001X1-BB1) reads the open/closed state of a passive switch contact — the module itself provides the wetting voltage. A wet contact input module reads an externally powered voltage signal (e.g., 24 VDC from a field device). Using the wrong module type for your field wiring will result in no signal or incorrect readings. Confirm your field device output type before selecting the I/O card.
