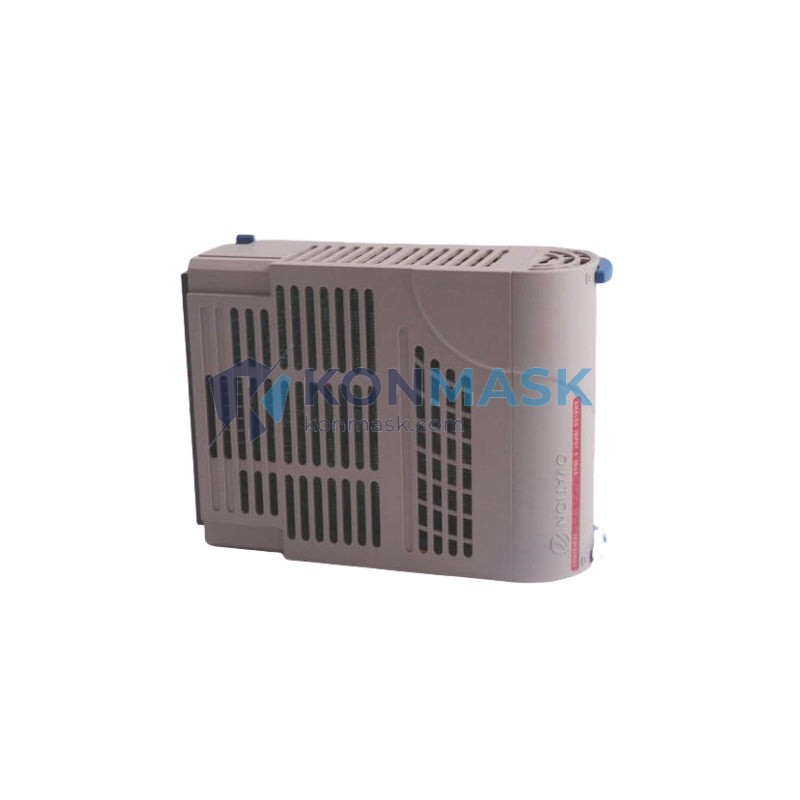

Emerson Ovation 1C31169G01 – High-Speed Link Controller | Ovation DCS Platform
Engineering Background
The Emerson Ovation distributed control system (DCS) is the industry benchmark for power generation, water treatment, and continuous process industries. At the heart of its deterministic communication architecture sits the 1C31169G01 Link Controller — the module responsible for managing high-speed data exchange between Ovation controller nodes and I/O drops across the Ovation network.
Product Positioning
Designed for procurement engineers and system integrators who require a verified, drop-in replacement for the Ovation DCS communication backbone. The 1C31169G01 eliminates network latency bottlenecks, supports redundant topologies, and is fully backward-compatible with legacy Ovation controller generations. Konmask.com stocks this module with full traceability documentation available upon request.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 1C31169G01 |
| Manufacturer | Emerson Electric Co. |
| Platform / Series | Ovation DCS |
| Module Type | Link Controller |
| Function | High-speed communication link management between Ovation controller nodes and remote I/O drops |
| Network Protocol | Ovation Proprietary High-Speed Network (HSN) |
| Redundancy Support | Yes – supports redundant link configurations |
| Backplane Interface | Ovation controller backplane compatible |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Power Consumption | Per Ovation system power budget specifications |
| Module Weight | 630 g |
| Form Factor | Standard Ovation module card |
| Certifications | CE, UL (per Ovation system certification) |
| Country of Origin | USA |
Proven Application Environments
- Power Generation: Coal, gas, nuclear, and renewable energy plant DCS networks requiring deterministic scan-cycle communication
- Water & Wastewater Treatment: Multi-drop I/O architectures with long-distance link runs between control rooms and field panels
- Oil & Gas Processing: Upstream and midstream facilities using Ovation for SCADA and process control integration
- Chemical & Petrochemical: Continuous process plants demanding high-availability redundant communication links
- Pulp & Paper: High I/O count systems with distributed controller-to-I/O drop topologies
Engineering Advantages
- Deterministic Latency: Maintains fixed scan-cycle timing across all connected I/O drops, critical for closed-loop control integrity
- Redundant Link Architecture: Supports dual-link configurations to eliminate single points of failure in the communication path
- Hot-Swap Capable: Designed for live replacement in Ovation redundant controller configurations, minimizing planned downtime
- Backward Compatibility: Interoperable with multiple generations of Ovation controllers and I/O modules without firmware conflicts
- Noise Immunity: Industrial-grade EMI/RFI shielding suitable for high-interference plant environments
System Architecture & Signal Flow
Within the Ovation DCS architecture, the 1C31169G01 Link Controller occupies the controller chassis and manages the Ovation High-Speed Network (HSN) segment. Data flow proceeds as follows:
- Controller Node → issues scan requests via backplane to the Link Controller
- 1C31169G01 Link Controller → encapsulates and transmits data frames across the HSN to remote I/O drops
- Remote I/O Drop → receives commands, executes field I/O reads/writes, returns process data
- Link Controller → validates response integrity, updates controller memory map within the defined scan cycle
Redundant link pairs operate in active/standby mode with automatic failover, transparent to the controller application layer.
Sourcing & Quality Verification
All Emerson Ovation modules supplied by Konmask.com undergo a multi-stage verification process before shipment:
- Visual inspection against OEM cosmetic and label standards
- Firmware version verification and documentation
- Functional bench test where applicable
- Anti-counterfeit screening per IDEA-STD-1010 guidelines
- Serialized traceability records retained for 5 years
Certificates of conformance and test reports are available upon request for regulated industries.
Procurement Process
- Submit RFQ – Contact [email protected] with your required quantity, delivery timeline, and any special documentation requirements
- Receive Quotation – Formal quotation issued within 1 business day including unit price, lead time, and shipping options
- Order Confirmation – Purchase order accepted; payment terms available for qualified accounts
- Quality Documentation – CoC, test reports, and packing list issued with shipment
- Delivery & Support – Express international shipping available; post-delivery technical support included
Technical FAQ
- Q: Is the 1C31169G01 compatible with all Ovation controller generations?
- A: The 1C31169G01 is designed for the Ovation DCS platform. Compatibility with specific controller generations should be verified against your system’s Ovation software version and hardware revision. Contact our technical team for a compatibility check.
- Q: Can this module be used in a simplex (non-redundant) configuration?
- A: Yes. The 1C31169G01 supports both simplex and redundant link configurations. Redundancy is configured at the system level via Ovation engineering tools.
- Q: What is the typical lead time for this module?
- A: In-stock units ship within 3–5 business days internationally. Lead time for non-stock orders is quoted individually based on sourcing availability.
- Q: Do you provide a warranty?
- A: Yes. Konmask.com provides a 12-month warranty against manufacturing defects on all verified modules. Terms available upon request.
- Q: Can you supply multiple units for a plant-wide spares program?
- A: Yes. Volume pricing and blanket order arrangements are available for MRO and capital spares programs. Contact us to discuss your requirements.
