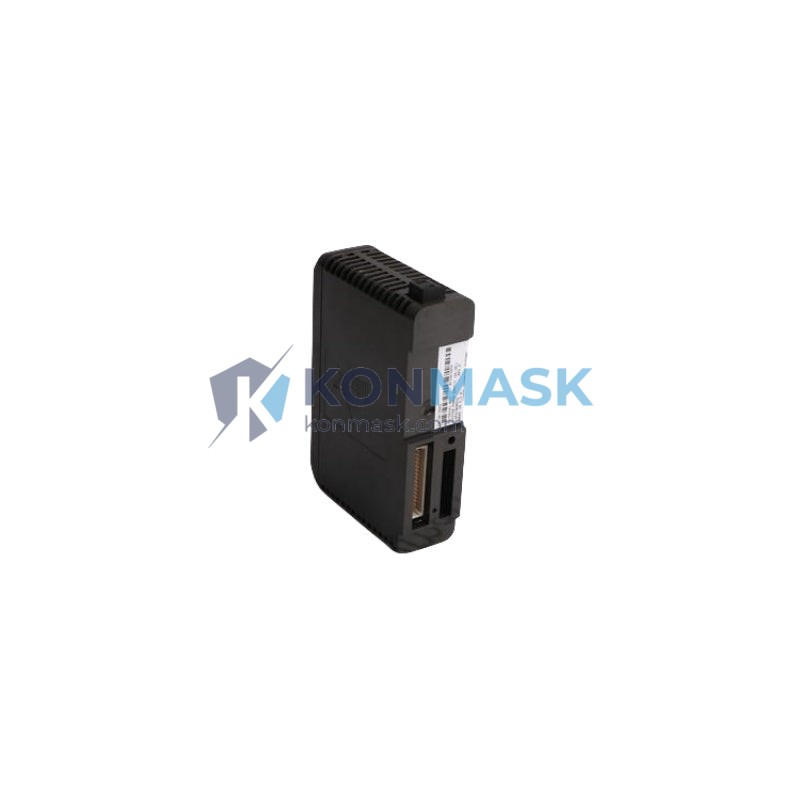

Power Supply Solution – EMERSON PR6423/XXX/X4X CON021 | EPRO Series
Where This Product Is Used
The EMERSON PR6423/XXX/X4X CON021 is a dedicated system power supply module engineered for mission-critical industrial environments. It is widely deployed in the following applications:
- Gas & Steam Turbine Control Systems — Provides stable, conditioned DC power to EPRO proximity monitoring and protection racks in power generation plants.
- Rotating Machinery Protection — Supplies regulated voltage to vibration, speed, and position monitoring modules in compressors, pumps, and turbines.
- DCS Backplane Power Distribution — Used as a dedicated rail power source within Emerson Ovation and EPRO-based distributed control system cabinets.
- Oil & Gas Upstream/Midstream Facilities — Installed in ATEX-adjacent control rooms and marshalling cabinets for continuous process monitoring.
- Petrochemical & Refinery Control Panels — Supports 24 VDC instrument loops and field device power in hazardous-area control architectures.
- Marine & Offshore Platforms — Deployed in vibration monitoring racks aboard FPSOs and offshore drilling rigs requiring high-reliability power conditioning.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | PR6423/XXX/X4X CON021 |
| Manufacturer | EMERSON (EPRO) |
| Product Series | EPRO PR6423 Series |
| Module Type | System Power Supply |
| Output Voltage | 24 VDC (regulated) |
| Input Voltage Range | 85–264 VAC / 100–370 VDC (wide-range) |
| Output Current | Refer to CON021 datasheet for rated load |
| Isolation | Galvanic isolation, input-to-output |
| Protection Features | Overvoltage, overcurrent, short-circuit, thermal shutdown |
| Mounting | DIN rail / rack-mount (EPRO system chassis) |
| Operating Temperature | -20°C to +70°C |
| Weight | 560 g (approx.) |
| Connector Type | CON021 system connector |
| Certifications | CE, UL (refer to product label) |
Note: The “XXX” and “X4X” fields in the part number denote configurable sub-variants (cable length, connector orientation). Contact Konmask to confirm the exact variant required for your system.
Why Engineers Specify This Model
- OEM-Grade Compatibility — Designed exclusively for EPRO PR6423-series monitoring racks; plug-and-play replacement with no firmware reconfiguration required.
- High MTBF — Industrial-grade components rated for continuous 24/7 operation in harsh environments with wide temperature tolerance.
- Galvanic Isolation — Eliminates ground loops and protects sensitive measurement electronics from mains transients.
- Wide Input Range — Accepts both AC and DC supply inputs, simplifying integration into diverse plant power architectures.
- Redundancy-Ready — Supports N+1 redundant power configurations when paired with a second PR6423 supply module in the same chassis.
- Compact Form Factor — Slot-in module design minimises cabinet footprint and simplifies hot-swap maintenance procedures.
Complete System Bill of Materials
For a fully operational EPRO vibration/speed monitoring system, the following components are typically specified alongside the PR6423/XXX/X4X CON021:
- EMERSON PR6423 Series Proximity Transducer (eddy-current sensor)
- EMERSON PR9268/CON021 Extension Cable
- EMERSON PR6424 Signal Conditioning Module
- EMERSON PR6426 Rack / Chassis
- EMERSON PR6422 Monitoring Module (speed / vibration / position)
- EMERSON CON021 System Connector Set
- 24 VDC DIN Rail Terminal Blocks (Phoenix Contact or equivalent)
Konmask stocks many of these complementary components. Contact us for a complete BOM quotation.
Compliance & Industry Standards
- IEC 61511 — Functional Safety for Process Industry Sectors (SIL-capable system architecture)
- IEC 61010-1 — Safety requirements for electrical equipment for measurement, control, and laboratory use
- ISO 10816 / ISO 20816 — Mechanical vibration — Evaluation of machine vibration (system-level compliance)
- API 670 — Machinery Protection Systems (applicable to turbine monitoring installations)
- CE Marking — Conforms to applicable EU directives for industrial electrical equipment
- RoHS Compliant — Restriction of Hazardous Substances (where applicable to production batch)
Quality Assurance & Sourcing
Konmask.com sources EMERSON PR6423/XXX/X4X CON021 modules through authorised industrial surplus channels and verified OEM distributors. Every unit offered undergoes the following before dispatch:
- ✔ Visual inspection for physical damage, corrosion, and connector integrity
- ✔ Power-on functional test at rated input voltage
- ✔ Output voltage verification under load
- ✔ Part number and label verification against EMERSON documentation
- ✔ Anti-static packaging with humidity indicator card
- ✔ Photographic condition report available on request
We offer a 90-day warranty on all tested units. New-in-box (NIB) and factory-sealed stock is available subject to inventory — enquire for current availability.
How to Source This Part
Getting the right power supply module quickly is critical when a turbine or compressor protection system is offline. Here is how to order from Konmask:
- Confirm your variant — Check the label on your existing module for the full part number including XXX and X4X sub-codes, or share your system drawing with us.
- Request a quote — Email support@konmask.com or call +0086 19859288691 with your part number and required quantity.
- Receive stock confirmation — We will confirm availability, condition (new / tested surplus), and lead time within 24 hours.
- Place your order — Secure checkout via this product page, or via proforma invoice for B2B / corporate purchase orders.
- Fast dispatch — In-stock items ship within 1–2 business days via DHL Express, FedEx, or UPS with full tracking.
Application-Specific FAQ
Q: Can the PR6423/XXX/X4X CON021 replace an older PR6423 variant with a different sub-code?
A: In many cases yes, provided the connector type (CON021) and output voltage match. However, cable length and connector orientation sub-variants (XXX, X4X) must be verified against your system drawing. Contact us for cross-reference support.
Q: Is this module compatible with Bently Nevada 3500 series racks?
A: No. The PR6423 series is an EMERSON EPRO proprietary module and is not interchangeable with Bently Nevada hardware. Ensure your rack is an EPRO PR6426 chassis before ordering.
Q: Do you supply the CON021 connector separately?
A: Yes. CON021 connector sets are available as a separate line item. Include this in your enquiry if your existing connector is damaged.
Q: What is the lead time for new-in-box stock?
A: New-in-box availability varies. Tested surplus units typically ship within 1–2 business days. NIB units may require 5–15 business days depending on factory allocation. Contact us for current stock status.
Q: Can Konmask provide a certificate of conformance (CoC)?
A: Yes. A CoC and functional test report are available upon request for all tested units at no additional charge.
