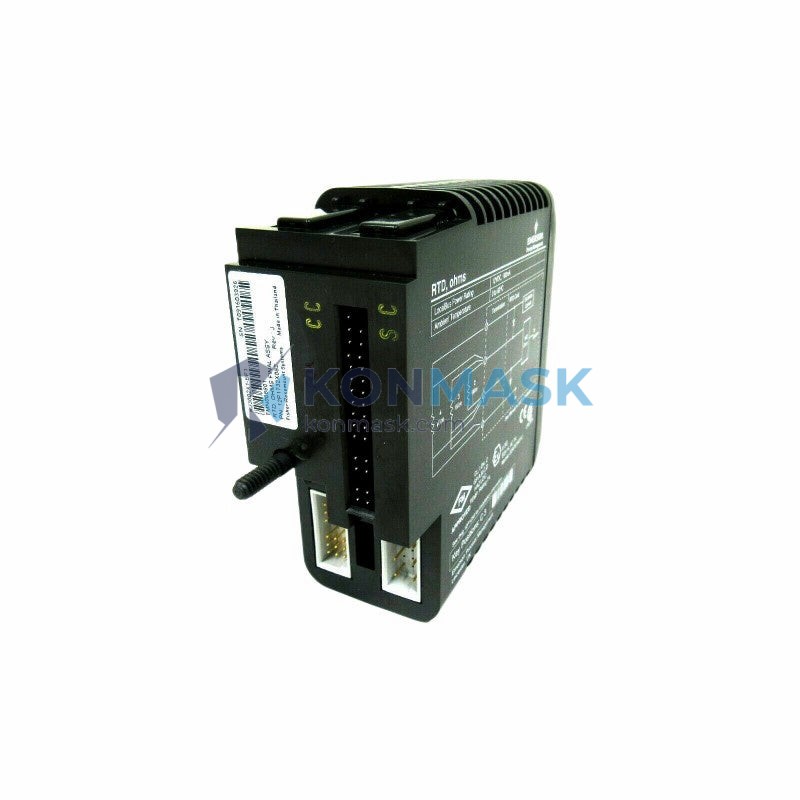

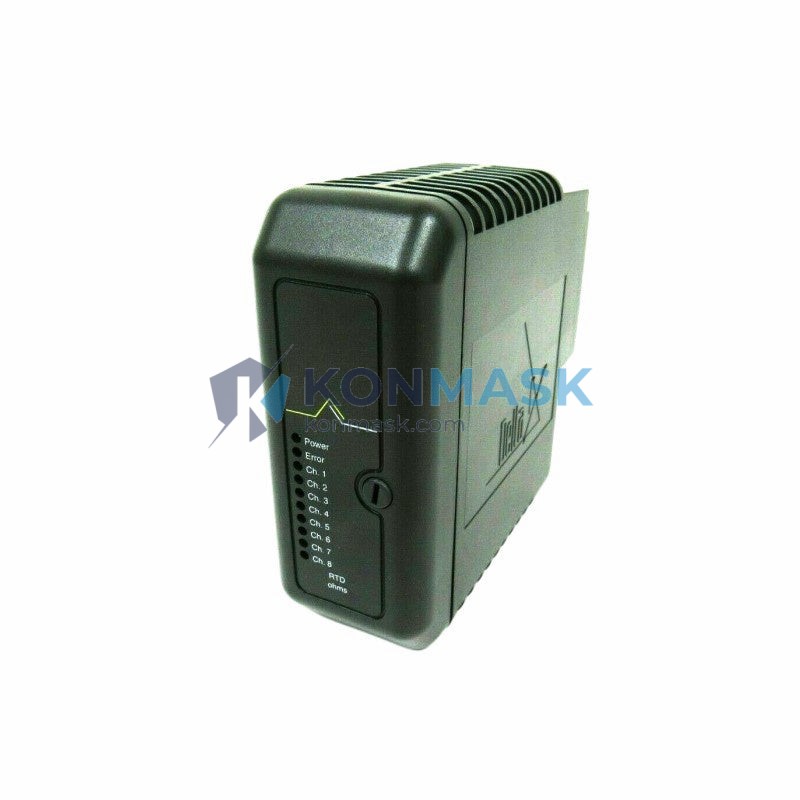

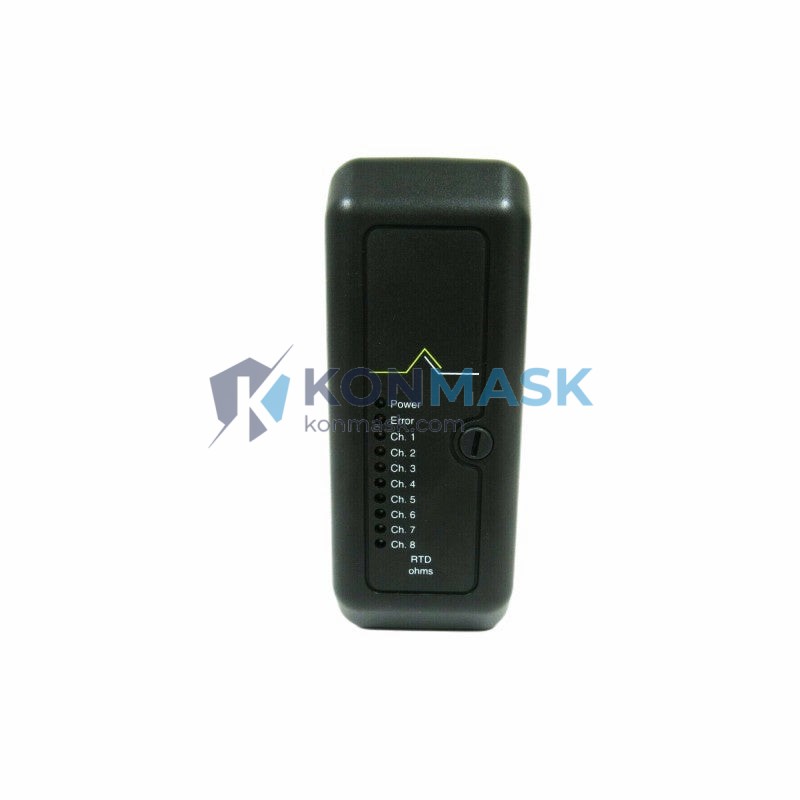

EMERSON KJ3002X1-BF1 – RTD Multi-Channel Input Module | DeltaV DCS Platform
Engineering Background
The KJ3002X1-BF1 (alternate part number 12P1732X082) is a factory-certified RTD (Resistance Temperature Detector) input module designed exclusively for Emerson’s DeltaV distributed control system. As a core I/O card within the DeltaV S-series and M-series controller chassis, it provides high-resolution, multi-channel temperature measurement directly on the process bus — eliminating the need for external signal conditioners and reducing wiring complexity in large-scale installations.
Product Positioning
Procurement engineers specifying temperature measurement for refinery, chemical, or power generation applications rely on the KJ3002X1-BF1 for its native DeltaV integration, HART-transparent architecture, and proven long-term availability. Konmask.com supplies this module as a tested, traceable surplus unit — ideal for system expansions, emergency replacements, and lifecycle extension projects where lead times on new OEM stock are unacceptable.
Complete Technical Specifications
- Part Number: KJ3002X1-BF1
- Alternate P/N: 12P1732X082
- Manufacturer: Emerson Electric / Fisher-Rosemount
- Platform: DeltaV DCS (S-series / M-series)
- Module Type: RTD Input (Resistance Temperature Detector)
- Input Channels: 8 channels (differential, individually configurable)
- Supported Sensor Types: Pt100, Pt200, Pt500, Pt1000 (IEC 60751); Ni100, Ni120; Cu10
- Measurement Range: –200 °C to +850 °C (sensor-dependent)
- Accuracy: ±0.1 °C typical (Pt100, at 0 °C)
- Resolution: 0.01 °C
- Input Impedance: >10 MΩ
- Isolation: Channel-to-channel and channel-to-bus isolation
- Power Supply: Supplied via DeltaV I/O bus (no external power required)
- Bus Interface: DeltaV proprietary I/O bus
- Diagnostics: Open-circuit, short-circuit, out-of-range detection per channel
- Scan Rate: Configurable via DeltaV Explorer (typical 100 ms)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: –40 °C to +85 °C
- Humidity: 5% to 95% RH, non-condensing
- Dimensions: Standard DeltaV I/O card form factor
- Weight: Approx. 200 g
- Certifications: CE, UL, FM (Class I Div 2 capable with appropriate barriers)
Proven Application Environments
- Oil & Gas Upstream/Downstream: Wellhead temperature monitoring, heat exchanger control, crude distillation column profiling
- Chemical & Petrochemical: Reactor temperature mapping, exothermic process safety interlocks, distillation tray temperature arrays
- Power Generation: Turbine bearing temperature, boiler feed water monitoring, generator winding protection
- Pharmaceutical & Biotech: Sterilization cycle validation, bioreactor temperature control (21 CFR Part 11 compatible DeltaV environments)
- Pulp & Paper / Food & Beverage: Dryer section temperature profiling, pasteurization process control
- Water & Wastewater: Digester temperature monitoring, heat recovery system control
Engineering Advantages
- Native DeltaV Integration: Plug-and-play recognition in DeltaV Explorer — no third-party drivers or custom configuration blocks required
- 8-Channel Density: Maximizes I/O carrier utilization; reduces per-point installed cost versus single-channel alternatives
- Per-Channel Diagnostics: Open-wire and short-circuit faults reported individually to the DeltaV alarm system — enabling predictive maintenance without field inspection
- 3-Wire & 4-Wire RTD Support: Eliminates lead resistance error; critical for long cable runs in large plant installations
- Hot-Swap Capable: Module can be replaced under power in redundant controller configurations — zero process downtime during maintenance
- Long Production History: Proven in DeltaV installations since the late 1990s; extensive field data and community knowledge base available
System Architecture & Signal Flow
The KJ3002X1-BF1 mounts directly into a DeltaV I/O carrier (8-slot or 4-slot). Field RTD sensors connect via marshalling cabinet or directly to the module’s terminal block. The module performs on-board analog-to-digital conversion and linearization, then transmits engineering-unit values over the DeltaV I/O bus to the controller (MD, MD Plus, or MQ). Within DeltaV Explorer, each channel appears as a discrete AI function block parameter, addressable in control modules and SIS logic.
Typical signal path: RTD sensor → field junction box → marshalling cabinet → KJ3002X1-BF1 terminal block → I/O bus → DeltaV controller → DeltaV Operate HMI / historian
Sourcing & Quality Verification
- All units sourced from decommissioned DeltaV systems or authorized surplus channels
- Pre-shipment inspection: visual, connector integrity, firmware version check
- Functional power-on test performed where test bench is available
- Original Emerson labels and part number markings intact and verified
- Anti-static packaging with humidity indicator card
- 90-day warranty against DOA / functional defects
- Traceability documentation available on request
Procurement Process
- Confirm compatibility: Verify your DeltaV controller series (MD, MD Plus, MQ, M5+) and I/O carrier slot availability
- Request a quote: Contact support@konmask.com with quantity and required delivery date
- Order confirmation: Pro-forma invoice issued within 1 business day
- Payment & export: T/T, PayPal, or trade finance accepted; export documentation (CO, packing list, commercial invoice) provided
- Shipping: DHL / FedEx Express worldwide; typical transit 3–7 business days
- Incoming inspection support: Konmask technical team available to assist with acceptance testing procedures
Technical FAQ
Q: Is KJ3002X1-BF1 compatible with DeltaV version 14.x and later?
A: Yes. The module is recognized by DeltaV v7.x through v15.x. Firmware updates are managed automatically by the DeltaV controller upon insertion.
Q: Can I mix RTD and thermocouple inputs on the same I/O carrier?
A: Yes. DeltaV I/O carriers support mixed module types. The KJ3002X1-BF1 occupies one slot; thermocouple modules (e.g., KJ3001X1) can occupy adjacent slots without interference.
Q: What is the difference between KJ3002X1-BF1 and 12P1732X082?
A: These are the same physical module. KJ3002X1-BF1 is the Emerson catalog part number; 12P1732X082 is the internal manufacturing/revision code printed on the module label. Both reference the same hardware revision.
Q: Does this module support HART pass-through?
A: No. RTD sensors are passive resistive devices and do not carry HART signals. HART pass-through is applicable to 4–20 mA AI/AO modules only.
Q: What happens if one RTD channel fails?
A: The module reports a channel-level fault alarm in DeltaV and continues normal operation on all remaining channels. No module-level reset or replacement is required for a single-channel fault.
Q: Can Konmask provide a test report before shipment?
A: Yes. A basic functional test report (power-on, channel enumeration, firmware version) can be provided upon request. Contact support@konmask.com to arrange.
