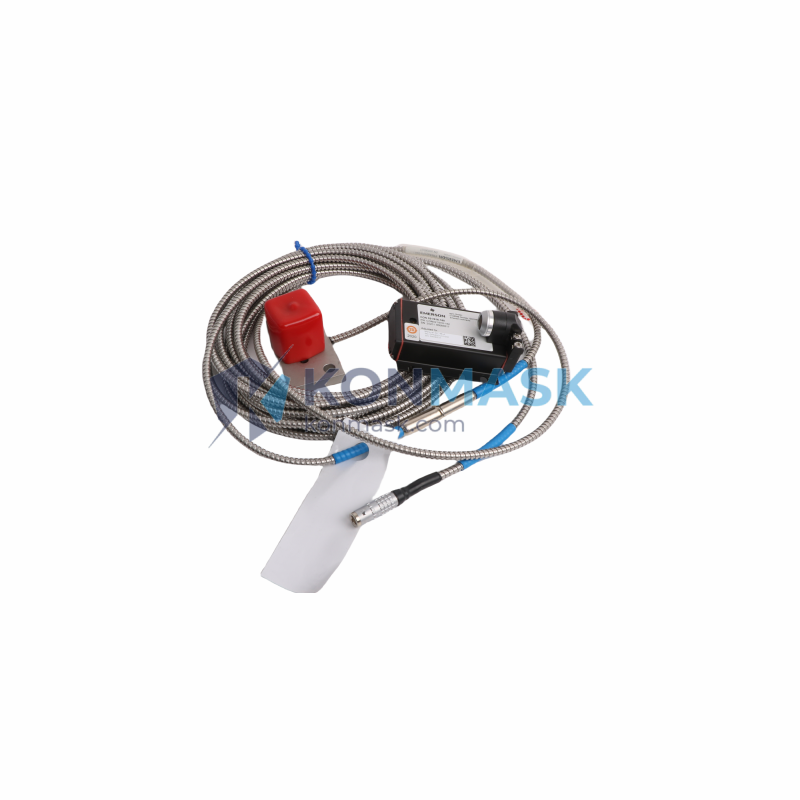

EMERSON PR6426/010-030 CON021/916-160 Eddy Current Sensor | Replacement, Equivalent & Selection Guide
The EMERSON PR6426/010-030 paired with the CON021/916-160 signal conditioner forms a complete eddy current proximity measurement system widely used in turbomachinery and rotating equipment monitoring. This page provides full technical specifications, compatible replacement options, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Manufacturer: EMERSON (formerly Bently Nevada)
- Probe Model: PR6426/010-030
- Conditioner Model: CON021/916-160
- Sensor Type: Eddy Current / Non-contact Proximity Probe
- Series: PR6426 / CON021
- Probe Cable Length: 1.0 m (010 = 1.0 m extension)
- Thread Size: M8 (standard)
- Measuring Range: 0–2 mm (nominal)
- Output Signal: –24 VDC (standard Bently Nevada compatible)
- Supply Voltage: –24 VDC
- Operating Temperature: –35°C to +120°C (probe tip)
- Protection Rating: IP67
- Weight: Approx. 780 g (complete system)
- Compliance: CE, RoHS
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or drop-in compatible with the PR6426/010-030 + CON021/916-160 system. Always verify gap voltage, cable length, and conditioner compatibility before substitution.
- Bently Nevada 330101-00-06-10-02-00 – 3300 XL 8mm proximity transducer system (direct functional equivalent)
- Bently Nevada 330130-040-00-00 – 3300 XL 11mm probe, compatible conditioner required
- EPRO PR6423/002-030 – 8mm eddy current probe, CON021 conditioner compatible
- EPRO PR6424/010-030 – Alternative probe length variant
- Metrix ST5484E – Equivalent eddy current proximity system for turbomachinery
- Wilcoxon R7-J – Alternative non-contact displacement sensor
Note: Konmask.com supplies both OEM original and verified equivalent parts. Contact us to confirm compatibility for your specific application.
Why Choose the Original Model
- OEM Accuracy: Factory-calibrated gap voltage curve ensures measurement integrity in critical machinery protection systems.
- System Certification: PR6426 + CON021 combination is pre-certified for use with EMERSON Machinery Health Manager and System 1 software.
- Long-term Availability: EMERSON maintains long product lifecycle support for this series.
- Proven Reliability: Deployed globally in power generation, oil & gas, and petrochemical rotating equipment monitoring.
Typical Applications
- Shaft radial vibration measurement on steam and gas turbines
- Axial position (thrust) monitoring on compressors
- Differential expansion measurement in power plant turbines
- Eccentricity and rotor runout detection
- Keyphasor reference signal generation
- Bearing housing displacement monitoring
System Compatibility
- DCS / PLC Platforms: Compatible with 4–20 mA input cards and –24 VDC proximity input modules
- Monitoring Systems: EMERSON System 1, Bently Nevada 3500 Series, 3300 Series rack systems
- Signal Conditioner: CON021/916-160 (included in this listing); also compatible with CON011, CON021 variants
- Cable Extension: Standard Bently Nevada extension cable (3300/05-01-01-00) compatible
Selection Guide
Use the table below to select the correct PR6426 variant for your application:
- PR6426/000-030 – Standard probe, no extension cable
- PR6426/005-030 – 0.5 m extension cable
- PR6426/010-030 – 1.0 m extension cable (this listing)
- PR6426/020-030 – 2.0 m extension cable
- PR6426/030-030 – 3.0 m extension cable
For CON021 conditioner variants, the suffix (e.g., /916-160) denotes output range and supply voltage configuration. Contact Konmask.com for custom configurations.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Each unit inspected and tested prior to shipment
- Original packaging and documentation preserved where available
- Traceability records available upon request for critical applications
- Export compliance verified for international orders
How to Order
- Add to cart directly on this page, or
- Contact us for bulk pricing, lead time confirmation, or custom configurations:
- 📧 support@konmask.com
- 📞 +0086 19859288691
- 🌐 https://konmask.com
- Provide your application details (machine type, monitoring system, required cable length) for expert selection assistance.
Replacement & Compatibility FAQ
Q: Can I use PR6426/010-030 with a Bently Nevada 3500 rack?
A: Yes, when paired with the CON021/916-160 conditioner, the output is compatible with Bently Nevada 3500 series proximity input modules.
Q: What is the difference between PR6426 and PR6423?
A: PR6423 is an 8mm probe; PR6426 is also 8mm but with a different connector and cable configuration. Both use CON021 conditioners but verify suffix codes for exact compatibility.
Q: Is a replacement conditioner required when replacing the probe?
A: Not necessarily. If the existing CON021 conditioner is functional, only the probe needs replacement. Always re-calibrate the gap voltage after probe replacement.
Q: Do you supply calibration certificates?
A: Yes, calibration documentation is available upon request. Contact us before ordering to arrange.
