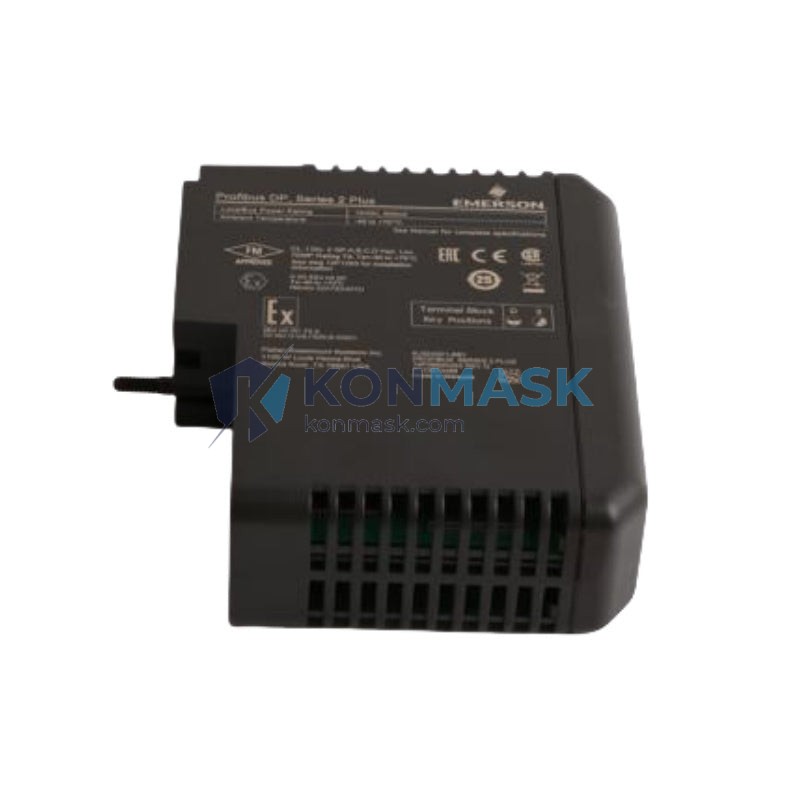

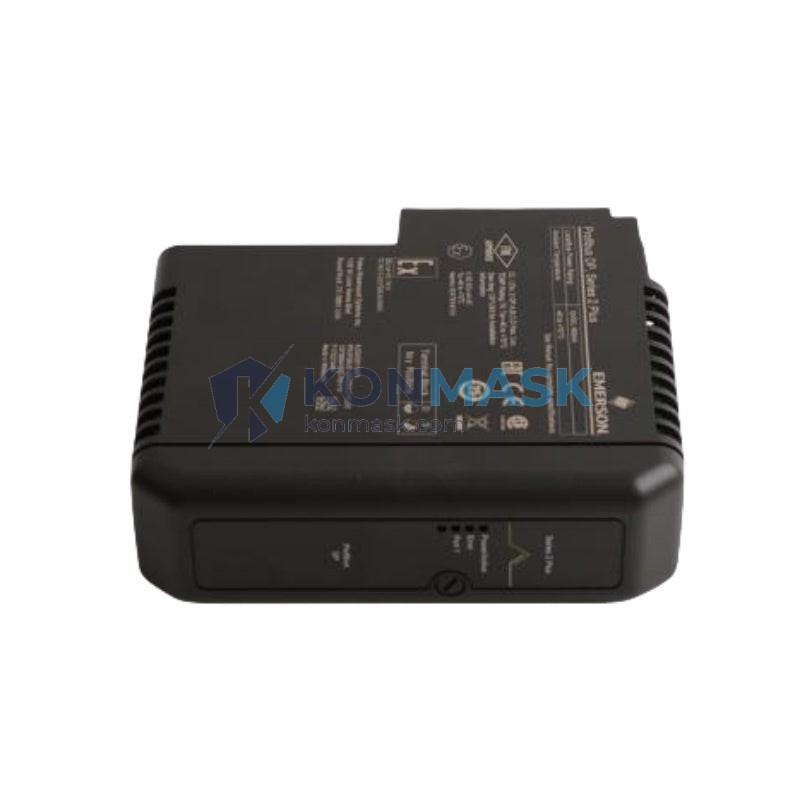

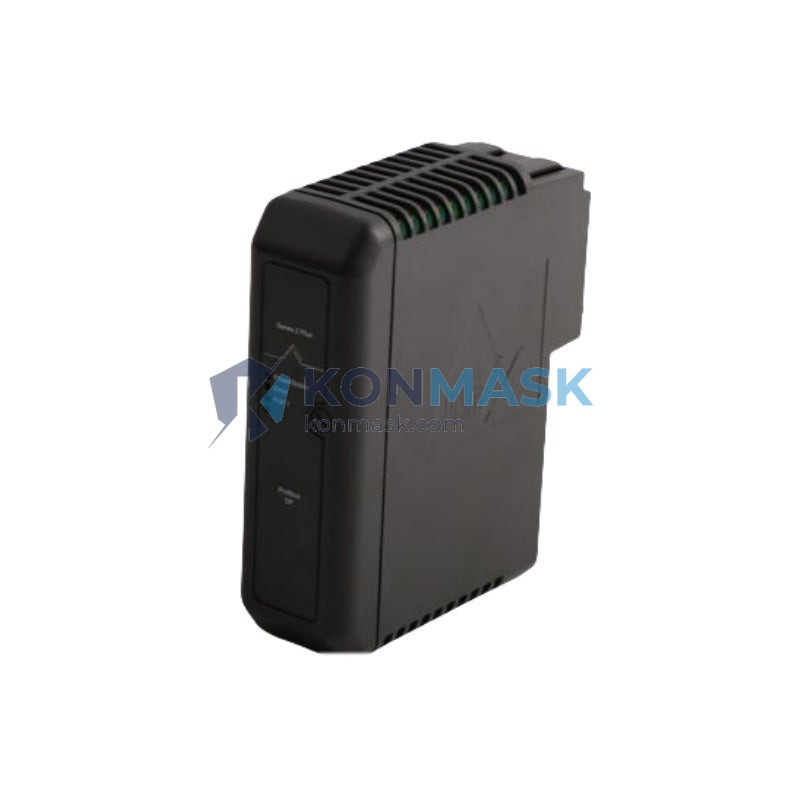

EMERSON VE4022 KJ3243X1-BB1 12P3994X052 – Plus Profibus DP Communication Module | DeltaV DCS Platform
Engineering Background: The EMERSON VE4022 (part numbers KJ3243X1-BB1 / 12P3994X052) is a Plus Profibus DP communication interface module designed for integration within Emerson’s DeltaV distributed control system (DCS) architecture. Profibus DP (Decentralized Periphery) remains the dominant fieldbus standard in process automation, and the VE4022 provides a certified, high-speed gateway between the DeltaV controller backplane and field-level Profibus DP slave devices.
Product Positioning: Targeted at process engineers and automation integrators managing chemical, oil & gas, power generation, pharmaceutical, and pulp & paper facilities, the VE4022 enables deterministic, real-time communication with up to 125 Profibus DP slave devices per segment. It is a direct factory-replacement module for DeltaV Plus series controllers and is fully backward-compatible with existing DeltaV configurations.
Complete Technical Specifications
- Manufacturer: Emerson Electric / Emerson Automation Solutions
- Model / Part Number: VE4022 | KJ3243X1-BB1 | 12P3994X052
- Series / Platform: DeltaV™ Plus DCS
- Module Type: Profibus DP Communication Interface Module
- Fieldbus Protocol: Profibus DP (EN 50170 / IEC 61158)
- Profibus DP Speed: Up to 12 Mbit/s (auto-negotiated)
- Max Slave Devices: Up to 125 per Profibus DP segment
- Backplane Interface: DeltaV Plus controller carrier / I/O bus
- Power Supply: Supplied via DeltaV backplane (no external PSU required)
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Enclosure / Form Factor: DIN-rail mountable DeltaV I/O carrier module
- Weight: Approx. 200 g
- Certifications: CE, UL, FM (Class I Div 2), ATEX (Zone 2)
- Country of Origin: United States
- HS Code: 8537.10
Proven Application Environments
- Oil & Gas upstream / midstream / downstream process control
- Chemical and petrochemical plant automation
- Pharmaceutical batch and continuous manufacturing (FDA 21 CFR Part 11 environments)
- Power generation (coal, gas turbine, combined cycle)
- Pulp & paper and water/wastewater treatment
- Mining and minerals processing
- Any facility running DeltaV Plus controllers requiring Profibus DP field device integration
Engineering Advantages
- Plug-and-Play DeltaV Integration: Recognized natively by DeltaV Explorer; no third-party driver required.
- High-Speed Deterministic Communication: 12 Mbit/s Profibus DP ensures sub-millisecond cycle times for critical control loops.
- Broad Slave Compatibility: Supports GSD-file-based configuration for any certified Profibus DP slave (drives, valves, analyzers, transmitters).
- Redundancy Support: Compatible with DeltaV redundant controller configurations for high-availability architectures.
- Hot-Swap Capable: Module can be replaced online without shutting down the DeltaV controller (subject to system configuration).
- Diagnostic Transparency: Full Profibus DP diagnostic data surfaced in DeltaV Operate for rapid fault isolation.
System Architecture & Signal Flow
The VE4022 mounts directly onto a DeltaV Plus controller carrier. The DeltaV controller communicates with the VE4022 over the internal I/O bus. The VE4022 acts as the Profibus DP Class 1 Master, polling configured slave devices cyclically. Process values (PVs) and setpoints (SPs) are exchanged in real time and mapped to DeltaV module parameters via the DeltaV Profibus DP Device Integration (DDDI) framework. Alarm and diagnostic data from slaves are propagated to the DeltaV event chronicle automatically.
Sourcing & Quality Verification
- All units sourced from authorized distributors or directly decommissioned from controlled industrial environments.
- Each module undergoes visual inspection, firmware version verification, and functional power-on testing prior to shipment.
- Original Emerson labels, serial numbers, and date codes are intact and traceable.
- Packaging: anti-static ESD bag + foam-lined carton; compliant with IEC 61340-5-1.
- Certificate of conformance (CoC) available upon request.
Procurement Process
- Submit your RFQ via konmask.com/pages/contact or email support@konmask.com.
- Receive a formal quotation with lead time, unit price, and shipping options within 24 business hours.
- Confirm purchase order (PO) — we accept T/T wire transfer, PayPal, and major credit cards.
- Module ships within 1–3 business days; DHL / FedEx / UPS express available worldwide.
- Tracking number and commercial invoice provided upon dispatch.
Technical FAQ
Q: Is the VE4022 compatible with DeltaV S-series controllers?
A: No. The VE4022 is designed for the DeltaV Plus controller platform. For S-series, refer to the VE4005 or VE4006 Profibus DP modules.
Q: Can I use this module as a Profibus DP Class 2 master for acyclic communication?
A: Yes. The VE4022 supports both Class 1 (cyclic) and Class 2 (acyclic/diagnostic) master functions via DeltaV’s DDDI framework.
Q: What DeltaV software version is required?
A: DeltaV v11.3 or later is recommended. Earlier versions may require a firmware patch — contact us for compatibility confirmation.
Q: Do you provide a warranty?
A: Yes. All modules carry a 90-day functional warranty. Extended warranty options are available upon request.
Q: Can you provide the GSD file for slave configuration?
A: GSD files are managed by the slave device manufacturer, not the master module. We can assist with sourcing GSD files for common Emerson and third-party Profibus DP slaves.
