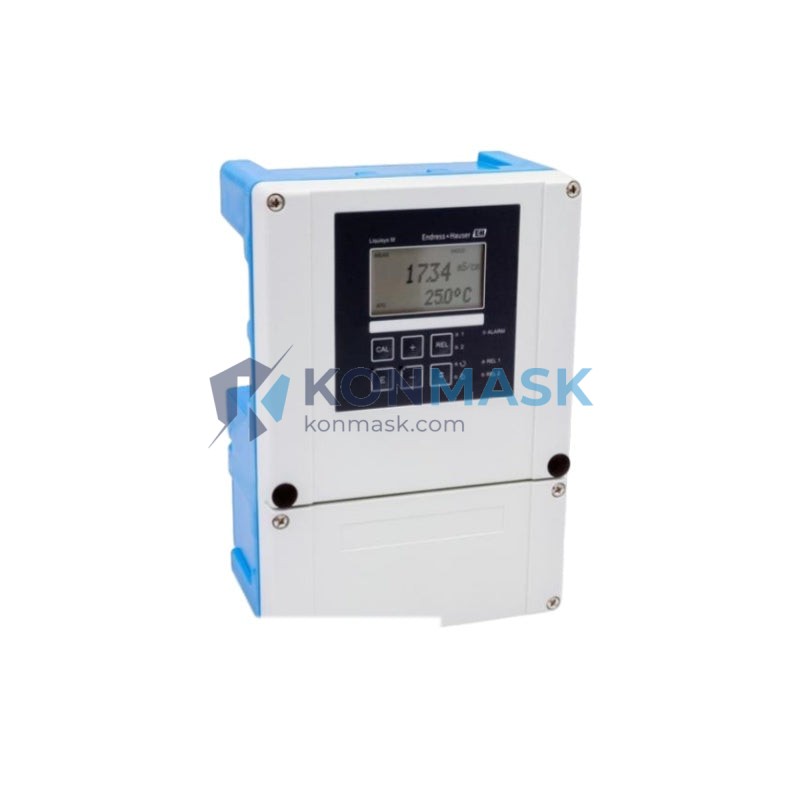

Endress+Hauser CLM253-CD0005 – Conductivity Transmitter | Mycom CLM253 Platform
Engineering Background: The Mycom CLM253 is Endress+Hauser’s dedicated 4-wire conductivity transmitter platform, engineered for continuous liquid analysis in demanding industrial environments. Designed to pair with inductive and conductive conductivity sensors, it delivers stable, drift-resistant measurement across a wide conductivity range — from ultrapure water to concentrated process media.
Product Positioning: The CLM253-CD0005 is a field-proven transmitter for procurement engineers who require a reliable, calibrated, and fully documented conductivity measurement solution. It is widely deployed in water treatment, pharmaceutical, chemical, and power generation facilities where measurement integrity and regulatory traceability are non-negotiable.
Complete Technical Specifications
| Model / SKU | CLM253-CD0005 |
| Series / Platform | Mycom CLM253 |
| Manufacturer | Endress+Hauser (E+H) |
| Function | Conductivity Transmitter / Meter |
| Measurement Type | Conductivity, Resistivity, TDS, Salinity, Concentration |
| Sensor Compatibility | Conductive & Inductive Conductivity Sensors |
| Power Supply | 4-wire (AC/DC) |
| Output Signal | 4–20 mA, HART / Relay outputs |
| Display | Backlit LCD, dual-line |
| Enclosure Rating | IP65 / NEMA 4X |
| Ambient Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Mounting | Panel / Field / Pipe mounting |
| Weight | approx. 1.5 kg |
| Certifications | CE, ATEX (variant-dependent), cULus |
| Country of Origin | Germany |
Proven Application Environments
- Water & Wastewater Treatment: Drinking water quality monitoring, effluent conductivity control, desalination plant feed/permeate measurement
- Pharmaceutical & Biotech: USP/EP purified water (PW) and water for injection (WFI) loop monitoring, CIP/SIP validation
- Chemical Processing: Acid/alkali concentration control, reagent dosing verification, reaction endpoint detection
- Power Generation: Boiler feedwater, condensate polishing, cooling tower blowdown monitoring
- Food & Beverage: CIP cleaning verification, brine concentration, product concentration monitoring
- Semiconductor / Microelectronics: Ultrapure water (UPW) resistivity monitoring in fab processes
Engineering Advantages
- Dual-parameter display — simultaneous conductivity + temperature readout on a single screen
- Automatic temperature compensation (ATC) — linear and non-linear compensation algorithms for accurate readings across process temperature swings
- Wide measurement range — covers ultrapure water (µS/cm) through concentrated electrolytes (S/cm) with a single platform
- Sensor diagnostics — built-in Memosens-compatible sensor monitoring for predictive maintenance
- HART communication — enables remote configuration, calibration, and data logging via asset management systems
- Robust IP65 enclosure — suitable for washdown environments and outdoor field installation
- Calibration traceability — factory calibration certificate included; supports on-site recalibration with traceable standards
System Architecture & Signal Flow
The CLM253-CD0005 operates as a 4-wire transmitter in a standard liquid analysis loop:
- Sensor Input: Conductive or inductive conductivity sensor (E+H CLS or CLs series) connected via M12 or terminal block
- Signal Conditioning: Internal microprocessor applies temperature compensation and range scaling
- Primary Output: 4–20 mA analog signal proportional to measured conductivity/resistivity value
- Digital Communication: HART overlay on the 4–20 mA loop for remote parameterization and diagnostics
- Relay Outputs: Configurable limit/alarm relays for DCS/PLC integration or local alarm activation
- Display: Local LCD readout with keypad for on-site configuration and calibration
Compatible with Endress+Hauser Fieldgate, FieldCare, and third-party HART asset management systems.
Sourcing & Quality Verification
At Konmask.com, every CLM253-CD0005 unit passes a documented 4-step verification protocol before shipment:
- Origin Verification: Serial number and date code cross-referenced against E+H manufacturer records
- Physical Inspection: Housing, label, terminal block, and display integrity checked against OEM specifications
- Functional Test: Power-on self-test, output signal verification, and display calibration check
- Documentation Package: Factory calibration certificate, EU Declaration of Conformity, and packing list included with every shipment
We source exclusively from authorized E+H distribution channels and certified industrial surplus with full traceability. Counterfeit-free guarantee backed by our return policy.
Procurement Process
- Submit RFQ: Email [email protected] with your required quantity, delivery timeline, and any project specifications
- Receive Quotation: Formal quotation with unit price, lead time, and shipping options within 24 business hours
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment processing
- Quality Hold & Dispatch: Unit verified per 4-step protocol, then packed and dispatched with full documentation
- Tracking & Support: Shipment tracking number provided; post-delivery technical support available
Accepted payment methods: T/T (Bank Transfer), PayPal, Western Union, Trade Assurance
Lead time: In-stock units ship within 3–5 business days; ex-stock lead time quoted on request
Minimum order: 1 unit
Technical FAQ
Q: Is the CLM253-CD0005 compatible with inductive (toroidal) sensors?
A: Yes. The CLM253 platform supports both conductive (2-electrode) and inductive (toroidal) conductivity sensors. Verify sensor model compatibility with E+H’s Applicator tool or contact us for confirmation.
Q: Can this transmitter be used in ATEX hazardous areas?
A: The CD0005 ordering code designates a standard (non-Ex) version. ATEX/IECEx variants are available under different order codes. Contact us if you require an Ex-rated version.
Q: What is the conductivity measurement range?
A: The CLM253 covers 0.01 µS/cm to 500 mS/cm depending on the connected sensor cell constant. This spans ultrapure water through concentrated process media.
Q: Does the unit ship with a calibration certificate?
A: Yes. Every unit includes the original E+H factory calibration certificate. On-site recalibration using NIST-traceable conductivity standards is supported.
Q: What is your warranty policy?
A: All units carry a 12-month warranty against manufacturing defects. Units that fail functional verification are replaced or fully refunded.
Q: Can you supply multiple units for a plant-wide project?
A: Yes. We handle project quantities from 1 to 100+ units. Volume pricing and consolidated shipping are available — submit your BOM to [email protected].
