Water & Chemical Process Monitoring Solution – Endress+Hauser CPM223-PR0005 | Liquiline CM223
Where This Product Is Used

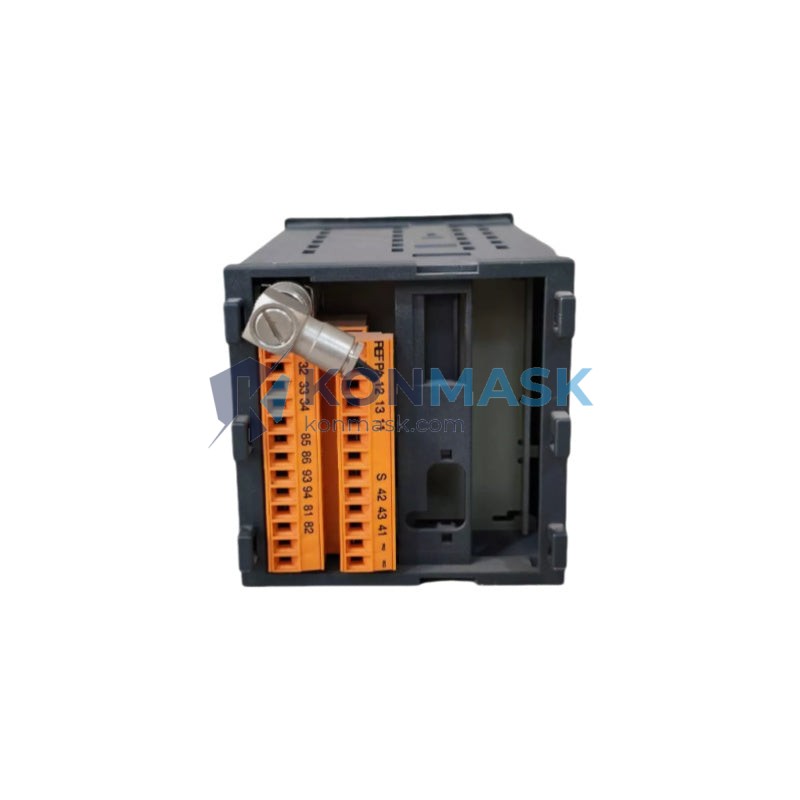

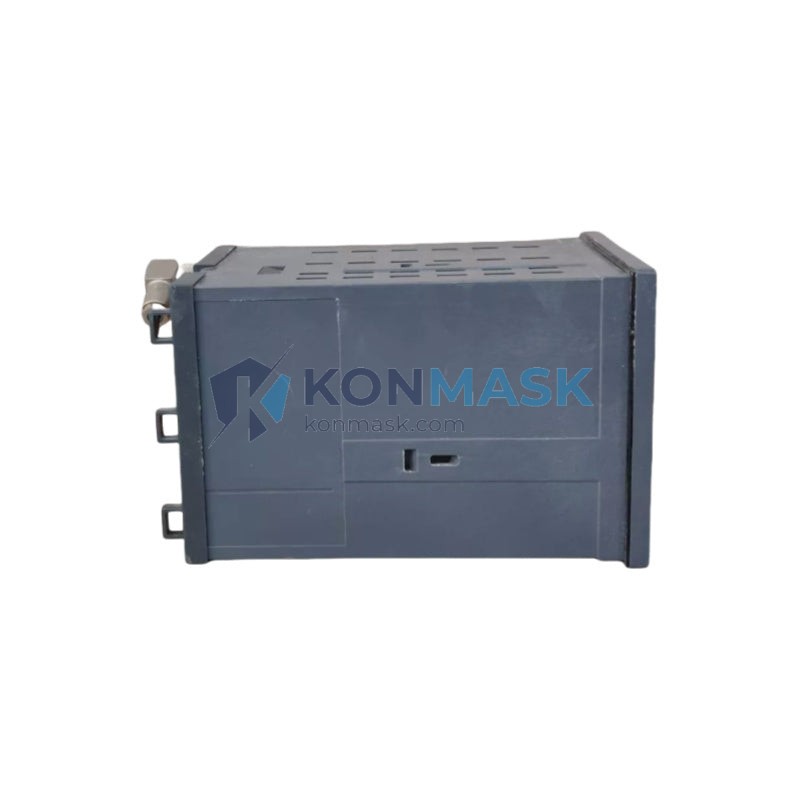

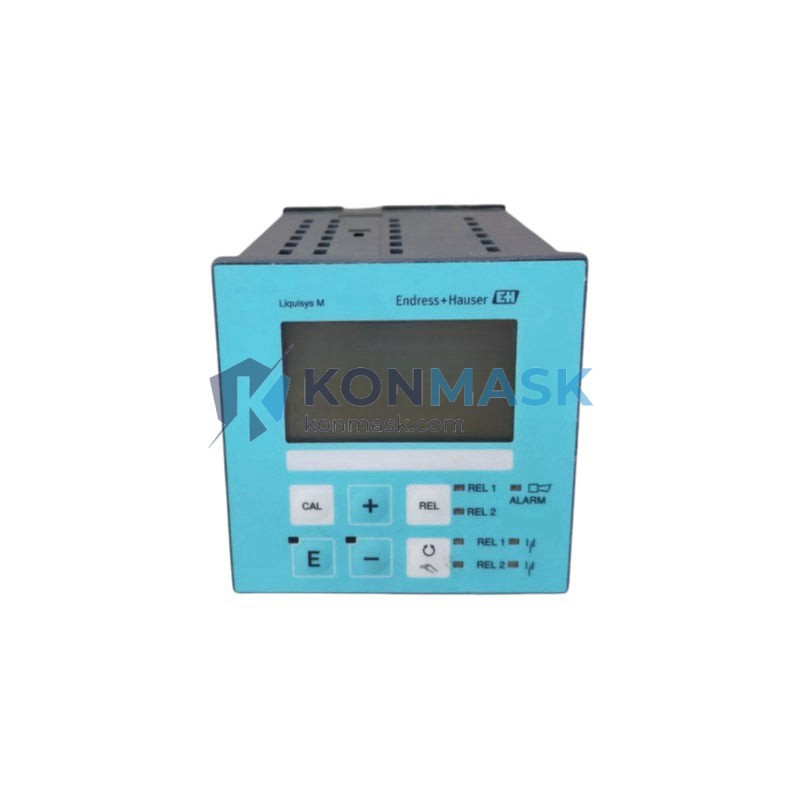

The Endress+Hauser CPM223-PR0005 (Liquiline CM223) is a compact, single-channel transmitter engineered for continuous pH and ORP measurement in demanding industrial environments. Engineers and process managers specify this unit across the following industries:
- Municipal Water & Wastewater Treatment – Effluent pH monitoring, chlorination control, and discharge compliance
- Chemical & Petrochemical Plants – Reactor pH control, neutralization loops, and corrosion inhibition monitoring
- Food & Beverage Processing – CIP (Clean-in-Place) cycle verification, fermentation pH tracking
- Pharmaceutical Manufacturing – Buffer preparation, purified water systems, and GMP-compliant process control
- Power Generation – Cooling tower water chemistry, boiler feedwater conditioning
- Pulp & Paper – Bleaching stage pH control, white water loop monitoring
Technical Specifications
| Model / SKU | CPM223-PR0005 |
| Series | Liquiline CM223 |
| Manufacturer | Endress+Hauser |
| Measurement Parameters | pH / ORP (Redox) |
| Channels | 1 (single-channel) |
| Display | Backlit LCD, 4-line |
| Output Signal | 4–20 mA HART, relay outputs |
| Power Supply | 100–230 V AC / 24 V DC |
| Protection Rating | IP65 / NEMA 4X |
| Mounting | Panel, wall, or pipe mount |
| Ambient Temperature | –20 to +60 °C |
| Sensor Interface | Memosens digital (inductive) |
| Approvals | CE, UL, cUL, ATEX (zone-dependent) |
| Weight | ~1.0 kg |
Why Engineers Specify This Model
- Memosens Digital Sensor Technology – Inductive, galvanically isolated connection eliminates moisture-related signal errors; sensor data (calibration history, operating hours) stored on-chip
- Plug-and-Play Sensor Exchange – Pre-calibrate sensors in the lab; swap in the field without recalibration downtime
- Guided Calibration Wizard – Step-by-step on-screen prompts reduce operator error and ensure GMP/GLP documentation compliance
- Dual-Output Flexibility – 4–20 mA HART plus configurable relay outputs for alarm, dosing pump control, or PLC integration
- Compact DIN-Rail / Panel Form Factor – Fits standard control cabinet cutouts; saves panel space vs. larger multi-channel units
- Robust IP65 Enclosure – Withstands washdown environments in food, pharma, and outdoor installations
Complete System Bill of Materials
For a fully operational pH/ORP monitoring loop, the following components are typically required alongside the CPM223-PR0005:
- Memosens pH Sensor (e.g., Endress+Hauser CPS11D or CPS71D)
- Memosens ORP Sensor (e.g., Endress+Hauser CPS12D) – if ORP measurement needed
- Process connection / immersion assembly (e.g., Endress+Hauser CPA250 or CPA450)
- Cable glands and conduit fittings (M20 × 1.5)
- 24 V DC power supply or 100–230 V AC feed
- 4–20 mA signal cable to PLC/DCS analog input card
- Buffer solutions pH 4.01, 7.00, 9.21 for calibration
Compliance & Industry Standards
- CE Marking – EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- UL / cUL Listed – North American electrical safety
- ATEX / IECEx – Zone 2 / Zone 22 rated variants available (verify order code suffix)
- FDA 21 CFR Part 11 – Audit trail and electronic records support for pharmaceutical applications
- ISO 9001 – Manufactured under Endress+Hauser’s certified quality management system
- NAMUR NE 43 – Standardized signal levels for fault indication on 4–20 mA outputs
Quality Assurance & Sourcing
All units listed on Konmask.com are sourced through verified industrial automation supply channels. Each CPM223-PR0005 unit is:
- Inspected for physical integrity and label authenticity upon receipt
- Stored in ESD-safe, climate-controlled warehousing
- Shipped with original manufacturer documentation where available
- Traceable to batch/serial records for warranty and compliance purposes
We specialize in genuine Endress+Hauser instrumentation for process industries. If you require a factory calibration certificate (CoC) or specific firmware version, please contact us before ordering.
How to Source This Part
- In Stock: Add to cart and proceed to checkout — most orders ship within 1–3 business days
- Lead Time Orders: Contact us for volume pricing, scheduled delivery, or project-based procurement
- RFQ / Bulk: Email [email protected] with quantity and required delivery date
- International Shipping: We ship globally via DHL Express, FedEx International, and sea freight for large orders
- Export Documentation: Commercial invoice, packing list, and HS code 9026.20 documentation provided
Application-Specific FAQ
Q: Can the CPM223-PR0005 work with non-Memosens (analog) pH sensors?
A: No. The CM223 platform is designed exclusively for Memosens digital sensors. For analog sensor compatibility, consider the Endress+Hauser CPM253 or CPM82 series.
Q: Is this unit suitable for hazardous area (Ex) installations?
A: The base CPM223-PR0005 order code is for safe-area use. ATEX/IECEx variants require a different order code suffix — contact us to confirm the correct Ex-rated model for your zone classification.
Q: What is the calibration interval for this transmitter?
A: The transmitter itself does not require periodic calibration; only the connected pH/ORP sensor does. Sensor calibration frequency depends on process conditions — typically every 1–4 weeks in aggressive media, or every 1–3 months in clean water applications.
Q: Can I integrate this with a Siemens or Rockwell PLC?
A: Yes. The 4–20 mA output connects to any standard analog input card. HART communication is also supported for asset management integration via HART modem or HART-capable I/O modules.
Q: Does Konmask provide commissioning support?
A: We provide pre-sales technical consultation and documentation. On-site commissioning services are available through our partner network — contact us for details.
