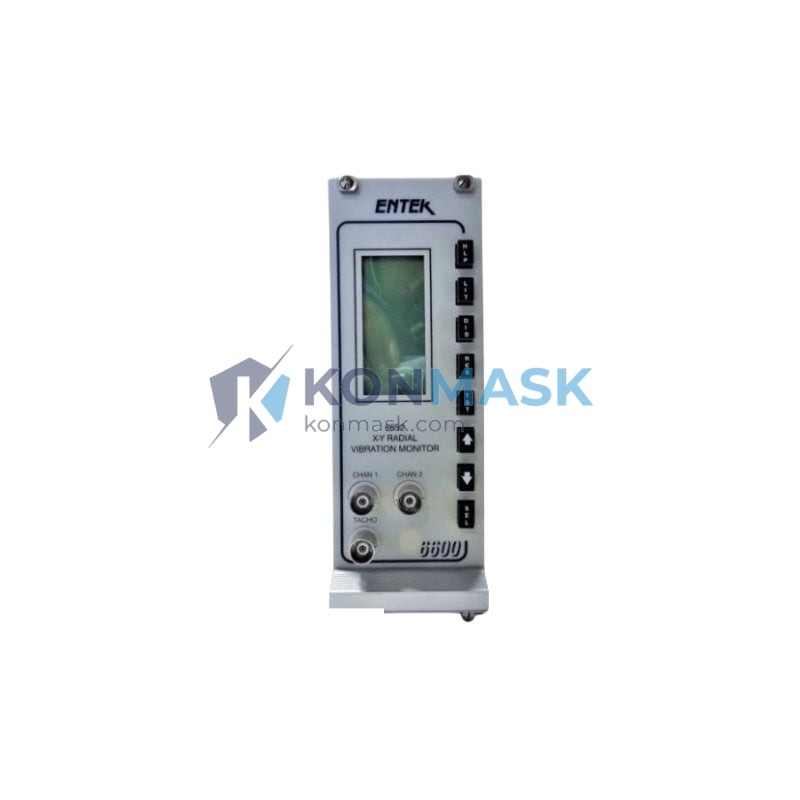

ENTEK 6652 / EC6652 – Dual-Channel Radial Vibration Monitor | Machinery Protection System
Engineering Background
The ENTEK 6652 (also designated EC6652) is a dual-channel radial vibration monitor designed for continuous, real-time protection of rotating machinery in critical industrial environments. Developed under ENTEK’s legacy of precision condition monitoring instrumentation, the 6652 integrates seamlessly into distributed machinery protection racks and standalone panel installations. It is widely deployed in power generation, petrochemical, and heavy manufacturing facilities where unplanned downtime carries significant operational and safety consequences.
Product Positioning
The EC6652 targets plant reliability engineers and rotating equipment specialists who require a proven, rack-compatible vibration monitor with deterministic alarm response and analog output for DCS/SCADA integration. It serves as a direct replacement or upgrade path for legacy ENTEK and compatible third-party vibration monitoring channels, offering a cost-effective route to maintaining certified machinery protection without full system overhaul.
Complete Technical Specifications
- Model: ENTEK 6652 / EC6652
- Function: Dual-channel radial (shaft) vibration monitor
- Input: Compatible with eddy-current (proximity) probes, standard ±24 VDC bias
- Measurement Range: 0–25 mil pk-pk (0–635 µm pk-pk) per channel
- Analog Output: 4–20 mA per channel, isolated, loop-powered
- Alarm Outputs: Dual-setpoint relay per channel (Alert / Danger), SPDT, configurable
- OK Relay: Channel OK / Not-OK relay output per channel
- Power Supply: 24 VDC nominal (18–32 VDC operating range)
- Frequency Response: 2 Hz – 1 kHz (–3 dB)
- Operating Temperature: –20°C to +70°C
- Storage Temperature: –40°C to +85°C
- Humidity: 5–95% RH, non-condensing
- Weight: Approx. 880 g (module with connectors)
- Mounting: DIN rail / rack card format, compatible with ENTEK 6000-series chassis
- Connector Type: Removable screw-terminal blocks
- Certifications: CE marked; consult datasheet for hazardous area ratings
Proven Application Environments
- Power Generation: Steam turbine, gas turbine, and generator shaft vibration monitoring at utility and industrial power plants
- Oil & Gas / Petrochemical: Compressor trains, pumps, and expanders in upstream and downstream facilities requiring API 670-aligned protection
- Pulp & Paper / Heavy Industry: High-speed rotating equipment where continuous vibration surveillance prevents catastrophic bearing or seal failures
- Water & Wastewater: Large pump stations and blower installations with remote SCADA integration via 4–20 mA loops
- Marine & Offshore: Propulsion and auxiliary machinery protection in environments with wide temperature and humidity variation
Engineering Advantages
- Dual-Channel Architecture: Monitors two independent radial planes (X/Y) from a single module, reducing rack space and wiring complexity by up to 50% versus single-channel alternatives
- Isolated 4–20 mA Output: Ground-loop isolation prevents noise injection into DCS/SCADA analog input cards, ensuring measurement integrity in electrically noisy plant environments
- Deterministic Relay Response: Hardware-based Alert/Danger relay logic provides sub-100 ms trip response independent of communication bus latency
- Rack Compatibility: Direct plug-in replacement within ENTEK 6000-series chassis; no backplane modification required for most upgrade scenarios
- Field-Configurable Setpoints: Front-panel or software-accessible alarm setpoints allow in-situ commissioning without module removal
- Robust EMC Performance: Designed to IEC 61000 series immunity levels, suitable for installation adjacent to variable-frequency drives and high-current switchgear
System Architecture & Signal Flow
The EC6652 accepts raw voltage signals from eddy-current proximity probe drivers (e.g., ENTEK 6500-series or compatible Bently Nevada 3300 XL drivers). Each channel conditions the signal through a dedicated bandpass filter stage, extracts peak-to-peak displacement amplitude, and simultaneously drives the 4–20 mA analog output and the dual-setpoint relay comparators. The OK relay monitors probe driver supply voltage and signal validity, providing a hardwired channel health indication to the plant safety system. All outputs are electrically isolated from the input signal path and from each other, enabling flexible grounding schemes in multi-vendor installations.
Sourcing & Quality Verification
- Origin: Sourced from authorized ENTEK distributors and verified OEM supply chains
- Inspection: Each unit undergoes incoming functional verification including output calibration check and relay actuation test prior to dispatch
- Condition: New (factory-sealed) and refurbished/tested units available; condition clearly stated on order confirmation
- Documentation: Original ENTEK datasheet, calibration certificate (where applicable), and CE declaration of conformity supplied on request
- Traceability: Serial number and firmware revision recorded at dispatch for warranty and maintenance tracking
Procurement Process
- Inquiry: Submit your PO number, required quantity, and delivery timeline via email to support@konmask.com or via the product page enquiry form
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 1 business day
- Order Confirmation: Confirm order and receive proforma invoice; payment via T/T, PayPal, or approved credit terms
- Dispatch: Units shipped via DHL / FedEx / SF Express with full tracking; export documentation (commercial invoice, packing list, COO) included
- After-Sales: 12-month warranty on new units; technical support available via email and WhatsApp (+0086 19859288691)
Technical FAQ
Q: Is the ENTEK 6652 compatible with Bently Nevada proximity probes?
A: Yes. The EC6652 accepts standard –24 VDC bias eddy-current probe driver outputs, which are electrically compatible with Bently Nevada 3300 XL and 7200 series drivers. Verify gap voltage range against your specific probe/driver combination before installation.
Q: Can the 4–20 mA output be connected directly to a PLC analog input card?
A: Yes. The isolated 4–20 mA output is suitable for direct connection to any standard 4–20 mA analog input with a load impedance of ≤500 Ω. No signal conditioner is required.
Q: What is the difference between the 6652 and EC6652 designations?
A: EC6652 is the extended commercial designation used in some regional catalogs and export documentation. The hardware, firmware, and performance specifications are identical. Both part numbers are interchangeable for ordering and replacement purposes.
Q: Is a spare parts kit available?
A: Terminal block connectors and rack guide rails are available as separate line items. Contact us with your chassis model for a compatible accessories list.
Q: What lead time should I expect?
A: In-stock units ship within 2–3 business days. For out-of-stock items, typical lead time is 2–4 weeks depending on source availability. Expedited sourcing is available for urgent plant requirements.
