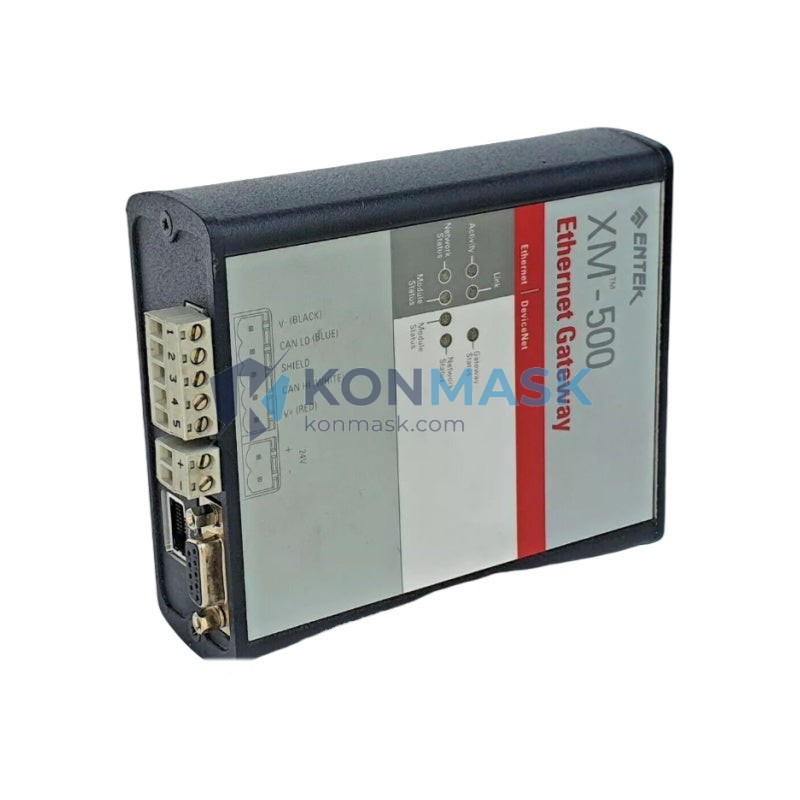

ENTEK 1440-GWEN2DN – Dual-Port Ethernet Gateway Module | XM 500 Series Platform
Engineering Background: The ENTEK XM 500 Series is a modular, rack-based continuous machinery protection and monitoring platform developed by ENTEK (now part of Rockwell Automation). Designed for mission-critical rotating equipment in oil & gas, power generation, petrochemical, and heavy manufacturing environments, the XM 500 system delivers real-time vibration, position, and process variable monitoring with deterministic response times.
Product Positioning: The 1440-GWEN2DN is the dual-port Ethernet gateway module for the XM 500 rack. It bridges the XM 500 backplane to plant-level Ethernet networks, enabling seamless integration with DCS, SCADA, historian, and asset management systems via standard industrial Ethernet protocols. This module is the communication backbone for any XM 500 installation requiring network connectivity.
Complete Technical Specifications
- Part Number: 1440-GWEN2DN
- Series: ENTEK XM 500
- Module Type: Dual-Port Ethernet Gateway
- Network Ports: 2 × RJ-45 10/100 Mbps Ethernet (auto-negotiation)
- Supported Protocols: EtherNet/IP, Modbus TCP/IP, OPC-DA (via gateway software)
- Backplane Interface: XM 500 proprietary backplane bus
- Power Supply: Supplied via XM 500 backplane (no external power required)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: -40 °C to +85 °C
- Relative Humidity: 5% to 95% non-condensing
- Certifications: CE, UL, cUL
- Form Factor: Single-slot XM 500 rack module
- Weight: Approx. 500 g
- Country of Origin: United States
Proven Application Environments
- Continuous machinery protection systems for turbines, compressors, and pumps
- Integration of XM 500 vibration data into Rockwell PlantPAx DCS or third-party SCADA
- Real-time data streaming to OSIsoft PI historian or equivalent asset management platforms
- Offshore and onshore oil & gas platforms requiring SIL-rated monitoring loops
- Power generation facilities (gas turbines, steam turbines, hydro generators)
- Petrochemical and refinery rotating equipment protection
Engineering Advantages
- Dual-port redundancy: Two independent Ethernet ports support Device Level Ring (DLR) or linear topologies for network fault tolerance
- Protocol flexibility: Native EtherNet/IP support enables direct integration with Allen-Bradley PLCs and ControlLogix systems without additional gateways
- Deterministic data delivery: Backplane-level synchronization ensures time-stamped, low-latency data transfer to the network layer
- Hot-swap capable: Module can be replaced under power in a live XM 500 rack (verify with site safety procedures)
- Compact form factor: Single-slot design maximizes rack density in space-constrained control rooms
- Firmware upgradeable: Field-upgradeable firmware via Ethernet port using ENTEK XM Configuration Utility
System Architecture & Signal Flow
The 1440-GWEN2DN occupies a dedicated gateway slot in the XM 500 rack. Measurement modules (accelerometers, proximity probes, tachometers) feed conditioned signals through the backplane to the gateway. The 1440-GWEN2DN aggregates all channel data, applies engineering unit scaling, and publishes structured data objects to the plant Ethernet network via EtherNet/IP implicit (I/O) and explicit (MSG) connections. Upstream systems (DCS, SCADA, historian) subscribe to these data objects using standard CIP or Modbus TCP transactions. The dual-port architecture supports both a primary process network and a secondary maintenance/configuration network simultaneously.
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified OEM surplus channels
- Each module undergoes incoming inspection: visual, label verification, and functional power-on test
- Firmware version documented and provided with shipment
- Original ENTEK/Rockwell Automation packaging preserved where available
- Certificate of conformance available upon request for regulated industries
- Traceability records maintained for 5 years per ISO 9001 practice
Procurement Process
- Step 1: Confirm your XM 500 rack slot availability and firmware compatibility with your existing gateway configuration
- Step 2: Submit your purchase order or inquiry to support@konmask.com with your required delivery timeline
- Step 3: Receive proforma invoice with lead time confirmation (typically 3–7 business days for in-stock units)
- Step 4: Payment via T/T, PayPal, or agreed trade terms; shipment via DHL/FedEx with full tracking
- Step 5: Receive module with test report, firmware version sheet, and packing list
Technical FAQ
Q: Is the 1440-GWEN2DN compatible with all XM 500 rack sizes?
A: Yes. It is compatible with all standard XM 500 rack configurations (4-slot, 8-slot, 12-slot) as long as a gateway slot is available.
Q: Can this module communicate with non-Rockwell DCS systems?
A: Yes. Via Modbus TCP/IP, the 1440-GWEN2DN can interface with any DCS or SCADA platform that supports standard Modbus TCP client functionality.
Q: What software is required for configuration?
A: ENTEK XM Configuration Utility (XM Config) is required for initial setup, channel mapping, and firmware updates. Contact us if you need assistance sourcing the software.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all modules. Extended warranty options are available upon request.
Q: Can you provide documentation or manuals?
A: Yes. We can provide the ENTEK XM 500 system user manual and 1440-GWEN2DN installation guide upon purchase confirmation.
