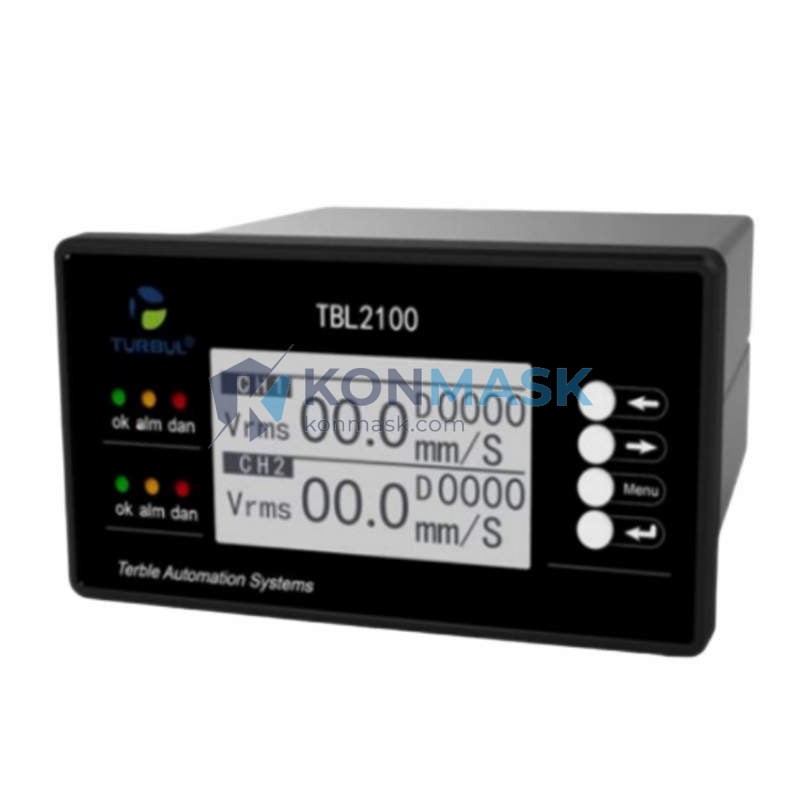

TURBUL TBL2100 – Precision Vibration Monitoring Module | Industrial Condition Monitoring Platform
Engineering Background
Unplanned downtime caused by rotating machinery failure remains one of the highest-cost risks in process industries. The TURBUL TBL2100 addresses this challenge by delivering continuous, high-resolution vibration signal acquisition and analysis at the field level — enabling maintenance engineers to detect bearing wear, imbalance, misalignment, and resonance events before they escalate into catastrophic failures.
Product Positioning
The TBL2100 is engineered for integration into distributed control systems (DCS), standalone condition monitoring networks, and PLC-based machinery protection architectures. It is the preferred choice for procurement engineers specifying vibration monitoring hardware in power generation, petrochemical, pulp & paper, and heavy manufacturing environments where reliability and signal integrity are non-negotiable.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TBL2100 |
| Brand | TURBUL |
| Module Type | Vibration Monitoring Module |
| Measurement Channels | 2 (configurable, expandable per system architecture) |
| Input Signal Type | Accelerometer (IEPE/ICP), Velocity, Eddy-Current Proximity |
| Frequency Range | 0.5 Hz – 20 kHz |
| Amplitude Range | 0 – 200 g (acceleration); 0 – 200 mm/s (velocity) |
| A/D Resolution | 24-bit |
| Sampling Rate | Up to 51.2 kSa/s per channel |
| Communication Interface | MODBUS RTU / MODBUS TCP, 4–20 mA analog output |
| Power Supply | 24 VDC (±10%) |
| Power Consumption | ≤ 8 W |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% RH (non-condensing) |
| Protection Rating | IP20 (DIN rail mount); IP65 field enclosure optional |
| Housing Material | Aluminum alloy, DIN EN 50022 rail compatible |
| Dimensions (W×H×D) | 35 mm × 120 mm × 115 mm |
| Weight | ~500 g |
| Certifications | CE, RoHS |
| SKU | TBL2100 |
Proven Application Environments
- Power Generation: Turbine bearing monitoring, generator vibration surveillance, cooling tower fan condition assessment
- Petrochemical & Refining: Pump and compressor health monitoring, pipeline vibration analysis, rotating equipment protection
- Pulp & Paper: Roll bearing diagnostics, dryer section vibration trending, fan and blower monitoring
- Heavy Manufacturing: CNC spindle health, press and stamping machine vibration, conveyor drive monitoring
- Water & Wastewater: Pump station condition monitoring, blower vibration surveillance
- Mining & Minerals: Crusher and mill vibration monitoring, conveyor belt drive health
Engineering Advantages
- 24-bit High-Resolution ADC: Captures subtle vibration signatures that 16-bit systems miss — critical for early-stage fault detection
- Multi-Sensor Input Compatibility: Accepts IEPE accelerometers, velocity transducers, and eddy-current probes without external signal conditioning
- Wide Frequency Bandwidth (0.5 Hz – 20 kHz): Covers low-speed machinery (≥30 RPM) through high-speed spindles in a single module
- Dual Communication Protocol: MODBUS RTU for legacy DCS integration; MODBUS TCP for Ethernet-based SCADA and IIoT architectures
- DIN Rail Form Factor: Minimizes panel space; hot-swap capable in supported system configurations
- Extended Temperature Range: Operates reliably from -20°C to +70°C — suitable for outdoor substations and unheated plant areas
- CE & RoHS Certified: Meets European EMC and hazardous substance directives for global project compliance
System Architecture & Signal Flow
The TBL2100 accepts raw transducer signals at its input terminals, conditions and digitizes them via its 24-bit ADC stage, and outputs processed vibration parameters (RMS velocity, peak acceleration, crest factor, frequency spectrum data) over MODBUS to the host controller or SCADA system. The 4–20 mA analog output provides a hardwired alarm channel independent of the digital bus — ensuring fail-safe alarming even during network interruptions.
Typical system topology: Field Transducer → TBL2100 Input → 24-bit ADC → DSP Processing → MODBUS RTU/TCP to DCS/SCADA + 4–20 mA to Safety PLC
Sourcing & Quality Verification
- All TURBUL TBL2100 units supplied by Konmask.com are sourced through verified authorized distribution channels
- Each unit ships with original manufacturer documentation and traceable lot/serial number
- Pre-shipment functional verification available upon request for critical project orders
- Certificate of Conformance (CoC) provided with every order
- Counterfeit risk mitigation: Konmask maintains direct supplier relationships and rejects grey-market inventory
Procurement Process
- Step 1 – Inquiry: Submit your BOM or part number via the product page or email support@konmask.com
- Step 2 – Quote: Receive a formal quotation with lead time, quantity pricing, and shipping options within 1 business day
- Step 3 – Order Confirmation: Purchase order accepted via online checkout, bank transfer (T/T), or corporate account
- Step 4 – Shipment: Standard lead time 3–7 business days; expedited options available for urgent project requirements
- Step 5 – After-Sales Support: Technical support available via email and phone; warranty claims processed within 5 business days
Technical FAQ
Q: Is the TBL2100 compatible with third-party IEPE accelerometers?
A: Yes. The module provides a built-in constant current source (typically 4 mA) for IEPE/ICP sensor excitation, compatible with standard 100 mV/g sensitivity accelerometers from major manufacturers.
Q: Can the TBL2100 operate as a standalone alarm unit without a DCS?
A: Yes. The 4–20 mA output can drive a standalone alarm relay or indicator independent of the MODBUS network, providing basic threshold alarming without host system integration.
Q: What is the maximum cable length for sensor connections?
A: For IEPE sensors, cable runs up to 100 m are supported with shielded coaxial cable. For MODBUS RTU (RS-485), bus lengths up to 1200 m are achievable at 9600 baud.
Q: Does the module support FFT spectrum analysis output?
A: Frequency spectrum data availability depends on firmware version and host system configuration. Contact Konmask technical support to confirm FFT output capability for your specific application.
Q: What warranty is provided?
A: Konmask.com provides a 12-month warranty against manufacturing defects from the date of shipment, with advance replacement available for qualified accounts.
