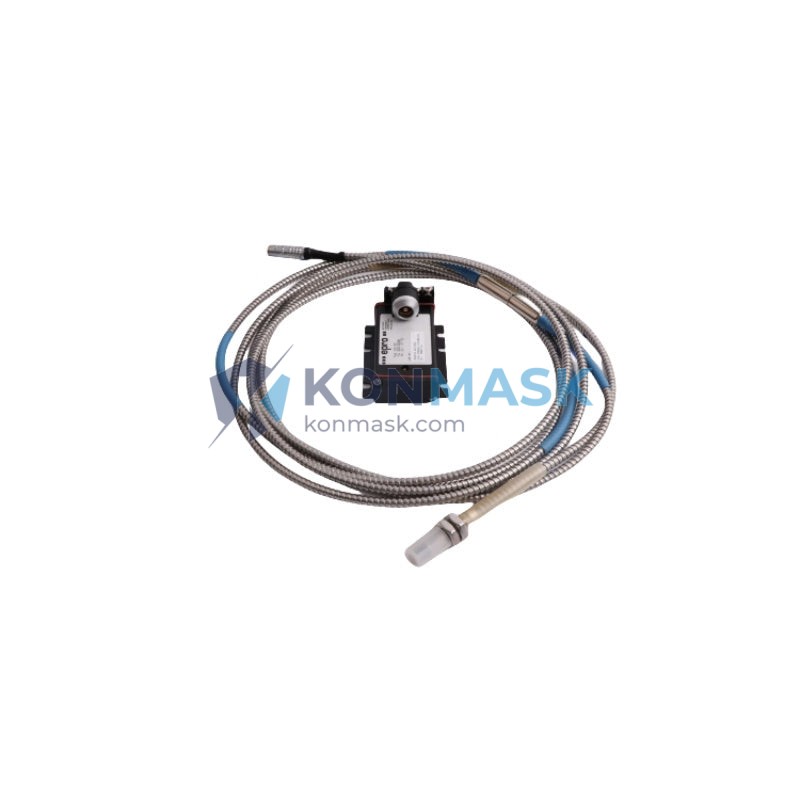

Rotating Machinery Vibration Monitoring Solution — EPRO CON021 PR6423/011-000 | Eddy Current Sensor
Where This Product Is Used
The EPRO CON021 PR6423/011-000 Eddy Current Sensor is a non-contact displacement and vibration transducer engineered for continuous condition monitoring of rotating and reciprocating machinery. Typical deployment environments include:
- Steam & Gas Turbines — shaft radial vibration, axial position, and differential expansion measurement
- Centrifugal Compressors — rotor orbit analysis and bearing clearance monitoring in oil & gas trains
- Pumps & Blowers — early-warning vibration trending in process-critical rotating equipment
- Gearboxes & Fans — shaft eccentricity and runout detection in power generation and petrochemical plants
- Marine Propulsion Systems — continuous shaft monitoring in confined, high-vibration environments
- Test Rigs & OEM Machinery — precision displacement feedback in R&D and acceptance testing
This sensor is a direct component of the EPRO PR6423 series, fully compatible with Emerson’s machinery protection and condition monitoring systems including the CSI 6500 and Bently Nevada 3500 platform (with appropriate signal conditioning).
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | EPRO / Emerson |
| Part Number | CON021 PR6423/011-000 |
| Sensor Type | Eddy Current (Non-Contact Displacement) |
| Series | PR6423 |
| Probe Tip Diameter | 11 mm (nominal) |
| Measurement Range | 0 – 2 mm (linear range, typical) |
| Sensitivity | 8 mV/µm (nominal, with matched driver) |
| Operating Temperature | –40 °C to +120 °C (probe); –40 °C to +85 °C (cable) |
| Target Material | Steel / Stainless Steel (AISI 4140 reference) |
| Cable Length | 1.0 m integral cable (extension cable required for full system) |
| Connector | MIL-C-5015 compatible / coaxial BNC (driver-dependent) |
| Protection Rating | IP67 (probe body) |
| Weight | Approx. 600 g (probe + cable assembly) |
| Compliance | API 670, CE, ATEX (zone classification per driver module) |
Note: Full system performance requires pairing with a compatible EPRO CON021 driver/signal conditioner. Contact Konmask for matched system configurations.
Why Engineers Specify This Model
- Non-contact measurement — zero mechanical wear, ideal for continuous 24/7 monitoring without maintenance downtime
- High linearity & repeatability — consistent 8 mV/µm sensitivity across the full operating temperature range
- API 670 compliance — meets the industry standard for machinery protection systems in oil, gas, and petrochemical facilities
- Robust IP67 sealing — withstands oil mist, coolant splash, and high-humidity environments common in turbomachinery enclosures
- Plug-and-play with EPRO ecosystem — direct compatibility with CON021 driver modules reduces integration engineering time
- Wide temperature tolerance — qualified for hot-section turbine bearing pedestals and cryogenic compressor applications
Complete System Bill of Materials
A complete eddy current measurement chain using this probe typically includes:
- Probe: EPRO PR6423/011-000 (this item)
- Extension Cable: EPRO PR6422/xxx (length-matched, 5 m / 9 m options)
- Driver / Signal Conditioner: EPRO CON021 (19 mm rack-mount, –24 VDC supply)
- Monitoring Rack: Emerson CSI 6500 or compatible Bently Nevada 3500 I/O module
- Mounting Hardware: PR9376 probe holder or custom machined bracket (customer-supplied)
Konmask can supply the complete system or individual components. Request a BOM quotation via support@konmask.com.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition)
- IEC 60079 — Equipment for explosive atmospheres (ATEX, per driver module rating)
- ISO 10816 / ISO 20816 — Mechanical vibration evaluation of machines
- CE Marking — EU Machinery Directive compliance
- RoHS — Restriction of Hazardous Substances compliant
Quality Assurance & Sourcing
Konmask sources the EPRO CON021 PR6423/011-000 through verified industrial distribution channels. Every unit dispatched from our warehouse undergoes:
- Visual and dimensional inspection against OEM datasheet tolerances
- Packaging integrity check (original OEM carton or equivalent ESD-safe packaging)
- Serial number and date-code logging for full traceability
- Functional continuity check prior to shipment
We maintain documentation records for all sourced units. Certificates of conformance (CoC) and test reports are available upon request.
How to Source This Part
- Add to Cart — Place your order directly on this page for in-stock units.
- Request a Quote — For bulk orders (>3 units), OEM replacement programs, or matched system configurations, email support@konmask.com with your required quantity and delivery timeline.
- Urgent / AOG Orders — Call +0086 19859288691 for same-day quotation and expedited dispatch coordination.
- Lead Time — In-stock units ship within 1–3 business days. Ex-stock or special configurations: 5–15 business days depending on origin.
- Export & Cross-Border — Konmask handles export documentation, HS code classification (HS 9031.80), and commercial invoicing for international buyers.
Application-Specific FAQ
Q: Is the PR6423/011-000 compatible with Bently Nevada 3500 systems?
A: The PR6423 series uses the same eddy current principle and signal range as Bently Nevada probes, but is an EPRO-branded product. Compatibility with 3500 I/O modules depends on the driver output range. Contact us for a compatibility assessment before ordering.
Q: What target material is required for accurate measurement?
A: The probe is calibrated for AISI 4140 steel. For stainless steel or other alloy shafts, a material correction factor must be applied. EPRO provides calibration curves for common shaft materials.
Q: Can this probe be used in ATEX Zone 1 hazardous areas?
A: The probe itself is passive; ATEX certification is determined by the paired CON021 driver module. Confirm the driver’s ATEX category with your safety engineer before installation.
Q: What is the difference between PR6423/011-000 and PR6423/010-000?
A: The suffix denotes cable length and connector configuration. The /011-000 variant features a 1.0 m integral cable. Always verify the full part number against your system drawing before ordering.
Q: Do you offer calibration or repair services?
A: Konmask supplies new and surplus units. For calibration or repair, we recommend engaging an Emerson-authorized service center. We can provide referrals upon request.
