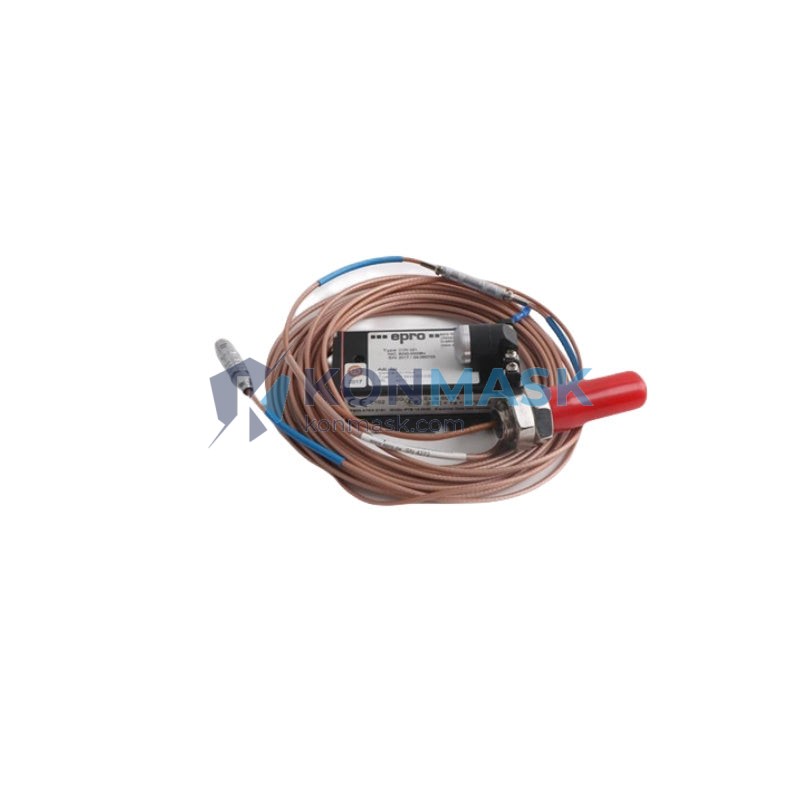

EPRO PR6426/000-030 CON021/916-240 Eddy Current Sensor | Replacement, Equivalent & Selection Guide
The EPRO PR6426/000-030 paired with the CON021/916-240 signal conditioner forms a complete eddy current proximity sensor system widely used in turbomachinery and rotating equipment monitoring. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make informed decisions.
Technical Specifications
- Manufacturer: EPRO (Baker Hughes / Bently Nevada compatible series)
- Probe Model: PR6426/000-030
- Signal Conditioner: CON021/916-240
- Sensor Type: Eddy Current (Non-contact Proximity)
- Probe Cable Length: 1000 mm (standard)
- Measuring Range: 0–2 mm (typical)
- Output Signal: –24 VDC (standard Bently Nevada compatible)
- Supply Voltage: –24 VDC
- Frequency Response: DC to 10 kHz
- Operating Temperature: –35°C to +120°C (probe); –35°C to +85°C (conditioner)
- Ingress Protection: IP67 (probe)
- Thread Size: M14 × 1.5
- Weight: Approx. 500 g (system)
- Compliance: CE, RoHS
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or drop-in replacements for the EPRO PR6426/000-030 CON021/916-240 system. Always verify electrical and mechanical compatibility before substitution.
- Bently Nevada 330101-00-06-10-02-00 – 3300 XL 8mm proximity transducer system (direct functional equivalent)
- EPRO PR6423/000-030 + CON011 – Smaller diameter variant, same output standard
- EPRO PR6424/000-030 + CON021 – 8 mm probe alternative with identical conditioner
- Metrix ST5484E – Compatible eddy current system for general industrial use
- Wilcoxon Research 786A – Alternative for lower-frequency applications
Note: Replacement selection must account for target material, gap range, and system voltage. Contact Konmask for verified cross-reference support.
Why Choose the Original EPRO PR6426/000-030 CON021/916-240
- Factory-calibrated probe-conditioner pair ensures measurement accuracy within ±0.5%
- Fully compatible with EPRO MMS 6000, MMS 6350, and Bently Nevada 3500 series monitoring systems
- Proven reliability in high-temperature, high-vibration turbomachinery environments
- Long-term availability of spare parts and technical documentation
- Traceable calibration certificates available upon request
Typical Applications
- Shaft radial vibration measurement on steam and gas turbines
- Axial position (thrust) monitoring on compressors and pumps
- Differential expansion measurement in power generation equipment
- Eccentricity and rotor runout monitoring
- OEM integration into condition monitoring panels and DCS systems
System Compatibility
The PR6426/000-030 + CON021/916-240 system is designed to interface directly with:
- EPRO MMS 6000 / MMS 6350 – Native EPRO monitoring rack
- Bently Nevada 3500 Series – Via –24 VDC standard output
- Bently Nevada 1900/65A – General-purpose vibration monitor
- Emerson AMS 6500 – With appropriate input card configuration
- Custom PLC/DCS inputs – 4–20 mA or voltage output via signal converter
Selection Guide
Use the following criteria to confirm the PR6426/000-030 CON021/916-240 is the right choice for your application:
- Target material: Steel or iron shaft (non-ferrous targets require recalibration)
- Gap range required: 0.25 mm to 2.25 mm (optimal linear range)
- Probe diameter: 14 mm (M14 thread) — suitable for standard bearing housings
- Cable extension: Standard 1000 mm; extension cables available up to 9 m total
- Conditioner supply: –24 VDC required; confirm power supply availability
- Monitoring system: Must accept –24 VDC Bently Nevada-standard signal
If your application requires a different gap range, probe diameter, or target material, refer to the compatible models listed above or contact our technical team.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Each system inspected and function-tested prior to shipment
- Calibration certificates and original documentation available on request
- Genuine EPRO parts with traceable batch records
- Secure export packaging with ESD protection for sensitive electronics
How to Order
- Confirm your monitoring system model and input card type
- Verify probe thread size and cable length requirement
- Add EPRO PR6426/000-030 CON021/916-240 to cart or contact us for a formal quotation
- Provide your delivery address and preferred shipping method
- Receive order confirmation with lead time and tracking information
For bulk orders, OEM projects, or urgent requirements, email support@konmask.com or call +0086 19859288691.
Replacement & Compatibility FAQ
Q: Can I use the PR6426/000-030 with a Bently Nevada 3500 rack?
A: Yes. The CON021/916-240 conditioner outputs a –24 VDC standard signal fully compatible with Bently Nevada 3500 series input cards.
Q: What is the difference between PR6426 and PR6423?
A: The PR6426 uses a 14 mm probe body; the PR6423 uses an 8 mm body. Both share the same output standard but differ in gap range and installation clearance requirements.
Q: Can I replace just the probe without replacing the conditioner?
A: Probe and conditioner are factory-matched. Replacing only one component may affect calibration accuracy. Always replace as a matched pair unless recalibration is performed.
Q: Do you provide calibration certificates?
A: Yes. Calibration certificates are available upon request for all units shipped from Konmask.com.
Q: What is the lead time for this model?
A: Standard stock items ship within 3–5 business days. Contact us for current availability.
