Vibration Monitoring Solution – EPRO PR6424/013-130 CON021 | PR6424 Series

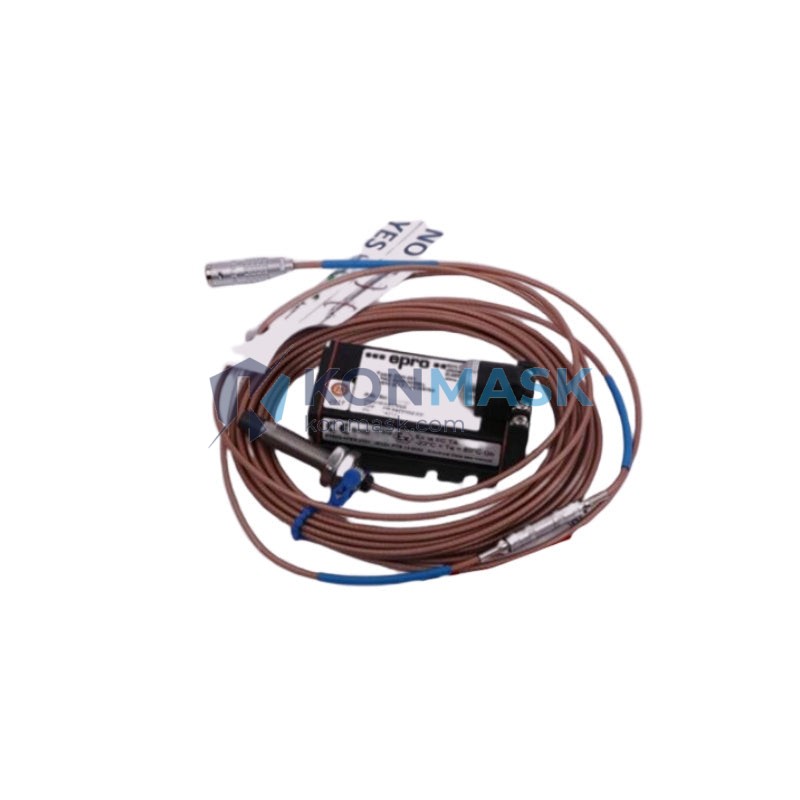

The EPRO PR6424/013-130 CON021 is a precision eddy current sensor system engineered for continuous, non-contact measurement of shaft radial vibration, axial displacement, and rotor position in rotating machinery. Combining the PR6424/013-130 probe with the CON021 extension cable, this assembly delivers reliable signal transmission in demanding industrial environments where uptime is non-negotiable.
Where This Product Is Used
Engineers and reliability teams specify the PR6424/013-130 CON021 across a wide range of critical rotating equipment applications:
- Steam & Gas Turbines — Continuous shaft radial vibration monitoring per API 670 requirements
- Centrifugal Compressors — Rotor dynamic displacement measurement in petrochemical and refinery trains
- Large Electric Motors & Generators — Bearing journal orbit analysis and early fault detection
- Pumps & Fans — Axial thrust position monitoring to prevent seal and bearing damage
- Gearboxes — Gear mesh frequency analysis and shaft runout measurement
- Marine Propulsion Systems — Shaft alignment verification and vibration trending
- Power Generation Plants — Integration with Bently Nevada 3500 / EPRO MMS6000 protection systems
Technical Specifications
| Part Number | PR6424/013-130 CON021 |
| Manufacturer | EPRO (Emerson) |
| Series | PR6424 |
| Sensor Type | Eddy Current (Non-contact Proximity) |
| Probe Model | PR6424/013-130 |
| Extension Cable | CON021 |
| Tip Diameter | 8 mm (PR6424 standard) |
| Measuring Range | 0 – 2 mm (linear range) |
| Sensitivity | 8 mV/µm (nominal) |
| Supply Voltage | -24 VDC (via driver/conditioner) |
| Output Signal | -2 VDC to -18 VDC (proportional to gap) |
| Operating Temperature | -40°C to +120°C (probe tip) |
| Target Material | Steel / Stainless Steel (AISI 4140 reference) |
| Cable Length (Extension) | CON021 standard length |
| Ingress Protection | IP67 |
| Weight | Approx. 300 g (probe + cable assembly) |
| Compatible Drivers | EPRO PR9268, CON041, CON021 series |
Why Engineers Specify This Model
- Non-contact measurement eliminates wear and enables continuous 24/7 monitoring without mechanical interference
- High linearity across the full 2 mm range ensures accurate displacement readings critical for API 670 alarm/trip setpoints
- Robust construction with stainless steel housing and hermetically sealed tip survives high-temperature, high-pressure environments
- Direct compatibility with EPRO MMS6000, Bently Nevada 3500, and other industry-standard protection rack systems
- Proven field reliability in continuous operation exceeding 100,000 hours in power generation and petrochemical facilities
- CON021 extension cable maintains signal integrity over distance, reducing installation complexity in deep bearing housings
Complete System Bill of Materials
For a fully functional eddy current measurement channel, the following components are typically required:
- ✅ PR6424/013-130 — Eddy current probe (this listing includes)
- ✅ CON021 — Extension cable (this listing includes)
- ⬜ PR9268/xxx or CON041/xxx — Signal driver/conditioner (sold separately)
- ⬜ EPRO MMS6000 or compatible monitor rack — Vibration monitoring system (sold separately)
- ⬜ Mounting hardware — Probe holder, lock nut, and bracket per OEM specification
Contact support@konmask.com to source the complete channel assembly.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition) compliant measurement chain
- ISO 10816 / ISO 20816 — Mechanical vibration evaluation of machines
- IEC 60068 — Environmental testing (temperature, humidity, vibration)
- CE Marking — Electromagnetic compatibility per applicable EU directives
- RoHS Compliant — Restriction of hazardous substances
Quality Assurance & Sourcing
Every EPRO PR6424/013-130 CON021 unit supplied by Konmask.com undergoes the following verification process:
- 🔍 Visual & dimensional inspection against OEM datasheet tolerances
- 📋 Traceability documentation — batch records and country of origin available on request
- 📦 Original or equivalent OEM packaging with protective foam insert
- 🏭 Sourced from authorized distributors and verified surplus channels with full chain-of-custody
- ⚡ Functional verification available for critical applications — contact us prior to order
How to Source This Part
Konmask.com specializes in industrial automation components with fast global fulfillment:
- 📧 Email RFQ: support@konmask.com
- 📞 Phone/WhatsApp: +0086 19859288691
- 🚚 Lead Time: In-stock units ship within 1–3 business days; ex-stock lead time quoted on request
- 🌍 Shipping: DHL / FedEx / UPS express worldwide; sea freight available for bulk orders
- 💳 Payment: T/T bank transfer, PayPal, credit card accepted
- 📄 Documentation: Commercial invoice, packing list, and certificate of conformance provided
Application-Specific FAQ
Q: Is the PR6424/013-130 CON021 a direct replacement for Bently Nevada 330101 series probes?
A: The PR6424 series uses the same 8 mm tip diameter and -24 VDC supply standard, making it functionally compatible with most Bently Nevada 3300/3500 monitor inputs. Always verify gap voltage calibration curves before installation.
Q: What is the maximum cable run from probe tip to driver with CON021?
A: The CON021 extension cable is designed to work within the EPRO-specified total cable system length. Consult the PR9268 driver datasheet for maximum combined probe + extension + driver cable length (typically 5 m or 9 m system configurations).
Q: Can this sensor measure axial position as well as radial vibration?
A: Yes. The PR6424/013-130 CON021 is suitable for both radial vibration and axial (thrust) position measurement when installed per OEM shaft orientation guidelines and paired with an appropriate monitor channel configured for position measurement.
Q: Do you supply calibration certificates?
A: Calibration documentation from the original manufacturer is available for new units. For surplus/refurbished stock, third-party calibration can be arranged — contact us for details.
Q: What target materials are compatible?
A: The sensor is calibrated for AISI 4140 steel. Performance on other ferromagnetic or non-ferromagnetic materials will vary; recalibration is recommended for non-standard target materials.
