FANUC A03B-0815-C003 – I/O Expansion Module | Series 15/16/18/21 CNC Platform
Engineering Background

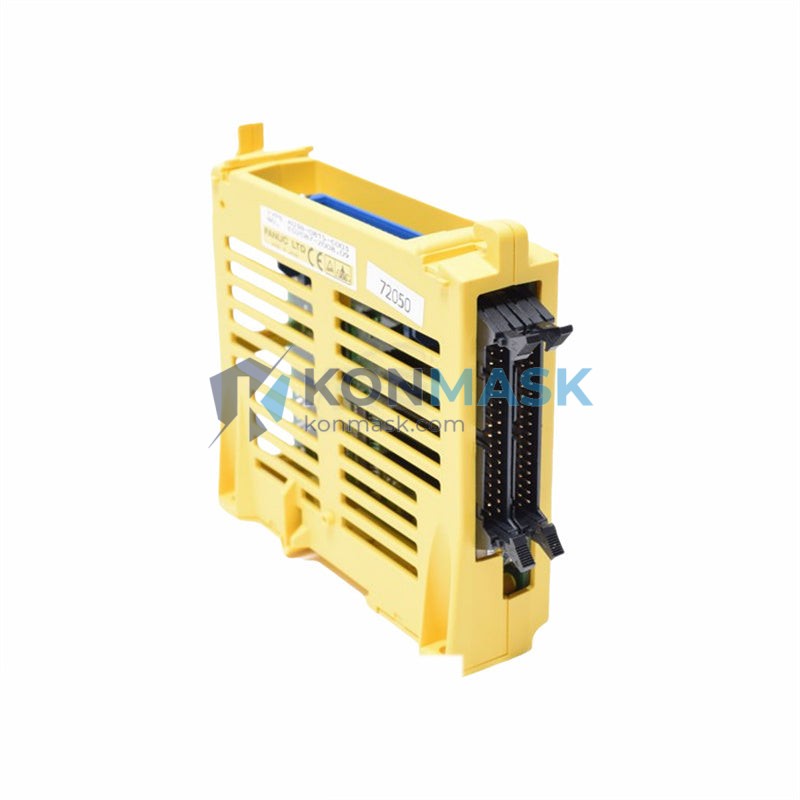

The FANUC A03B-0815-C003 is a dedicated I/O Expansion Module engineered for FANUC’s Series 15, 16, 18, and 21 CNC control platforms. Designed to extend the digital I/O capacity of machine tool controllers, this module enables seamless integration of additional sensors, actuators, and peripheral devices without architectural redesign. It is a critical component in high-throughput machining centers, turning centers, and multi-axis CNC systems where I/O density directly impacts cycle efficiency and system reliability.
Product Positioning
Sourced from verified industrial channels and subjected to functional verification, the A03B-0815-C003 is positioned for procurement engineers and maintenance teams requiring a drop-in replacement or capacity expansion solution. Konmask.com supplies this module with full traceability documentation and pre-shipment inspection records, supporting both OEM retrofit projects and emergency maintenance scenarios.
Complete Technical Specifications
- Part Number: A03B-0815-C003
- Manufacturer: FANUC Corporation
- Module Type: I/O Expansion Module
- Compatible Platforms: FANUC Series 15 / 16 / 18 / 21 CNC
- Country of Origin: Japan
- HS Code: 853710
- Weight: 1,050 g (approx.)
- Shipping: Physical unit, requires shipping
- Condition: Refurbished / Surplus – Functionally Verified
- Warranty: 90-day functional warranty (Konmask standard)
Proven Application Environments
- CNC machining centers (vertical & horizontal) with FANUC Series 15/16/18/21 controllers
- Multi-axis turning centers requiring expanded discrete I/O channels
- Automated production lines integrating FANUC CNC with PLC-driven peripherals
- Retrofit and modernization projects replacing end-of-life I/O boards
- Aerospace, automotive, and precision mold manufacturing facilities
- OEM machine builders requiring validated spare inventory
Engineering Advantages
- Plug-and-Play Compatibility: Direct replacement for existing A03B-0815-C003 installations — no firmware modification required
- Expanded I/O Density: Increases available discrete I/O channels, reducing the need for additional control hardware
- FANUC Native Architecture: Communicates natively over FANUC I/O Link bus, ensuring deterministic signal timing
- Industrial-Grade Reliability: Designed for 24/7 continuous operation in EMI-rich machine tool environments
- Reduced Downtime Risk: Stocking this module as a critical spare eliminates multi-week lead times on new OEM orders
System Architecture & Signal Flow
The A03B-0815-C003 connects to the FANUC CNC main controller via the I/O Link serial bus (JD1A/JD1B connectors). The module receives group address assignments from the CNC parameter table, allowing the controller to map physical I/O points to PMC (Programmable Machine Controller) addresses. Signal flow is unidirectional per channel (input or output), with optocoupler isolation protecting the CNC backplane from field-side voltage transients. Typical configuration involves assigning the module to a specific I/O group within the PMC I/O address map (X/Y addresses), verified via FANUC LADDER III or equivalent diagnostic software.
Sourcing & Quality Verification
- Source Traceability: All units sourced from decommissioned OEM machines or authorized surplus channels — no counterfeit risk
- Pre-Shipment Inspection: Each unit undergoes visual inspection (PCB, connectors, labeling) and functional power-on verification
- Serialization: Original FANUC serial number and date code retained and documented
- Packaging: Anti-static bag + foam-lined carton; humidity indicator card included for international shipments
- Certification: Inspection report available upon request; CE/RoHS compliance per original FANUC specification
Procurement Process
- Confirm Compatibility: Verify your CNC controller series (15/16/18/21) and current I/O group configuration via FANUC parameter screen
- Request Quote: Contact support@konmask.com with your machine model, controller series, and required quantity
- Order Confirmation: Receive proforma invoice with unit serial number(s) and inspection report reference
- Payment & Dispatch: Payment via T/T or online checkout; dispatch within 1–3 business days via DHL/FedEx with tracking
- Installation Support: Konmask technical team available for PMC address mapping guidance post-delivery
Technical FAQ
Q: Is the A03B-0815-C003 compatible with FANUC Series 0i controllers?
A: No. This module is designed for the Series 15/16/18/21 I/O Link architecture. Series 0i uses a different I/O Link II protocol and requires A03B-0819-series modules.
Q: Can this module be used with a FANUC PMC-M or PMC-L ladder program?
A: Yes. The module is transparent to the PMC ladder type. Address mapping is configured via CNC parameters regardless of PMC model.
Q: What is the maximum number of A03B-0815-C003 modules per CNC system?
A: The maximum depends on the I/O Link group capacity of your specific CNC model. Consult your FANUC maintenance manual (B-series) for the I/O Link group limit.
Q: Do you provide a test report with each unit?
A: Yes. A pre-shipment inspection report is available upon request at no additional charge.
Q: What is the lead time if the unit is out of stock?
A: Typical sourcing lead time is 5–15 business days. Contact us for real-time availability.
