Robot Programming & Motion Control Solution – FANUC A05B-2301-C300 | C-Series Teach Pendant
Where This Product Is Used

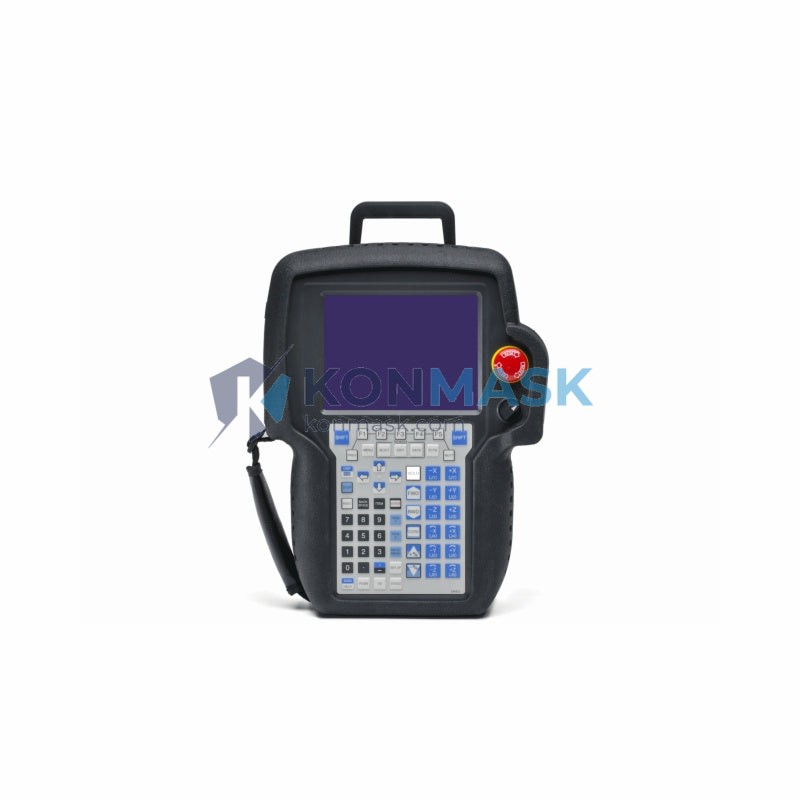

The FANUC A05B-2301-C300 Teach Pendant is the primary human-machine interface (HMI) for FANUC C-Series robot controllers. It is deployed across a wide range of industrial automation environments where precise robot programming, real-time motion jogging, and on-site diagnostics are required:
- Automotive Body Welding Lines — Spot and arc welding cells using FANUC C100/C102/C202 controllers for chassis assembly and door panel fabrication.
- Automotive Paint & Sealing Booths — Teach-point programming for spray robots requiring fine-axis jogging and program verification.
- Material Handling & Palletizing — Pick-and-place and layer-palletizing applications where operators need to jog axes and modify approach points on the fly.
- Machine Tending Cells — CNC machine loading/unloading with frequent program edits and position fine-tuning via the pendant.
- Assembly & Dispensing Lines — Adhesive dispensing and precision assembly where path accuracy is verified through teach-point replay.
- Maintenance & Retrofit Projects — Replacement pendant for aging FANUC 2004-T364 / A05B-2490-0171 controller systems still in production service.
Technical Specifications
| Attribute | Detail |
|---|---|
| Part Number | A05B-2301-C300 |
| Compatible Controllers | FANUC C100, C102, C202, 2004-T364 (A05B-2490-0171) |
| Series | FANUC C-Series Robot Controller |
| Interface Type | Wired Teach Pendant (Dedicated Cable Connection) |
| Display | Monochrome LCD with backlight |
| Deadman Switch | 3-position enabling device (Safety-rated) |
| Emergency Stop | Integrated E-Stop button (IEC 60947-5-5 compliant) |
| Keypad | Full function keys: Jog, Coord, Step, Hold, Reset, Shift |
| Weight | Approx. 800 g |
| Country of Origin | Japan |
| Condition | OEM / Refurbished — Tested & Verified |
Why Engineers Specify This Model
- Exact OEM Compatibility — Plug-and-play replacement for C100/C102/C202 and 2004-T364 controller variants; no firmware patching required.
- Safety-Rated Enabling Device — 3-position deadman switch meets ISO 10218-1 robot safety requirements, critical for CE-marked cells.
- Proven Field Reliability — FANUC C-Series pendants are known for robust membrane keypads and sealed enclosures suited to harsh shop-floor environments.
- Immediate Productivity Restoration — A failed or damaged teach pendant halts an entire robot cell; sourcing a verified A05B-2301-C300 minimizes unplanned downtime.
- Legacy System Support — Keeps aging but productive FANUC C-Series lines operational without a full controller upgrade investment.
Complete System Bill of Materials
For a fully operational FANUC C-Series robot cell, the following components are typically required alongside the A05B-2301-C300:
- FANUC Robot Controller Unit — A05B-2490-0171 (2004-T364 chassis)
- Teach Pendant Cable Assembly — A05B-2301-C300 compatible harness
- Servo Amplifier Module — A06B-6066 series (axis-dependent)
- I/O Unit — A03B-0807-C001 or equivalent
- Backup Battery Pack — A98L-0031-0012 (controller memory retention)
- Robot Mechanical Unit — FANUC M-series or S-series (application-specific)
Contact Konmask.com for bundled sourcing of complete BOM packages.
Compliance & Industry Standards
- ISO 10218-1:2011 — Industrial robots: Safety requirements for robot systems (enabling device compliance)
- IEC 60947-5-5 — Emergency stop devices with mechanical latching function
- EN 60204-1 — Safety of machinery: Electrical equipment of machines
- RoHS Directive 2011/65/EU — Restriction of hazardous substances (OEM units)
- CE Marking — Applicable to OEM units shipped within the original FANUC system configuration
Quality Assurance & Sourcing
At Konmask.com, every FANUC teach pendant undergoes a structured inspection protocol before dispatch:
- ✔ Visual inspection — enclosure, cable connector, keypad membrane, and LCD integrity
- ✔ Functional power-on test — display, key response, E-Stop circuit continuity
- ✔ Deadman switch actuation test — all three positions verified
- ✔ Connector pin-out verification against A05B-2301-C300 wiring specification
- ✔ Serialization and traceability record retained for 24 months
Units are shipped in anti-static protective packaging with foam cushioning to prevent transit damage.
How to Source This Part
- Add to Cart — Click the purchase button above to place an order directly.
- Request a Quote — For bulk orders (>3 units) or BOM packages, email [email protected] for volume pricing.
- Urgent Requirement — Call or WhatsApp +0086 19859288691 for expedited sourcing and same-day shipping assessment.
- Lead Time — In-stock units ship within 1–2 business days. Out-of-stock items: 5–15 business days subject to supplier availability.
- Export & Customs — We handle export documentation (commercial invoice, packing list, HS code 8537.10) for international shipments.
Application-Specific FAQ
Q: Is the A05B-2301-C300 compatible with FANUC R-J2 or R-J3 controllers?
A: No. This pendant is specifically designed for the FANUC C-Series (C100/C102/C202/2004-T364). R-J2 and R-J3 use different connector pinouts and communication protocols. Please contact us to identify the correct pendant for your controller.
Q: Can I use this pendant on a FANUC A05B-2490-0171 controller?
A: Yes. The A05B-2490-0171 is the controller unit for the 2004-T364 chassis, and the A05B-2301-C300 is the designated teach pendant for this system.
Q: Is this a new OEM unit or refurbished?
A: We supply both OEM-new and professionally refurbished units. Please specify your preference at checkout or in your inquiry. All refurbished units pass our full QA protocol described above.
Q: What is the warranty on this teach pendant?
A: Konmask.com provides a 90-day functional warranty on all tested units. Extended warranty options are available for volume orders.
Q: Do you provide installation support?
A: We provide connection guidance and wiring documentation. On-site commissioning support can be arranged through our partner network — contact us for details.
