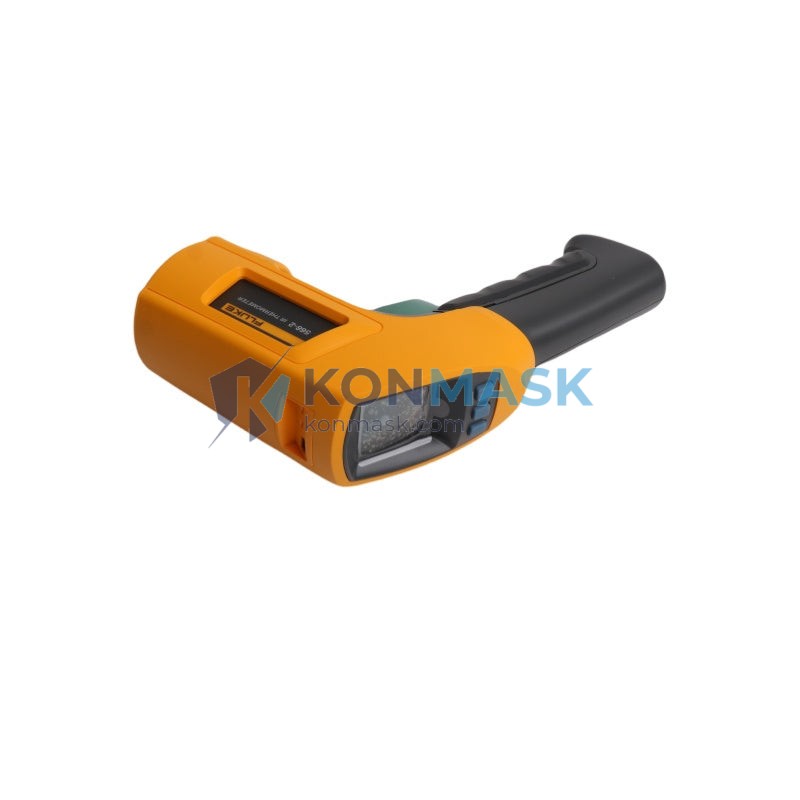

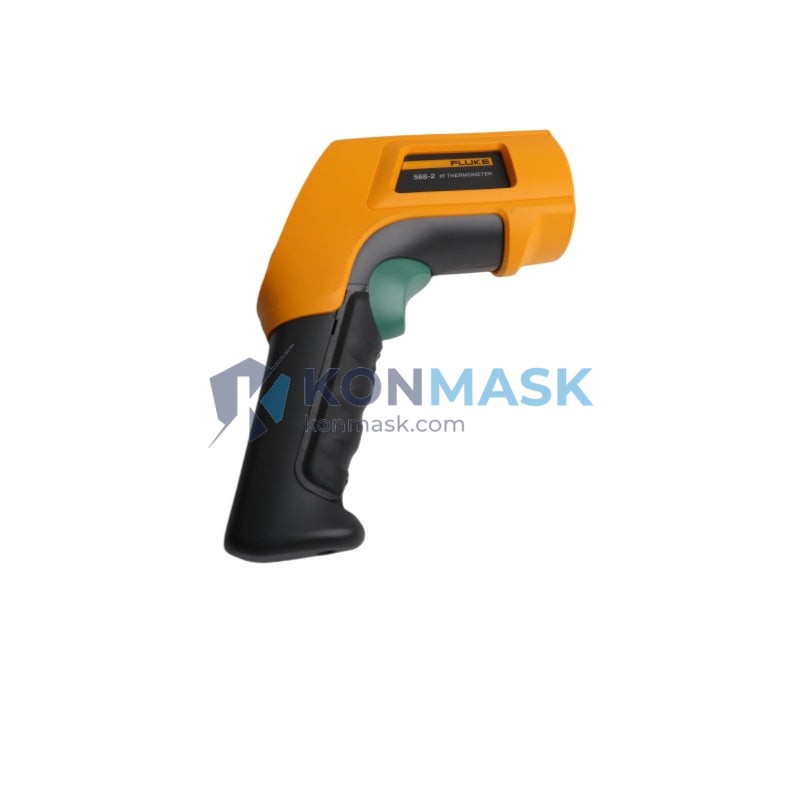

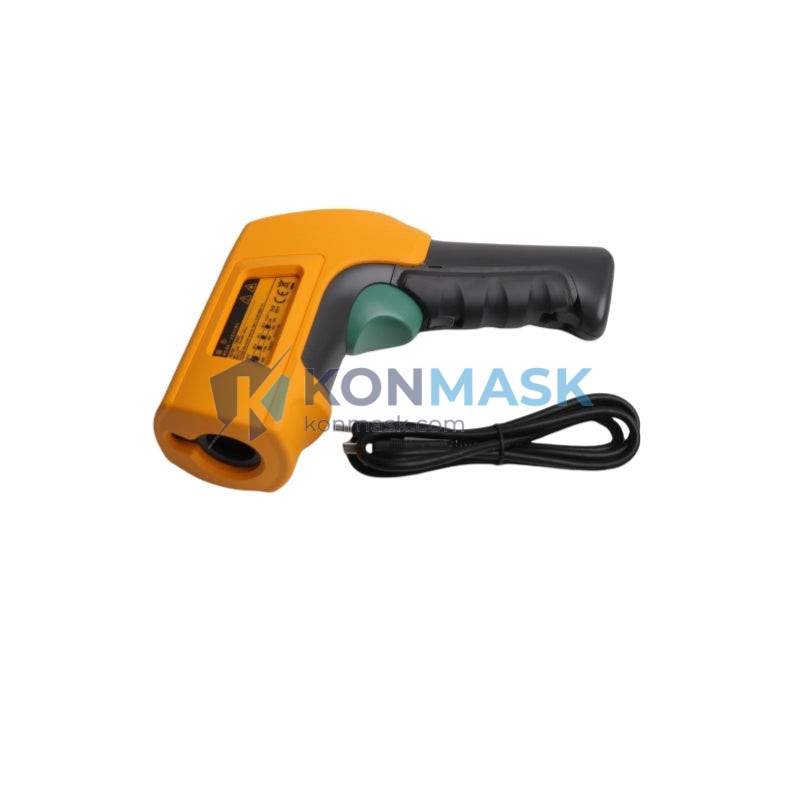

Fluke 568-2 Infrared & Contact Thermometer – Extended-Range Dual-Mode Temperature Measurement | Fluke 56x Series
Imagine a critical motor bearing running hot on the production floor at 2 a.m. — no safe way to touch it, no time to wait for a specialist. Without a reliable infrared and contact thermometer, technicians are forced to guess, delay, or risk injury. Undetected overheating leads to unplanned downtime, damaged equipment, and costly emergency repairs that cascade across the entire production line. The Fluke 568-2 eliminates that risk by putting precise, non-contact and contact temperature measurement in a single, rugged instrument built for the harshest industrial environments.
Within Fluke’s renowned 56x Series of professional infrared thermometers, the 568-2 occupies the top tier — offering the widest temperature range, dual-mode measurement capability, and the measurement accuracy that global maintenance engineers trust. Fluke is the benchmark brand in electronic test and measurement, and the 568-2 is the instrument of choice for heavy industry, power generation, HVAC, and process manufacturing worldwide.
Technical Specifications
- Model / SKU: 568-2
- Brand: Fluke
- Series: Fluke 56x Series
- Temperature Range (IR): -40°C to 800°C (-40°F to 1472°F)
- Temperature Range (Contact): -40°C to 260°C (-40°F to 500°F)
- Accuracy (IR): ±1°C or ±1% (whichever is greater)
- Distance-to-Spot Ratio: 50:1
- Emissivity: Adjustable 0.10 to 1.00
- Response Time: 500 ms
- Display: Backlit LCD with dual display
- Data Logging: Min/Max/Avg/Diff functions
- Laser: Single-dot laser sighting
- Power: 9V battery
- Weight: 965 g (with battery)
- Standards: IEC 61010-1, CAT II 30V
Key Features & Benefits
- Dual-Mode Measurement: Switch seamlessly between non-contact infrared and contact thermocouple measurement — one tool covers all scenarios.
- Extended Temperature Range: -40°C to 800°C IR range handles everything from cold storage audits to furnace monitoring.
- 50:1 Distance-to-Spot Ratio: Measure small targets accurately from a safe distance — ideal for high-voltage or hard-to-reach equipment.
- Adjustable Emissivity: Accurate readings across shiny metals, painted surfaces, and non-metallic materials.
- Min/Max/Avg/Diff Logging: Capture temperature trends without a separate data logger.
- Rugged Industrial Build: Drop-tested, IP-rated housing survives demanding field conditions.
- Backlit Dual Display: Read IR and contact temperatures simultaneously in low-light environments.
- Fluke Reliability: Backed by Fluke’s global calibration network and long-term parts availability.
Industry & Equipment Applications
- Power Generation & Utilities: Transformer hot-spot detection, switchgear inspection, turbine bearing monitoring.
- Manufacturing & Process Industry: Conveyor motor checks, oven/furnace profiling, heat exchanger audits.
- HVAC & Building Services: Duct temperature surveys, chiller performance checks, radiant heating verification.
- Food & Pharmaceutical: Cold-chain compliance, sterilization process verification, clean-room monitoring.
- Automotive & Heavy Equipment: Engine diagnostics, brake system checks, hydraulic line temperature mapping.
- Electrical Maintenance: Panel thermography, motor winding checks, cable joint inspection.
System Integration & Compatible Parts
- Compatible Thermocouples: Type K thermocouple probes (standard mini-connector)
- Fluke 56x Series Accessories: Soft carrying case, hard carrying case, calibration certificate
- Related Instruments: Fluke 566, Fluke 572-2, Fluke 574, Fluke Ti series thermal imagers
- Calibration Services: Compatible with Fluke Calibration and ISO 17025-accredited labs
- Software: Compatible with Fluke Connect® for wireless data transfer (with optional adapter)
Our Quality Assurance Process
At Konmask.com, every Fluke 568-2 unit is sourced through verified, authorized supply channels. Before shipment, each instrument undergoes:
- Visual inspection for physical integrity and label authenticity
- Functional power-on and display verification
- Cross-check of serial number against manufacturer records
- Secure anti-static packaging with tamper-evident sealing
We provide a product authenticity guarantee and full traceability documentation upon request.
How to Order
- Submit an inquiry via the “Get a Quote” button or email support@konmask.com.
- Provide your required quantity, delivery destination, and any certification requirements.
- Receive a formal quotation within 1 business day.
- Confirm order and arrange payment via T/T, L/C, or agreed terms.
- Shipment with full documentation (packing list, commercial invoice, COO, test report).
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation & Test Equipment — deep technical knowledge, not a generic marketplace.
- ✅ Global B2B Export Experience — serving buyers in Europe, Southeast Asia, Middle East, and the Americas.
- ✅ Fast Inquiry Response — dedicated account managers respond within 24 hours.
- ✅ Flexible MOQ — single units to bulk orders, all handled professionally.
- ✅ Complete Export Documentation — COO, test reports, customs-ready paperwork.
- ✅ Long-Term Partnership Focus — we build relationships, not just transactions.
Frequently Asked Questions
- Q: What is the difference between the Fluke 568 and the Fluke 568-2?
- A: The 568-2 is the updated second-generation model with improved accuracy specifications, enhanced display, and updated compliance certifications compared to the original 568.
- Q: Can the Fluke 568-2 measure molten metal or furnace temperatures?
- A: Yes. With an IR range up to 800°C, it is suitable for monitoring furnace exteriors, molten metal proximity zones, and high-temperature process equipment — always observe safe working distances.
- Q: What type of thermocouple probe is compatible?
- A: The 568-2 accepts standard Type K thermocouple probes with a mini-connector. A wide range of Fluke and third-party Type K probes are compatible.
- Q: Does Konmask.com provide a calibration certificate?
- A: Yes, calibration certificates can be arranged upon request. Please specify your requirements when submitting your inquiry.
- Q: What is the minimum order quantity?
- A: We accept orders from a single unit. Volume pricing is available for orders of 5 units or more.
- Q: How long does international shipping take?
- A: Typical lead time is 3–7 business days for in-stock items via express courier (DHL/FedEx/UPS). Sea freight options are available for bulk orders.
